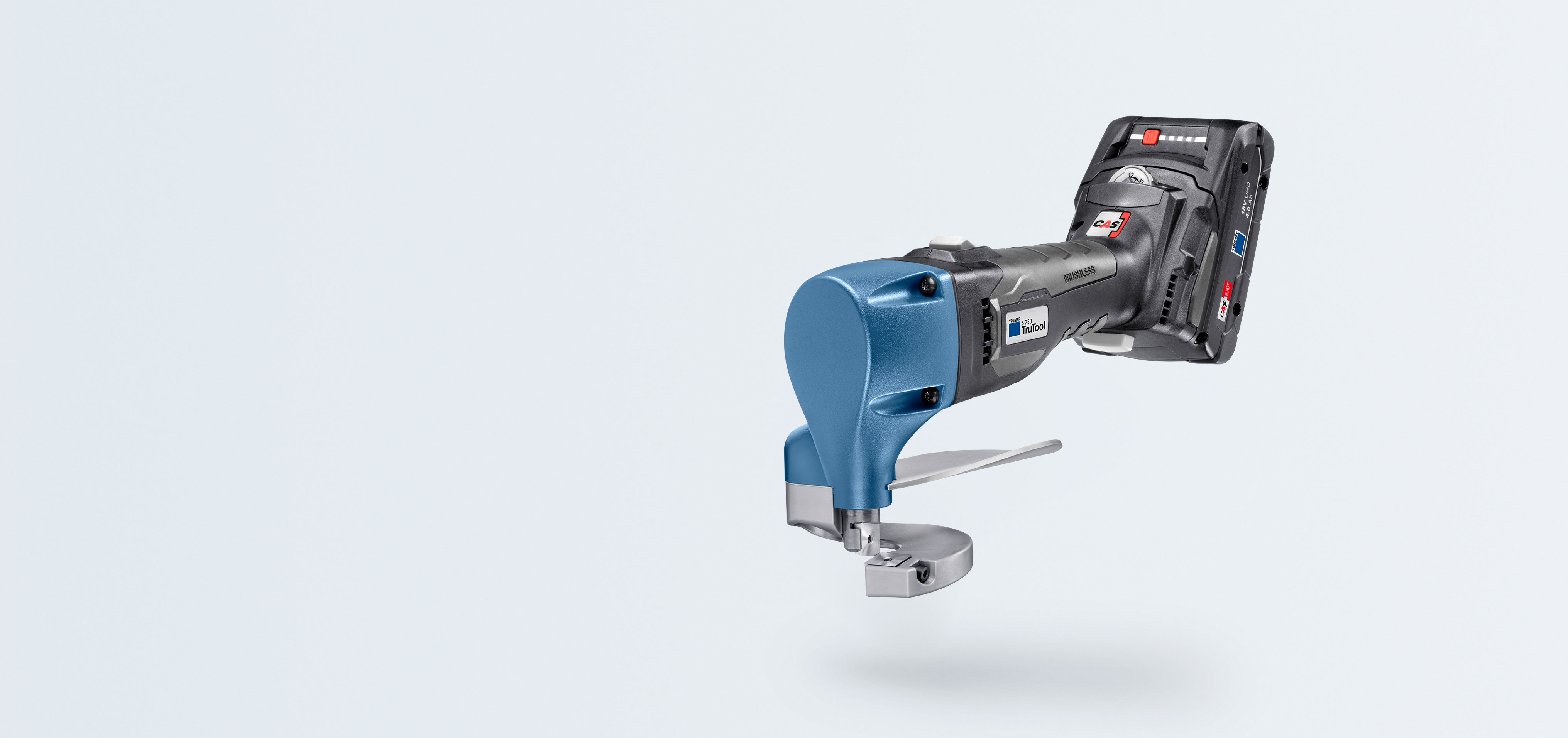

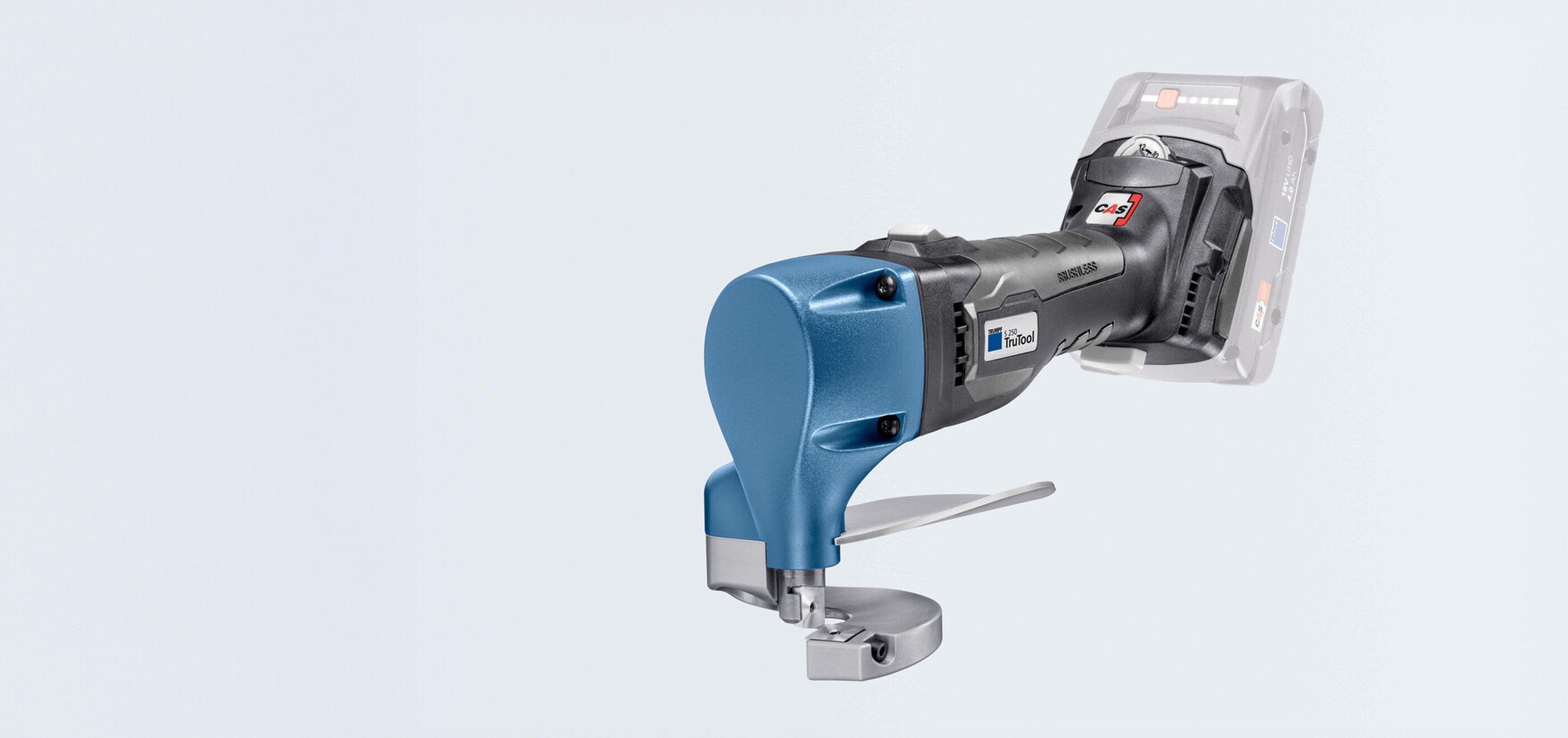

TruTool S 250 18V LiHD rechargeable battery shear

TruTool S 250 18V LiHD rechargeable battery shear

Precise cutting. Even in upside-down position.

TruTool S 250 18V LiHD rechargeable battery shear

For processing wire grids

Cut easily without exertion

The TruTool S 250 18V LiHD is the only rechargeable battery shear capable of cutting sheet thicknesses of 2.5 mm in mild steel and 1.5 mm in stainless steel. With this tool you always have an unrestricted view of the work surface and the cutting line. In addition, the compact machine is extraordinarily powerful and you can work without tiring, using only a low feed force. Curves can also be processed effortlessly. This is made possible by the perfectly coordinated geometry of the cutter, cutting table and hand protection. In addition, any collision with the sheet metal chip is avoided during the cutting process, ensuring a very high level of operator protection.

No exertion

Minimal feed force thanks to perfectly coordinated geometry of the cutter, cutting table and chip guard.

Extraordinary for curves

The rhombus-shaped cutters ensure a pleasant cutting behavior - even with curve and coil cuts.

No collisions during cutting

Perfect guiding of the cutting chip thanks to the optimally coordinated positioning of the cutting table and hand protection.

Safe operation

The dimensions and positioning of the hand protection provide maximum operator safety when cutting.

Ergonomic

The soft grip ensures low-vibration operations.

Long service life

Low operating costs as a result of the durable cutter and the 2-way cutter rotation option.

Shears: Video on the area of application

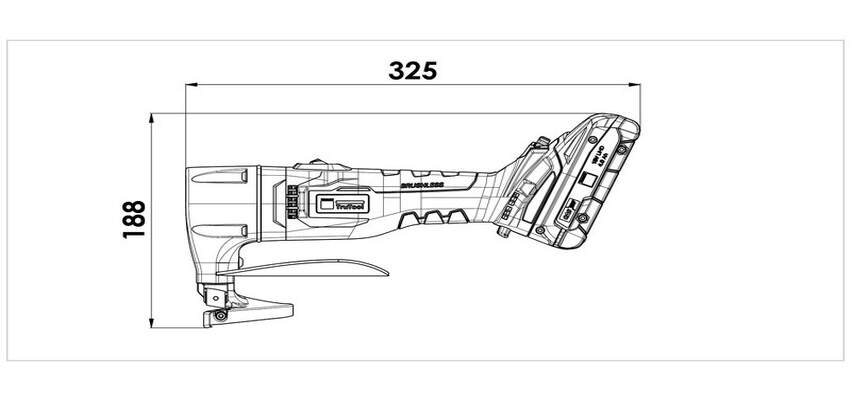

TruTool S 250 18V LiHD rechargeable battery, dimensional drawing

Cordless Alliance System

This product is part of the Cordless Alliance System. CAS means one battery for everything, 100% compatibility for machines, rechargeable battery packs and rechargers – regardless of manufacturer. The world's most powerful battery system with 30 years of battery expertise from Metabo. Maximum reliability, clear cost benefits and a sound investment.

Battery technology

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. The cells are protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. High-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection.

Flat sheet

Cutting and trimming of flat sheets. For radial and interior cutouts.

Profiles

For cutting C-L-U profiles

Coil processing

For cutting coils. For relief cuts and sampling.

The following consumables and the corresponding accessories are included in the scope of delivery.

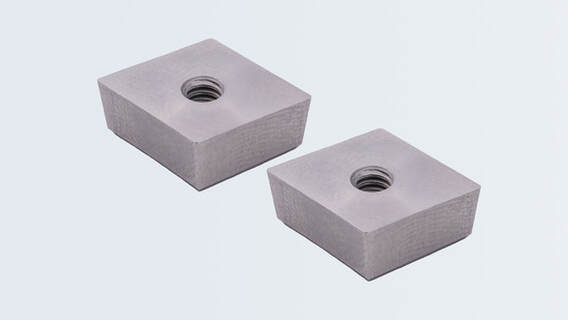

Cutter, 2 units
(installed)
18V LiHD 4 Ah rechargeable battery (2 units)
1 unit 2598811
12V-36V recharger LG
1 unit, Version DE / CH: 2569784 | 1 unit, Version GB: 2569786 | 1 unit, Version USA: 2569785
TRUMPF Box S2
1 unit 1763682

Find the right consumables and accessories for your machine here.

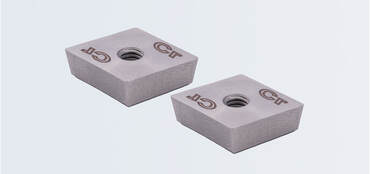

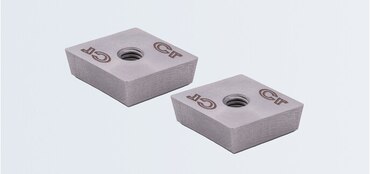

Cutter CR

For high-tensile sheets up to 800 N/mm2

Set of 2  2751131

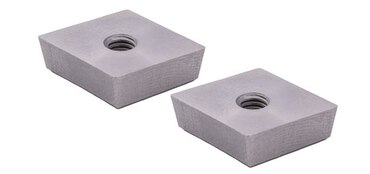

Cutter

For steel up to 57,000

Set of 2  2777388
Set of 10  2750848
18V starter kit

1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery

1 Set (DE)  2598816
1 set (GB)  2598820
1 Set (USA)  2598818
LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 unit (DE/CH)  2569784
1 unit (GB)  2569786
1 unit (USA)  2569785
18V LiHD 4.0Ah rechargeable battery

1 unit  2598811
TRUMPF Box S2

1 unit  1763682

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This has a positive effect on battery life and allows you to get the most out of every battery charge. Additional advantage: The service life of a BL motor is almost unlimited because it works without carbon brushes and therefore is not subject to mechanical friction. The result: practically wear-free motors and little maintenance.

Compact and powerful

The 18V cordless machine is lightweight and allows you to work without tiring. The soft grip ensures safe operations with a low level of vibration. All TRUMPF cordless machines are also available as a solo version, i.e. without batteries and recharger. If you are able to use existing CAS batteries, this offers you the opportunity to conserve resources and save costs.

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. This is extremely efficient if you work in accordance with predefined cutting lines or a template. It is also useful for frequent processing of radii and stainless steel. Another plus is the electronic overload protection.

TruTool S 250 18V LiHD rechargeable battery shear
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 2.5 mm
Maximum sheet thickness, steel 600 N/mm² 2 mm
Maximum sheet thickness, steel 800 N/mm² 1.5 mm
Maximum sheet thickness, aluminium up to 250 N/mm² 3 mm
Radii
Smallest radius 20 mm
General
Working speed (max.) 8 m/min
Starting hole diameter 28 mm
Voltage 18 V
Dimensions
Length 325 mm
Height 189 mm
Weight
Weight (incl. rechargeable battery) 2.5 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
