For heavy-duty tasks
The TruTool S 450 is equipped with a robust cutting table specifically designed for thick sheet. This enables you to produce high-quality cuts in sheet thicknesses of up to 0.177 in. Above all, the machine is particularly well-suited for processing stainless steel up to 0.1 in. You can cut radii starting from 1.37 in without force. With a working speed of 19.5 feet per minute, you can progress quickly with your work. This is particularly advantageous when processing large sheets. The cutters can be adjusted quickly and easily to the sheet thickness using a rotary knob.
Powerful 1700 W motor with a cutting table specifically designed for thick sheet.
Cutter height adjustment enables individual adaptation to the sheet thickness.
The bow-handle, for one-hand and two-hand operation, ensures reliable machine control.
The cutters each have two cutting edges and can be used either at the top or bottom.
Cutting and trimming of flat sheets. For radial and interior cutouts as well as notching.
For cutting coils. For relief cuts and sampling.

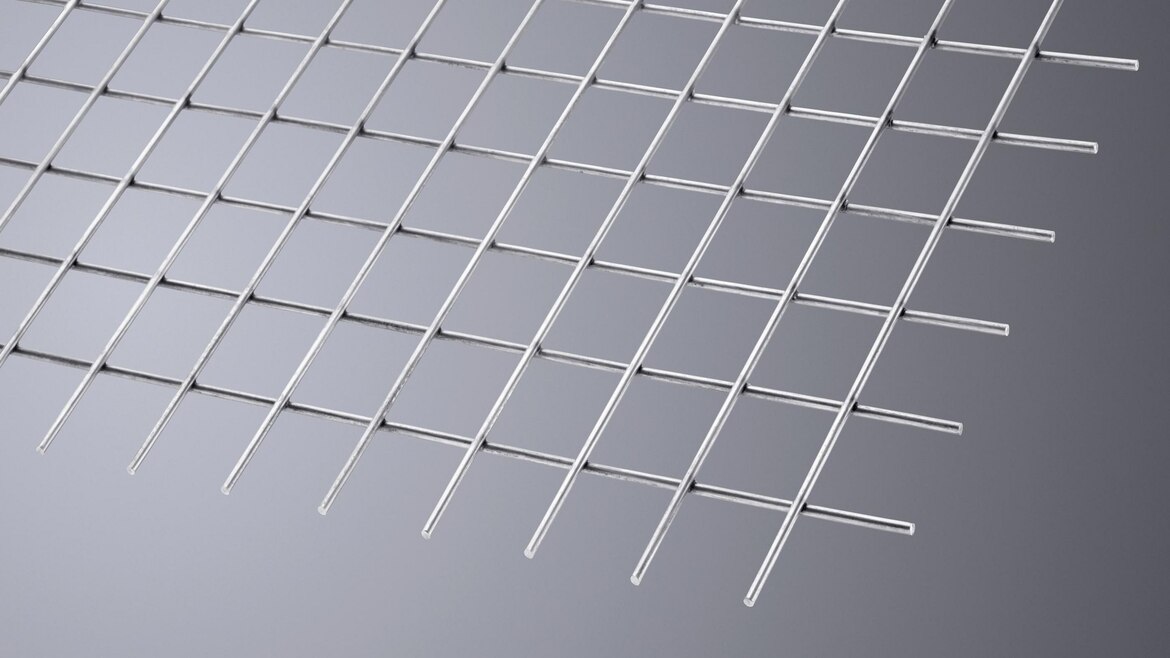

For cutting the most diverse wire grids.
The following consumables and the corresponding accessories are included in the scope of delivery.
Find the right consumables and accessories for your machine here.

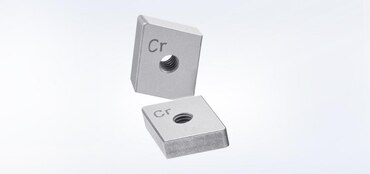

For high-tensile sheets up to 114,000
For steel up to 57,000

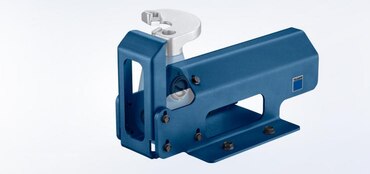

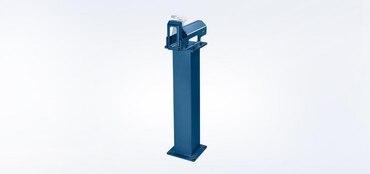

Pedestal for work station
For the stationary processing of small workpieces and wire grids.
For the stationary processing of small workpieces and wire grids

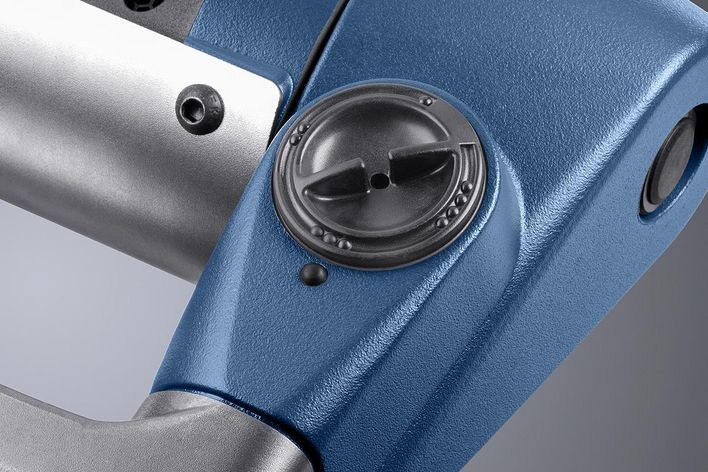

Height adjustment without tools
The handy marking points on the rotary knob make it easy to adjust the cutters, for curves or straight cuts. The perfect setting is available for every application and sheet thickness. This facilitates sheet metal processing, enabling you to carry out work effortlessly.

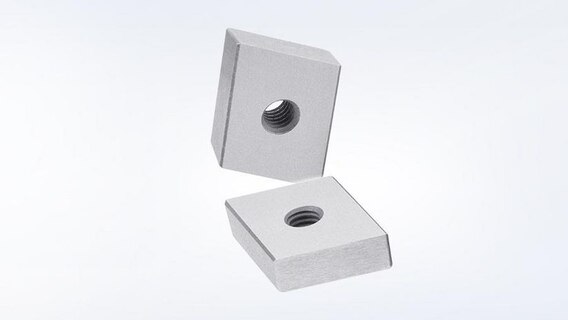

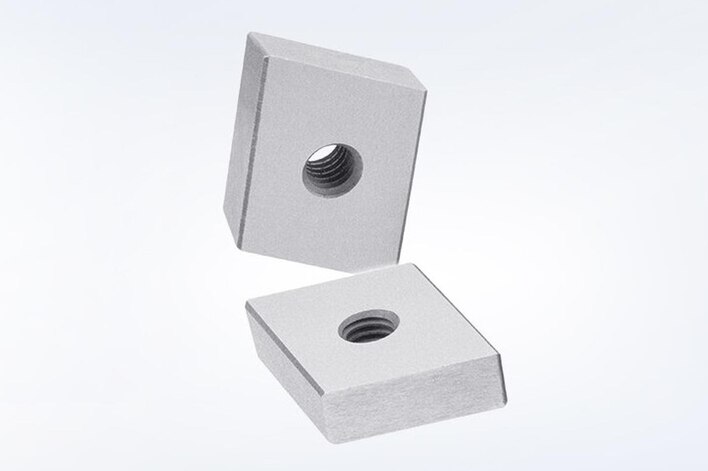

Two-way blade rotation
You can achieve high-quality cutting results due to the secure cutter attachment. If the cutting performance decreases, you can rotate the cutter by 180° and continue working with a new cutting edge. The result is optimum cut quality, combined with a long tool life.

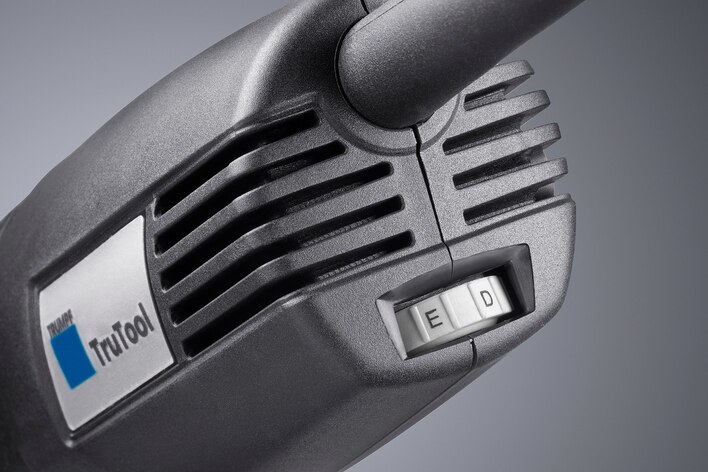

Optimal working speed
An easy-to-use speed controller on the motor regulates the stroke rate and adapts to the respective application. This is particularly well-suited for working with scribed lines, where radii and stainless steel are frequently processed. Reducing the stroke rate achieves the optimal torque, especially for processing sheet thicknesses from 0.16 inches. Lower speeds are recommended for cutting stainless steel. The speed controller can be used to adjust the working speed in line with the respective working situation.

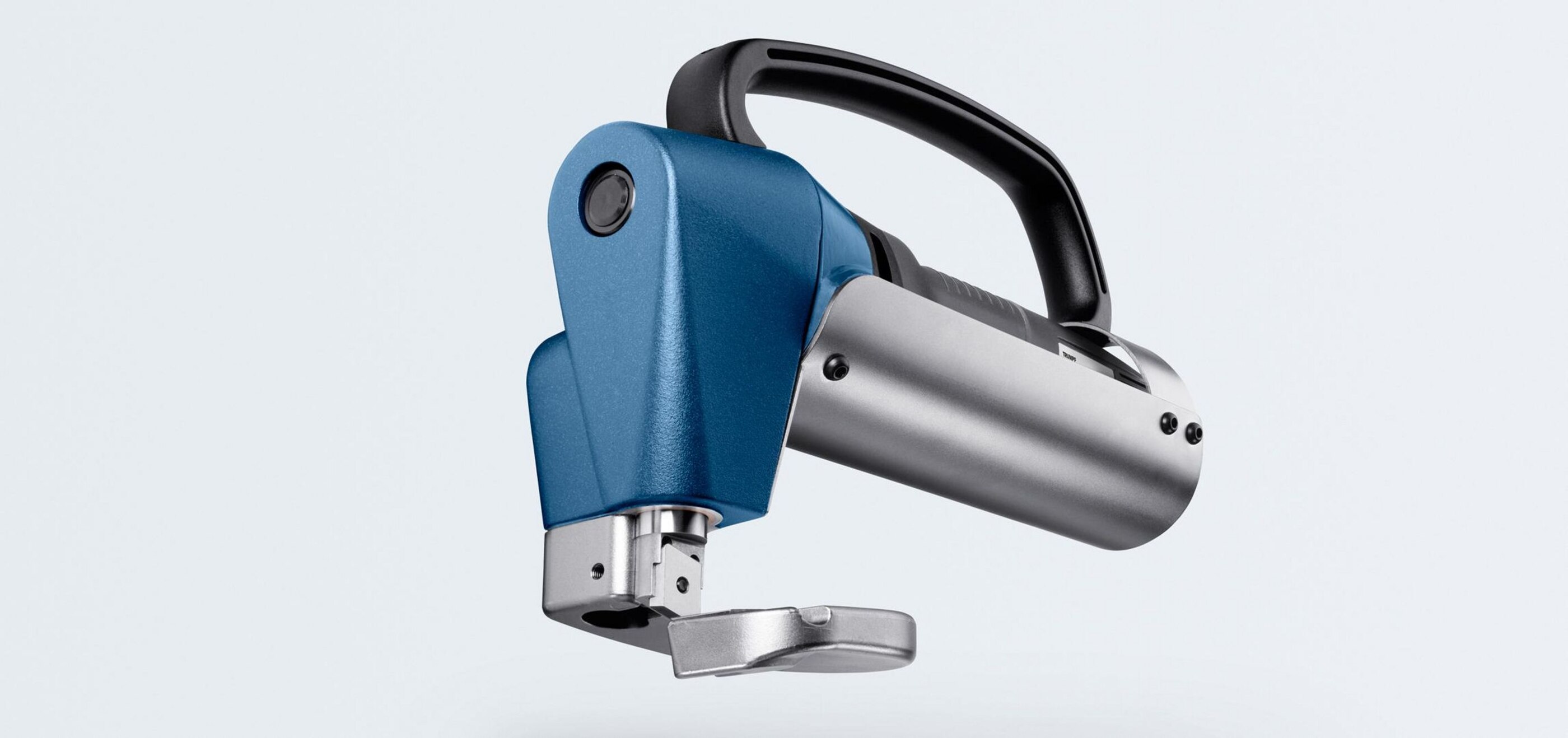

TruTool S 450
|Maximum sheet thicknesses|
|Maximum sheet thickness, steel 400 N/mm²||4.5 mm|
|Maximum sheet thickness, steel 600 N/mm²||3.5 mm|
|Maximum sheet thickness, steel 800 N/mm²||2.5 mm|
|Maximum sheet thickness, aluminium up to 250 N/mm²||5 mm|
|Smallest radius||L 35 mm / R 25 mm|
|Working speed (max.)||6 m/min|
|Starting hole diameter||75 mm|
|Nominal power consumption||1700 W|
The technical data of all product versions as a download.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
