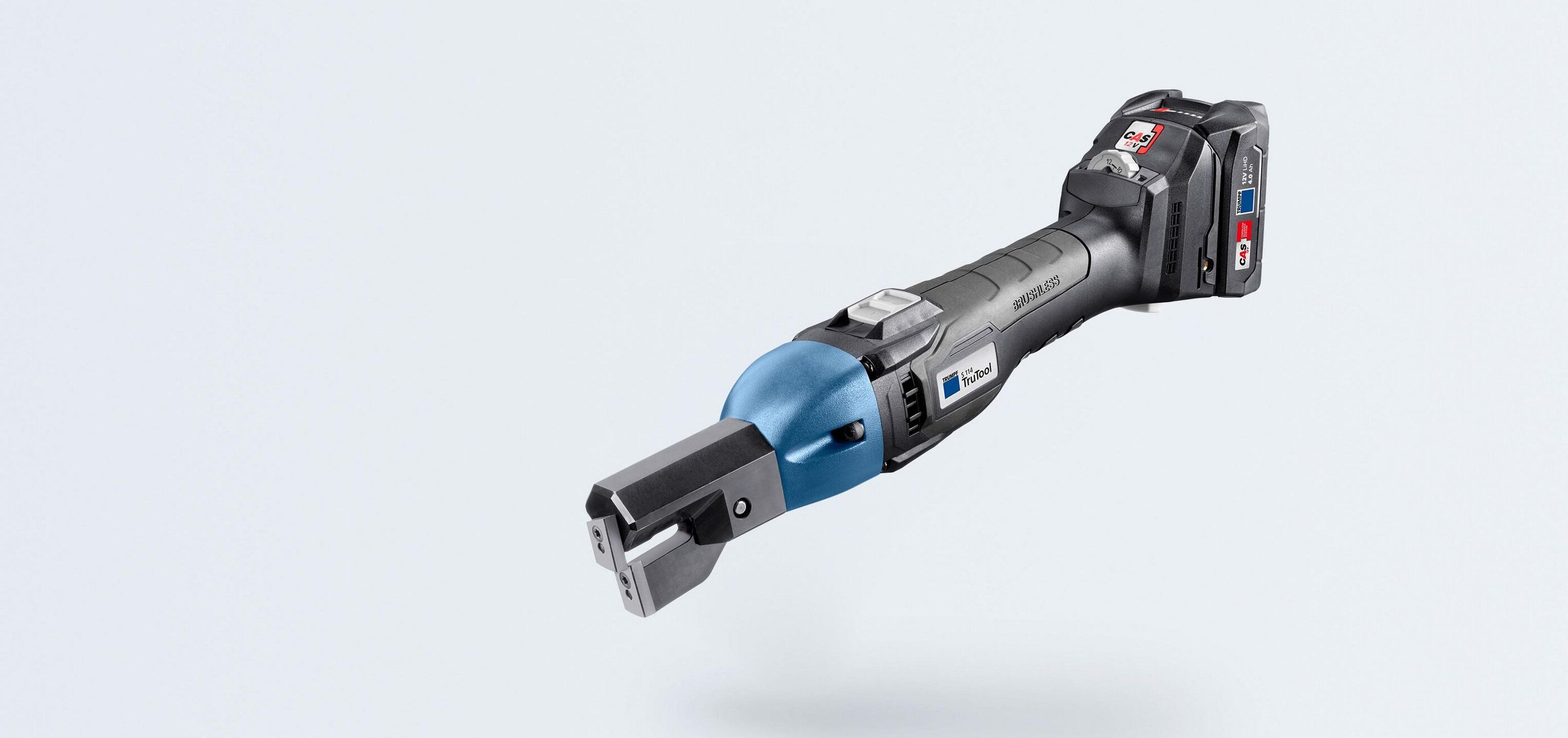

TruTool S 114 12V LiHD rechargeable battery

TruTool S 114 12V LiHD rechargeable battery

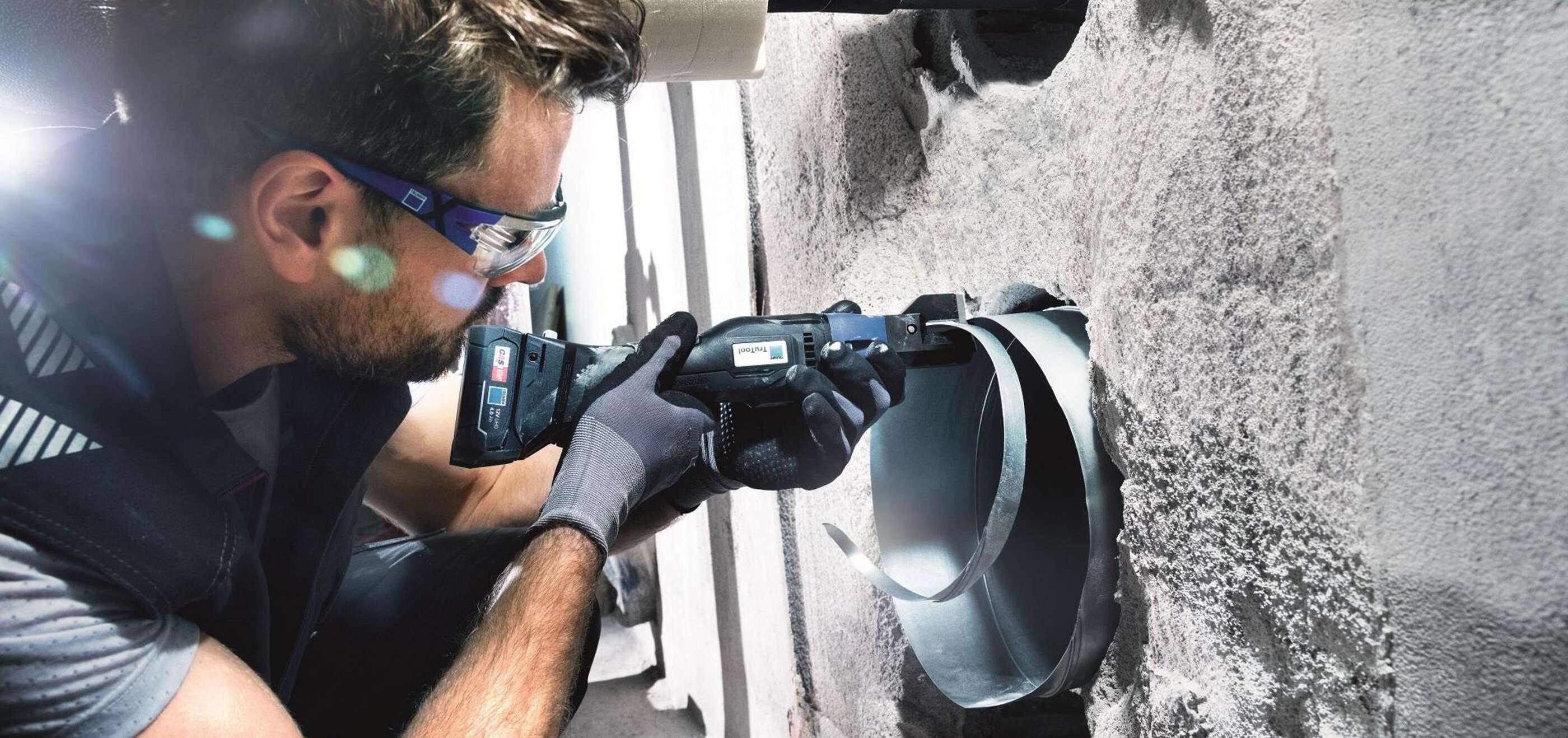

Flush cutting on ceilings and ducts

Short and flush cutting

The 12V rechargeable battery machine cuts ventilation ducts flush with walls and ceilings effortlessly, precisely and with a minimal obstruction of 30 mm. The TruTool S 114 can be easily rotated and delivers an outstanding cut quality, even when cutting spiral ducts. The 4.0 Ah / 12V LiHD rechargeable battery also ensures long runtimes.

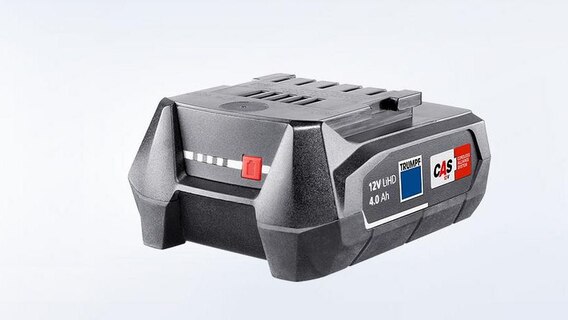

Just right

Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.

Brushless motor

Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.

For even greater use

The TruTool S 114 is perfect for trimming and cutting C, L, and U profiles.

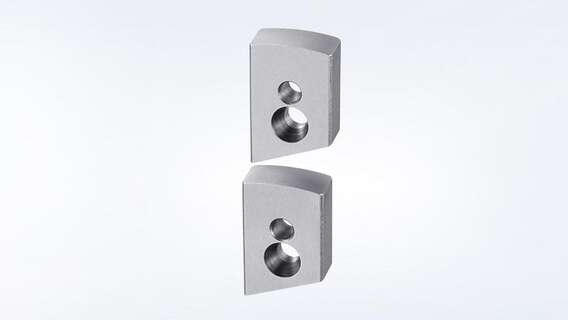

2-sided multi-edge cutter

The cutters can be interchanged with each other, thus doubling the service life.

TruTool S shears: video on its area of application

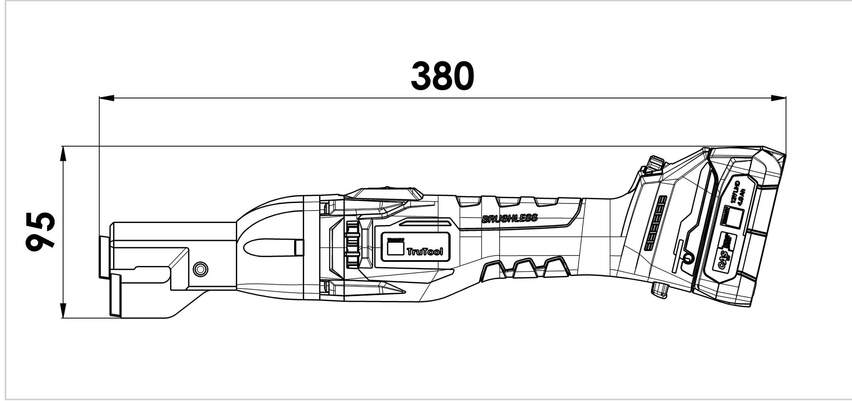

TruTool S 114 12V LiHD rechargeable battery, dimensional drawing

Leading

The world's most powerful battery technology with 30 years of battery expertise from Metabo. Full compatibility within the 12V class – also with CAS partner machines. Universal recharger, regardless of whether you use 12V, 18V or 36V CAS rechargeable batteries.

Battery technology

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. The cells are protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. High-quality materials and intelligent battery management combined with brushless motors and power head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection..

Flat sheet

Cutting and trimming of flat sheets. For radial and interior cutouts as well as notches.

Profiles

For cutting C-L-U profiles.

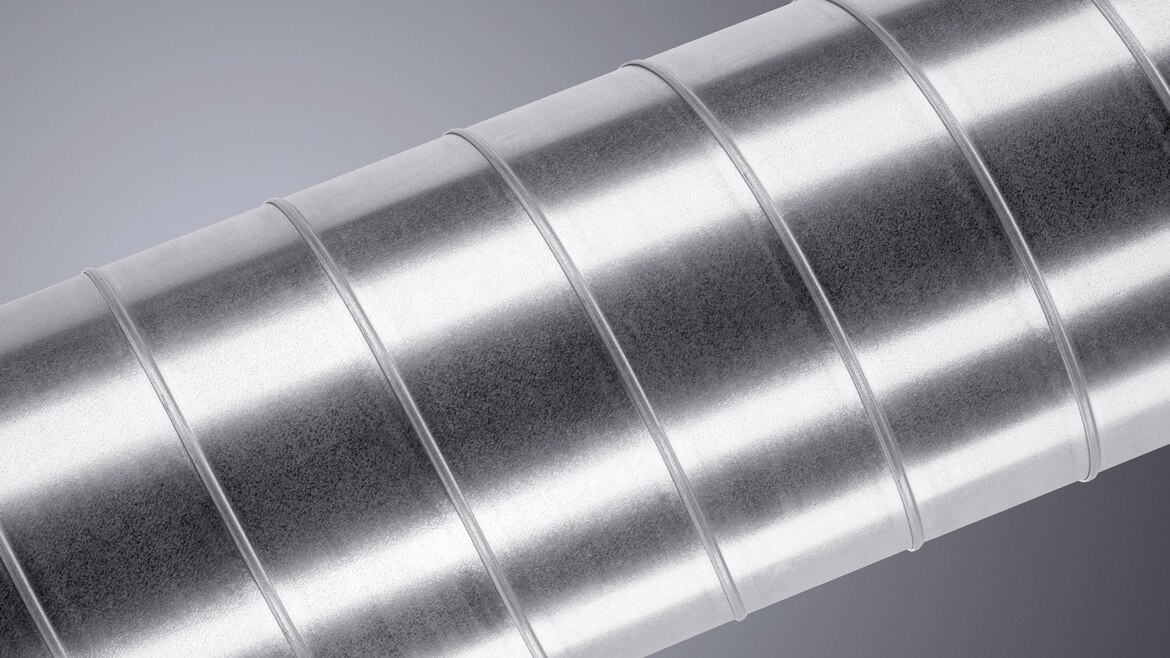

Ventilation ducts

Flush cutting of ventilation ducts on walls and ceilings.

The following consumables and the corresponding accessories are included in the scope of delivery.

Cutter
Integrated
Belt clip
1 unit 2579850
12V-36V recharger LG
1 unit, DE/CH version: 2569784 | 1 unit, GB version: 2569786 | 1 unit, USA version: 2569785
12V LiHD 4.0 Ah rechargeable battery (2 units)
1 unit 2598770
Hexagonal bar wrench TX 20
1 unit 1775531
TRUMPF Box S1
1 unit 1763681

Find the right consumables and accessories for your machine here.

Cutter

For steel up to 85,000

Set of 2  1376494
Belt clip

Suitable for the 12V LiHD battery machines

1 unit  2599016
12V starter kit

1x LG 12V-36V recharger / 2x 12V LiHD 4.0 Ah rechargeable battery

1 Set (DE)  2598815
1 Set (GB)  2598819
1 Set (USA)  2598817
LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 unit (DE/CH)  2569784
1 unit (GB)  2569786
1 unit (USA)  2569785
12V LiHD 4.0Ah rechargeable battery

1 unit  2598770
TRUMPF Box S2

1 unit  1763682

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.

Small and handy

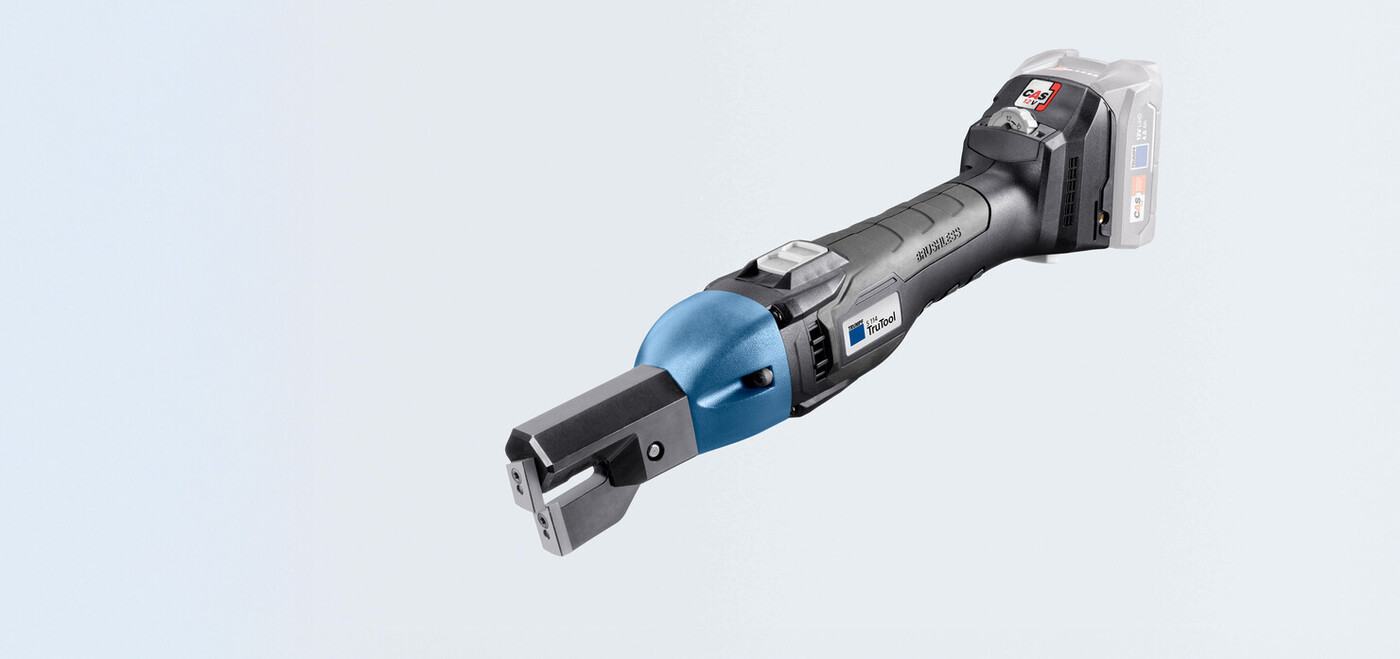

The 12V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

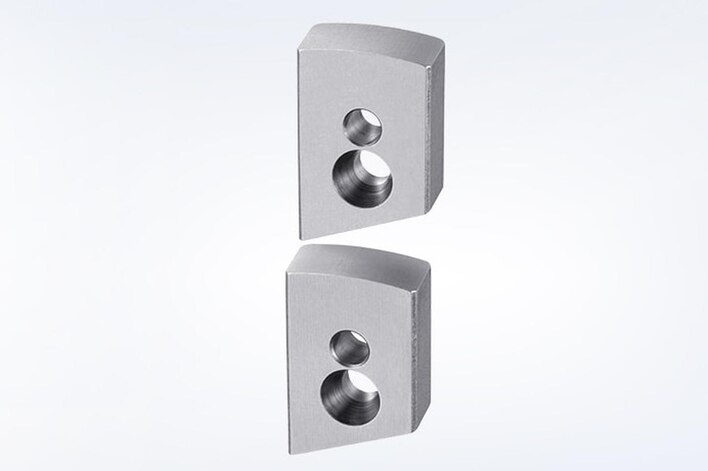

2-sided multi-edge cutter

The TruTool S 114 requires two cutters for the cutting process. The top cutter always has the cutting function. As soon as it becomes blunt, you can easily swap the cutters with one another. This doubles the service life and work can be quickly resumed.

Optimal working speed

You can use the speed control to adjust the working speed to suit the individual cutting task. This provides a variable cutting speed of up to 29.5 feet per minute. The speed control is highly efficient for work with scribed lines or with a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

TruTool S 114 12V LiHD rechargeable battery
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 1.6 mm
Maximum sheet thickness, steel 600 N/mm² 1 mm
Maximum sheet thickness, aluminium up to 250 N/mm² 2 mm
Spiral duct steel 400 N/mm² 4 x 0.75 mm
Spiral duct steel 600 N/mm² 4 x 0.5 mm
Radii
Smallest radius 60 mm
General
Working speed (max.) 13 m/min
Voltage 12 V
Minimum tube diameter 50 mm
Throat depth 30 mm
Weight
Weight (incl. rechargeable battery) 1.8 kg
Dimensions
Length 380 mm
Height 95 mm

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
