Simple closing of ducts in thin sheet range
With the TruTool F 301, you can close Pittsburgh seams effortlessly on straight or curved ducts with sheet thicknesses of 0.018 in. - 0.04 in. for mild steel. There is no need for refitting when processing formed or folded pieces. The adjustment to the sheet thickness is automatic and the forward feed guarantees a consistent and tight seam.
With the TruTool F 301 you can close formed or folded pieces without refitting the machine.
Suitable for flange heights of 8 mm – 11 mm and for sheet thicknesses of 0.45 – 1 mm.
Automatic adjustment to the sheet thickness gives you consistent seam results.
With the TruTool F 301, you can close seams on straight and curved ducts.
For closing Pittsburgh seams
On straight or curved ducts with flange heights of 0.31 in. - 0.43 in. and sheet thicknesses of 0.03 in. - 0.05 in. in mild steel.

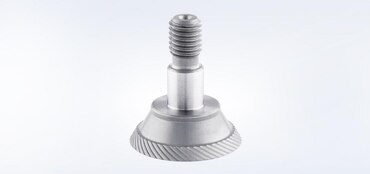

The following consumables and the corresponding accessories are included in the scope of delivery.
Find the right consumables and accessories for your machine here.
|

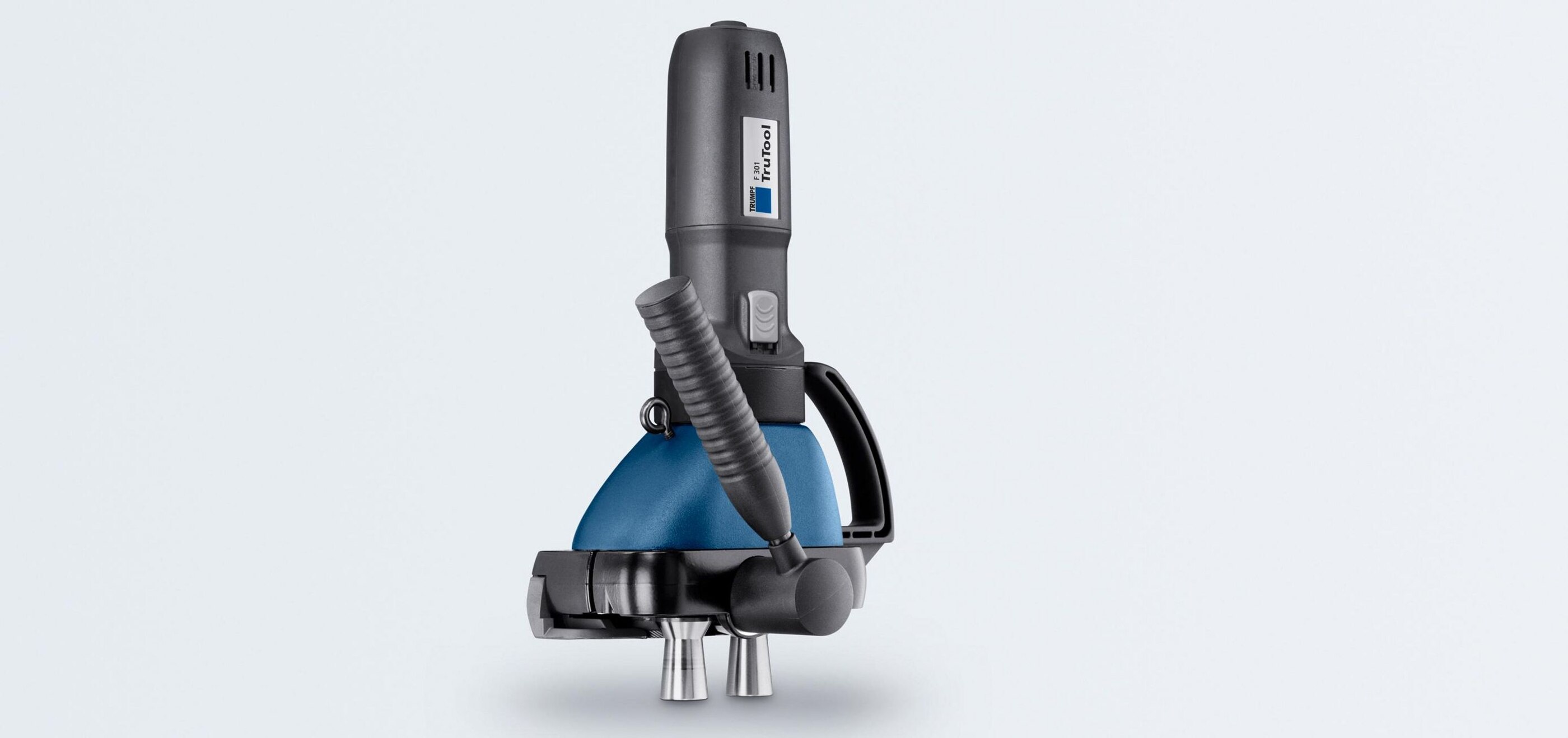

TruTool F 301
|
|
|---|---|
| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel 400 N/mm² (minimum) | 0.45 mm |
| Maximum sheet thickness, steel 400 N/mm² (Maximum) | 1 mm |

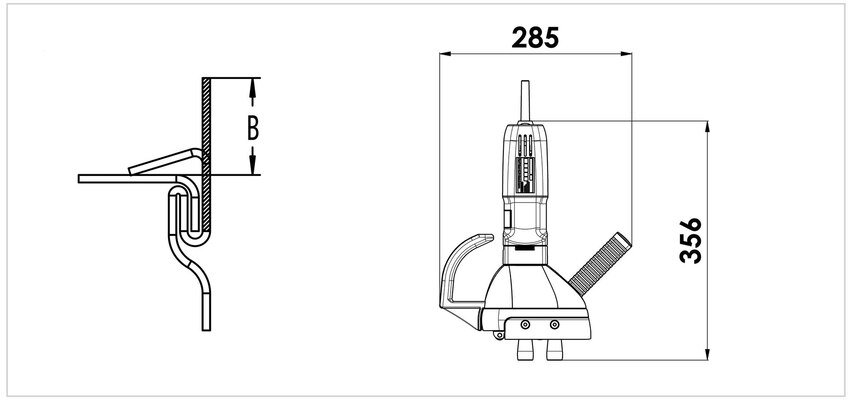

| Flange height (B) | |
| Flange height (B) with sheet thickness 0.45 - 1.0 | 8 mm - 11 mm |
| Radii | |
| Smallest inner radius (preformed) | 150 mm |
| Smallest outer radius | 300 mm |
| General | |
| Working speed (max.) | 7 m/min |
| Nominal power consumption | 550 W |
| Dimensions | |
| Length | 285 mm |
| Height | 356 mm |
| Weight | |
| Weight | 5.2 kg |
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
