High seam quality – even in stainless steel

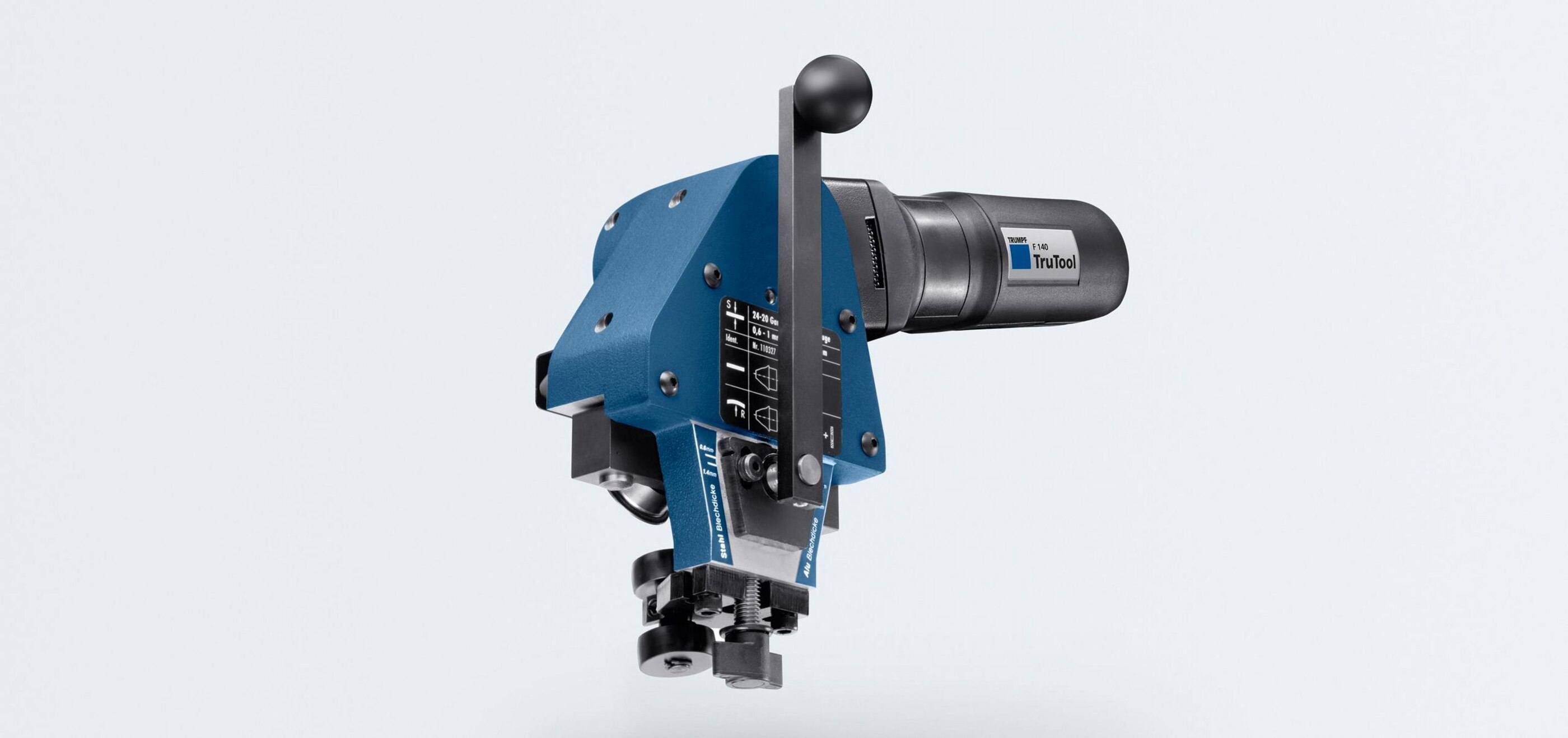

With the TruTool F 140, Pittsburgh seams on straight or curved ducts with sheet thicknesses of 0.6 mm – 1.4 mm, can be closed with ease. The machine is also ideally suited to processing stainless steel. The TruTool F 140 adapts automatically to the sheet thickness. There is also no need for refitting when processing formed or folded pieces.
The TruTool F 140 is an excellent match for processing stainless steel up to a thickness of 0.025 in.
Automatic adjustment to the sheet thickness gives you consistent seam results.
With the TruTool F 140, you can close seams on straight and curved ducts.
Suitable for flange heights of 8 mm – 12 mm and for sheet thicknesses of 0.6 mm – 1.4 mm.
For closing Pittsburgh seams
On straight or curved ducts with flange heights of 8 mm – 12 mm and sheet thicknesses of 1.4 mm for mild steel and 0.6 mm for stainless steel.
The following consumables and the corresponding accessories are included in the scope of delivery.
Find the right consumables and accessories for your machine here.
1 x 0.024 -0.039 in. roller, 1 x spacer and 1 x deep-groove ball bearing
0.039 - 0.055 in. roller, 1 x spacer and 1 x deep-groove ball bearing
|
TruTool F 140
|
|
|---|---|
| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel 400 N/mm² | 1.4 mm |
| Maximum sheet thickness, steel 600 N/mm² | 0.6 mm |
| Flange height (B) | |
| Flange height (B) with sheet thickness 0.6 - 1.0 | 8 mm - 10 mm |
| Flange height (B) with sheet thickness > 1.0 - 1.4 | 10 mm - 12 mm |
| General | |
| Flange height (H) | 10 mm - 15 mm |
| Working speed (max.) | 10 m/min |
| Nominal power consumption | 550 W |
| Air gap (c) | 2.5 mm |
| Dimensions | |
| Length | 321 mm |
| Height | 257 mm |
| Weight | |
| Weight | 4.3 kg |
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
