For cost-effective work at the installation site
The TruTool F 300 is ideal for closing Pittsburgh seams on straight or curved ducts. You can work quickly with the quiet roll/glide process and achieve a tight connection. The sheet thickness range for this is 0.03 inches to 0.05 inches for mild steel. The adjustment to the sheet thickness is automatic.
Suitable for flange heights of 9 mm – 13 mm and for sheet thicknesses of 0.75 mm – 1.25 mm.
Automatic adjustment to the sheet thickness gives you consistent seam results.
With the TruTool F 300, you can close seams on straight and curved ducts.

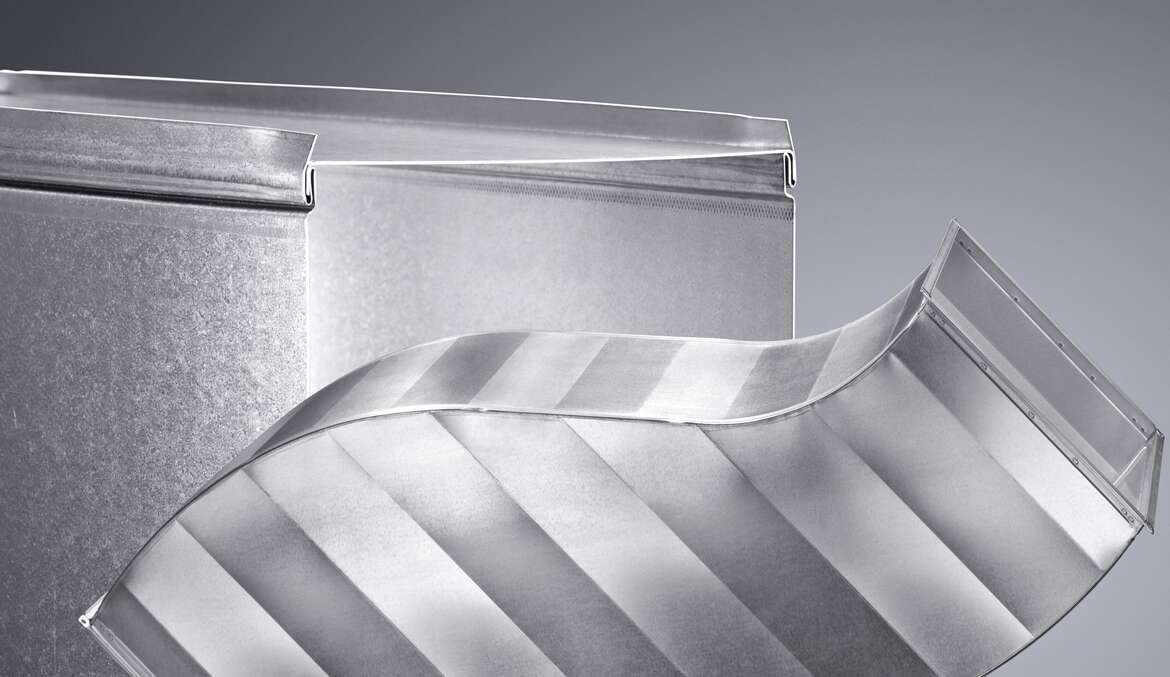

For closing Pittsburgh seams
On straight or curved ducts with flange heights of 9 mm – 13 mm and sheet thicknesses of 0.75 mm – 1.25 mm for mild steel

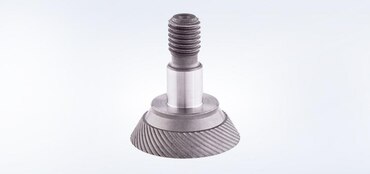

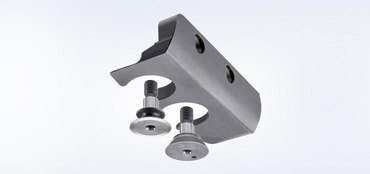

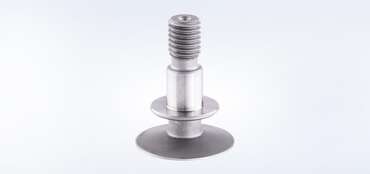

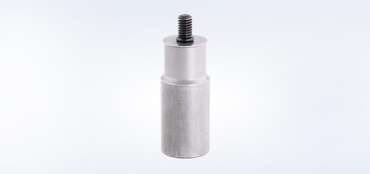

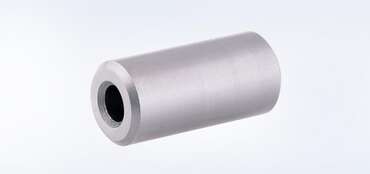

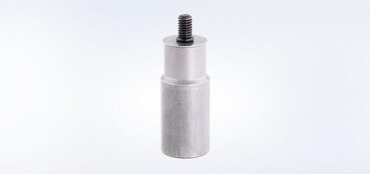

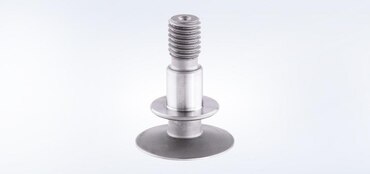

The following consumables and the corresponding accessories are included in the scope of delivery.
Find the right consumables and accessories for your machine here.
|

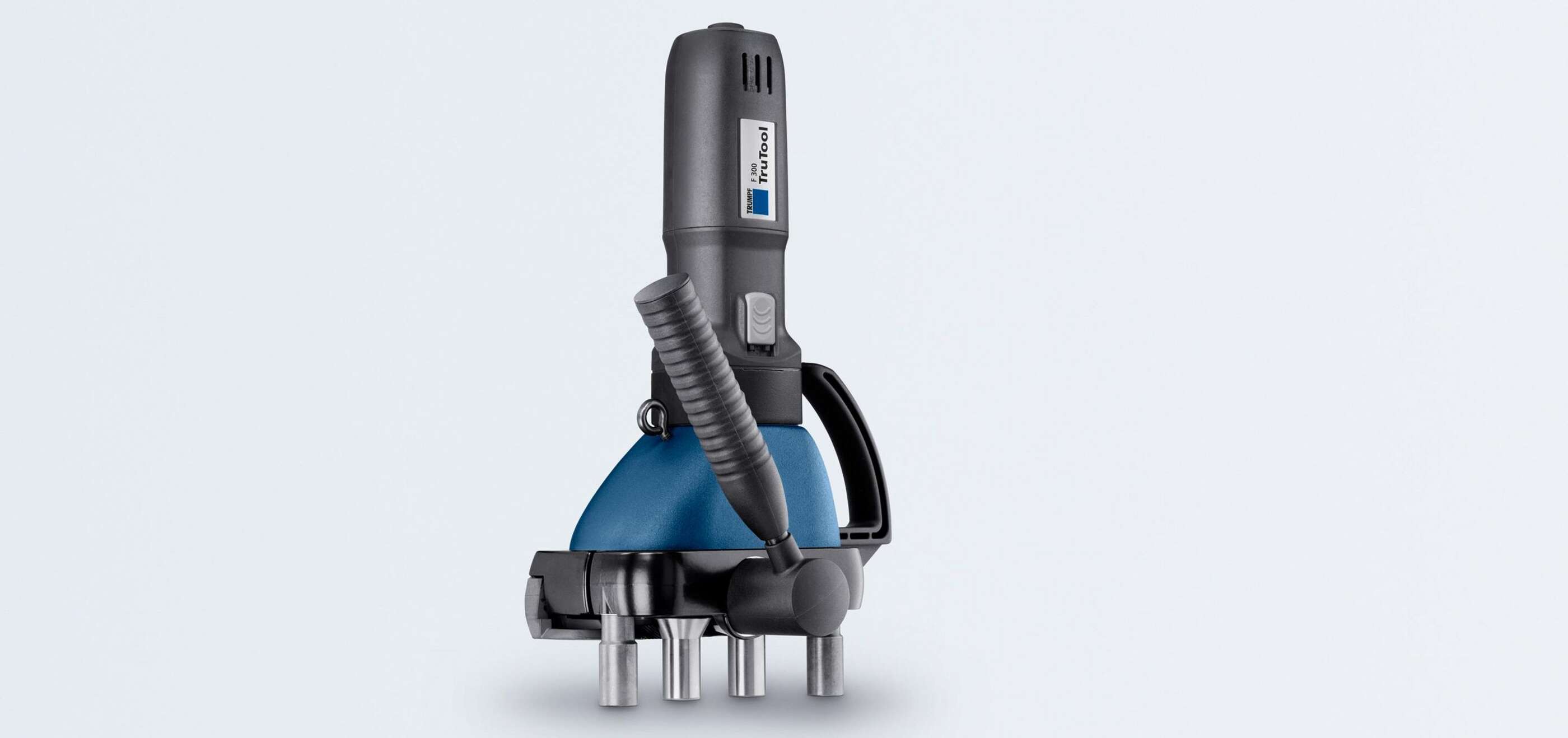

TruTool F 300
|
|
|---|---|
| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel 400 N/mm² (minimum) | 0.75 mm |
| Maximum sheet thickness, steel 400 N/mm² (Maximum) | 1.25 mm |

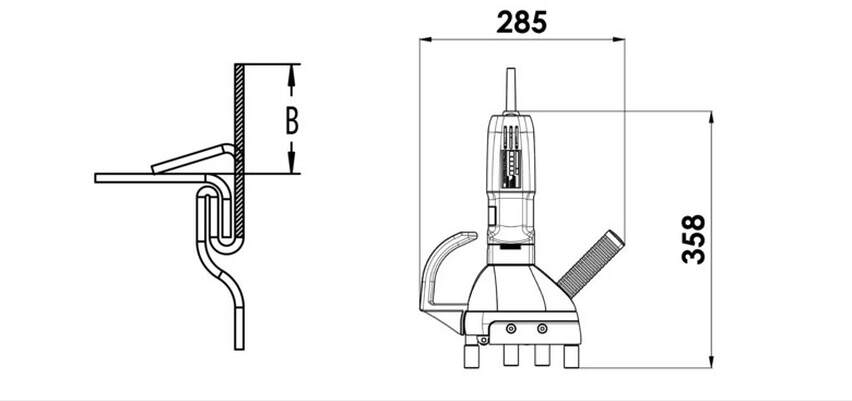

| Flange height (B) | |
| Flange height (B) with sheet thickness 0.75 - 1.0 | 9 mm - 11 mm |
| Flange height (B) with sheet thickness > 1.0 - 1.25 | 11 mm - 13 mm |
| Radii | |
| Smallest inner radius (preformed) | 150 mm |
| Smallest outer radius | 300 mm |
| General | |
| Working speed (max.) | 7 m/min |
| Nominal power consumption | 550 W |
| Dimensions | |
| Length | 285 mm |
| Height | 358 mm |
| Weight | |
| Weight | 5.5 kg |
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
