TruMicro Series 7000, built for maximum performance.
TruMicro Series 7000, built for maximum performance.
Short and ultrashort pulse lasers

TruMicro Series 7000

Built for maximum performance

Specialist for large surfaces

The high-performance short-pulse lasers from the TruMicro Series 7000 are based on disk laser technology and combine short pulses with high pulse energies, even with high frequencies. The lasers are therefore best-suited to large-scale and quick cleaning, ablation, or structuring with maximum throughput. With the flexible beam guidance, you can integrate the laser effortlessly into your manufacturing system.

Short pulses – high performance

The ideal combination for your micro-processing requirements.

One disk – a variety of uses

You can also clean or temper large components.

Full power

The internal power regulation provides the full pulse energy for your process.

One laser – up to four laser outputs

The configurable power distribution allows for optimal adaptation to your application.

Optical arrangement of the TruMicro Series 7000
Built for maximum performance

The particularly powerful short-pulse lasers of the TruMicro Series 7000 can ablate layers quickly and on a large scale, drill or cut with high throughput. With pulse energies of up to 100 mJ, they can achieve tremendous decoating rates with an excellent level of efficiency. You can vary the rate of repetition of the lasers while maintaining an even pulse duration, thereby optimizing your machining processes. Large surfaces can be ablated particularly efficiently through the use of scanners.

Hairpin stripping of copper chamfers, application example

Decoating sensitive copper hairpins on electric motors

The sensitive copper of electric motor hairpins is protected against oxidation and damage by a layer paint. To prepare the pins for welding, the layer of paint is selectively removed using a short-pulse laser without damaging the underlying copper. The results of the process are more precise and faster than those of mechanical stripping processes. The hairpins are then precisely welded for maximum conductivity.

Plastic-metal hybrid connection

Plastic-metal hybrid connection

Automobile manufacturers are increasingly turning to lightweight design in order to reduce fuel consumption and the CO2 emissions of their vehicles. Hybrid metal-plastic connections are playing an increasingly important role here, since they combine the high strength and rigidity of metals with the low weight and great design freedom of plastic, for example. The high-performance nanosecond lasers of the TruMicro Series combine metal and plastic perfectly and without additional materials, such as screws, rivets, or adhesives.

Edge deletion and isolation of thin-film solar modules

Edge deletion of thin-film solar modules

In order to protect thin-film solar modules against corrosion and long-term short circuits, the layer system at the edge of the module is removed and then laminated. In this application, the laser penetrates the glass and splits off the layer system from the carrier material, without causing cracks or fusing on the glass. In comparison to conventional sandblasting, there are no costs for the blasting medium or its supply. Furthermore, the excellent process properties ensure extremely high decoating rates.

Welding preparation of AlSi-coated steel sheets

Welding preparation of AlSi-coated steel sheets

The nanosecond lasers of the TruMicro Series 7000 are ideal for the efficient ablation of aluminum-silicon coats – without changing the basic material. In the automotive industry in particular, steels are coated with aluminum-silicon (AlSi) as an anti-corrosion agent. For perfect welding results, this coating must be removed in the weld seam area.

Paint removal with TruMicro Series 7000 lasers

Cleaning and paint removal with short-pulse laser

The short-pulse laser enables paints, residual adhesives, or oxide films to be partially or fully removed from surfaces without damaging the basic material. The laser meets user requirements in terms of edge and ablation quality in particular. However, the laser process also competes with conventional processes when it comes to cost efficiency.

TruMicro 7060
TruMicro 7070
Laser parameters
Average output power 1000 W 2000 W
Beam quality 10 mm▪mrad , depends on the optical laser cable that is used 10 mm▪mrad , depending on the laser light cable used
Wavelength 1030 nm 1030 nm
Pulse duration 30 ns 30 ns
Maximum pulse energy 100 mJ 100 mJ
Minimum repetition rate 5 kHz 5 kHz
Maximum repetition rate 100 kHz 250 kHz
Minimum laser light cable diameter 300 μm 300 μm
Structural design
Dimensions for basic device size (W x H x D) 1340 mm x 1430 mm x 725 mm 1340 mm x 1430 mm x 725 mm
Dimensions for extended device size (W x H x D) 1340 mm x 1475 mm x 1040 mm 1340 mm x 1475 mm x 1040 mm
TruControl control


TruControl is the quick and easy-to-use control for TRUMPF solid-state lasers. It regulates the laser power in real time in order to deliver reproducible results. TruControl manages, controls, and visualizes the interface configuration. You benefit from a uniform control architecture across all laser technologies. The lasers have interfaces to control intelligent TRUMPF optics, such as monitored CFO focusing optics or PFO scanner optics. You can program the processing optics easily via the laser control system. With the Teleservice from TRUMPF you will also receive remote support in seconds. This will enable you to avoid service calls or be as prepared as possible and increase the availability of the laser device.

With the valuable options of the TruMicro Series 7000 high-performance nanosecond lasers, you can work more efficiently and with greater reliability.

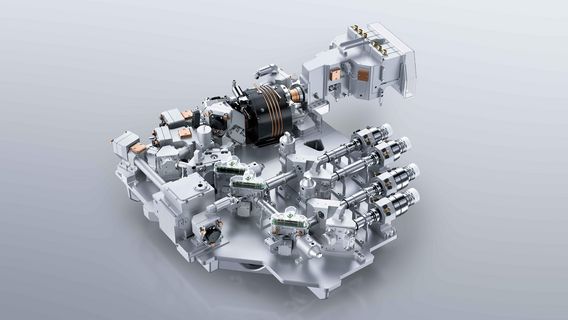

TruMicro Series 7000, beam guidance
Flexible integrated beam guidance

There are many different options for the beam guidance that will enable you to make a flexible plan for your laser. The plug & play fiber optic cables can be easily connected to different work stations. Here, you choose the number of fiber outlets up to a total of four. The laser power is regulated for each outlet. This enables multiple work stations to operate simultaneously with split laser power or one after the other at full laser power. With the modular system, you can even retrofit this splitting functionality.

TRUMPF laser network
TRUMPF laser network

With the laser network, you can connect one or more lasers with up to four work stations in each case. In the process, your laser either splits its power to multiple stations, or it supplies them by taking turns at full power. This will enable you to combine different applications with one another.

Intelligent down to the workpiece

Intelligent optics can be synchronized with your laser via a dedicated interface. For example, the CFO focusing optics or PFO scanner optics can be used optimally for your purposes. You can program the processing optics easily via the laser control system. You do not need any additional PCs or control systems.

Remote Services

In the event of a fault, TRUMPF service experts will remotely access your laser via a secure remote connection. In many cases the fault can be remedied directly in this way, or the configuration of the laser can be modified in a way that permits you to continue manufacturing until the spare part arrives.

TRUMPF offers you all the components you need for beam guidance from the laser to the workpiece. This also applies for various focusing optics which have proven themselves to be precise and reliable over many years of industrial use. The optics can be easily integrated – both in stand-alone processing stations as well as in complete production lines. The modular structure enables the optics to be continually adapted to the laser types as well as various processing situations.

Focusing optics

Regardless of whether you are welding, cutting, ablating, heat treating, or drilling, with fixed optics from TRUMPF you can attain high-quality process results!

BEO D70 focusing optics with observation camera, crossjet, and aerator nozzle

Large working distances with small focal diameters

Programmable focusing optics

The ideal optics for remote processing

PFO 33

For applications with a laser power of up to 12 kW

Programmierbare Fokussieroptik PFO SF

The PFO SF small-field scanner is the compact and versatile scanner with a small work area for quick beam oscillation.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
