TruMicro Series 2000
TruMicro Series 2000
Short and ultrashort pulse lasers

TruMicro Series 2000

Work easily and flexibly

Compact, light, productive – the TruMicro Series 2000

Whether for structuring, ablating, cutting, or drilling: the laser has become an essential tool in micro-production technology. With its short and ultrashort TruMicro pulse lasers, TRUMPF offers innovative solid-state lasers that are tailored precisely to these tasks. They make it possible to perform micro-processing with an optimal combination of quality, productivity, and profitability. The fiber-based ultrashort pulse lasers in the TruMicro Series 2000 are distinguished by their compact and light design. Integrating the laser is made significantly easier by using a laser light cable for ultrashort pulse lasers (LLK-U). With their moderate average power they are ideally suited for foil cutting and the ablation of thin layers.

Easy to integrate

The laser light cable for ultrashort pulse lasers (LLK-U) facilitates machine integration without free-beam guidance.

Total flexibility

Operate the TruMicro 2000 with different repetition rates, pulse energies, and pulse trains.

Precisely timed pulse positioning

Advanced Pulse on Demand makes it possible to trigger laser pulses with trigger signals of varying frequency.

Multiple applications

The TruMicro Series 2000 makes it possible to use cold processing for a large number of micro-processing applications.

Special area: marking

Make use of the laser's strengths for corrosion-free black marking on metals.

100% tailored pulses

The ultrafast power modulator keeps power and pulse energy at an exact level.

TruMicro Mark 2000 with integrated laser from the TruMicro Series 2000
All-around solution for markings with ultrashort pulses

The combination of the TruMark Station 7000 and the TruMicro Series 2000 provides an all-around, turnkey solution – the TruMicro Mark 2000. It is ideally suited for customers looking for a laser marking unit with picosecond and femtosecond pulses. With peak pulse powers of 0.5 MW, these lasers are used for processes where cold material processing is productive even with moderate average powers.

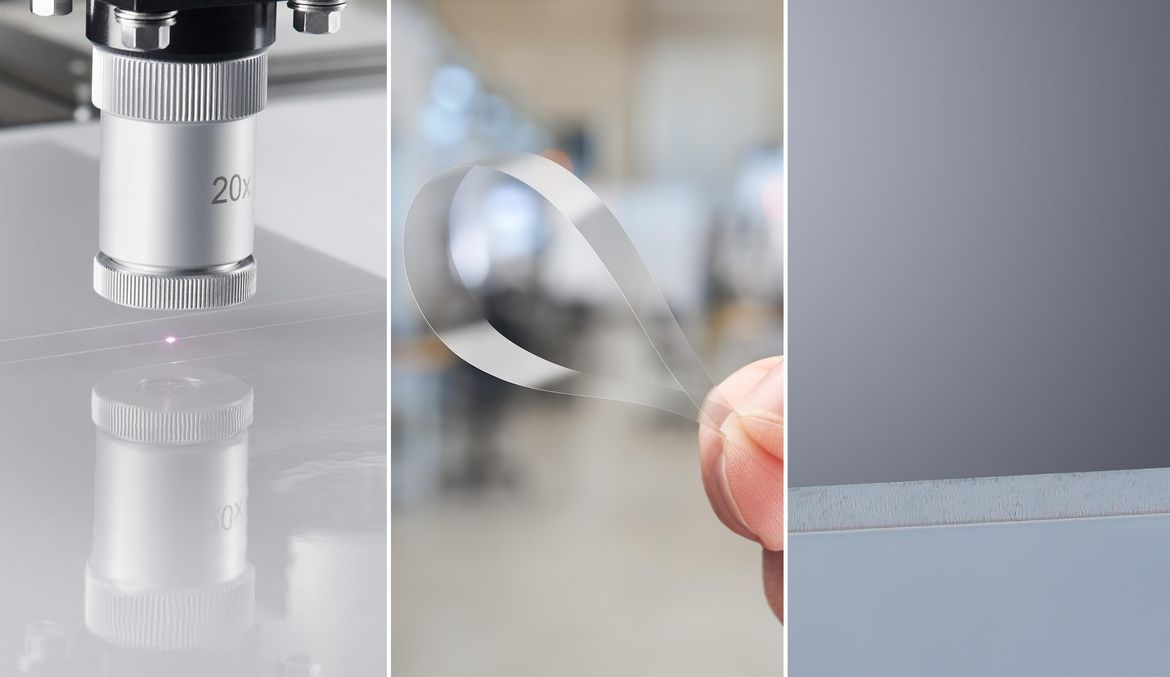

TruMicro glass film application image

Cutting ultra-thin glass

Laser modification cutting allows ultra-thin glass (50 µm) to be cut with the highest edge quality. This significantly increases the rigidity.

TruMicro glass-metal connection application image

Glass welding

TRUMPF TOP Weld optics focus femtosecond-long laser pulses to weld glass to glass or glass to metal with high precision. The result is a high-tensile and practically invisible bond.

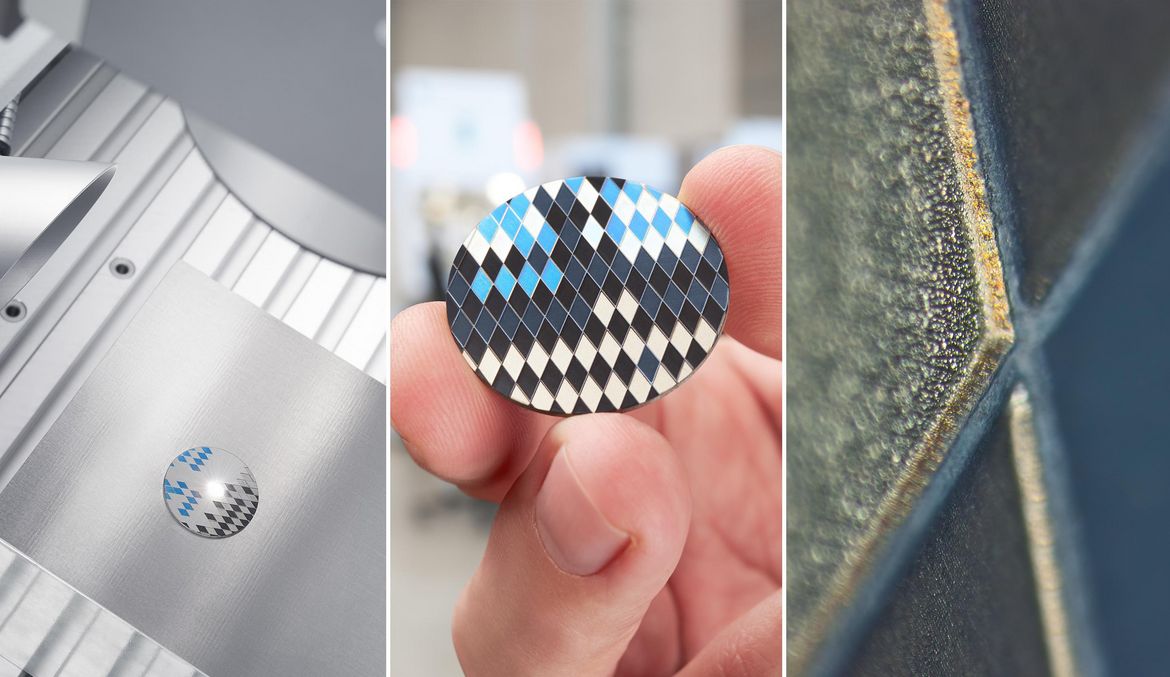

TruMicro application image, glass surfaces

Surface structuring

Ultrashort pulse lasers enable a variety of different processes. By varying the laser parameter set, metal surfaces can be cleaned, structured and engraved.

TruMicro application image, organic material

Cutting organic material

The combination of ultrashort durations with high intensity enables microprocessing with incomparable precision. Even highly sensitive organic material can be cut without damaged or burned edges.

TruMicro application image - ablation of gold and ceramic

Ablation of gold and ceramic

The TruMicro 2030 cuts and processes technical high-performance ceramics for power electronics and consumer electronics. Precise ablation creates conductive paths, replacing etching processes - an environmentally friendly advancement.

TruMicro application image - cutting of printed circuit boards

Cutting of printed circuit boards

With the green wavelength, you can process flexible printed circuit boards (FPC) for the electronics industry and medical technology. The laser guarantees quick and precise cutting, without a heat-affected zone. The best edge qualities are achieved, even with plastics.

TruMicro application image - lumen tubes

Cutting and ablation of lumen tubes

The precise cutting and ablation of lumen tubes with ultrashort pulse lasers enables use in medical technology. The processing does not result in discoloration or melting of the cut edges or markings.

TruMicro application image - Invar cutting

Invar cutting

The TruMicro series provides perfect cuts of complex geometries from wafer-thin films under 100 µm. These form the basis for efficient stator and rotor packages in electric motor production.

TruMicro 2020
TruMicro 2030
Laser parameters
Average output power 10 W 20 W
Beam quality (M²) < 1.3 < 1.3 optional < 1.2
Wavelength 1030 nm 1030 nm
Pulse duration 20 ps
< 900 fs
< 400 fs
20 ps optional 900 fs
400 fs or variably adjustable from < 400 fs - 20 ps
Maximum pulse energy 10 µJ Option: 20 µJ and 50 µJ 20 µJ optional 50 µJ or 100 µJ
Maximum repetition rate 1000 kHz Option: 2000 kHz, 200 kHz for 50 µJ pulse energy (10 W) 1000 kHz optional 2000 kHz, 400 kHz at 50 µJ pulse energy (20 W) or adjustable from 200 kHz (100 µJ pulse energy) to 2 MHz (10 µJ pulse energy)
Structural design
Dimensions of laser head (W x H x D) 570 mm x 360 mm x 180 mm 570 mm x 360 mm x 180 mm
Dimensions of supply unit (W x H x D) 510 mm x 485 mm x 180 mm 510 mm x 485 mm x 180 mm
TruControl control

TruControl

TruControl is the quick and easy-to-use control for TRUMPF solid-state lasers. It regulates the laser power in real time in order to deliver reproducible results. TruControl manages, controls, and visualizes the interface configuration. You benefit from a uniform control architecture across all laser technologies. The lasers have interfaces to control intelligent TRUMPF optics, such as monitored CFO focusing optics or PFO scanner optics. You can easily program the processing optics via the laser control system. The remote support service provided by TRUMPF means that you receive off-site support within seconds. This will allow you to avoid service calls or be as prepared as possible and increase the availability of the laser device.

With the useful options of the TruMicro Series 2000 lasers you can work more efficiently and with more process reliability.

Placeholder
Optional laser light cable for ultrashort pulse lasers (LLK-U)

Forego elaborate free-beam guidance and significantly simplify the machine design: instead of the free-beam guidance, the laser pulses are guided through the hollow core fibers from the laser source to the optics. The laser can be integrated in the processing machine much more flexibly thanks to this thermal and mechanical decoupling between the TRUMPF laser and the corresponding optics. The beam and pulse properties remain unaffected.

Variety of interfaces
Variety of interfaces – for simple integration

Interfaces are key for the integration of a TruMicro laser in your machine or production line. The solid-state lasers from TRUMPF offer interfaces to all common fieldbus systems. Also available: real-time interface, parallel digital I/O, interface for process sensor systems, OPC UA software interface, analog input board, interface for intelligent TRUMPF optics (CFO, PFO).

TRUMPF processing optics
Remote Services

In the event of a fault, TRUMPF service experts will remotely access your laser via a secure remote connection. In many cases the fault can be remedied directly in this way, or the configuration of the laser can be modified in a way that permits you to continue manufacturing until the spare part arrives.

Highly stable for optimal quality

Multiple control loops in conjunction with a patented fast external modulator guarantee maximum process stability with the TruMicro Series 2000 as well as the set pulse parameters for each individual pulse.

Flexible Pulse on Demand

If complex geometries are processed with scanners, for example when cutting polymer films, the acceleration and brake paths of the scanner lead to varying spatial intervals of the ultrashort laser pulses on the material. This means that the processing quality depends on the processing geometry. On the other hand, the repetition rate is adapted to the scan speed with the "Flexible Pulse on Demand" option, facilitating constant pulse intervals. This not only means that the process result is independent of the processing contour, but that the process time is decreased as well.

TRUMPF offers you all the components you need for beam guidance from the laser to the workpiece. This also applies for various focusing optics which have proven themselves to be precise and reliable over many years of industrial use. The optics can be easily integrated – both in stand-alone processing stations as well as in complete production lines. The modular structure enables the optics to be continually adapted to the laser types and various processing situations.

TOP Cleave cutting optics

The TOP Cleave-2 focusing optics are processing optics for high-dynamic cutting of transparent materials, for example glass or sapphire.

TOP Cleave-2

High-speed laser cutting of glass

Ultrashort laser pulses are not only ultrashort; they also achieve peak values for pulse qualities such as energy and power. To ensure that the correct pulse is applied on the workpiece despite the peak intensity, special beam guidance and formation elements are required. TRUMPF offers beam switches, deflectors, beam expanders, and polarization optics that are optimized for use with ultrashort pulse lasers.

TruMicro deflector 90°
TruMicro deflector 90°

TruMicro deflectors are suitable for ultrashort laser pulses for guiding the laser beam while maintaining the pulse parameters.

TruMicro beam switch with pilot light
TruMicro beam switch with pilot laser

With beam switches, the laser light from one beam source can be guided in two light paths for different workpieces. The pilot laser enables simple adjustment of the beam guidance and makes this as convenient as possible for you.

Mechanically adjustable beam splitter
Mechanically adjustable beam splitter

With a beam splitter two light paths can be powered at the same time, each with half the laser power. This allows you to work on two workpieces at the same time. The mechanical setting makes it possible to adjust the divided power precisely to the uniform distribution in both beam arms.

Circular polarized light
Circular polarized light

Circular polarized light is produced from linear polarized light with the help of a quarter wave plate and makes it possible to achieve consistent processing results for applications with directional production geometries.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
