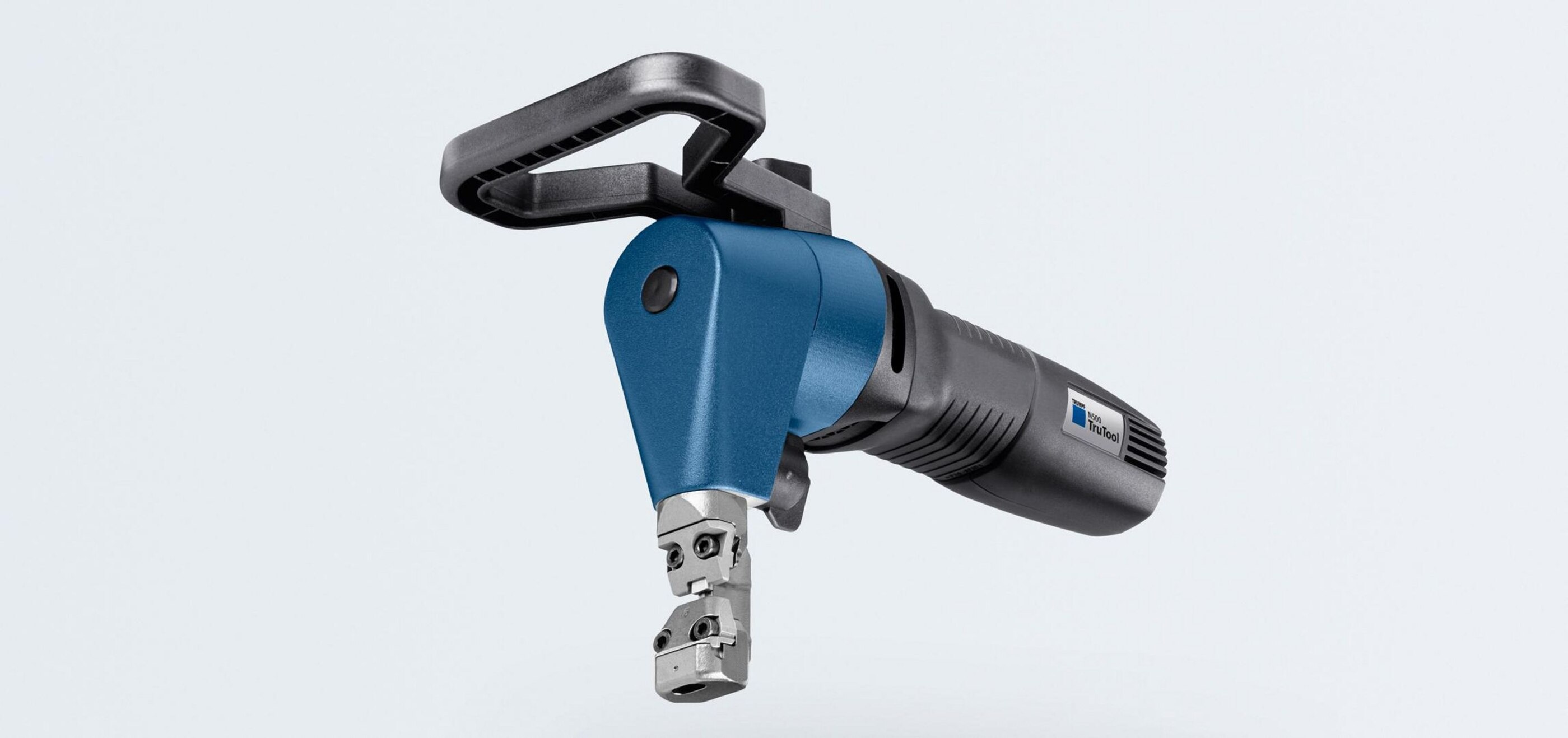

Powerful in four directions
The TruTool N 500 offers unique versatility. Since you can cut in four directions, even backwards, you can dismantle tanks and containers, and process coils and workpieces with bends of up to 90°. The machine is also well-suited to cutting high-tensile materials. The optimal weight/performance ratio of 8.8 lbs. against a sheet thickness of 0.2 in. is particularly impressive.
The machine can be turned through 360° in 4 steps of 90°.

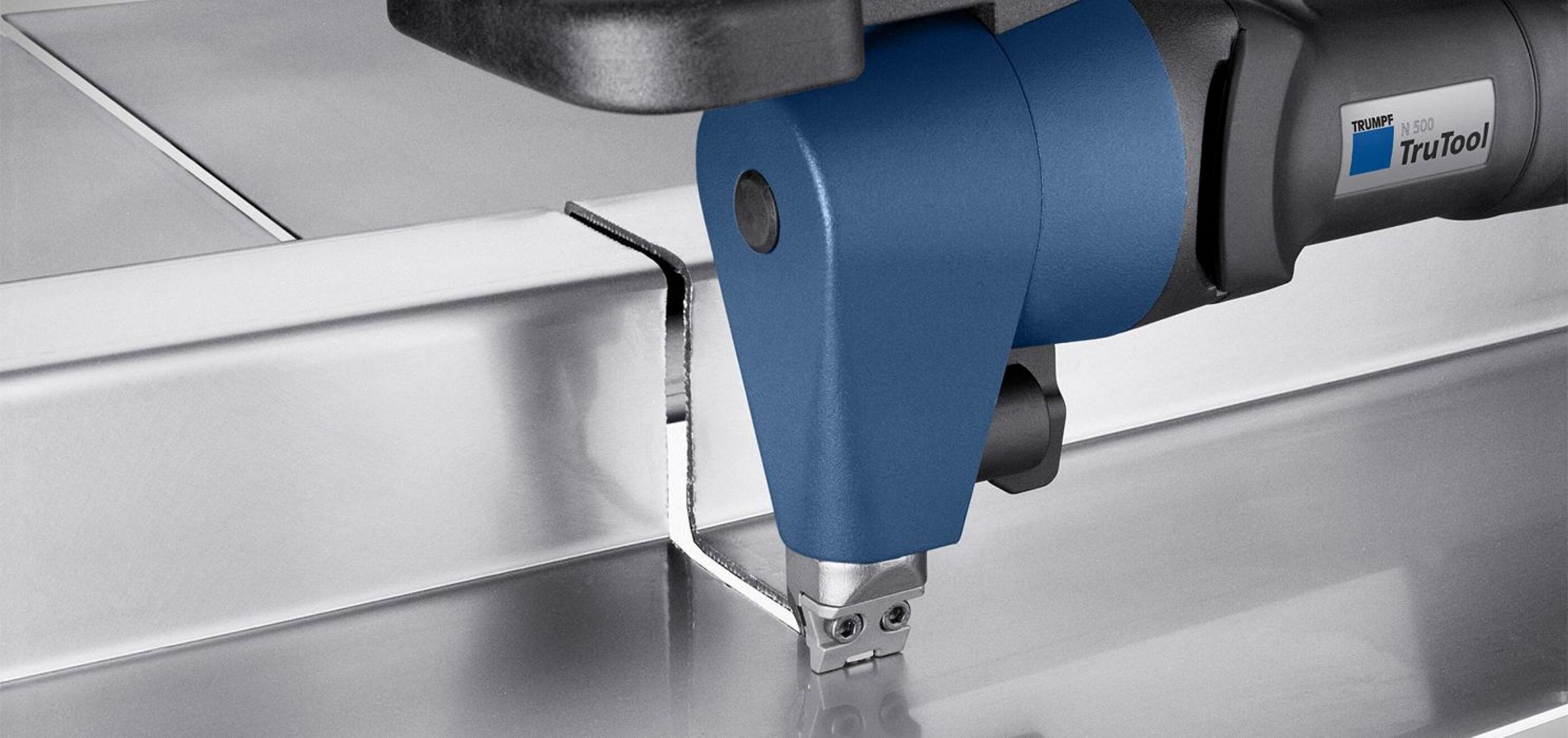

Ideal for work in hard-to-reach areas, for cuts across edges and weld seams.
You work without feed force and, therefore, required force is reduced to a minimum.
The speed controller can be used to adjust the working speed to suit the specific cutting task.
Flat sheet
For cutting straight sheets and trimming them to length. For notches, as well as radial and interior cutouts.
Profiles
For cutting profiles, cuts across edges and weld seams, as well as for dismantling tanks and containers.

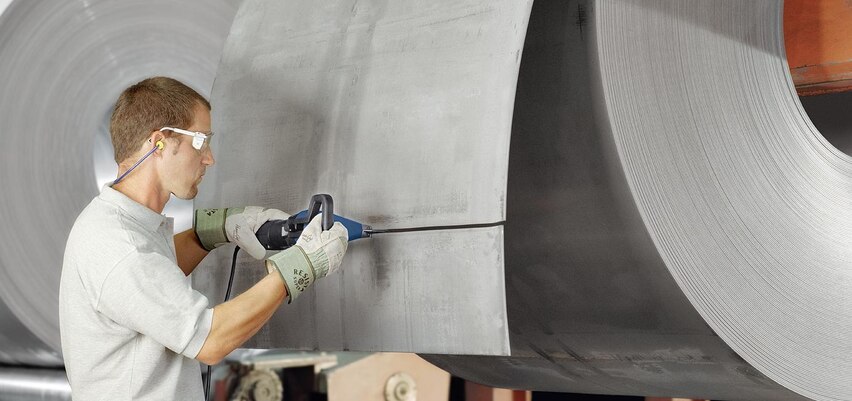

Coil processing
For cutting coils. For relief cuts and sampling.
The following consumables and the corresponding accessories are included in the scope of delivery.
Find the right consumables and accessories for your machine here.

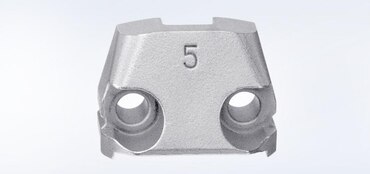

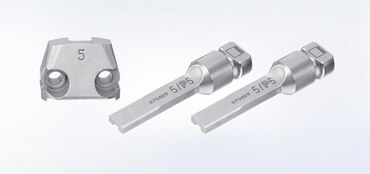

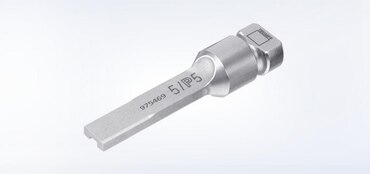

1 x punch 5 / P5 and 1 x die No. 5
Particularly well-suited to profile sheets 0.12 - 0.2 in.
For sheet thicknesses up to 0.125 in. in mild steel and stainless steel. Profile sheets up to 0.08 in.
For sheet thicknesses up to 0.2 in. in mild steel. Profile sheets up to 0.12 in.

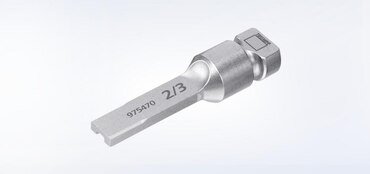

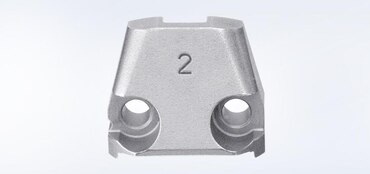

1x Punch 2/3, 1x die 2
For sheet thicknesses up to 0.08 in. in mild steel and stainless steel

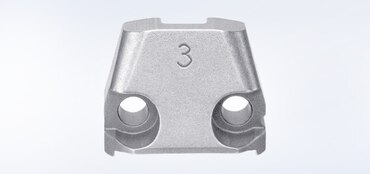

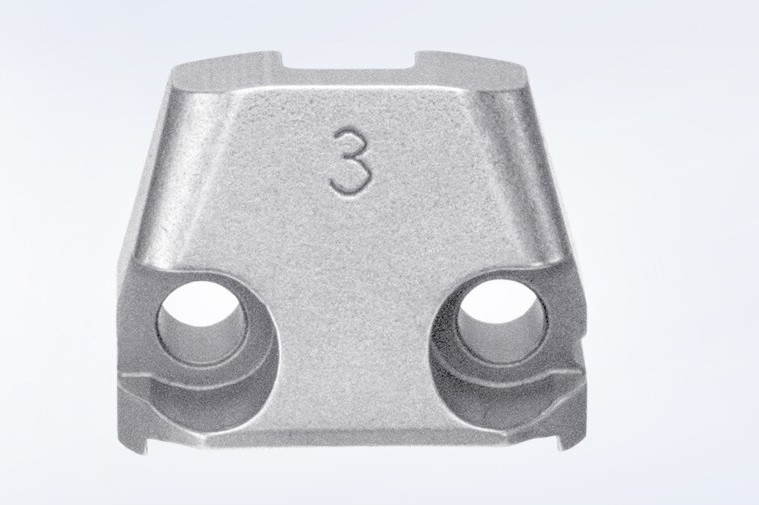

1x Punch 2/3, 1x die 3
For flat sheets up to 0.125 in. and profile sheets up to 0.08 in.

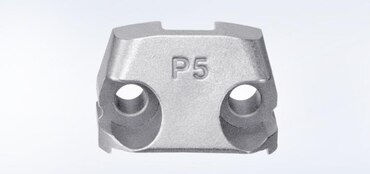

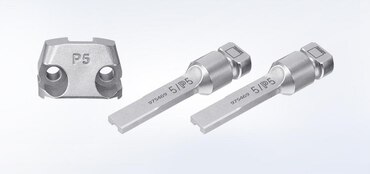

1 x punch 5 / P5 and 1 x die P5
For profile sheets 0.12 - 0.2 in.

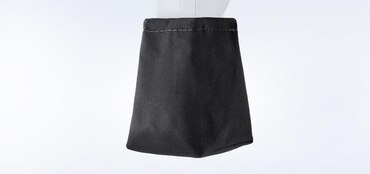

To collect chips
|

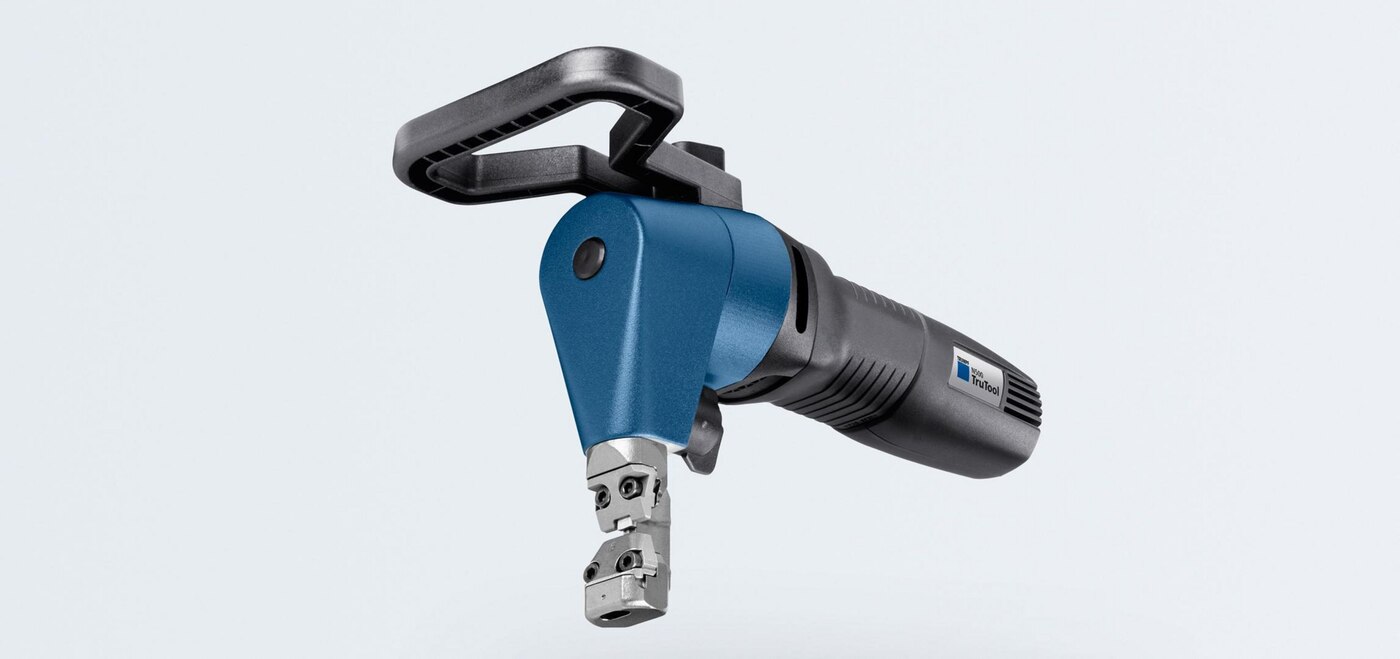

TruTool N 500
|
|
|---|---|
| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel 400 N/mm² | 5 mm |
| Maximum sheet thickness, steel 600 N/mm² | 3.2 mm |
| Maximum sheet thickness, steel 800 N/mm² | 2.5 mm |
| Maximum sheet thickness, aluminium up to 250 N/mm² | 7 mm |
| Radii | |
| Smallest radius | 90 mm |
| General | |
| Working speed (max.) | 1.5 m/min |
| Starting hole diameter | 41 mm |
| Nominal power consumption | 1700 W |
| Dimensions | |
| Length | 381 mm |
| Height | 235 mm |
| Weight | |
| Weight | 3.8 kg |
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
