TruTool N 200 18V LiHD rechargeable battery

TruTool N 200 Li-ion

Battery-powered machines

TruTool N 200 18V LiHD rechargeable battery

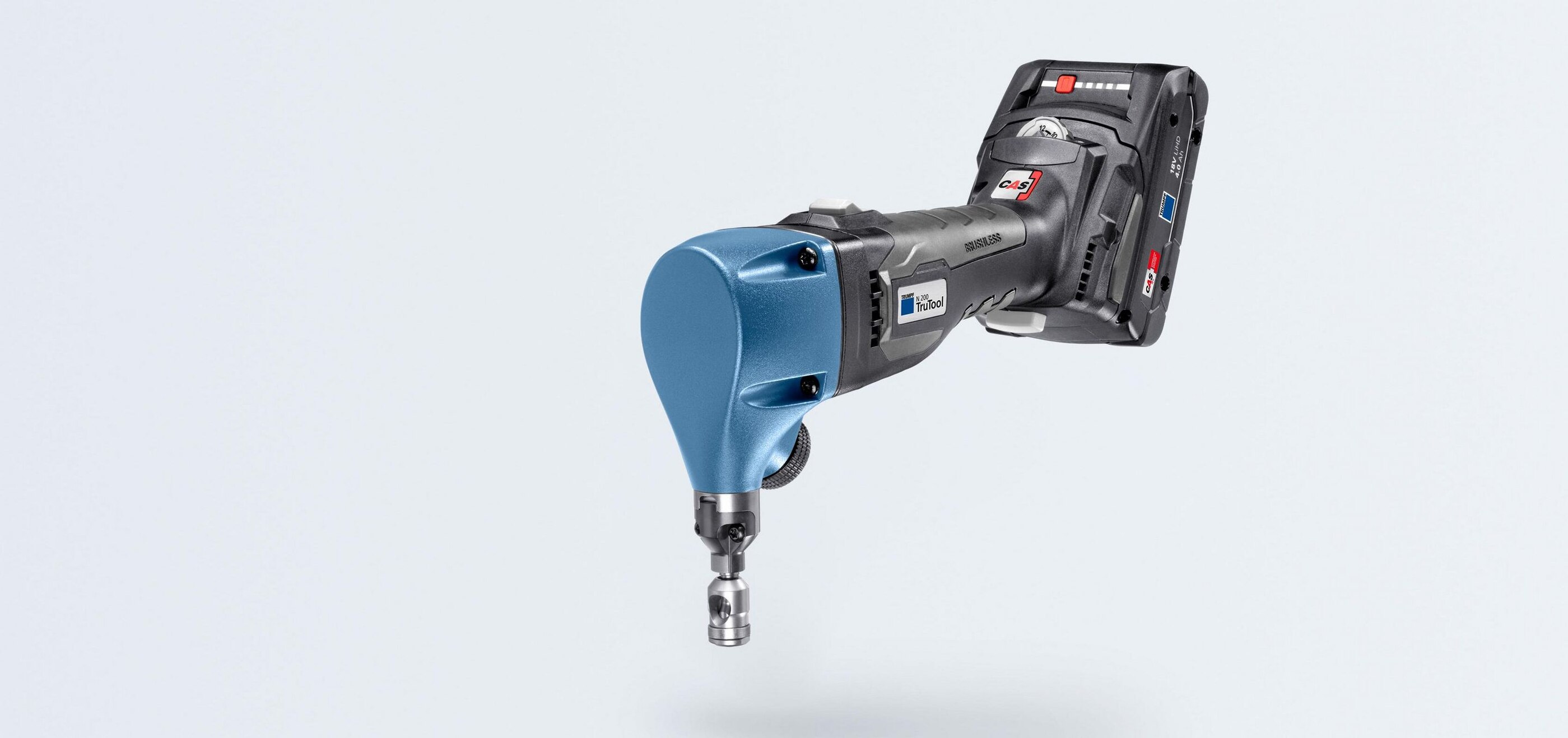

TruTool N 200 18V LiHD rechargeable battery

Cordless and unrivalled performance on curves

For the first time, you can use the battery machine to cut flat and corrugated sheets of up to 2 mm sheet thickness cordlessly. Even interior cutouts and notches are easy to process as the machine can be rotated on the spot. There is no need for tools to change the cutting direction. You can change dies and punches quickly, without the need for any additional tools. You can upgrade and expand the TruTool N 200 18V LiHD rechargeable battery with further tools as required. This means, for example, even cutting trapezoid sheets is not problem. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes.

Cordless Alliance System

Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility in the 18-volt class.

Brushless motor

Almost unlimited service life, virtually wear-free and hardly any maintenance required. Battery performance per charge is also increased.

Outstanding performance on curves

The hollow round punch provides maneuverability and enables the machine to turn on the spot.

Cutting direction can be modified in seconds

The tool can be rotated through 360° in steps of 45°, without the need for additional tools.

The perfect combination

The rechargeable battery achieves a runtime that is up to 60% longer due to the Power-Head-Technology and brushless motor.

For comfortable operation

A soft grip ensures low-vibration machine control. The machine is thereby extremely compact and light.

Nibblers: Video on the area of application

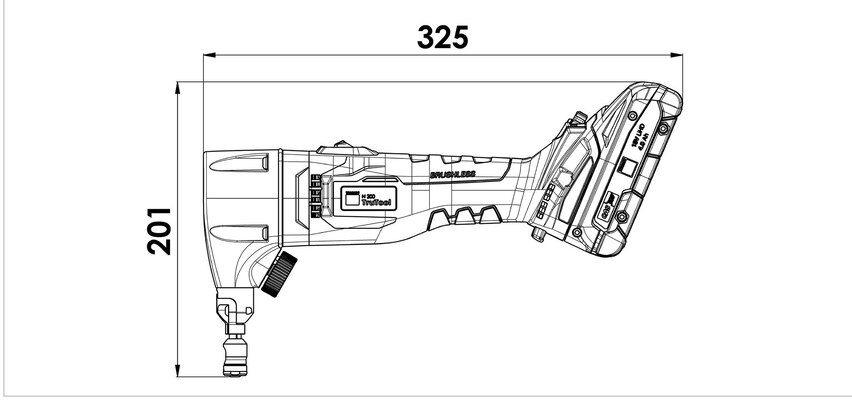

TruTool N 200 18V LiHD rechargeable battery, dimensional drawing

Cordless Alliance System

This product is part of the Cordless Alliance System. CAS means one battery for everything, 100% compatibility for machines, rechargeable battery packs and rechargers – regardless of manufacturer. World's most powerful battery system with 30 years of battery expertise from Metabo. Maximum reliability, clear cost benefits and a sound investment.

Battery technology

LiHD rechargeable battery technology means more power, service life and runtime. It charges reliably using process-controlled charging and discharging management. By cells being protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. High-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection.

Cutting direction can be modified in seconds

The TruTool N 200 Li-ion rechargeable battery 18 V can be maneuvered cleanly even in hard-to-reach areas, and the direction of processing can be adjusted quickly, without the need for tools. You can rotate the tool 360°. When combined with a hollow round punch, TruTool N 200 is so flexible it can turn on the spot.

Can be retrofitted for flexible work

The rechargeable battery and electric variants of the TruTool N 200, PN 200, and PN 201 are built on the same multifunctional machine basis. Each machine has its own particular strengths for processing different sheet metal: TruTool N 200 for flat and corrugated sheet; TruTool PN 200 for trapezoidal sheets up to 3.34 in. deep and C, L, and U profiles; and TruTool PN 201 for trapezoidal sheets up to 6.37 in. in depth.

Flat sheet

For cutting straight sheets and trimming them to length. For notches, as well as radial and interior cutouts.

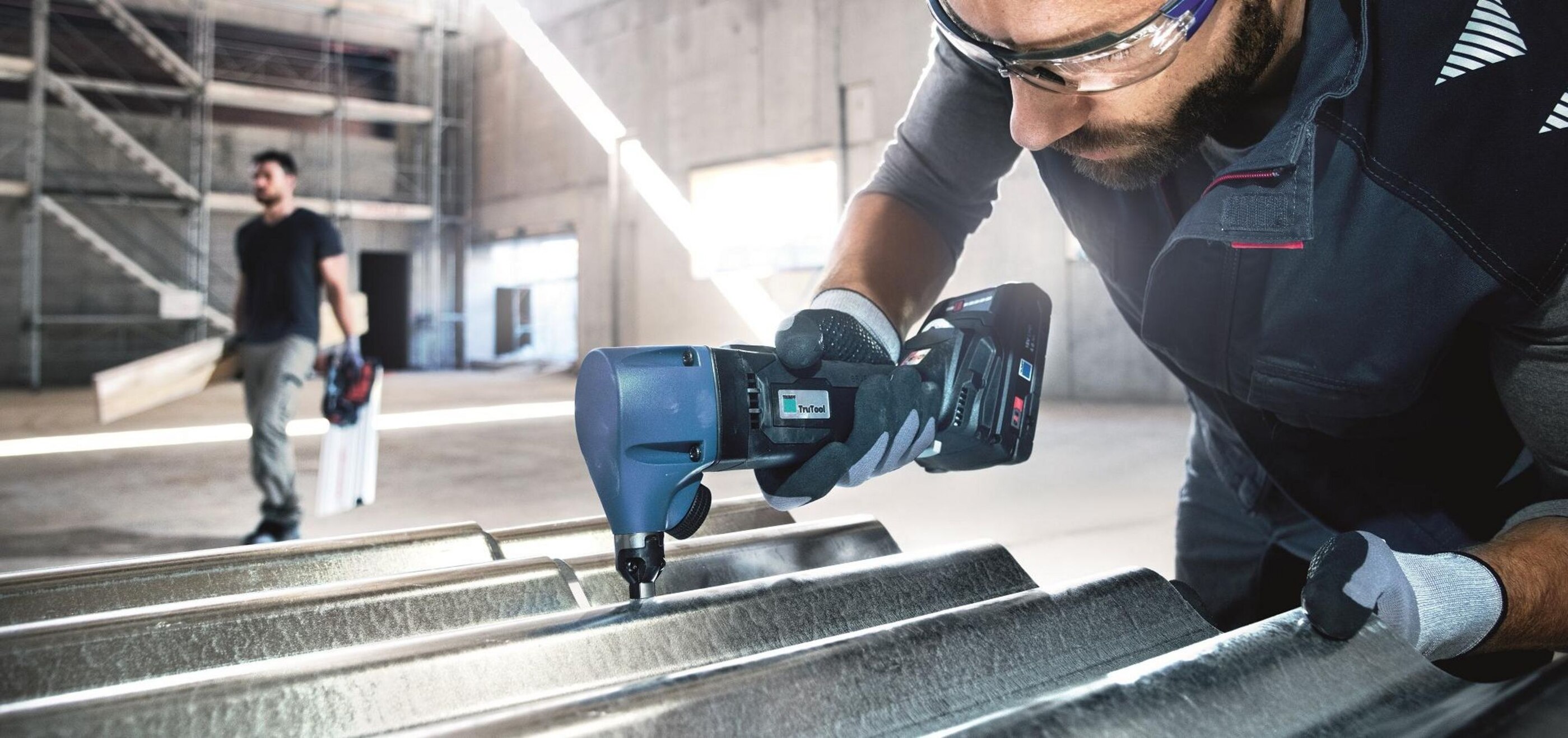

Corrugated sheet

For trimming to length and cutting. For diagonal cuts, interior cutouts, and radial cuts.

The following consumables and the corresponding accessories are included in the scope of delivery.

Punch guide (integrated)
1 unit 1884925
Punch (integrated)
1 unit 2260180
Die (integrated)
1 unit 09080335
12V-36V recharger LG
1 unit, DE/CH version: 2569784 | 1 unit, GB version: 2569786 | 1 unit, USA version: 2569785
18V LiHD 4 Ah rechargeable battery (2 units)
1 unit 2598811
Hexagonal wrench
1 unit 1775531
TRUMPF Box S2
1 unit 1763682
N 200 tool (integrated)
1 unit 1750694

Find the right consumables and accessories for your machine here.

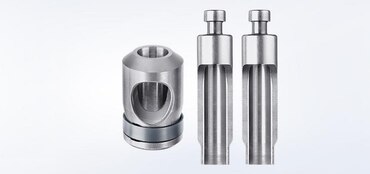

Set

2 x punch and 1 x die

Set of 1  0961961

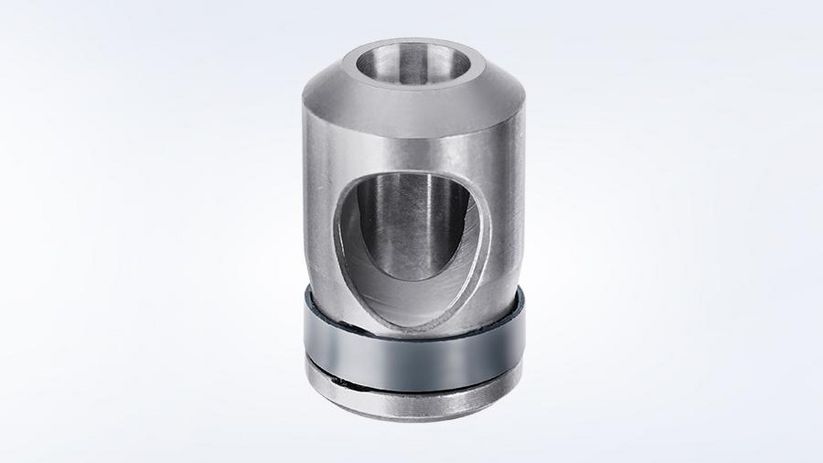

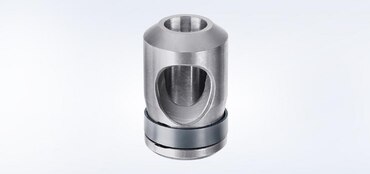

Die

Set of 2  1264393
1 unit  0980335

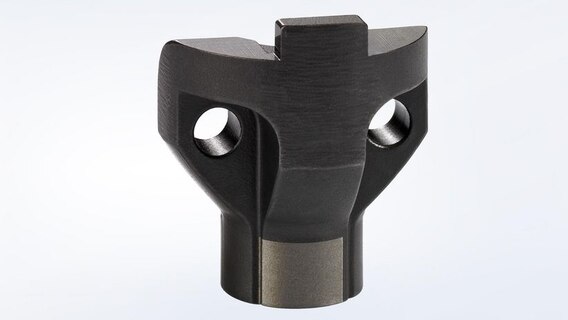

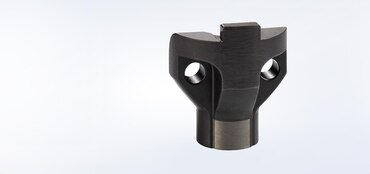

Punch guide

1 unit  1884925
18V starter kit

1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery

1 Set (DE)  2598816
1 set (GB)  2598820
1 Set (USA)  2598818

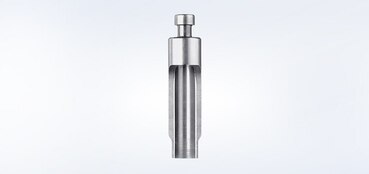

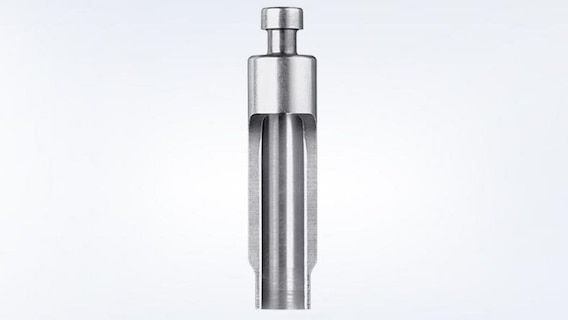

Punch

Set of 5  1264176
1 unit  2260180
Punching and nibbling oil for aluminum

1000 ml  0125874
LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 unit (DE/CH)  2569784
1 unit (GB)  2569786
1 unit (USA)  2569785
18V LiHD 4.0Ah rechargeable battery

1 unit  2598811
Punching and nibbling oil for steel

500 ml  0103387
TRUMPF Box S2

1 unit  1763682
Chip bag

To collect chips

1 unit  0088622

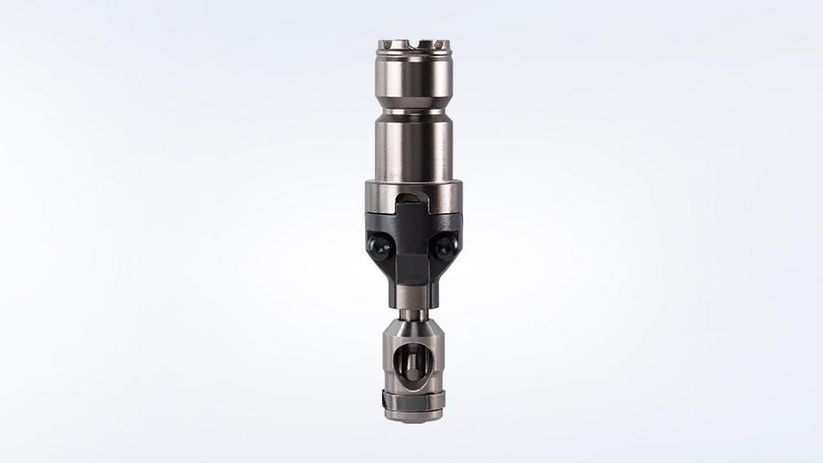

Tool TruTool N 200

1 unit  1750694
Tool TruTool PN 201

1 unit  2287067
Tool TruTool PN 200

1 unit  2287065

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This has a positive effect on the battery life and lets you get the most out of every battery charge. Additional advantage: The service life of a BL motor is almost unlimited because they work without carbon brushes and therefore no mechanical friction occurs. The result: almost wear-free motors and hardly any maintenance.

Compact and powerful

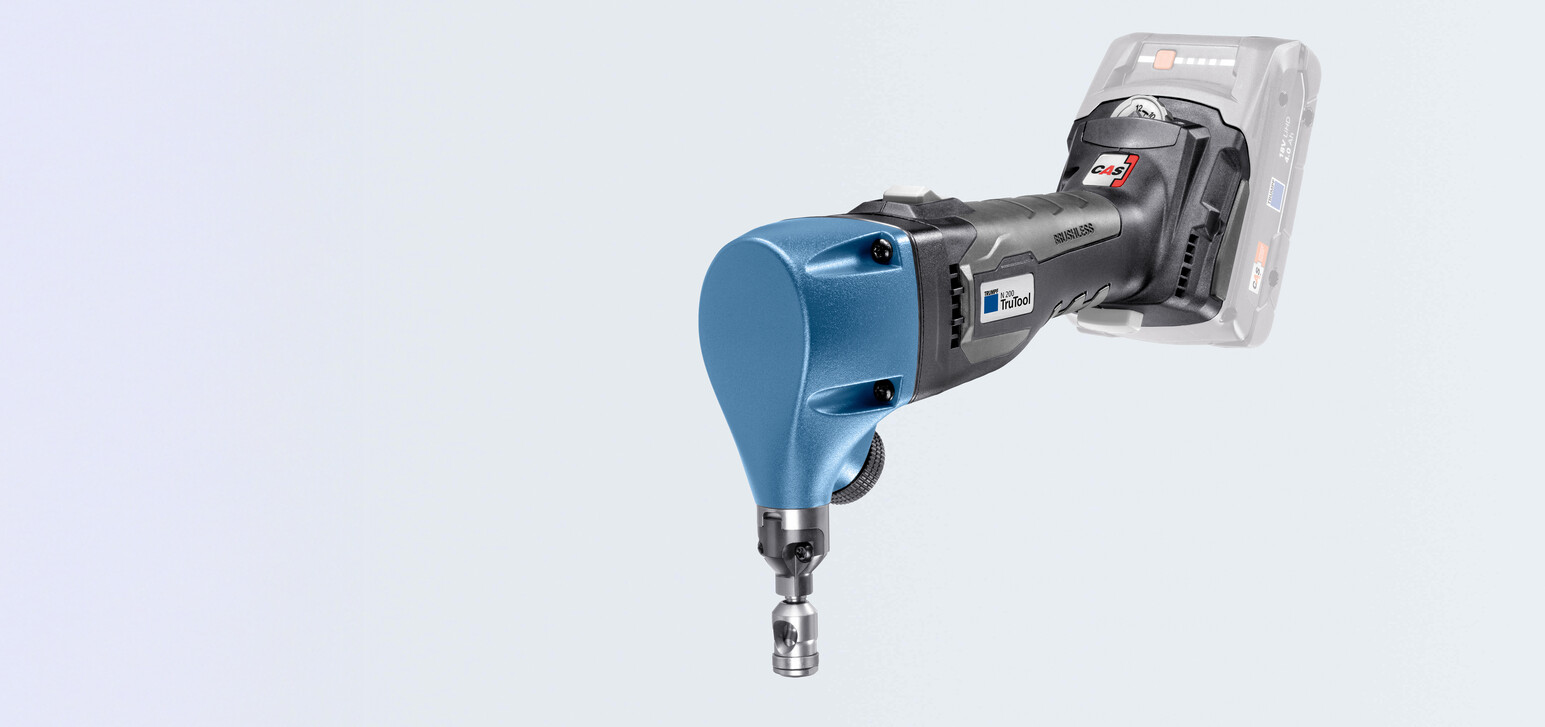

The 18V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

TruTool N 200 18V LiHD rechargeable battery
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 2 mm
Maximum sheet thickness, steel 600 N/mm² 1.5 mm
Maximum sheet thickness, steel 800 N/mm² 1 mm
Maximum sheet thickness, aluminium up to 250 N/mm² 2.5 mm
Radii
Smallest radius 4 mm
General
Working speed (max.) 1.3 m/min
Starting hole diameter 17 mm
Voltage 18 V
Dimensions
Length 325 mm
Height 201 mm
Weight
Weight (incl. rechargeable battery) 2.2 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
