Universal generators for induction heating
The right generator for any application and use: With their compact design and variety of structural designs, the TruHeat HF Series 1000 / 3000 / 5000 is well-suited for induction applications of any kind, from initial experiments in the lab to fast-cycle, continuous processes in industrial manufacturing. Regardless of application: induction sealing, shrinking, hardening, annealing, melting, or evaporating, the generators impress with excellent cost-effectiveness and straightforward integration.
Far smaller than conventional generators, they have very low space requirements.
Well-suited for applications with up to 10 kW power and output frequencies of up to 800 kHz.
Flexible adjustment of power and frequency to the respective induction application.
Cost-effective operation as a result of a high level of efficiency and consistent process results.
Space-saving induction solution: Installation module, 19-inch plug-in unit, or desktop unit options are available.
TruHeat HF Series 3000 (H) / 5000 (H): Extremely flexible arrangement of the generator and external circuit.

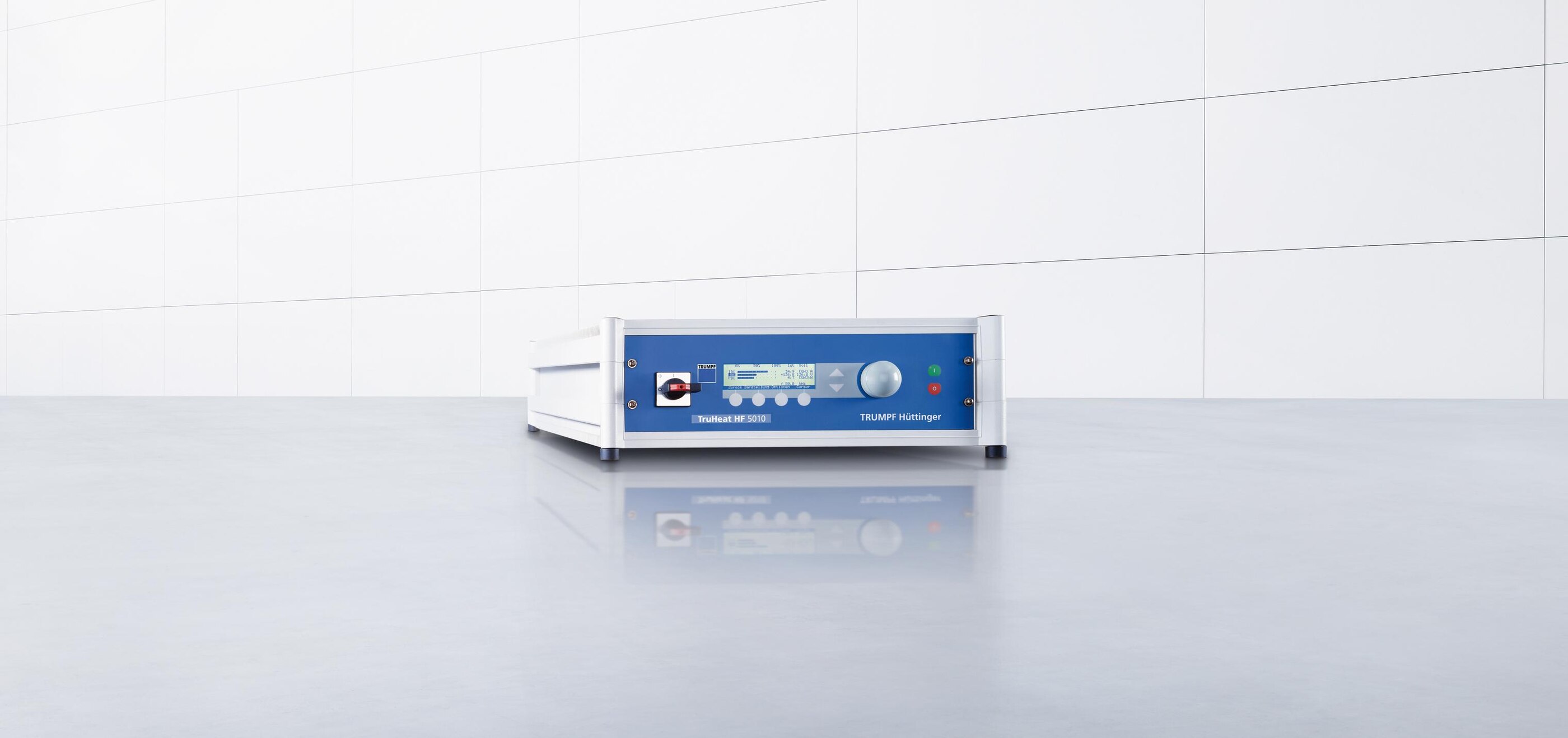

RF generators for induction heating
Inductive sealing in the packaging industry (drink cartons, toothpaste tubes).

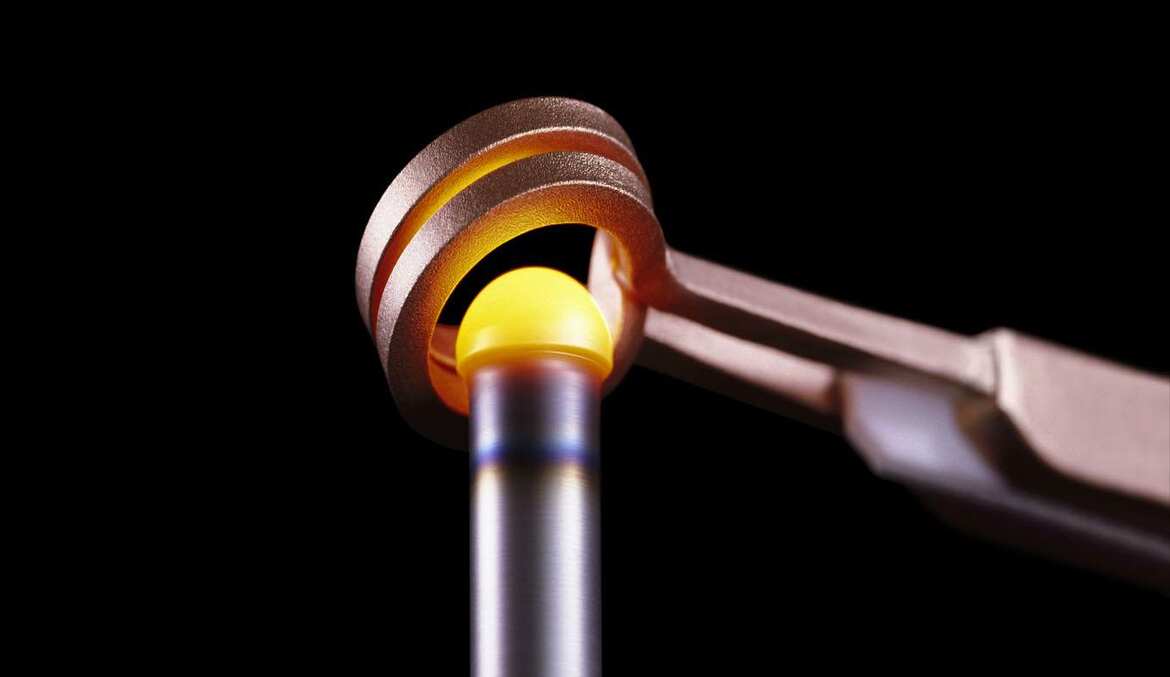

Diverse applications
TruHeat HF Series 3000 (H) / 5000 (H) are extremely diverse. Whether for shrinking, annealing, hardening, or soldering: The generators master every challenge effortlessly.

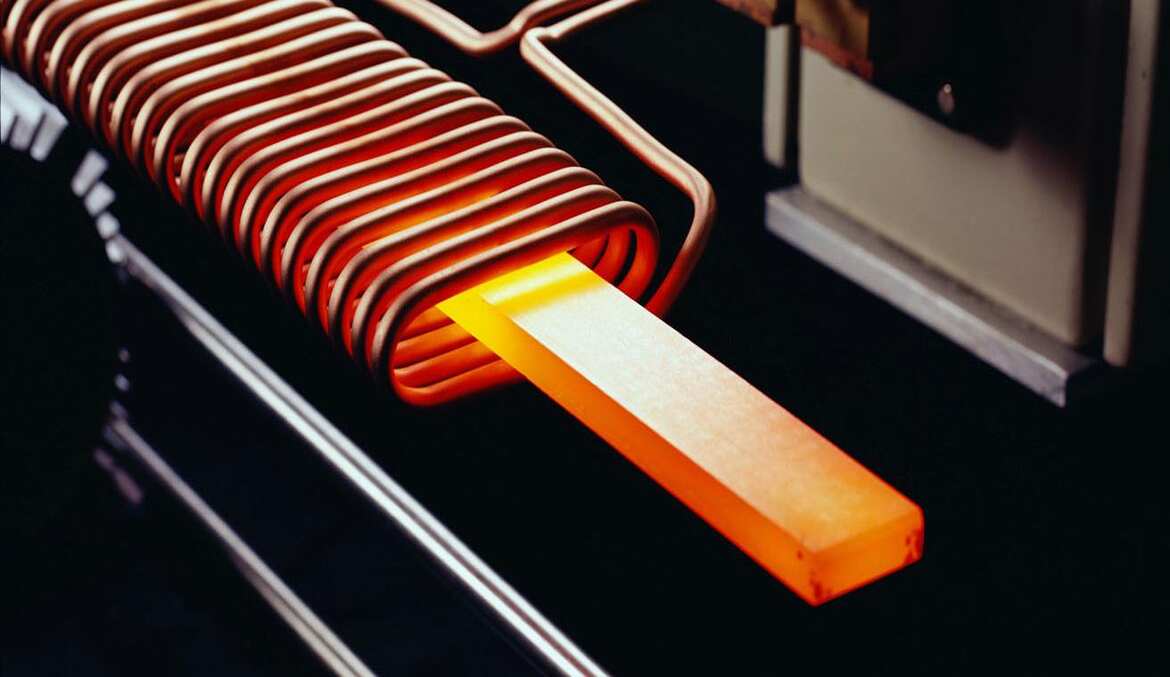

Ideal for highly precise temperature-controlled processes
In addition to the classic areas of inductive heating, the TruHeat HF Series 1000 / 3000 / 5000 generators also easily master complex tasks such as highly precise temperature-controlled processes within thermal analysis.
The flexible and cost-effective solution for your application

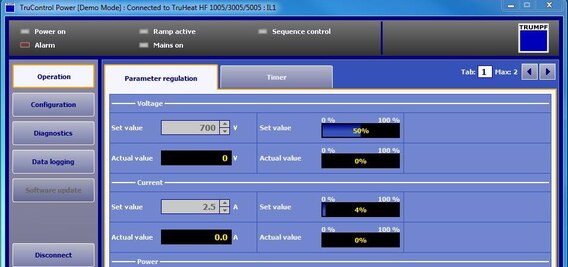

With its compact modular design, the generator requires far less space than devices using a conventional design. Flexible control enables you to choose the optimal operating frequency for the process in question. A wide range of standard interfaces enables the connection of the generator to different superordinate systems.

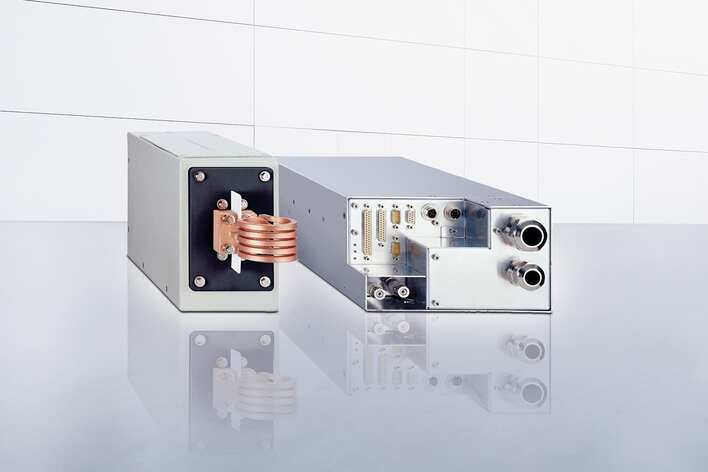

Special design for parallel oscillating circuits: TruHeat HF Series 3000 (H) / 5000 (H)
In this version, the external circuit, which is used directly at the point of heating, has an extremely compact design. This means the integration into systems and units is considerably easier. Due to power control from almost 0% to 100%, the generator is ideally suited for use in high-precision, temperature-controlled processes.
|

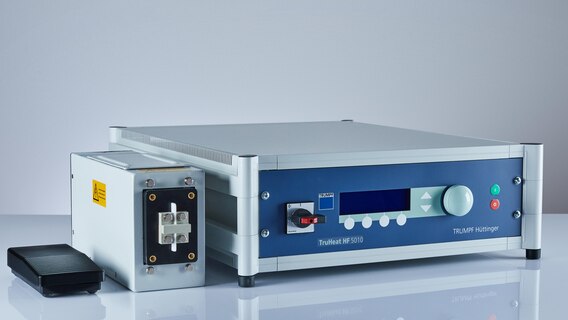

TruHeat HF 5010
Compare product
|
TruHeat HF 5010
Compare product
|
TruHeat HF 5010
Compare product
|
TruHeat HF 5010
Compare product
|
TruHeat HF 5010
Compare product
|
TruHeat HF 5010
Compare product
|
|
|---|---|---|---|---|---|---|
| Network connection data | ||||||
| Line voltage | (±10%) 200 V - 400 V (200/208 V at 5 kW and 400 V at 10 kW) | (±10%) | (±10%) 200 V - 400 V (200/208 V at 5 kW and 400 V at 10 kW) | (±10%) | (±10%) 200 V - 400 V (200/208 V at 5 kW and 400 V at 10 kW) | (±10%) |
| Line frequency | 50 Hz - 60 Hz | 50 Hz - 60 Hz | 50 Hz - 60 Hz | 50 Hz - 60 Hz | 50 Hz - 60 Hz | 50 Hz - 60 Hz |
| Line input power | 6.5 kVA | 12.5 kVA | 6.5 kVA | 12.5 kVA | 6.5 kVA | 12.5 kVA |
| Power factor | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 |
| Output | ||||||
| Rated power | 5 kW | 10 kW | 5 kW | 10 kW | 5 kW | 10 kW |
| Maximum output current | 560 A eff | 560 A eff | 560 A eff | 560 A eff | 560 A eff | 560 A eff |
| Maximum output voltage | 1500 V eff | 1500 V eff | 1500 V eff | 1500 V eff | 1500 V eff | 1500 V eff |
| Nominal operating frequency | 50 kHz - 800 kHz | 50 kHz - 800 kHz | 50 kHz - 800 kHz | 50 kHz - 800 kHz | 50 kHz - 800 kHz | 50 kHz - 800 kHz |
| Length, power cable | 0.5 m - 3 m | 0.5 m - 3 m | 0.5 m - 3 m | 0.5 m - 3 m | 0.5 m - 3 m | 0.5 m - 3 m |
| Communication interfaces | ||||||
| Analog/digital | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| RS 232/RS 485 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| PROFIBUS | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Cooling requirements | ||||||
| Maximum water pressure | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar |
| Minimum pressure difference | 3 bar | 3 bar | 3 bar | 3 bar | 3 bar | 3 bar |
| Minimum flow rate | 9.5 l/min | 9.5 l/min | 9.5 l/min | 4.2 l/min | 4.2 l/min | 9.5 l/min |
| Maximum coolant temperature | 35 °C | 35 °C | 35 °C | 35 °C | 35 °C | 35 °C |
| Ambient conditions | ||||||
| Outside temperature | 10 °C - 45 °C | 10 °C - 45 °C | 10 °C - 45 °C | 10 °C - 45 °C | 10 °C - 45 °C | 10 °C - 45 °C |
|
TruHeat HF 5010
|
TruHeat HF 5010
|
TruHeat HF 5010
|
TruHeat HF 5010
|
TruHeat HF 5010
|
TruHeat HF 5010
|
|
|---|---|---|---|---|---|---|
| Network connection data | ||||||
| Line voltage | (±10%) 200 V - 400 V (200/208 V at 5 kW and 400 V at 10 kW) | (±10%) | (±10%) 200 V - 400 V (200/208 V at 5 kW and 400 V at 10 kW) | (±10%) | (±10%) 200 V - 400 V (200/208 V at 5 kW and 400 V at 10 kW) | (±10%) |
| Line frequency | 50 Hz - 60 Hz | 50 Hz - 60 Hz | 50 Hz - 60 Hz | 50 Hz - 60 Hz | 50 Hz - 60 Hz | 50 Hz - 60 Hz |
| Line input power | 6.5 kVA | 12.5 kVA | 6.5 kVA | 12.5 kVA | 6.5 kVA | 12.5 kVA |
| Power factor | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 |
| Output | ||||||
| Rated power | 5 kW | 10 kW | 5 kW | 10 kW | 5 kW | 10 kW |
| Maximum output current | 560 A eff | 560 A eff | 560 A eff | 560 A eff | 560 A eff | 560 A eff |
| Maximum output voltage | 1500 V eff | 1500 V eff | 1500 V eff | 1500 V eff | 1500 V eff | 1500 V eff |
| Nominal operating frequency | 50 kHz - 800 kHz | 50 kHz - 800 kHz | 50 kHz - 800 kHz | 50 kHz - 800 kHz | 50 kHz - 800 kHz | 50 kHz - 800 kHz |
| Length, power cable | 0.5 m - 3 m | 0.5 m - 3 m | 0.5 m - 3 m | 0.5 m - 3 m | 0.5 m - 3 m | 0.5 m - 3 m |
| Communication interfaces | ||||||
| Analog/digital | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| RS 232/RS 485 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| PROFIBUS | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Cooling requirements | ||||||
| Maximum water pressure | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar |
| Minimum pressure difference | 3 bar | 3 bar | 3 bar | 3 bar | 3 bar | 3 bar |
| Minimum flow rate | 9.5 l/min | 9.5 l/min | 9.5 l/min | 4.2 l/min | 4.2 l/min | 9.5 l/min |
| Maximum coolant temperature | 35 °C | 35 °C | 35 °C | 35 °C | 35 °C | 35 °C |
| Ambient conditions | ||||||
| Outside temperature | 10 °C - 45 °C | 10 °C - 45 °C | 10 °C - 45 °C | 10 °C - 45 °C | 10 °C - 45 °C | 10 °C - 45 °C |
The technical data of all product versions as a download.
The RF generator can be optimally adapted to different system environments due to different options.
The matching transformer is part of the external circuit. This means the load (induction coil + workpiece) can be optimally adapted to the RF generator so it can always output the maximum power.

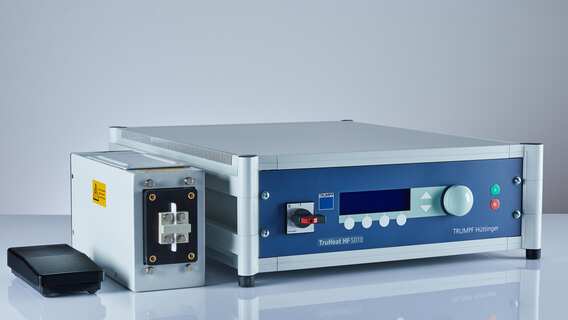

The foot switch turns the generator power on and off from a distance. Connected to the RF generator via a cable, the switch can be placed close to the application. This means you can start the process and monitor heating at the same time.
The selection of suitable system components means that the RF generator can be optimally adjusted to the required application.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
