3D printing in dental technology

Printing a bright future

The production of implant-supported dental prostheses is the fastest growing segment in the dental industry all over the world. This is why it is becoming more and more important for dental laboratories to tap into this lucrative pioneering field, using highly productive 3D printers in response to the growing pressures of cost and competition in the industry. These pages will give you an overview of the advantages and benefits of metal 3D printers for your future business. You will also find out exactly which 3D printers, software solutions and services will provide you with the ideal set-up.

What is metal 3D dental printing and which procedures are available?

From casting to milling to 3D printing: the history of the development of metal processing is also reflected in dental technology. Metal dental dentures, created with the casting technique, are now made using 3D printers.  The procedure is even quicker and more affordable than when using milling technology. The dental industry  has different metal 3D printing solutions for the additive manufacturing of dentures at its disposal.  Using powder, the laser creates new workpieces layer by layer using the laser metal fusion  technique (LMF). This procedure, also called selective laser melting (SLM) or powder bed fusion (PBD), is used in the highly precise manufacturing of implant-supported dental prostheses, for example. All in all, it is easy to implement a variety of individual geometries.  Separation between pontics is eliminated, a milling radius correction is no longer necessary. The advantage: more  space in important areas. Furthermore, retentions for plastic veneers and undercuts can be created effortlessly.

What are the advantages of metal 3D printing in dental technology?

Faster, more affordable and new dental indications  thanks to a hybrid  process chain. The investment in additive manufacturing is worthwhile for dental laboratories in many respects.

Customized dental prostheses - manufactured in series

Many individual  geometries can be implemented easily and productively with powder-based laser metal fusion (LMF).  Functions such as Multilaser or Multiplate ensure efficient production of customized dental components.

Obtaining a quicker result

A dental 3D printer produces dental prostheses much more quickly than conventional methods such as milling technologies. But metal 3D printers do not just benefit  production, preparation is also much quicker thanks to the digital process chain. This means that  dental technicians can work with digital data records transmitted to dental laboratories in real time. Thanks to digital molding, there are no plaster casts or silicone imprints.

Wide indication spectrum

With dental 3D printing, you can produce  a large number of dental indications precisely, saving materials at the same time. Thanks to the  digital connection of the TruPrint systems with milling machines, indications such as implant-supported crowns and bridges, telescopic crowns and secondary parts can be produced economically within a hybrid procedure. In this case, we truly see the benefits of direct printing of individual single abutments on special base parts (preforms) made of titanium or cobalt-chromium.

Less material, higher quality

As the 3D printer only processes as much metal powder as it actually needs, users save material and money. At the same time, the sustainable use of materials  such as cobalt-chromium is beneficial to the environment. Excess powder can simply be reused after the printing process. 3D printers can ideally develop complex geometries such as corners and edges within the smallest amount of space. This means  that dental technicians can increase the quality of their manufactured parts significantly.

Economical production within the hybrid process

Thanks to open interfaces, the 3D printer can be ideally integrated in the existing  CAD/CAM process chains. The result is that dental laboratories do not have to convert their entire system. The advantages of this hybrid workflow: shorter production times, lower costs.

3D dental printing in metal - questions and answers

How many dental components fit on one substrate plate (Ø 100 mm)?

Depending on the shape, up to 100 crowns can be fitted onto one standard plate (diameter: approx. 100 mm).

How long does it take to print a full build plate (Ø 100 mm) with crowns and bridges?

A build plate  with approximately 100 crowns is printed in around three hours using a double laser. A single laser needs approximately five hours.

How many removable partial dentures (RPD) fit on a TruPrint 2000 build plate?

Up to 30 RPDs

How long does it take to print a fully loaded build plate (200 x 200 mm) with removable partial dentures (RPDs)?

A build plate with 30 RPDs is printed in around four hours using a double laser. Thus the print duration per RPD is about 8 minutes.

Which applications can be implemented with a metal 3D printer?

Crowns, bridges, separators and superstructures as well as all implant-supported objects such as single abutments, telescopic crowns, primary and secondary parts, orthodontic parts, cast metal partial dentures and  partial prostheses can be produced with additive manufacturing.

Which material is used for 3D printing of dentures?

Cobalt-chromium and titanium can be effortlessly processed by a 3D printer. Thanks to the open system architecture, there are generally no restrictions concerning the material used. In addition, plug-and-play solutions facilitate a simple and quick start for many powders.

How much space will I need for my 3D printer in the laboratory?

It is very easy to set up 3D printers in dental laboratories. They fit through a normal standard door and in an elevator. They do not need any compressed air and are operated with normal electric power (230V). One machine weighs  650 kg (including powder).

Do I need a gas connection to operate the 3D printer?

TruPrint 1000 and TruPrint 2000 operate with gas cylinders.

Book an appointment for our AM Showroom now – in person or online!

Immerse yourself in the additive future of the dental sector with our industry experts, and experience our machines live in action! Or take advantage of an online machine presentation in our Virtual AM Showroom.

Register now

Hybrid workflow

Hybrid workflow: how to prepare your dental production for the future

Linking up with the milling machine is an important milestone on the journey to automated series production in dental technology .

Find out more

Hybrid workflow: this is how you prepare your dental prostheses production for the future

There is a clear trend: dental prostheses are being increasingly produced in bulk in automated processes. It is therefore becoming more and more important for dental laboratories to rely on a consistently digitized workflow and an intelligent combination of 3D printing and milling technology in order to facilitate competitive production of as many components as possible to a high quality standard. Open IT interfaces and cooperation with partners form the basis of this hybrid process chain which has two primary advantages: shorter production times and decreased costs.

Integration in the digital process chain

Linking up with the milling machine is an important milestone on the journey to automated series production in dental technology. Experts have extended the IT interface of additive production systems for this purpose. The hybrid workflow makes it possible to print and subsequently post-process implant-supported dentures and telescopic parts with milling technology. Thanks to the highly precise results, implants and dental prostheses can be safely screwed in place.

This is what a hybrid workflow looks like in practice

Book an appointment for our AM Showroom now – in person or online!

Immerse yourself in the additive future of the dental sector with our industry experts, and experience our machines live in action. Or take advantage of an online machine presentation in our Virtual AM Showroom.

Register now

Our machines for your additive future

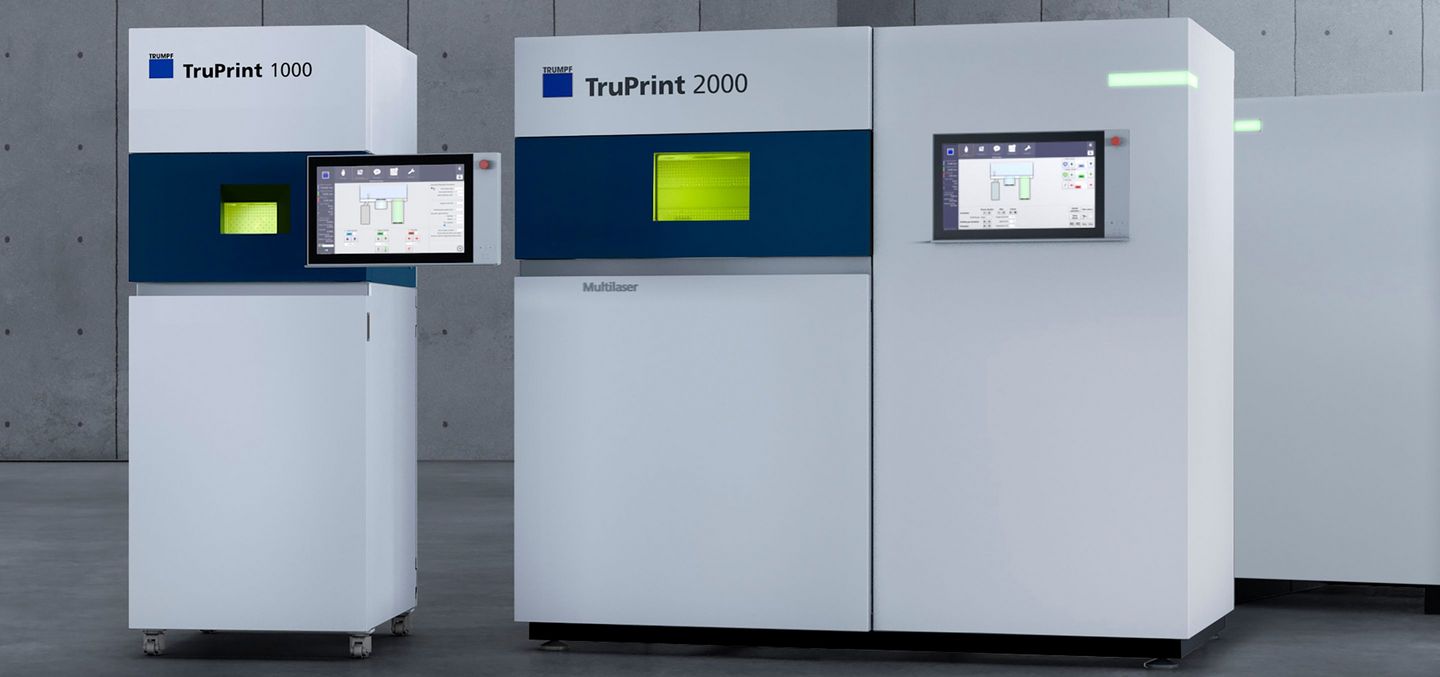

TruPrint 1000 and TruPrint 2000
TruPrint 1000 and TruPrint 2000

With the additive production systems TruPrint 1000 and TruPrint 2000 from TRUMPF, you can print a wide range of dental indications high productively and precisely while saving materials.

Find out more

Step it up a notch: with the TruPrint systems and the Multilaser option

TruPrint 1000 and TruPrint 2000 with the multilaser function are the  most productive 3D printers for metal dental components to date. With this function, 3D printers from TRUMPF produce much more efficiently than conventional methods such as milling machines. There's even more: the possibility of linking both machines to milling stations is another highlight. This increases the range of applications for dental 3D printers.  We also have the TruPrint 1000 Basic Edition in our lineup. It is affordable and robust, intuitive to use and reliable.

TruPrint 1000 and TruPrint 2000

3D printing in premium quality: Highly productive and compact with the TruPrint 1000 or economically with the TruPrint 2000

The advantages of TRUMPF's metal 3D printers

Dental application examples

Musterteil Dentalplatte

Dental plates

The dental industry also benefits from the many advantages of additive manufacturing. Any desired complex indications can be constructed highly precisely and in record time layer-by-layer with bio-compatible material. The units on the substrate plate shown were manufactured in approximately  three hours with around 1,200 layers.

Anwendungsbeispiel RPDs der TruPrint 2000

Removable partial dentures (RPDs)

With the TruPrint 2000 laser's 80 µm beam diameter you can achieve high productivity and high quality at the same time, which is crucial in dental technology series production. The low degree of surface roughness also saves time during manual post-processing.

3D-gedrucktes Beispielteil mit Modellguss-Prothesen

Removable partial dentures

Using additive manufacturing, you have complete freedom to design and manufacture the intricate structures of removable partial dentures on the TruPrint 1000.

Individual single abutments on preforms

Up to 64 individual single abutments can be printed on one preform. It is easy to remove them from the plate.  Only the patient-specific portion is printed.

Book an appointment for our AM Showroom now – in person or online!

Immerse yourself in the additive future of the dental sector with our industry experts, and experience our machines live in action! Or take advantage of an online machine presentation in our Virtual AM Showroom.

Register now

A strong network: an overview of our dental partners

From the purchase of your machine to maintenance and servicing – at TRUMPF, you benefit from a broad range of individual services as well as a large network of partners with whom we cooperate closely.

On this page you will find numerous partners who support you with customized solutions in various fields.

If you are interested in a metal printing machine, you are welcome to contact any of our 70 TRUMPF subsidiaries worldwide directly at any time.

Preform partners

innodent

Innodent is our development partner for the TRUMPF preform option.

New Ancorvis Srl

New Ancorvis produces customized dental solutions for your laboratory.

Dealers

Alruqee Machine Tools

The long-standing and experienced TRUMPF dealer is your contact in Saudi Arabia for dental printing.

Atad

A long-standing, reliable TRUMPF dealer for the Dubai and Middle East region, and your local contact for dental laboratories.

BigBlueTools

A reliable contact for metal printing for dental laboratories in Greece.

Logo Big Blue Lines
Blue Laser Lines

Blue Laser Lines, the dental distributor for the Romania region, offers a wide range of additive manufacturing solutions as well as customized dental solutions.

DI-EL d.o.o.

The specialist in Croatia for metal printing in dental technology.

Natrodent

Innovative dental dealer in Poland for dental metal printing machines from TRUMPF.

Plandental Group Doo

Plandental is an experienced dental dealer for metal printing for the regions Albania/North Macedonia/Kosovo.

RIDIX SpA

The Italian sales representative RIDIX offers a wide range of additive manufacturing and marking solutions.

TEAMZIEREIS GmbH

TEAMZIEREIS stands for the highest CAD/CAM core competency and a digital overall concept.

V.A.C. Machines nv/sa

The long-standing TRUMPF dealer in Belgium and Luxemburg is the first point of contact for dental laboratories when it comes to metal printing.

Powder partners

Acnis International

Acnis International offers a wide selection of certified dental products.

Ador Edelmetalle GmbH

Ador offers suitable and CE-certified alloys for individual requirements.

Assonic

The Assonic powder preparation station makes it possible to guarantee a closed powder circuit to the TRUMPF metal printers.

BEGO

BEGO Mediloy® S-Co is the powder used for the production of high-quality dental prostheses in SLM systems. BEGO Mediloy® S-Co was developed on the basis of long-standing tried-and-tested BEGO casting alloys and optimized for the SLM production process. The indication scope ranges from crowns & bridges to implant prosthetics and orthodontic applications.

Dentaurum

Dentaurum, the oldest owner-managed dental company in the world, develops, produces and sells premium quality dental products with high levels of biocompatibility. remanium® star powder is a universally applicable dental alloy that has stood the test of time, with the ideal particle size and optimum flow behavior for all dental applications.

Nobil Metal SpA

With its research center and its analytical process, Nobil Metal SpA has state-of-the-art technologies at its disposal.

Scheftner

S&S Scheftner GmbH has been manufacturing high-quality dental products for more than 30 years.

Software companies

CIMsystem

With its dental CAM products MillBox, Pyramis and Make&Mill, CIMsystem offers the complete portfolio for the dental digital process chain.

FOLLOW-ME! Technology Group

With the Hyperdent product, the FOLLOW-ME! Technology Group offers a perfect software for hybrid workflows.

Hexagon

Hexagon is one of the leading CAM suppliers for dental laboratories with the product WORKNC DENTAL.

Oqton

Oqton's cloud-based CAM software efficiently supports highly automated processes.

Technology partners

Logo von MIHM-VOGT
MIHM-VOGT

MIHM-VOGT has been a leading global manufacturer of dental laboratory equipment for over 60 years. Thanks to their extensive experience in the dental industry, Mihm-Vogt drives innovation in additive manufacturing processes and offers solutions for heat treatment after 3D printing.

Nabertherm Logo
Nabertherm GmbH

As one of the world's leading furnace manufacturers for over 75 years, Nabertherm is a reliable partner for heat treatment processes in the field of additive manufacturing.
