Beveler

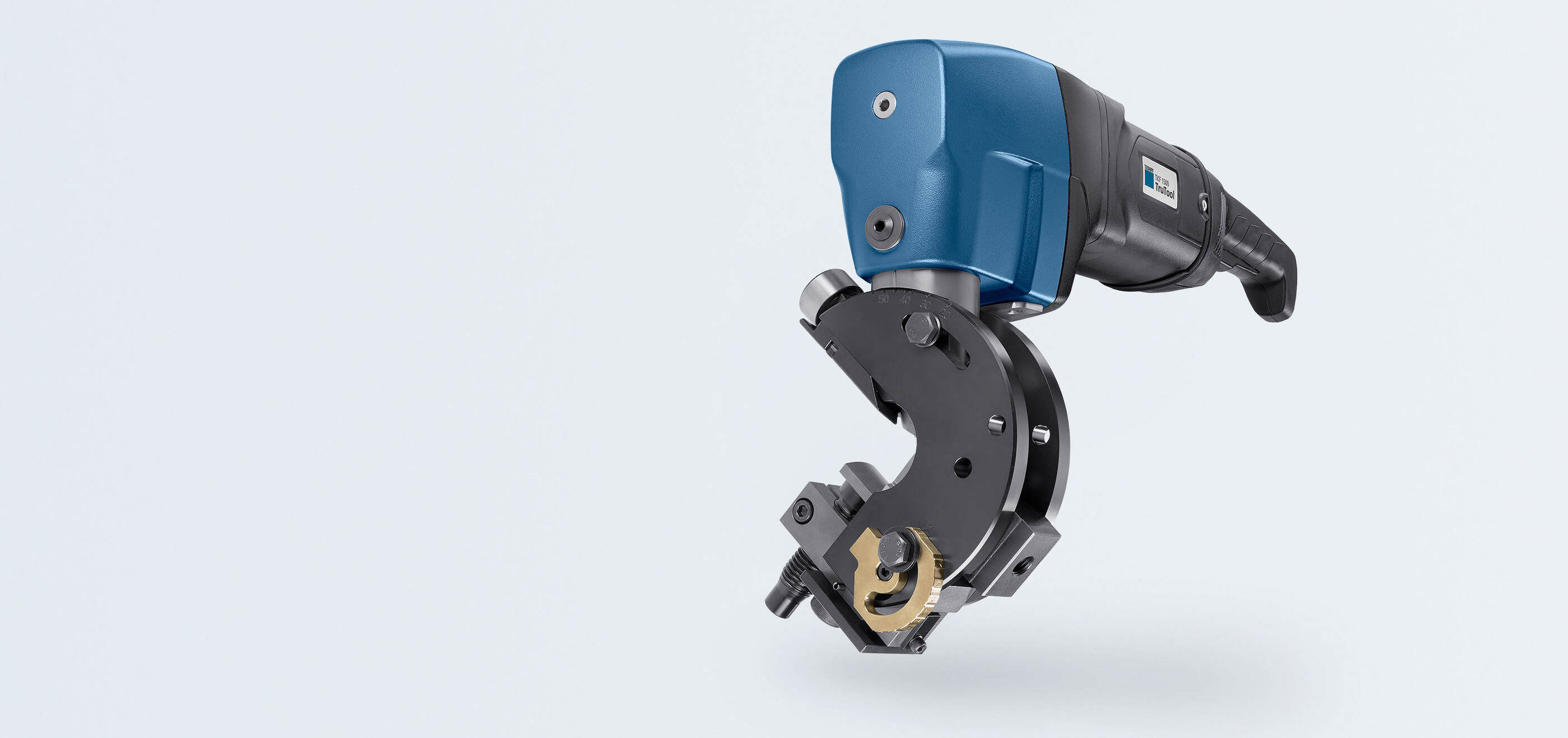

TruTool TKF 1500

REQUEST A QUOTE

Powerful and safe

The TruTool TKF 1500 is equipped with a powerful 2,600 W motor.Hand protection, integrated on the motor, ensures a high degree of user-friendliness and safe operation. The soft grip ensures user-friendly operation with low vibrations. This means you can always expect consistent, oxide-free results. Regardless of whether you are processing straight sheets, T-beams, or tubes. The surface roughness remains low.

2600 W motor

The extremely powerful motor ensures a high degree of durability.

Work safely

Hand protection, integrated on the motor, provides a high degree of operation safety.

The right setting

It is quick and easy to adjust the optimal settings for the chamfer height and sheet thickness

Continuously adjustable from 20° to 55°

You can use the carrier for various angles between 20° and 55°.

Bevellers: Video on the area of application

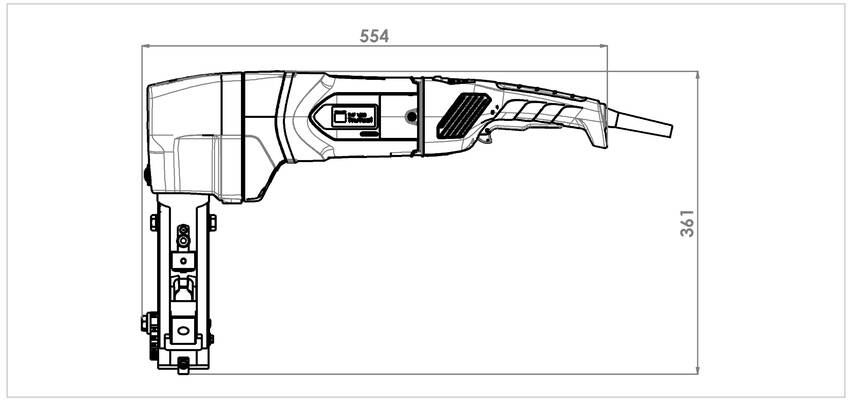

TruTool TKF 1500, dimensional drawing

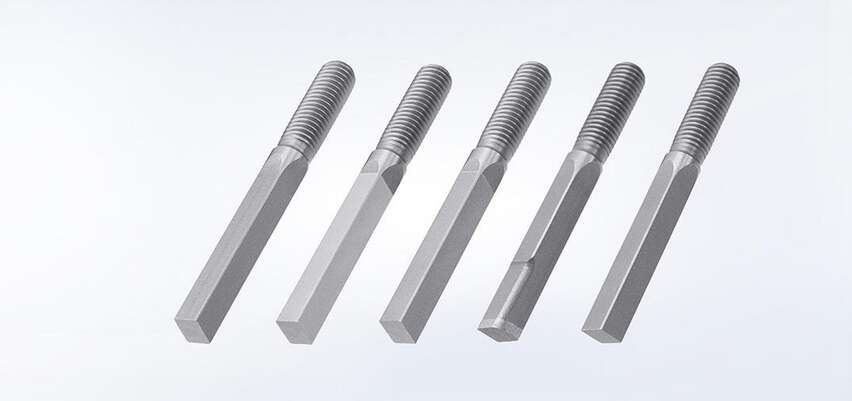

The right choice

There are five cutting tools to choose from. This enables you to achieve perfect results across a wide range of applications. The material being processed is crucial when it comes to choosing the right cutting tool. The cutting tools can be changed without the need for additional tools, and you can regrind them many times over. This results in a long service life and reduces your operating costs.

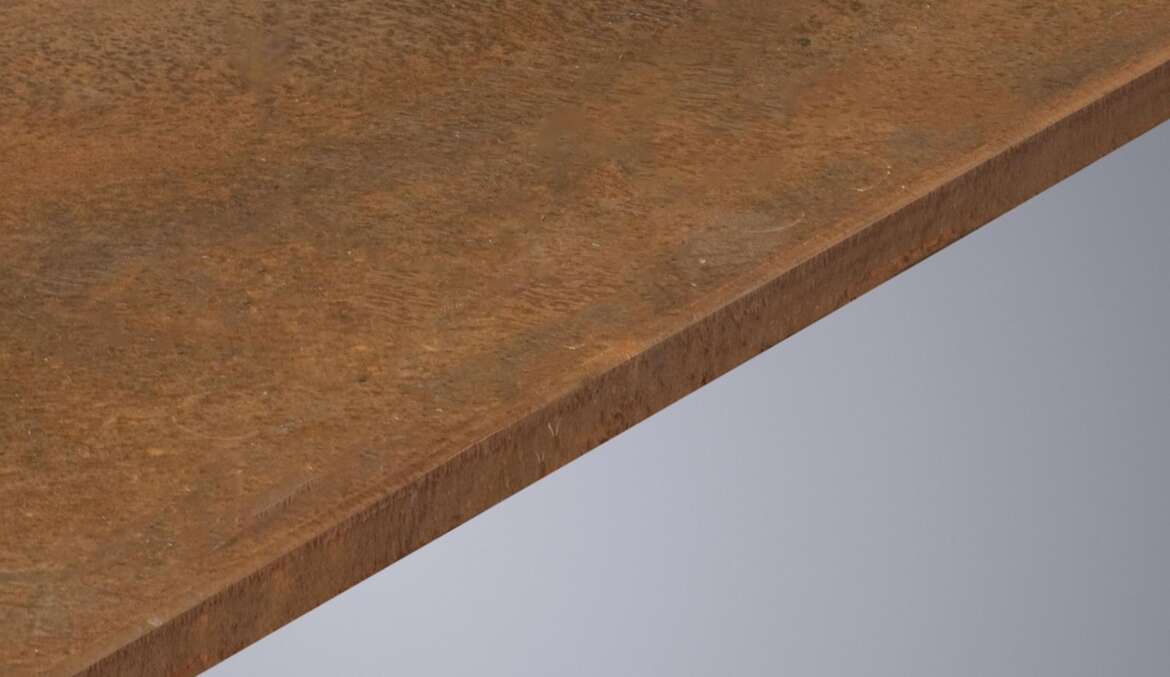

For straight edges and radius edges

Weld seam preparation on outer and inner contours. With interior cutout diameters from 5 inches. Also for T-beams and double T-beams.

Tubes

Weld seam preparation on tubes with an inside diameter from 1.2 inches.

The following consumables and the corresponding accessories are included in the scope of delivery.

Punching and nibbling oil for steel, 17 oz bottle

1 unit 0103387

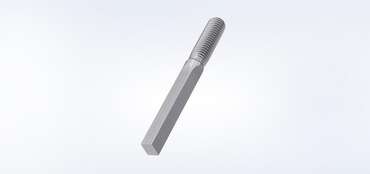

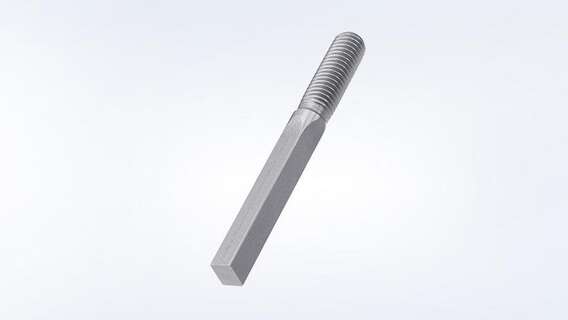

Standard cutting tool

Integrated

Hexagon-head screw M 10 x 20 - 10.9 DIN 933

1 unit 0017302

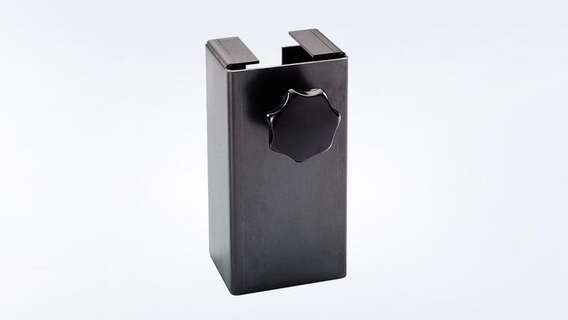

Chip box

1 unit 0223209

Allen key 6 mm

1 unit 0118860

Hexagon-head screw (2 units) M 10 x 25 - 10.9 DIN 933

1 unit 0017310

Tube of grease "S1", 0.88 oz

1 unit 0121486

Box for small parts (Case 63XS)

1 unit 2882912

Wrench AL17 DIN 3113

1 unit 0078310

Grease gun

1 unit 0068624

Tube-shaped handle

1 unit 0023206

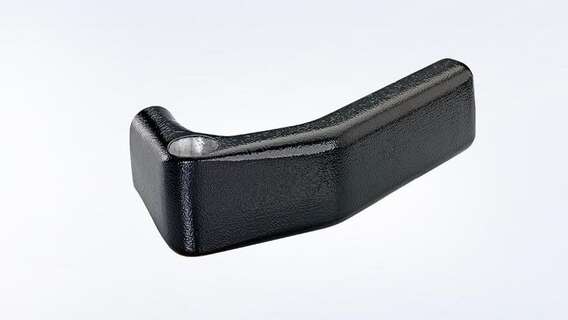

Handle base

1 unit 0023229

Setting gauge

1 unit 1411767

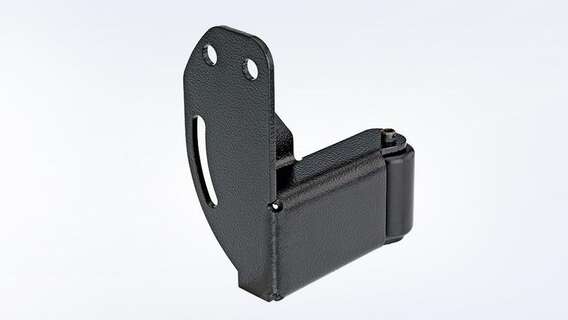

Roller holder complete, right

1 unit 1238982

Case (H4054 1)

1 unit 2277078

Find the right consumables and accessories for your machine here.

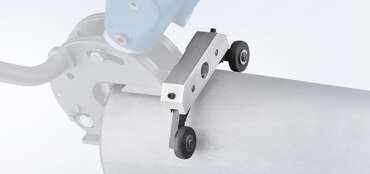

Roller holder tube processing

For tube external machining Ø 3.5 - 7.8 in. with stripper

1 unit 0005123

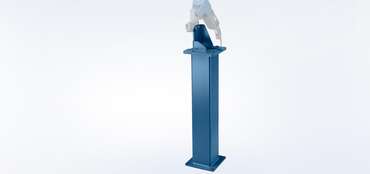

Work station with pedestal

Ideal for processing small parts in stationary use. For TruTool TKF 2000, order the adapter 1653155 separately.

1 unit 0005079

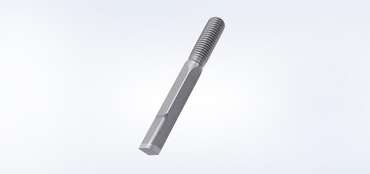

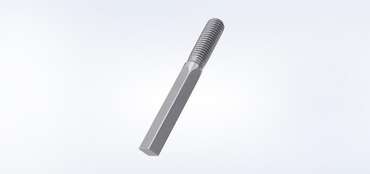

High-tensile cutting tool 5575

For processing mild steel between 85,000 - 114,000

Set of 2 1327480

Set of 10 1327482

Heavy-duty cutting tool

For processing mild steel between 100,000 - 130,000

Set of 2 1264420

Set of 10 1264432

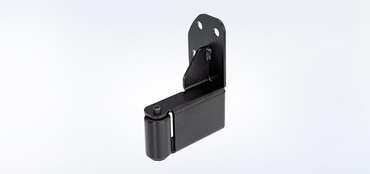

Left roller holder

1 unit 1240848

High-tensile cutting tool

For processing mild steel between 75,000 - 100,000

Set of 10 1264418

Set of 2 1264417

Punching and nibbling oil for aluminum

1000 ml 0125874

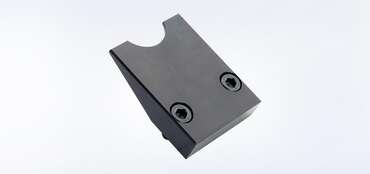

55° special-purpose stripper

For an angle of bevel between 20° and 55°

1 unit 0032119

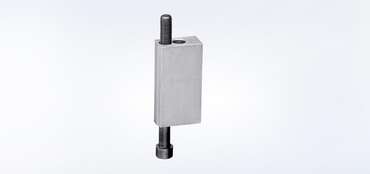

Modification kit 4.7 - 6.3 in.

Modification kit for greater workpiece thicknesses of 4.7 - 6.3 in.

1 unit 0027799

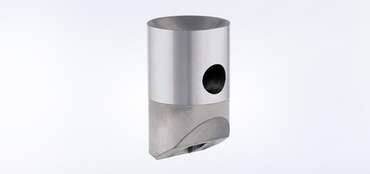

Sliding sleeve

1 unit 1884873

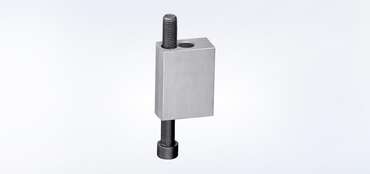

Modification kit 3.15 - 4.72 in.

Modification kit for larger workpiece thicknesses 3 - 4.75 in.

1 unit 0023204

Modification kit 1.57 - 3.15 in.

Modification kit for greater workpiece thicknesses of 1.57 - 3.15 in.

1 unit 0023203

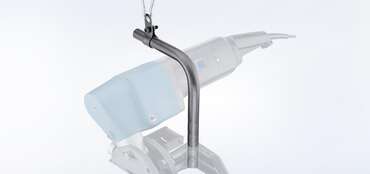

Handle

Enables fatigue-free work with maximum movement

1 unit 0023210

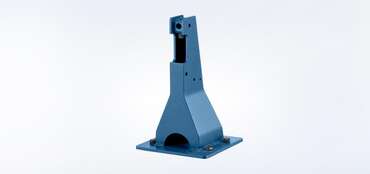

Work station TKF1500/2000

Ideal for processing small parts in stationary use. For TruTool TKF 2000, the adapter 1653155 must be ordered separately.

1 unit 1343474

Cutting tool

For processing mild steel between 45,000 - 75,000

Set of 10 1263029

Set of 2 1263021

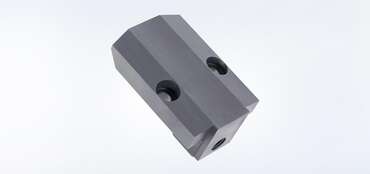

Stripper

For an angle of bevel between 20° and 45°. For special part no. 0027798 for tube processing.

1 unit 0023242

Aluminum cutting tool

For processing aluminum between 30,000 - 85,000

Set of 2 1264419

Punching and nibbling oil for steel

500 ml 0103387

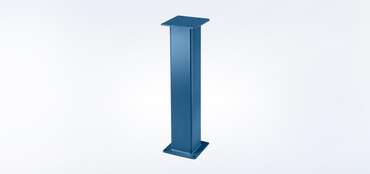

Pedestal

Pedestal for work station

1 unit 0003677

	TruTool TKF 1500
Maximum chamfer lengths / Maximum chamfer heights
Maximum chamfer length, steel 400 N/mm²	15 mm
Maximum chamfer height, steel 400 N/mm²	10.6 mm
Maximum chamfer length, steel 600 N/mm²	9 mm
Maximum chamfer height, steel 600 N/mm²	6.4 mm
Maximum chamfer length, steel 800 N/mm²	6 mm
Maximum chamfer height, steel 800 N/mm²	4.2 mm
Radii
Smallest radius	55 mm
General
Working speed (max.)	2 m/min
Nominal power consumption	2600 W
Sheet thickness	4 mm - 160 mm
Dimensions
Length	554 mm
Height	361 mm
Weight
Weight	16.5 kg

Technical data sheet

The technical data of all product versions as a download.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
