Marking laser

TruMark Series 5000

Flexible and productive with compact laser head

High-speed marking

The fiber laser-based TruMark Series 5000 offers the optimum combination of high power, high pulse frequencies, and adjustable pulse duration. The high-power marking laser is designed for demanding applications with high power requirements and short cycle times. The TruMark Series 5000 is the first choice when it comes to deep engraving, annealing, and special micro-structuring applications in particular. You can even process changing component types at the touch of a button.

Extremely efficient

Short process times due to high average power and high pulse frequencies

Stable in all areas

The power remains stable across the entire frequency range and can be scaled if necessary.

Flexibility for material

You can adjust the pulse duration for your specific application and so determine the quality and productivity.

Simple integration

Integration is quick and simple as a result of the modular structure and plug & produce connection.

Fast focal position adjustment

The variable beam expansion enables you to move the focal position quickly.

Image processing using the TruMark 6030 as an example
Laser safety – TRUMPF lasers
The highest safety standards

In addition to a highly robust fiber protection tube, the TruMark Series 5000 also features a mechanical seal. This prevents laser radiation from escaping between two marking processes. You can monitor the laser power using the integrated power measurement and calibration.

High processing speed with the TruMark Series 5000
High processing speed

The TruMark Series 5000 specializes in particularly high pulse frequencies – a key factor for high processing speeds. The faster marking process is also due to the highly dynamic scanner modules that are fitted as standard. The software-controlled focal position adjustment enables you to mark stepped components in a single operation, without the need for mechanical movement.

Compact, modular beam sources of the TruMark Series 5000
Compact, modular beam source

The TruMark Series 5000 has a consistent modular design. The scanner optics, processing unit, and supply unit are coupled using plug connections so that the lasers are very easy to integrate in your production system or plant. The air-cooled lasers are extremely compact and feature numerous interfaces: a great advantage for integration.

Annealing with the TruMark Series 5000


Local heat input is used to discolor the workpiece surface. The annealing color changes depending on the material and the energy input. The surface stays smooth, which means that dirt cannot be deposited.

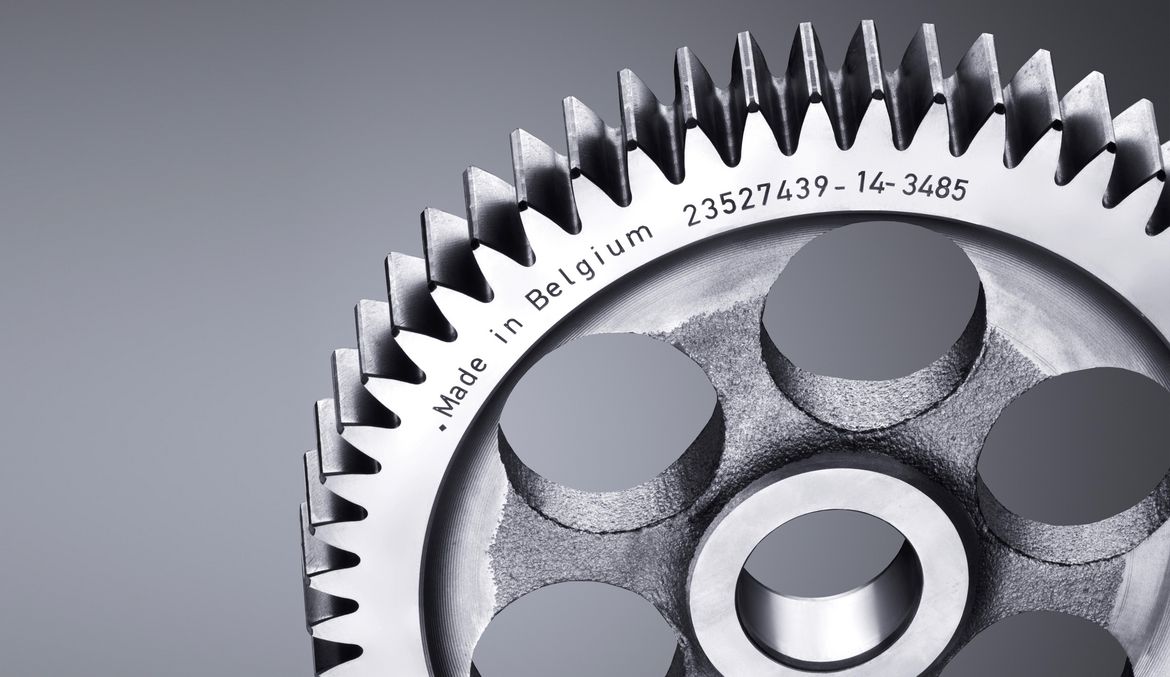

Engraved gearwheel with the TruMark Series 5000


During engraving, the laser beam removes part of the base material, thus creating a depression. This may have steep or beveled edges.

Discoloration of plastic with the TruMark Series 5000


If the material and laser wavelength are optimally matched, the dye molecules are deliberately discolored or faded. The surface remains smooth.

Surface structuring with the TruMark Series 5000

Structured surfaces

The laser can be used to structure surfaces for a specific function. There are various processes for this. If the surface is structured with tiny melt elevations, significantly higher adhesion effects can be achieved with the same material properties. If interlocking components are structured through the addition of micro-depressions, the running characteristics improve significantly with the same quantity of lubricant.

Cleaning surfaces with the laser

Laser cleaning

Surfaces are easy and quick to clean with the laser. Rust, oil, or phosphate layers can be gently removed in preparation for subsequent processes without damaging the underlying material.

Laser ablation with the TruMark Series 5000

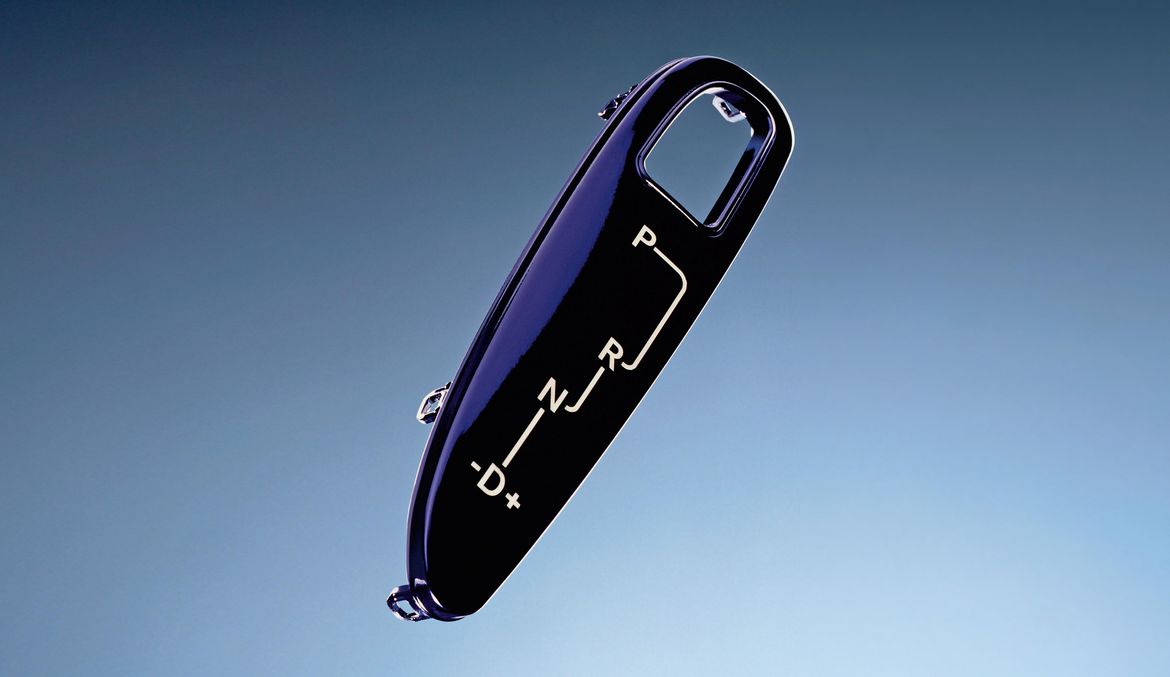

Ablation partially removes thin top layers of multi-layer plastics which are applied to the basic material and have very different colors. This process can be used for the "day and night design", for example, which is used in the automotive and other industries.

Foaming of plastics with TruMark lasers


During foaming, the laser heats the plastic to cause a short melting process. During the subsequent cooling process, small gas bubbles become trapped and diffuse the light that falls on them and is reflected. This type of laser marking produces a raised marking.

TruMark 5020
TruMark 5050
Laser parameters
Beam quality (M²) < 2 ≤ 1.6
Wavelength 1062 nm ± 3 nm 1062 nm ± 3 nm
Pulse repetition frequency cw, cwm, 1 kHz - 1000 kHz cw, cwm, 1 kHz - 1000 kHz
Min. focal diameter 41 μm with focal length 4 in. 36 μm with focal length 4 in.
Max. internal focal position control ± 60 mm with focal length 16.5 in. ± 60 mm with focal length 16.5 in.
Max. marking field size 290 mm x 290 mm with focal length 16.5 in. 290 mm x 290 mm with focal length 16.5 in.
Structural design
Dimensions of laser head (W x H x D) 414 mm x 131 mm x 147 mm 414 mm x 131 mm x 147 mm
Dimensions of supply unit (W x H x D) 445 mm x 550 mm x 420 mm 445 mm x 550 mm x 420 mm
Protection type IP54 IP54
Ambient temperature 15 °C - 40 °C 15 °C - 40 °C

TruTops Mark

The TruTops Mark marking software makes marking with TruMark lasers as easy as possible. The TruTops Mark program combines the marking software, CAD editor, management of laser parameters and interfaces, sequence programming with QuickFlow, and a diagnostics tool. An intuitive interface puts all the functions at your fingertips. You can easily draw and arrange graphic objects with the CAD editor. The database for laser parameters enables you to re-use optimized parameters many times over. You can use the QuickFlow sequence programming to create "drag and drop" programs that control the complete marking cycle from beginning to end. The diagnostics tool visualizes and analyzes the analog measured values recorded by its sensors.

The other options for the TruMark Series 5000 optimize your production process and help to improve user-friendliness.

VisionLine image processing

Increase your process reliability with VisionLine, TRUMPF's image processing solution. VisionLine detects the position of the component and ensures that marking takes place in the correct location. It is also possible to read out and check the marked code. The modular structure opens up numerous options. Whether the camera looks through the scanner lens, is laterally installed or whether the machine uses one or two cameras – anything is possible.

Operating package

The operating package consists of a monitor and a keyboard with mouse. These are optimally designed for the needs of laser marking.

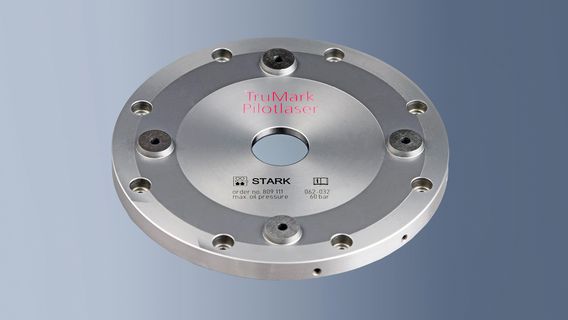

Pilot laser

The pilot laser is used to simulate the marking content with a visible red light via a laser diode. You get an idea of the marking results in advance so you can position the component in the marking field even more easily.

Focus finder

The focus finder provides visual assistance for manually setting the correct working distance for the relevant application. It can be used for various focusing lenses.

Remote Services

In the event of a fault, TRUMPF service experts will remotely access your laser via a secure remote connection. In many cases the fault can be remedied directly in this way, or the configuration of the laser can be modified in a way that permits you to continue manufacturing until the spare part arrives.

Variety of interfaces – for simple integration

The interfaces determine how simple it is to integrate a laser in a machine or production line. The lasers in the TruMark Series 5000 can be connected to a Profibus/Profinet/EtherCAT network and controlled through this. External devices can also be connected and automation systems provided by the customer can be integrated. The IOE interface expansion offers 16 additional digital inputs and 16 digital outputs, as well as 8 digital high-speed inputs and 8 digital high-speed outputs for connecting external devices, and for integrating the laser in the automation systems.

Additional focusing lenses

There are many focusing lenses available in different focal lengths for all wavelengths of the TruMark Series. You can select the optimum combination of wavelength and focal length for every application.

You will find the ideal work station option for your workpiece size and application complexity in our work station product line. This includes small, compact marking stations and systems for particularly large components. You can also benefit from various options for automation.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.

Find your perfect marking laser now

Use the TruMark product finder to discover which marking laser is best suited to your application!

Start product finder
