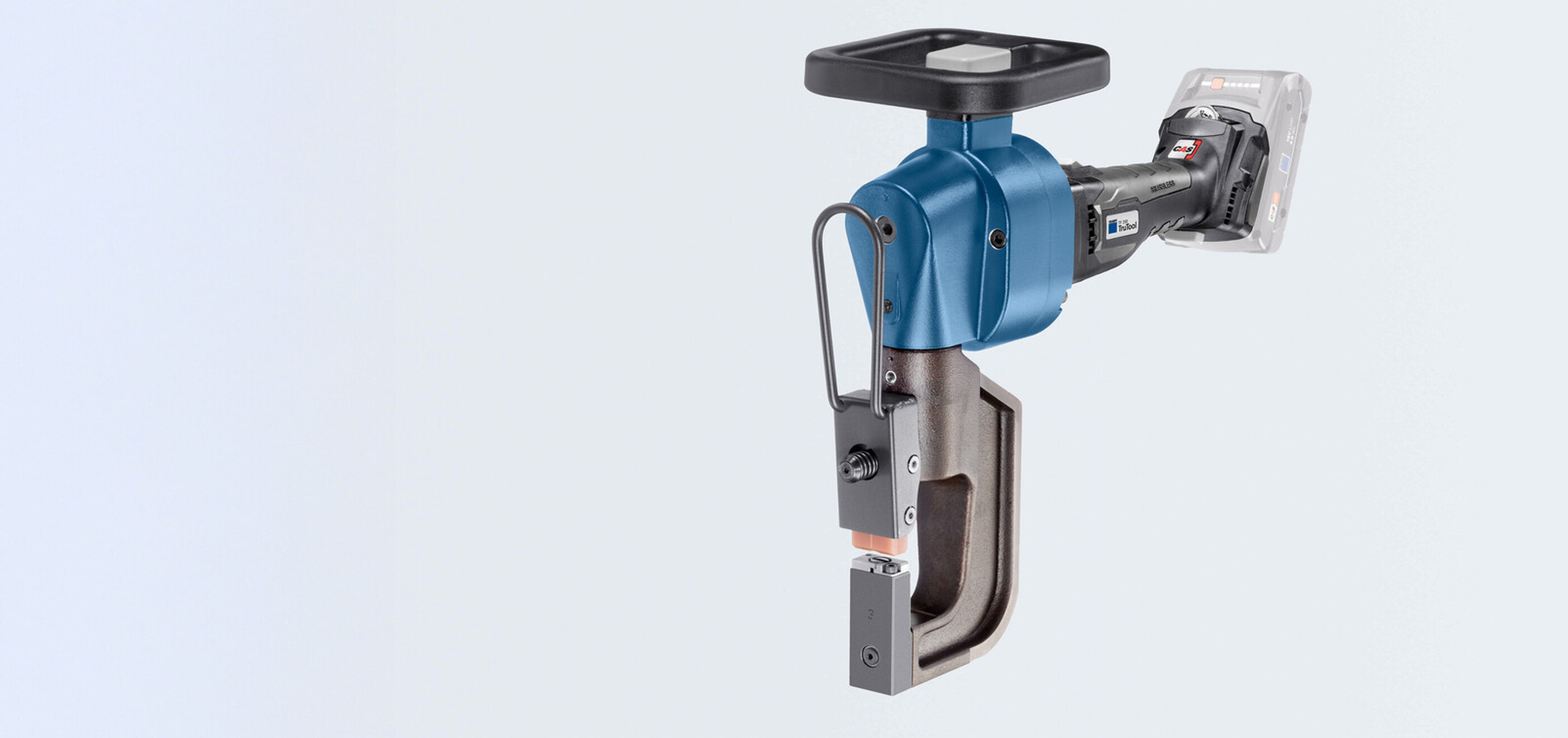

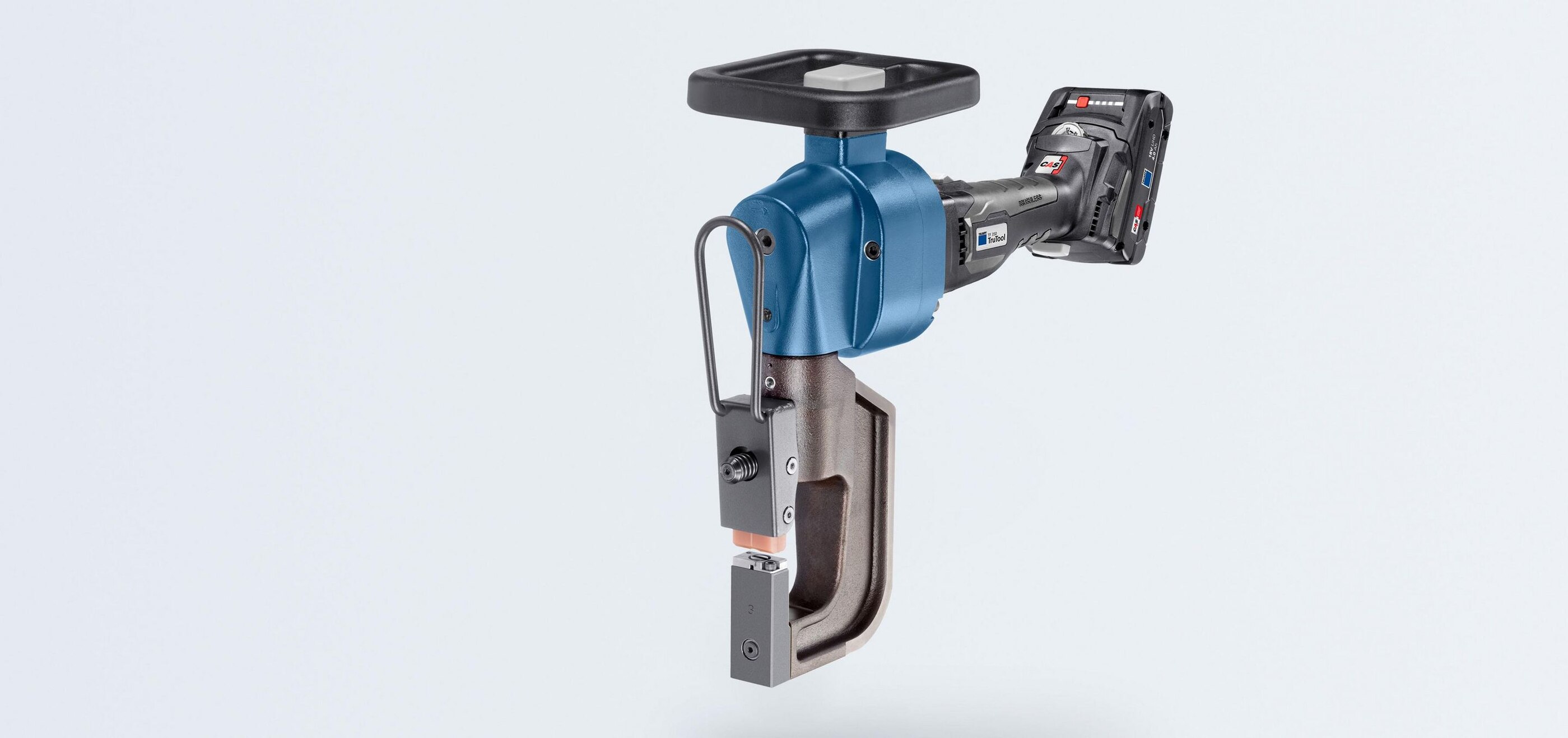

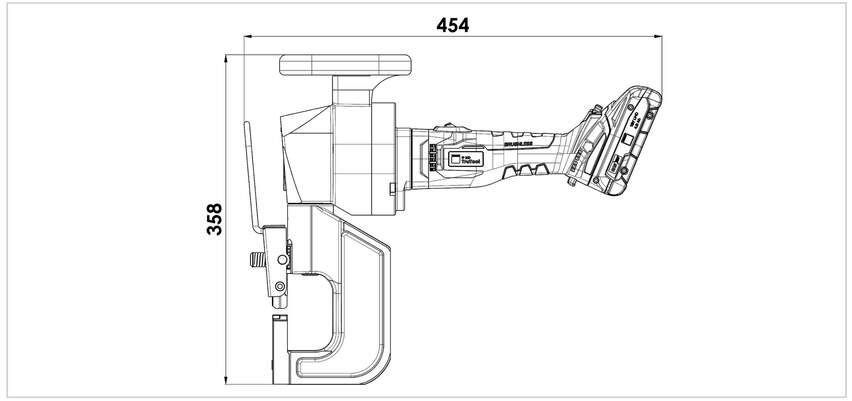

TruTool TF 350 18V LiHD rechargeable battery, dimensional drawing
Cordless connecting – fast, economical, and independent

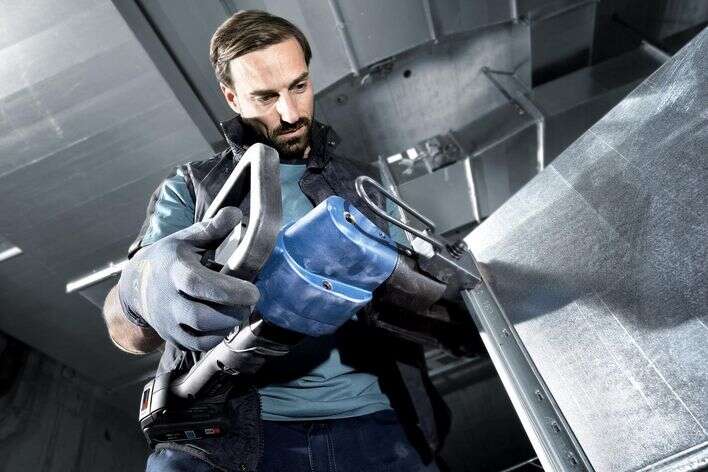

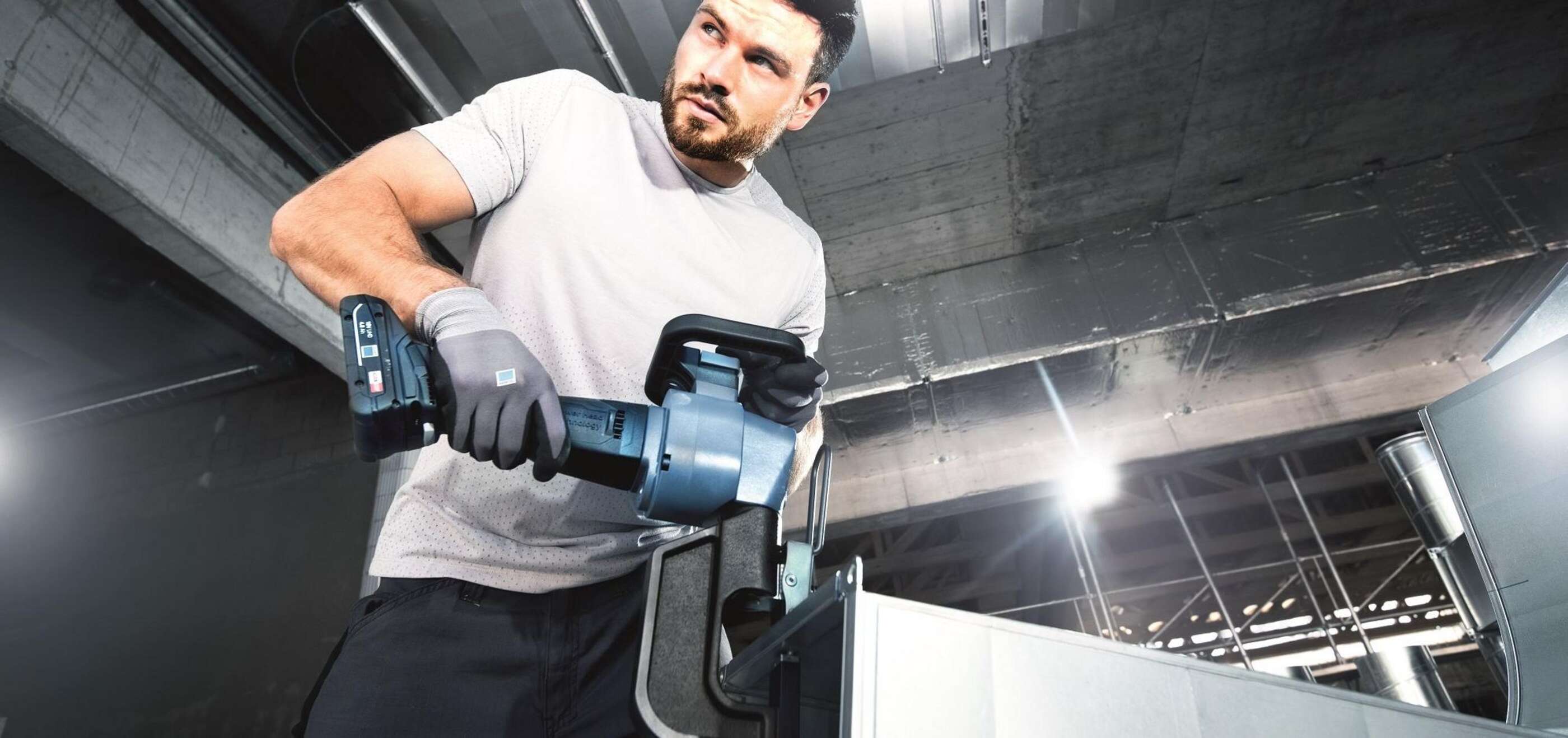

Joining of ventilation ducts is often performed on site at the construction site. With the battery machine, you are not reliant on the power supply and can work conveniently and cordlessly. The TruTool TF 350 LiHD rechargeable battery enables you to join coated or uncoated workpieces with material thicknesses of 0.8 mm to 4 mm. The resulting permanent connections can be performed in a single operation and require no additional connecting elements thereby ensuring maximum cost-effectiveness. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes.
Cordless Alliance System
Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility in the 18-volt class.
Brushless motor
Almost unlimited service life, virtually wear-free and hardly any maintenance required. Battery performance per charge is also increased.

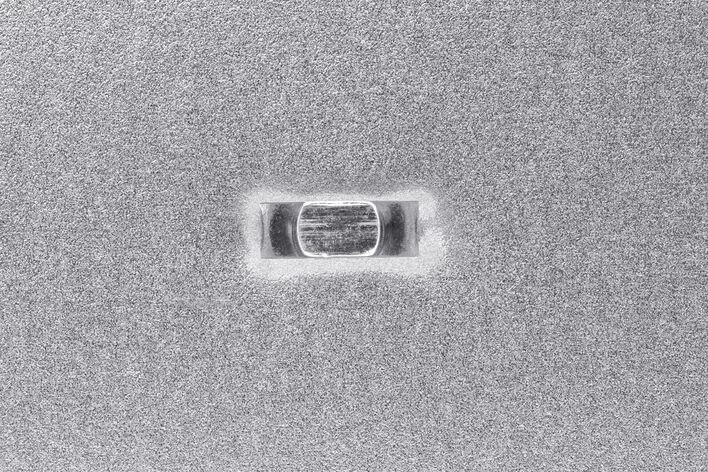

Straight to the point
The connection point is secure and resilient and the joining points are resistant to corrosion.
No fasteners
No screws or rivets are used. This saves money and simplifies handling.

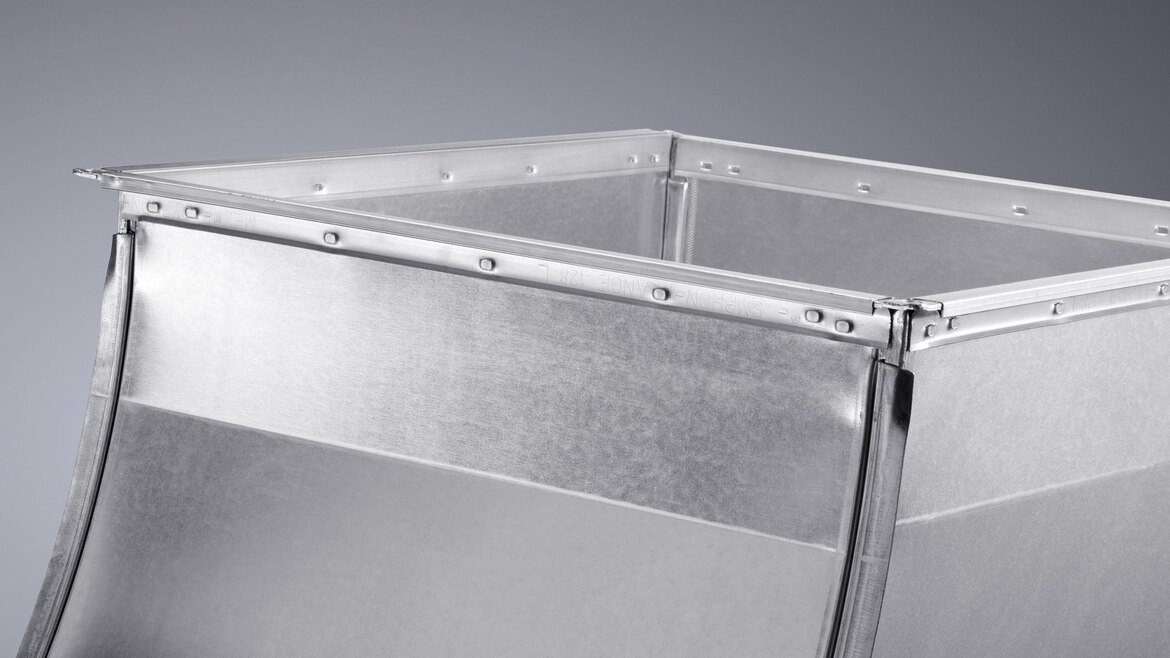

Joining ducts

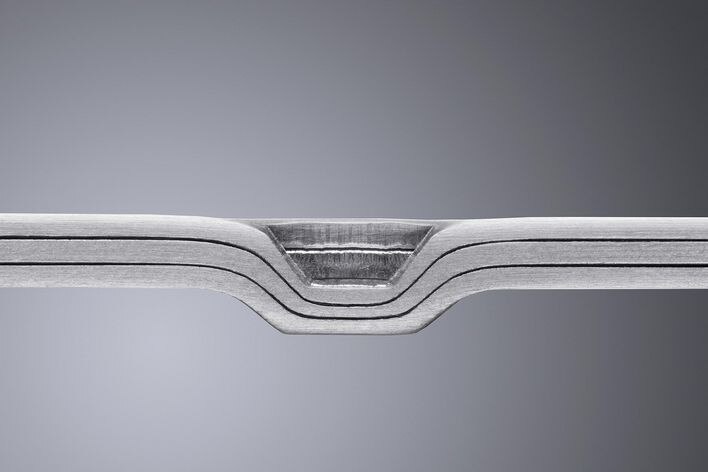

Up to three parts can be connected together, even if the sheet thickness varies. For coated sheet metal, mild steel, stainless steel, aluminum, or with intermediate layers such as adhesive and plastic mats.

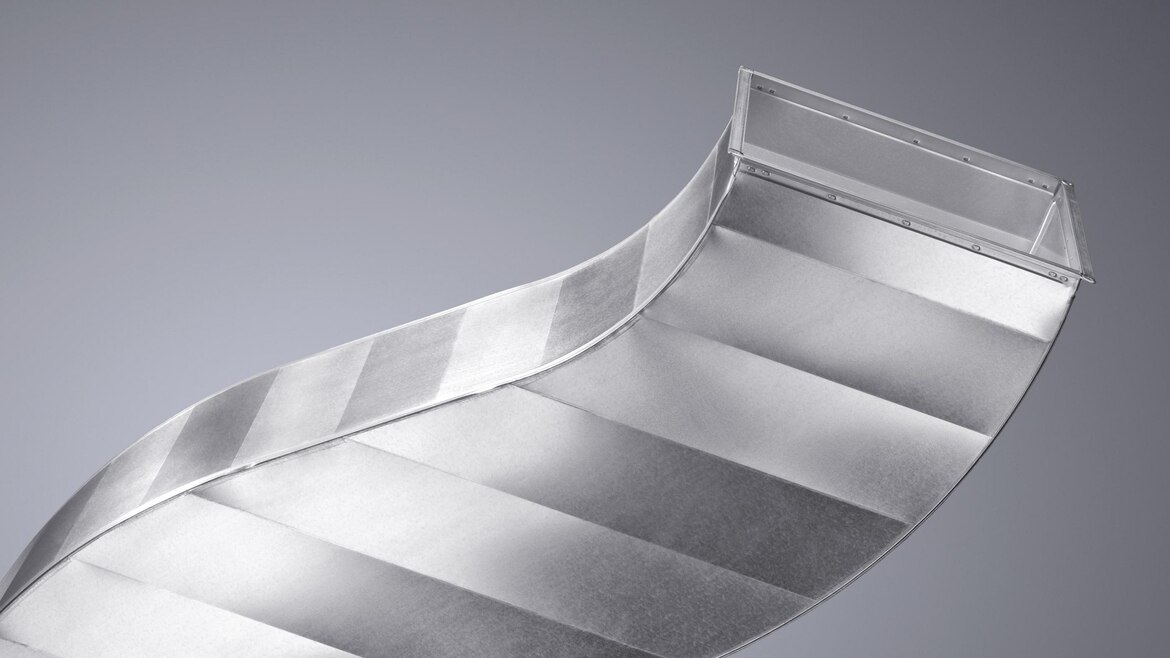

Joining frame profiles
For joining connection flanges on ventilation and heating ducts.
The following consumables and the corresponding accessories are included in the scope of delivery.
Grease gun (filled with "G1")
1 unit 1398728

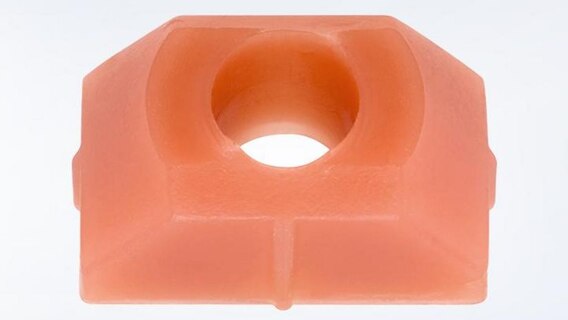

Stripper for channels
1 unit 0112929

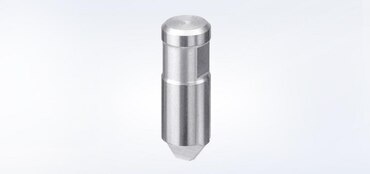

Punch (integrated)
1 unit 1884902
Allen key DIN 911-6
1 unit 0067865
Stripper for straight sheets (integrated)
1 unit 0053649
Allen key DIN 911-3
1 unit 0067830
Allen key DIN 911-5
1 unit 0067857
Case
1 unit 2282148
12V-36V recharger LG
1 unit, DE/CH version: 2569784 | 1 unit, GB version: 2569786 | 1 unit, USA version: 2569785
18V LiHD 4 Ah rechargeable battery (2 units)
1 unit 2598811

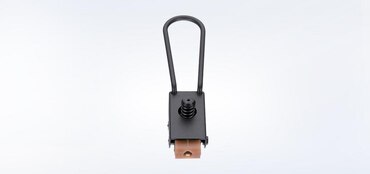

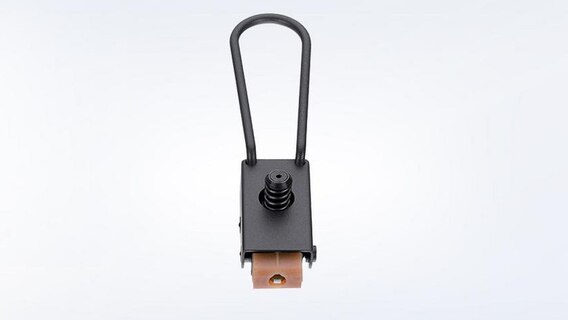

Tilting arm for punch
1 unit 0128748

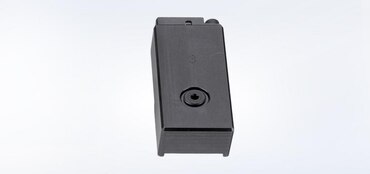

Die arm fixed No. 3 sheet thickness 3.1 - 3.5
1 unit 0118132

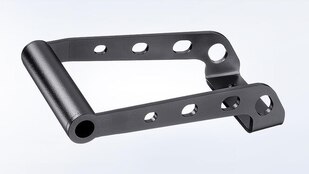

Find the right consumables and accessories for your machine here.
Tilting arm for die No. 2
Well-suited for sheet thicknesses of 0.06 - 0.08 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0128793
Die arm fixed No. 3-
Well-suited for sheet thicknesses of 0.10 - 0.12 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0129764
Tilting arm for punch
1 unit
0128748

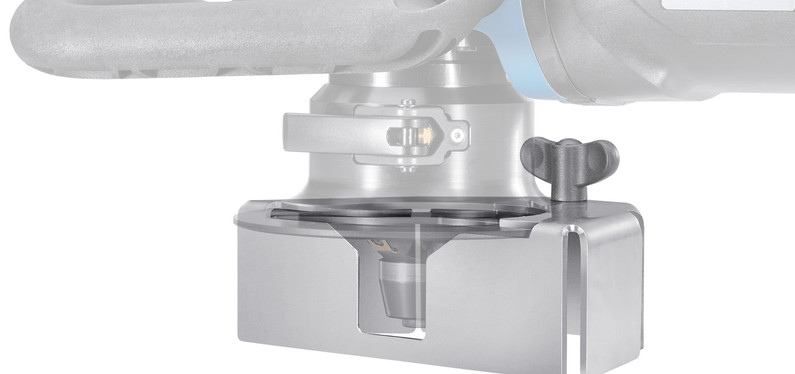

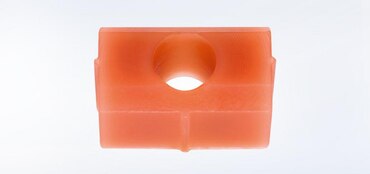

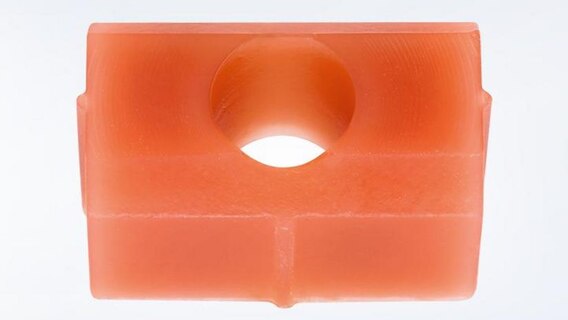

Stripper for straight sheets
1 unit
1884874

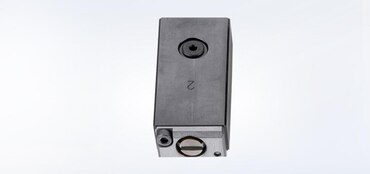

Die arm fixed No. 2
Well-suited for sheet thicknesses of 0.06 - 0.08 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0118131

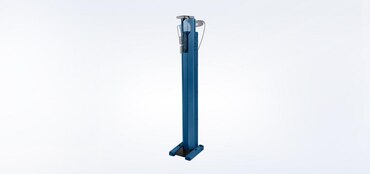

Joining station
For quick and easy joining of smaller sheet parts. Well-suited for stationary use.
1 unit
1224803
LG 12V-36V recharger
For 12V and 18V LiHD rechargeable battery
1 unit (DE/CH)
2569784
1 unit (GB)
2569786
1 unit (USA)
2569785

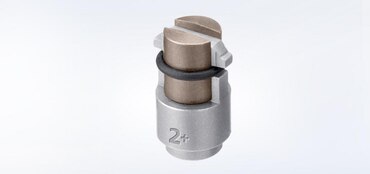

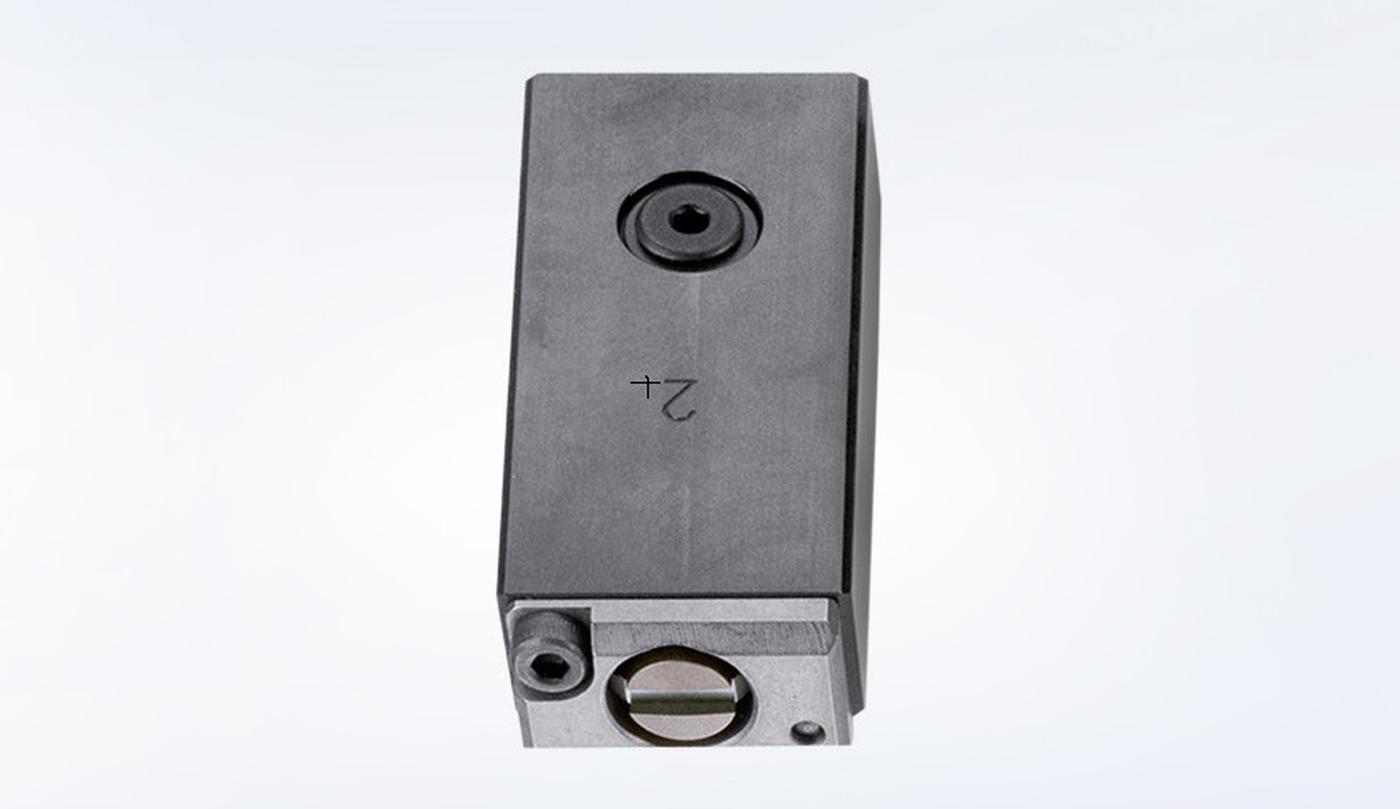

Die No. 2+
Well-suited for sheet thicknesses of 0.08 - 0.1 in. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.
1 unit
0122272

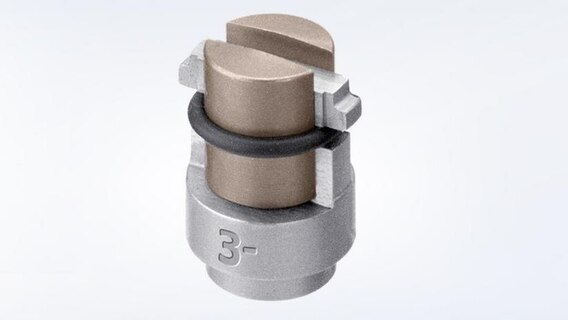

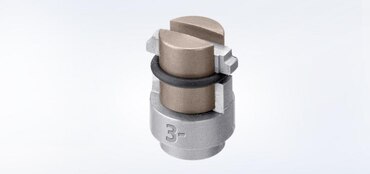

Die No. 3-
Well-suited for sheet thicknesses of 0.10 - 0.12 in. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.
1 unit
1884875

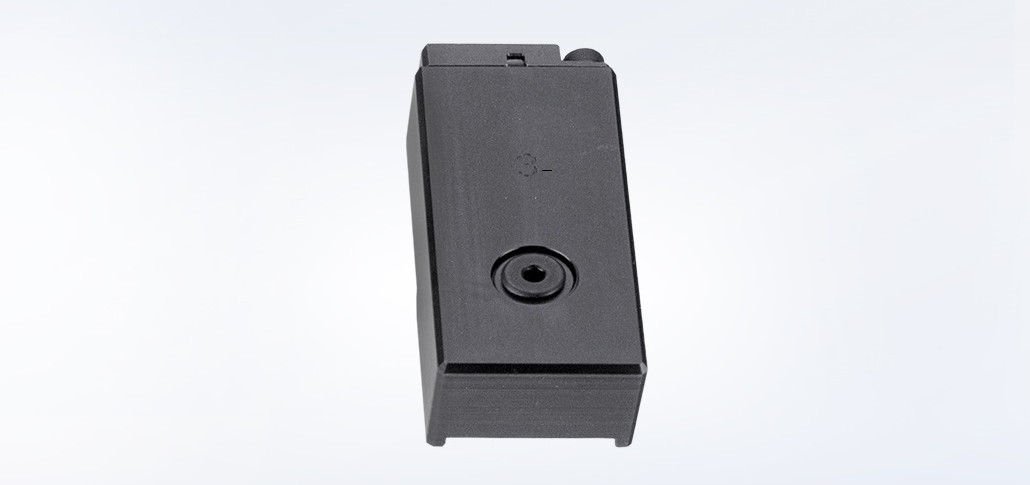

Die arm fixed No. 1
Well-suited for sheet thicknesses of 0.03 - 0.06 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0118130
Die No. 2
Well-suited for sheet thicknesses of 0.06 - 0.08 in. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.
1 unit
0111968
Tilting arm for die No. 3
Well-suited for sheet thicknesses of 0.122 - 0.137 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0128794
Tilting arm for die No. 3-
Well-suited for sheet thicknesses of 0.10 - 0.12 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0129724
Tilting arm for die No. 2+
Well-suited for sheet thicknesses of 0.08 - 0.1 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0129723

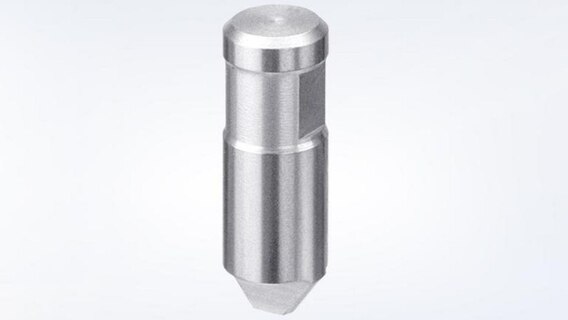

Punch
1 unit
1884902
Set of 2
1264160

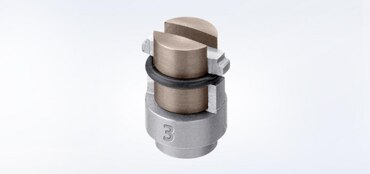

Die No. 3
Well-suited for sheet thicknesses of 0.122 - 0.137 in. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.
1 unit
0111967

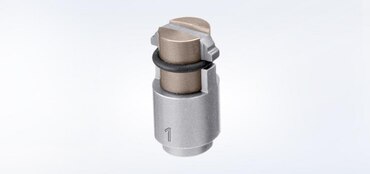

Die No. 1
Well-suited for sheet thicknesses of 0.03 - 0.06 in. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.
1 unit
0111969

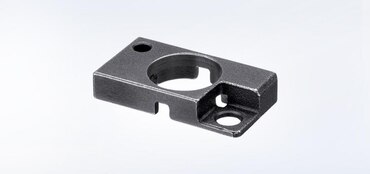

Plate
1 unit
1884876
18V LiHD 4.0Ah rechargeable battery
1 unit
2598811

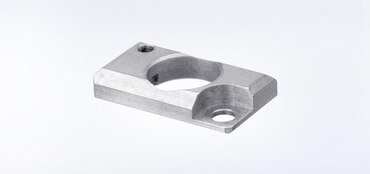

Plate for channels
1 unit
0243189
18V starter kit
1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery
1 Set (DE)
2598816
1 set (GB)
2598820
1 Set (USA)
2598818

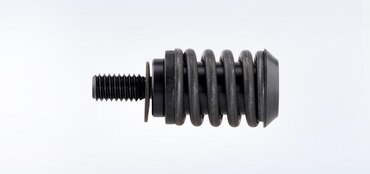

Spring element
1 unit
0249303

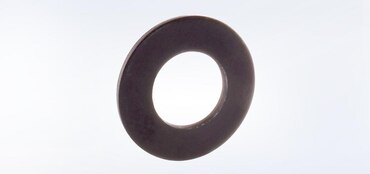

Disc spring
1 unit
0030678
Lubricating grease G1
32 oz.
0139440
Die arm fixed No. 2+
Well-suited for sheet thicknesses of 0.08 - 0.1 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0129763
Punching and nibbling oil for steel
500 ml
0103387
Die arm fixed No. 3
Well-suited for sheet thicknesses of 0.122 - 0.137 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0118132
Punching and nibbling oil for aluminum
1000 ml
0125874

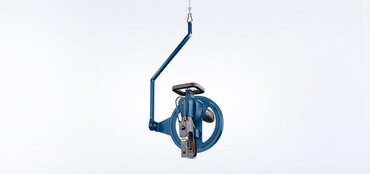

Turning ring
For hanging up the machine on a balancer. Enables fatigue-free work with maximum movement.
1 unit
0976671

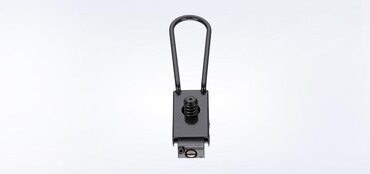

Tilting arm for die No. 1
Well-suited for sheet thicknesses of 0.03 - 0.06 in. Can be selected with die No. 1, 2, 2+, 3- or 3.
1 unit
0128792
|
TruTool TF 350 LiHD 18V rechargeable battery
|
|
|---|---|
| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel 400 N/mm² | 3.5 mm |
| Maximum sheet thickness, steel 600 N/mm² | 2.5 mm |
| Maximum sheet thickness, aluminium up to 250 N/mm² | 4 mm |
| General | |
| Minimum sheet thickness | 0.8 mm |
| Maximum joining force | 25 kN |
| Maximum stroke rate | 2 1/s |
| Minimum edge spacing | 8 mm - 58 mm |
| Maximum flange height (B) | 36 mm |
| Voltage | 18 V |
| Weight | |
| Weight (incl. rechargeable battery) | 8 kg |
| Dimensions | |
| Length | 454 mm |
| Height | 358 mm |
PDF <1MB
Technical data sheet
The technical data of all product versions as a download.
