Digital toolbar panel bending
Here you will find all videos of the sample parts that were produced on the TruBend Center Series 7000. Each sample part shows a specific application with different sheet thicknesses and materials.
Use case 1
Material: Mild steel 2 mm
Geometry: Circumferential reinforcements
Example: Double sheet metal bend (double sheet metal)
Use case 2
Material: Pre-painted mild steel 1.2 mm
Geometry: T-fold with radius
Example: External cladding of appliances, soft and precise closing angle

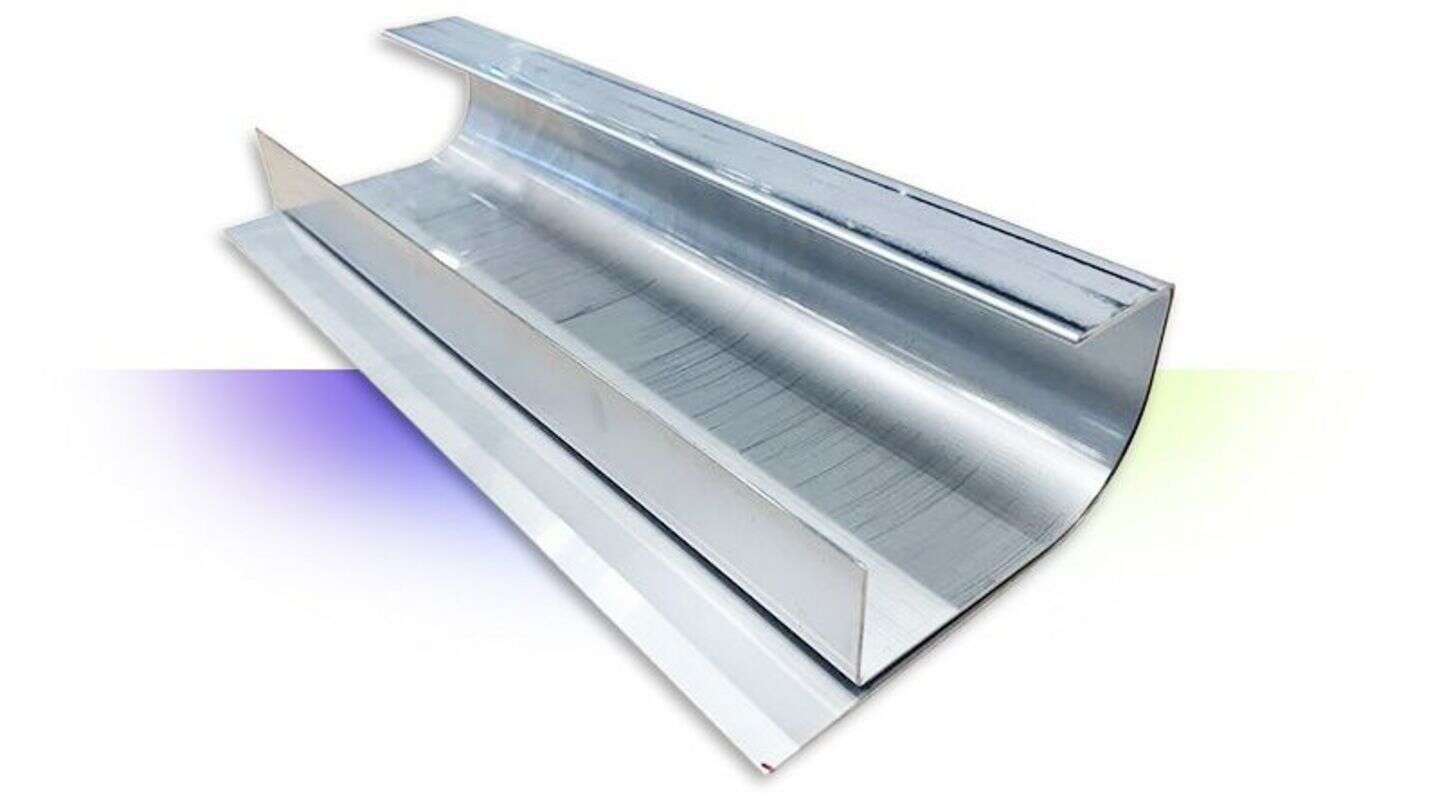

Use case 3
Material: Stainless steel 0.8 mm
Geometry: Double sheet metal bend with ENW
Example: Elevators, soft door closing edge

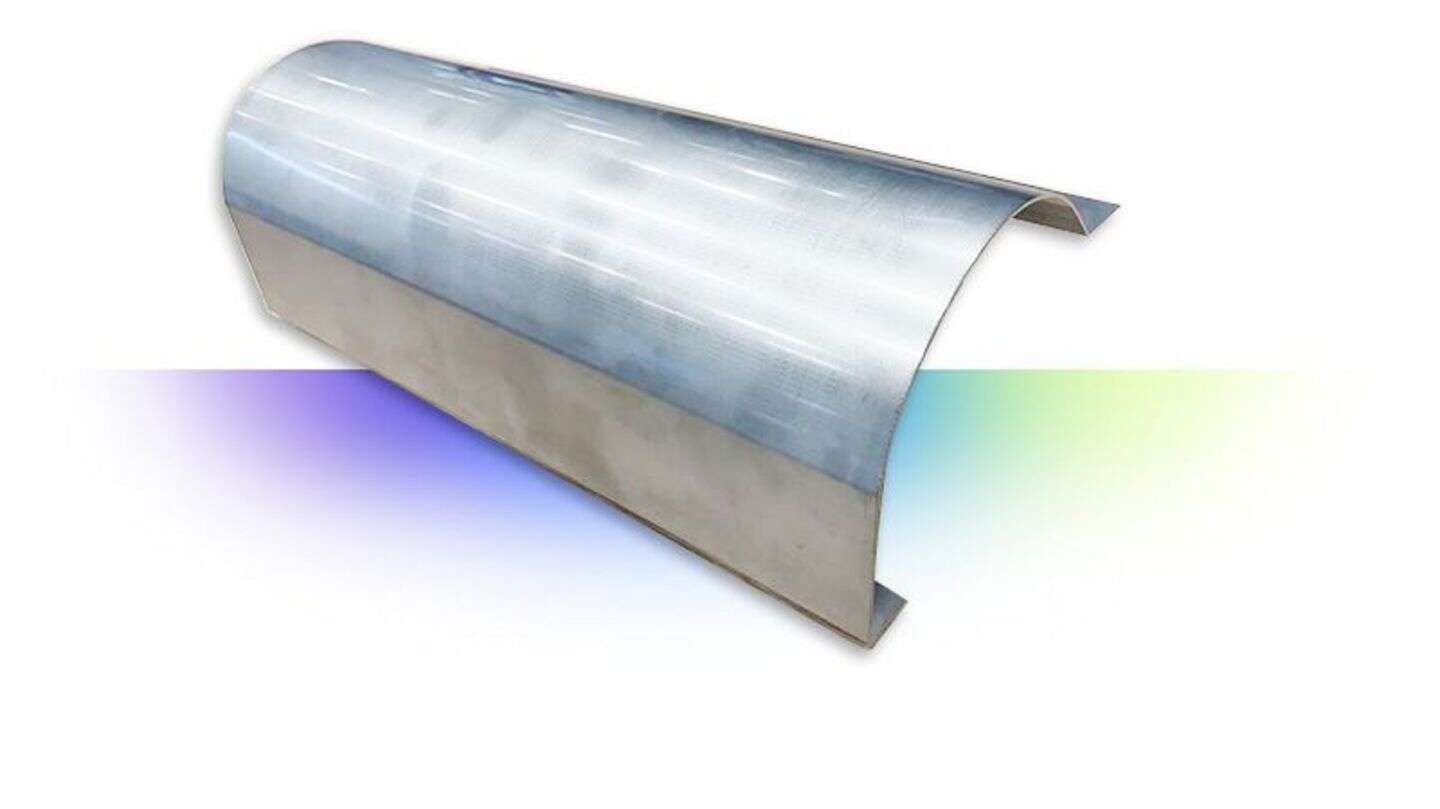

Use case 4
Material: Copper 1.5 mm
Geometry: Variable radius with negative bending
Example: Building plumbing, guttering, facade cladding
Would you like to find out more? Get in touch with us!
Have you identified your application in the field of panel bending? Let's talk about your key figures, your possibilities, your unit costs. Simply fill out the contact form and you will hear from us.
Use case 5
Material: Galvanized sheet metal 1.2 mm
Geometry: Beading for reinforcement close to the bending line
Example: Electrical enclosures, industrial enclosure doors / electrical cabinet doors

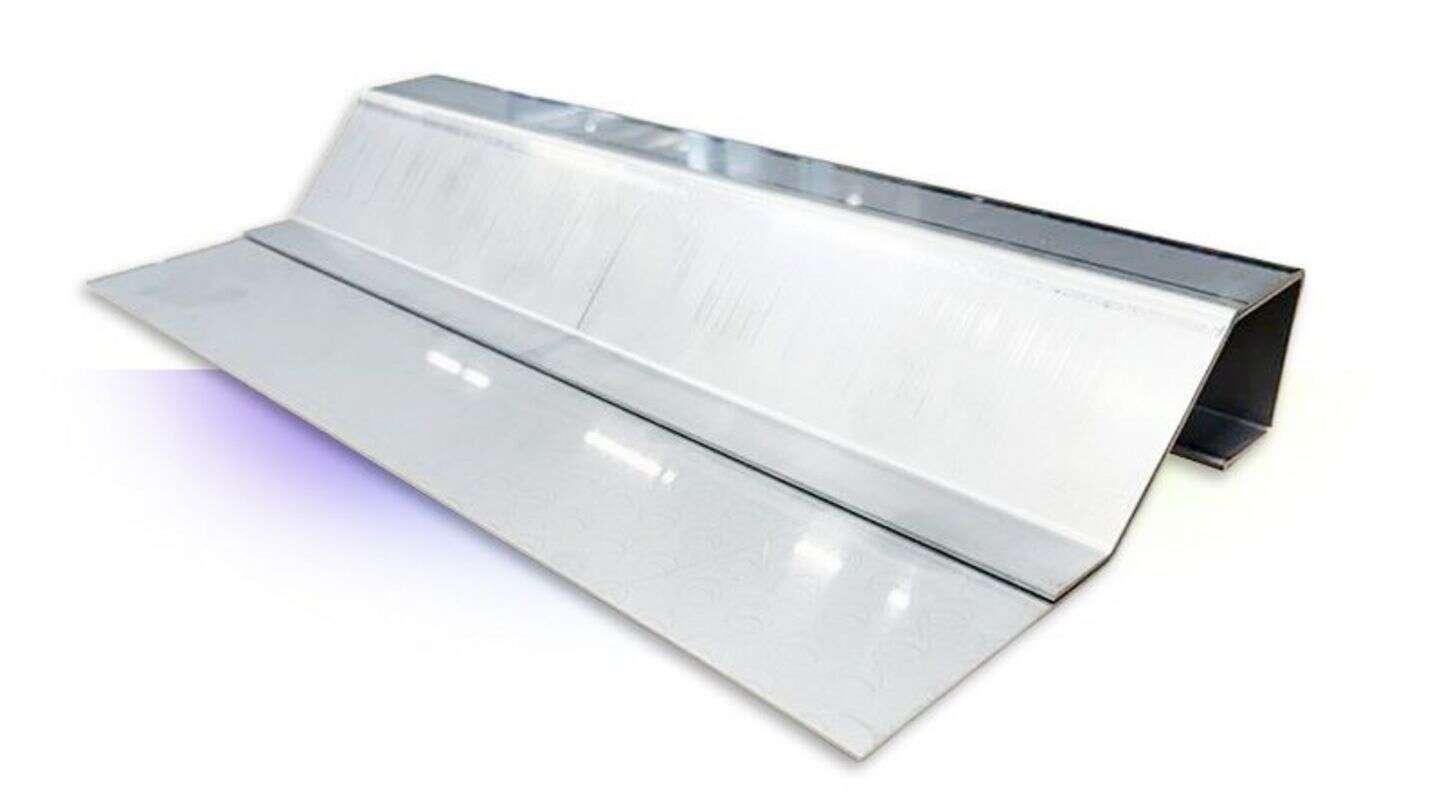

Use case 6
Material: Stainless steel 1.0 mm
Geometry: Template for drawer handle
Example: Metal furniture, doors and handles
Use case 7
Material: Stainless steel 1.1 mm
Geometry: Closed profile with radius
Example: Industrial ovens, high-quality exterior cladding
Would you like to find out more? Get in touch with us!
Have you identified your application in the field of panel bending? Let's talk about your key figures, your possibilities, your unit costs. Simply fill out the contact form and you will hear from us.
Use case 9
Material: Pre-painted mild steel 0.7 mm
Geometry: Pittsburgh lock seam
Example: Facade cladding, suspended ceilings, high-quality exterior walls

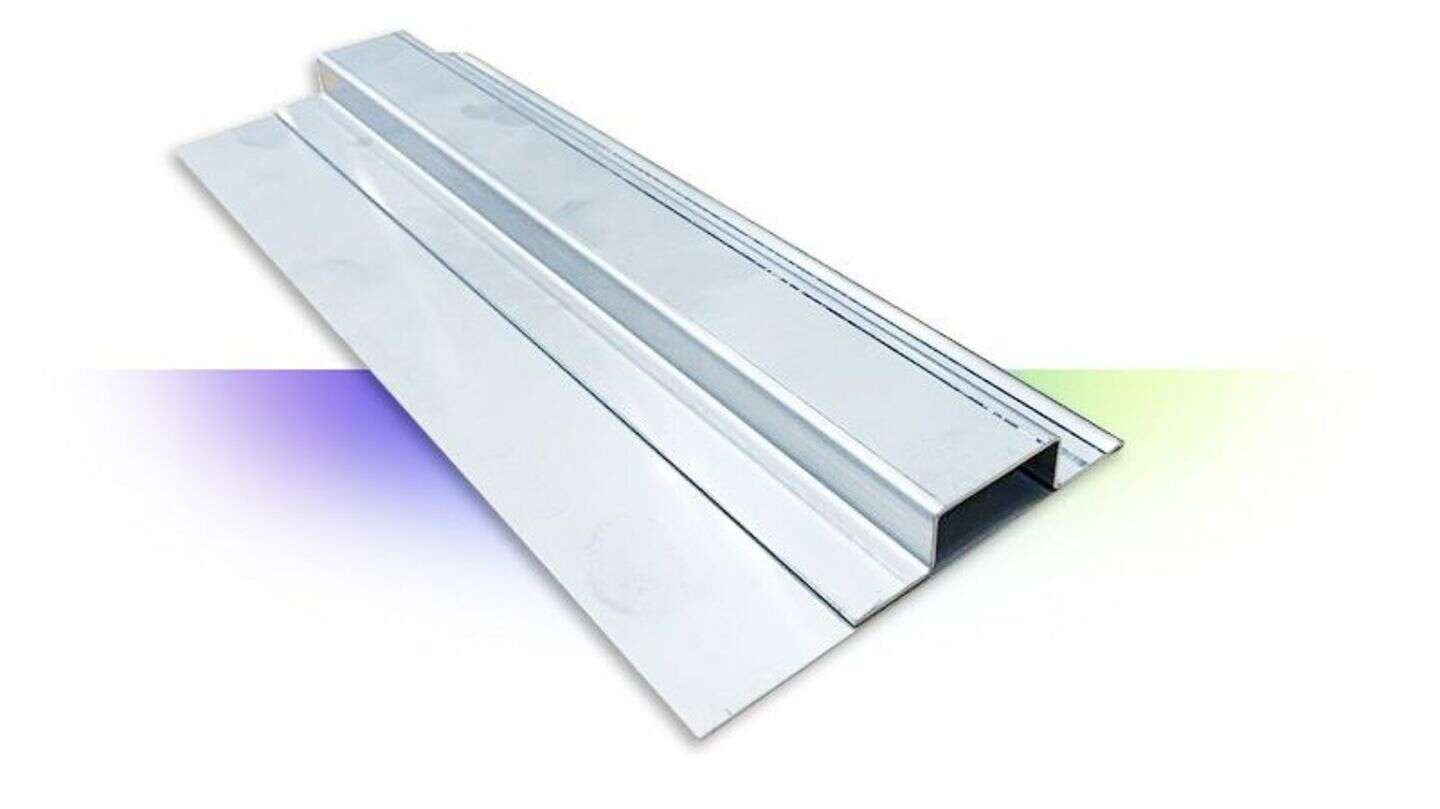

Use case 10
Material: Pre-painted mild steel 1.0 mm
Geometry: Closed profile with channel
Example: Vending machine, operating and control panel
Would you like to find out more? Get in touch with us!
Have you identified your application in the field of panel bending? Let's talk about your key figures, your possibilities, your unit costs. Simply fill out the contact form and you will hear from us.
Use case 11
Material: Pre-painted mild steel 0.7 mm
Geometry: Plug connection
Example: Facade cladding, suspended ceilings, high-quality exterior walls
Use case 12
Material: Stainless steel 1.0 mm
Geometry: Rounded leading edge
Example: External cladding of appliances, soft and precise closing angle
Use case 13
Material: Pre-painted mild steel with 1.0 mm film
Geometry: Snap function
Example: Diverse applications
