Automatically unload and sort finished parts

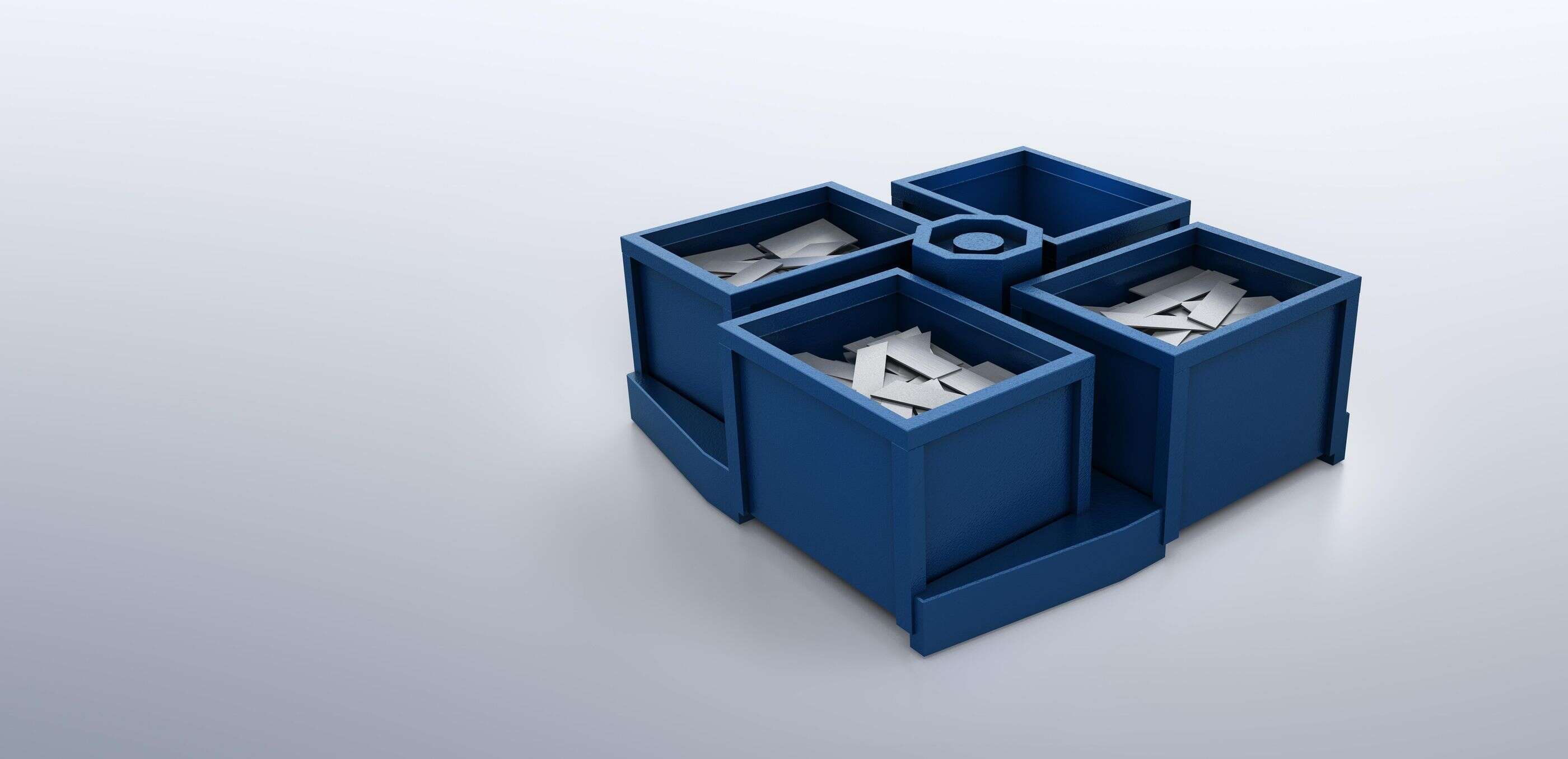

The SortMaster Box or SortMaster Box Linear automatically sort small parts that fall through the punching or laser flap into up to four boxes. The sorting of parts up to a maximum of 20x20 inches is performed without supervision during production, resulting in higher productivity. With the SortMaster Box, the containers are arranged in a circle while with the SortMaster Box Linear, small parts fall into boxes that can be moved linearly. Due to an additional conveyor belt and another part removal flap, this solution is especially low-scratch. For both options, the containers can also be removed directly with a pallet jack.
Separate four types of parts simply and flexibly.
Part removal and sorting, parallel to production, make you even more productive.
Easily integrate the SortMaster Box into your intralogistics.

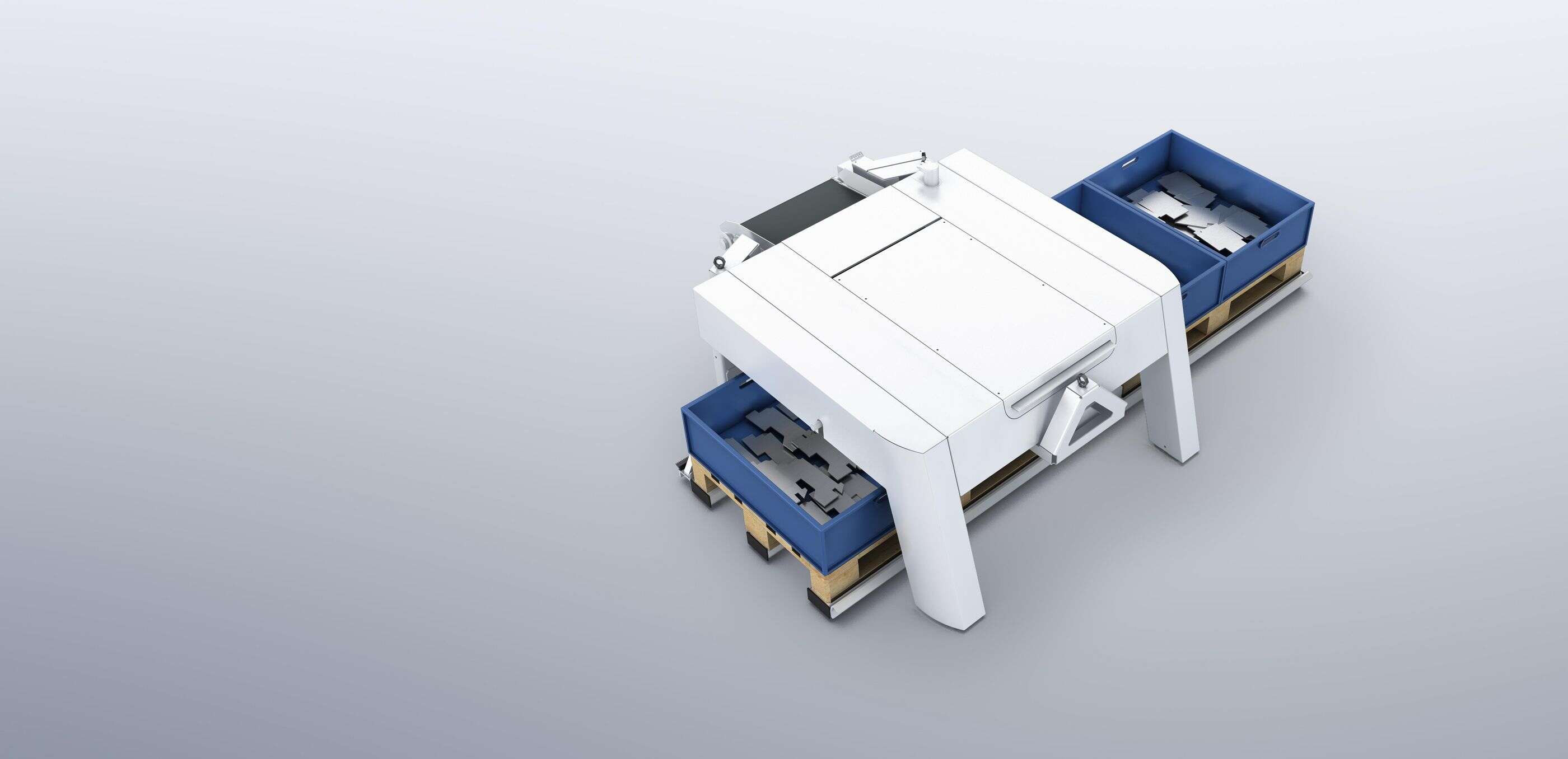

SortMaster Box Linear
|Maximum part size||300 mm x 500 mm|
|Number of containers||4 pieces|
|Max. part size||300 mm x 500 mm|
|Number of containers||4 Pieces|
|Container inside dimensions (L x D x H)||800 mm x 600 mm x 350 mm|
The technical data of all product versions as a download.
TruPunch 5000 with SheetMaster, SortMaster Box, GripMaster, and ToolMaster Linear
TruMatic 7000 with TruStore 3030 and SheetMaster, dual loading carts on tracks, SortMaster Pallet, SortMaster Box, GripMaster, and ToolMaster
TruPunch 3000 with SheetMaster, SortMaster Box Linear and DisposeMaster
