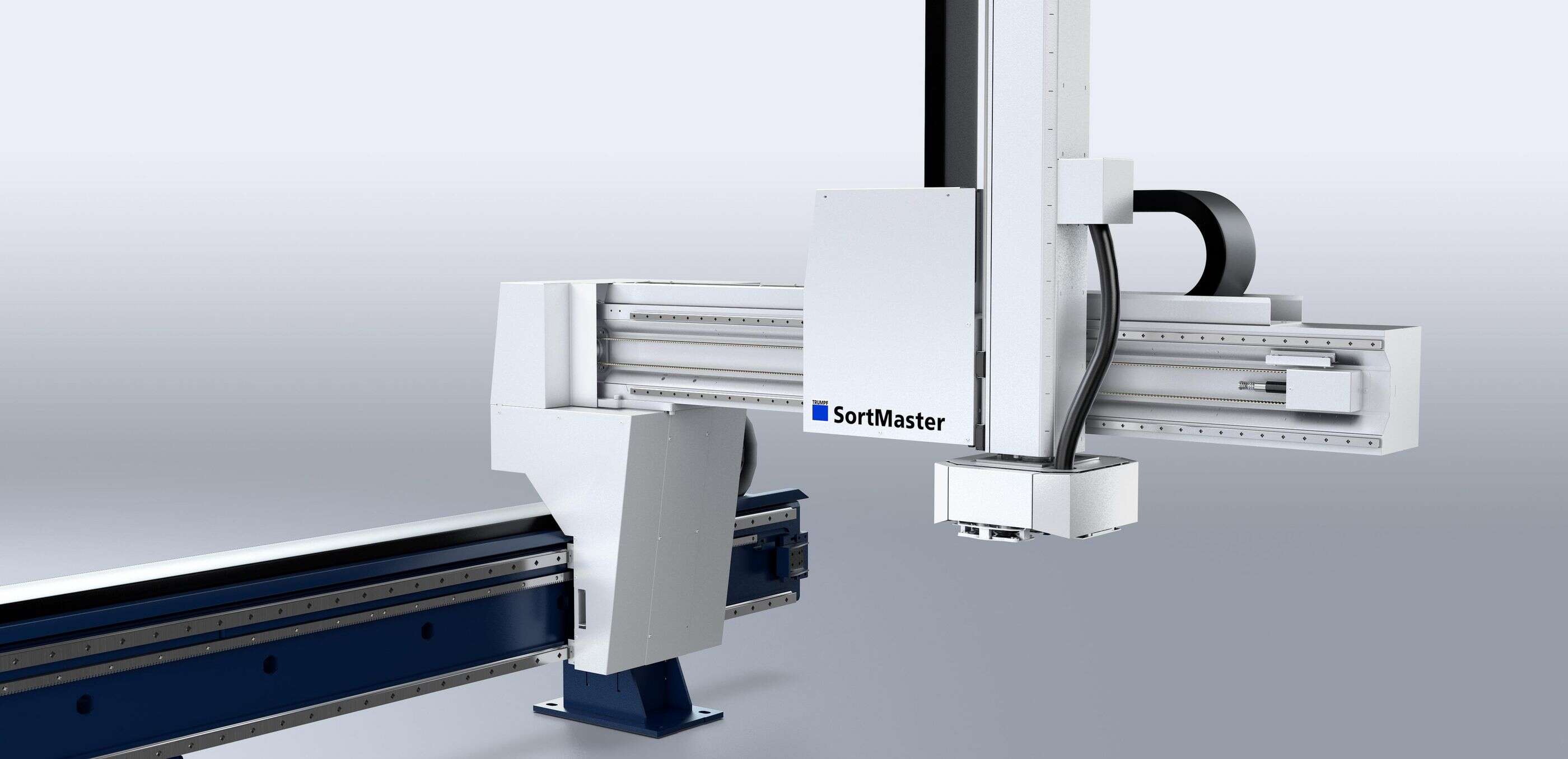

SortMaster: sort small and large parts in a fully automated fashion
SortMaster: sort small and large parts in a fully automated fashion
Automation

SortMaster

Sort small and large parts in a fully automated fashion

Sort small and large parts in a fully automated fashion

The SortMaster removes, sorts, and stacks cut finished parts and allows you to operate your 2D laser cutting machine in a fully automated fashion. To do this, you connect it to a storage system with a LiftMaster. In this way you can manufacture reliably, on demand, and around the clock. Smart functions correct potential malfunctions independently. For example, with automatic separation control: if a part does not come loose, the gripper head separates it from the scrap skeleton by shaking it.

Sort safely

Low-scratch part removal increases the quality of your parts.

More freedom

Sort parts up to 40 x 60 inches in size in a fully automated fashion.

Extra strong

The SortMaster even removes parts weighing up to 100 kg. in a fully automatic fashion.

Manufacture more productively

Automated removal of parts saves time and money.

Sort in a fully automated fashion
SortMaster large format
SortMaster max format
Unloading
Maximum part size 1000 mm x 1500 mm 1000 mm x 1500 mm
Minimum part size 30 mm x 80 mm 30 mm x 80 mm
Maximum part weight 100 kg 100 kg

To ensure the fastest possible supply of materials, you can connect your machine to your materials store. In this context, you can expand your SortMaster with TRUMPF cart systems in accordance with your individual needs. This will ensure a constant workpiece flow.

LoadMaster, additional gripper
Additional gripper

An additional gripper removes parts up to 40 x 60 inches. It can be connected easily with a gripper coupling.

LoadMaster, smart functions monitor the separation of parts
Smart functions

Smart functions monitor the separation of parts. Vibrations in the gripper head ensure a more effective separation of the finished parts from the scrap skeleton.

TruLaser 3030 fiber with SortMaster, TruStore 3030, LiftMaster Store

TruLaser 3030 fiber with SortMaster, TruStore 3030, LiftMaster Store

TruLaser 3030 with LiftMaster Sort, SortMaster, and cart systems

TruLaser 3030 with LiftMaster Sort, SortMaster, and cart systems

TruLaser 5030 with SortMaster directly connected to a TruStore 3030 with a LiftMaster Store.

TruLaser 5030 with SortMaster directly connected to a TruStore 3030 with a LiftMaster Store.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
