1 kW ultrashort pulse power for large-scale, industrial microprocessing.
The TruMicro 9010 is the most powerful industrial ultrashort pulse laser. It delivers 10 GW peak power and achieves an average output power of 1kW at a repetition rate of 100 kHz. Whilst comparable peak power is usually limited to scientific applications with low repetition rates, TRUMPF brings this technology to industrial manufacturing. The combination of a slab laser module and multi-pass cell ensures high flexibility at repetition rates from 100 kHz (10 mJ) up to 50 MHz (20 µJ), including burst mode. A software-based GHz burst function expands the range of applications. The beam parameters remain stable and reproducible across the entire range. The enormous energy can be distributed over larger areas, enabling higher productivity with consistent quality.
Unprecedented 1 kW output power with 10 mJ pulse energy and a pulse duration of less than 1 ps.
With the fastest laser control and Advanced Pulse on demand, the TruMicro Series 9000 offers complete control over every pulse.
Based on proven components, the system delivers robust and stable beam parameters for consistently high precision and maximum reliability in industrial applications.
The high pulse energy enables faster processing without any loss of quality.

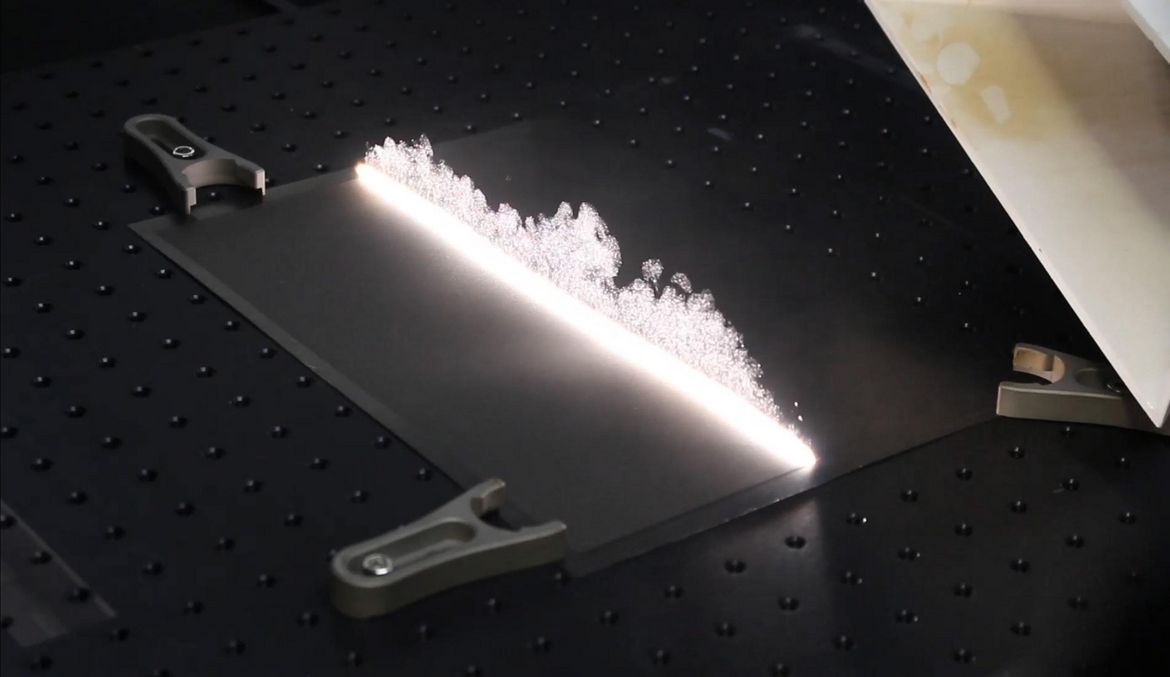

Demonstrator plate for fuel cells.
Scaling the productivity of ultrashort pulse processes such as structuring, drilling, ablation and cleaning.
|

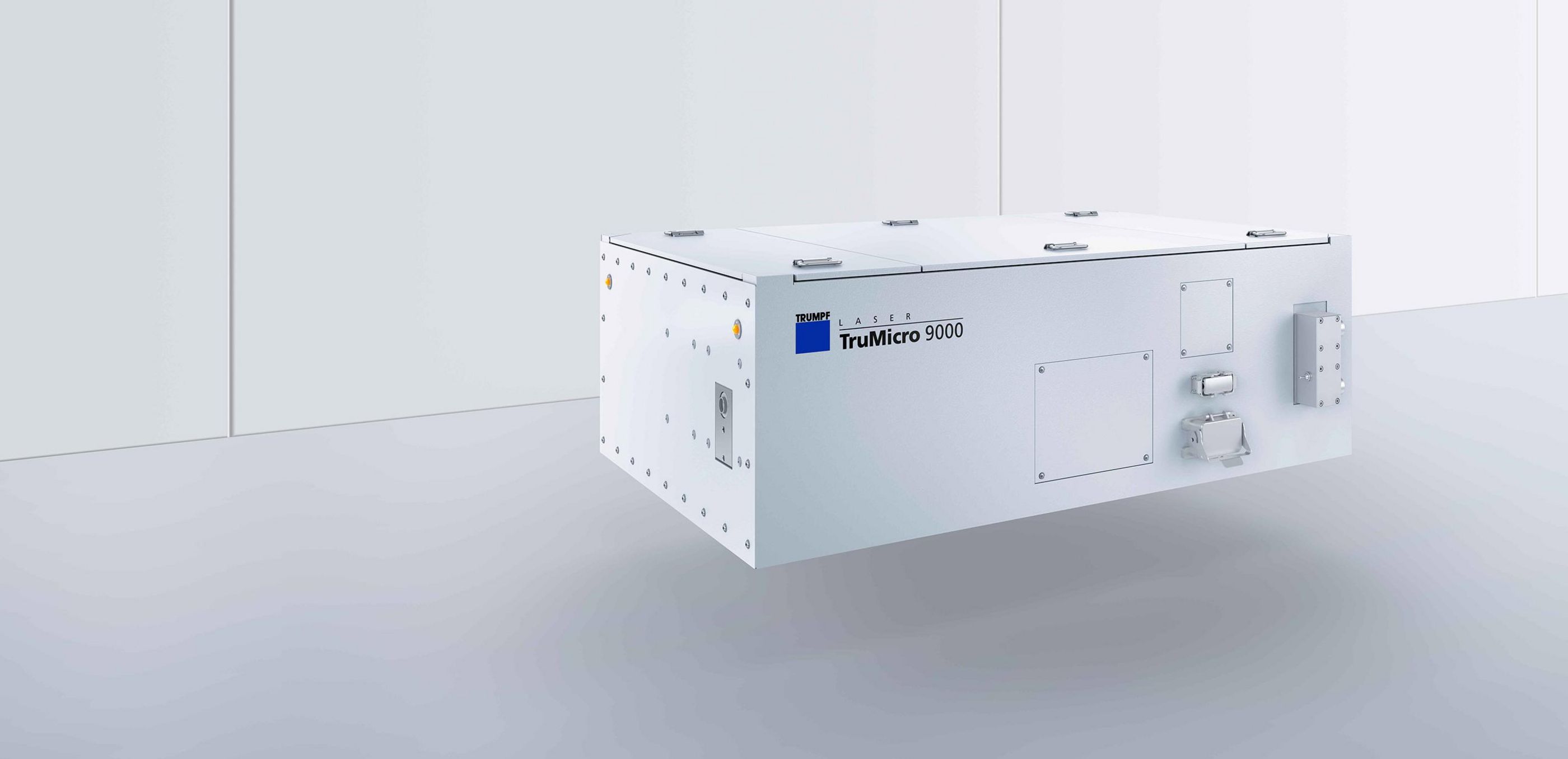

TruMicro 9010
|
|
|---|---|
| Laser parameters | |
| Average output power | 1000 W |
| Beam quality (M²) | < 1.3 |
| Wavelength | 1030 nm |
| Pulse duration | 1 - 20 ps |
| Maximum pulse energy | 10 mJ bei 100 kHz |
| Structural design | |
| Dimensions of laser head (W x H x D) | 1200 mm x 1680 mm x 600 mm |
| Dimensions for basic device size (W x H x D) | 1250 mm x 1726 mm x 670 mm |
| Installation | |
| Ambient temperature | 15 °C - 35 °C |
TruControl
TruControl is the quick and easy-to-use control for TRUMPF solid-state lasers. It regulates the laser power in real time in order to deliver reproducible results. TruControl manages, controls, and visualizes the interface configuration. You benefit from a uniform control architecture across all laser technologies. The lasers have interfaces to control intelligent TRUMPF optics, such as monitored CFO focusing optics or PFO scanner optics. You can easily program the processing optics via the laser control system. The remote support service provided by TRUMPF means that you receive off-site support within seconds. This will allow you to avoid service calls or be as prepared as possible and increase the availability of the laser device.
Have your laser monitored by our TRUMPF experts and algorithms. We contact you proactively at the first signs of anything unusual. This avoids unplanned downtimes in your production.
The precise time definition of the individual laser pulses is relevant for an optimum process result. The exact time and pulse energy per individual pulse can be set due to the linear slab amplification. Particularly in combination with a scanner, this function can provide equidistant pulses on the workpiece even in the case of acceleration or deceleration.
Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.
Scanner
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
