TruMicro Mark

Our ultrashort pulse all-rounder - for cold marking and microprocessing in the high-end branch

10 – 20 W Average power

1030 nm Wavelength

max. 22 MW Peak pulse power

2D and 3D Component geometry

Product Variants TruMicro Mark	Average power	Maximum text field size	Wavelength	Minimum focal diameter	Component Geometry	Power input
TruMicro Mark 1020	10 W	330 mm x 330 mm @ f=650mm	1030 nm	50 μm @ f=300mm	3D	600 W
TruMicro Mark 2030	20 W	180 mm x 180 mm @ f=255	1030 nm	29 μm @ f=100TZ	2D	1.1 kW

Our powerhouse

– with high peak pulse power

The lasers in our TruMicro Mark series can cold-process materials by combining ultra-short pulses and an extreme peak pulse power, enabling you to produce deep black, high-contrast markings of the highest quality and precision - right through to the creation of micro and nanostructures. You can choose between two model variants to suit the requirements of your applications. The TruMicro Mark 1020 enables you to process complex 3D objects, while the TruMicro Mark 2030 can be precisely adapted to a wide range of materials and tasks thanks to variable pulse durations from 400 femtoseconds to 20 picoseconds.

What makes the TruMicro Mark special

– Its special features at a glance

No cracks, no foaming

The TruMicro Mark works with ultra-short laser pulses in the picosecond and femtosecond range, so that the material does not melt but evaporates abruptly. This allows you to achieve flawless marking results without thermally induced microcracks, burns or burrs, even on sensitive materials such as glass or ceramics.

Black marking: Permanently strong contrasts

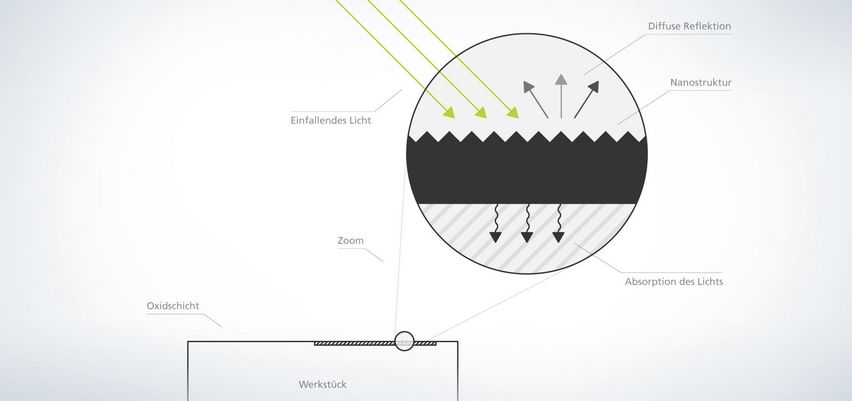

Due to the low heat exposure, you can create the finest structures in the micro and nano range, which effectively absorb the sunlight completely. As a result, they appear completely black, do not fade, remain corrosion-free - and are even legible after many sterilization cycles, regardless of the viewing angle. The corrosion resistance of the steel used is retained.

Numerous surface effects possible

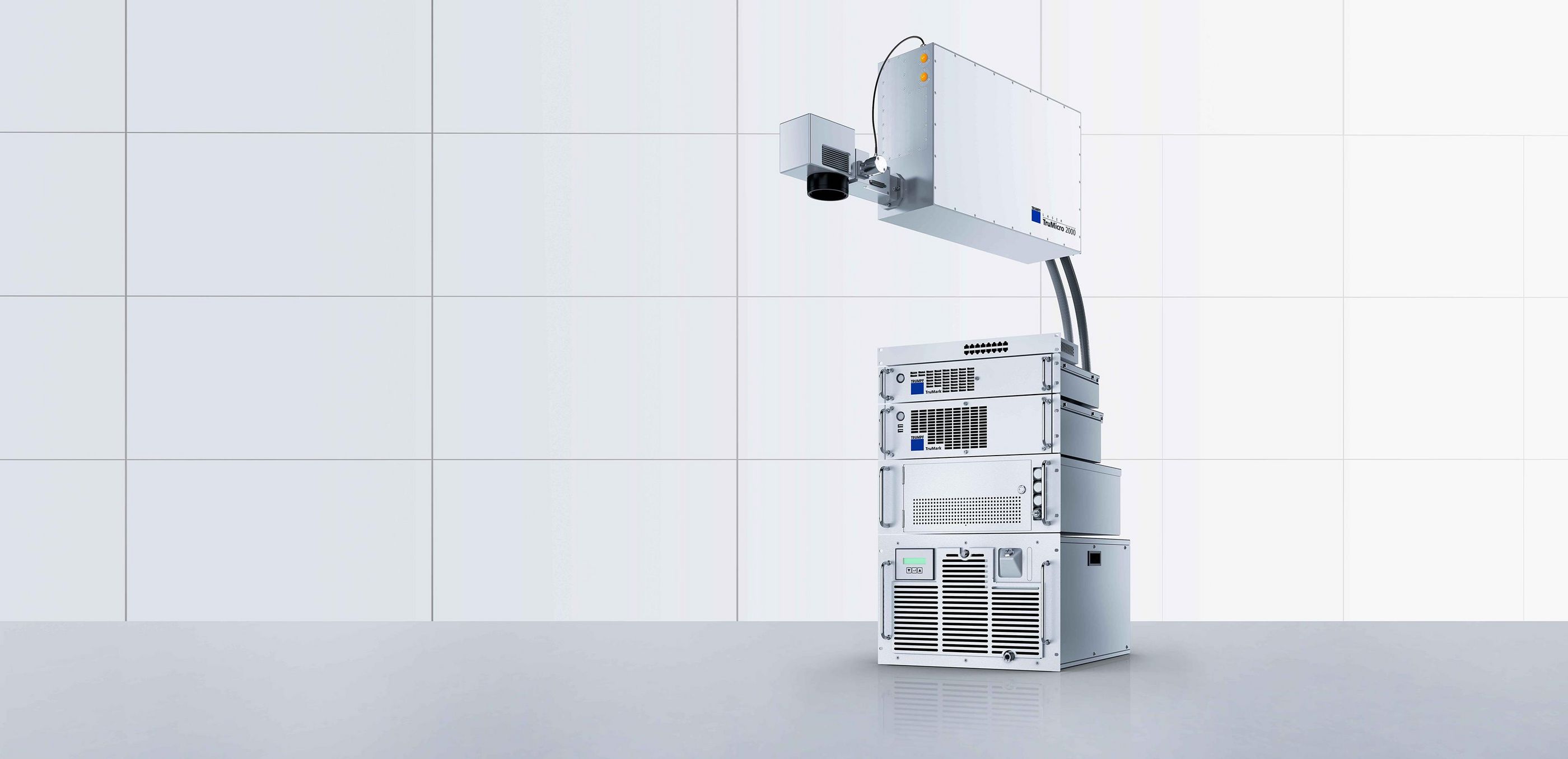

The TruMicro Mark 2030 model variant offers you a variety of adjustable parameters that is unique on the market and allows you to achieve a wide range of effects: From mirror and polishing effects to particularly deep engravings of the highest quality, such as those required in medical technology, the precision industry or the watch industry.

Industry-specific software packages

Thanks to pre-prepared software packages, you can use the TruMicro Mark for production processes in various industries with just a few adjustments, for example for serialization through UDI-compliant marking of products from the medical technology or aerospace industries. You can also book our TRUMPF IQ/OQ services to check all critical aspects of installation and function.

Perfect for free form faces

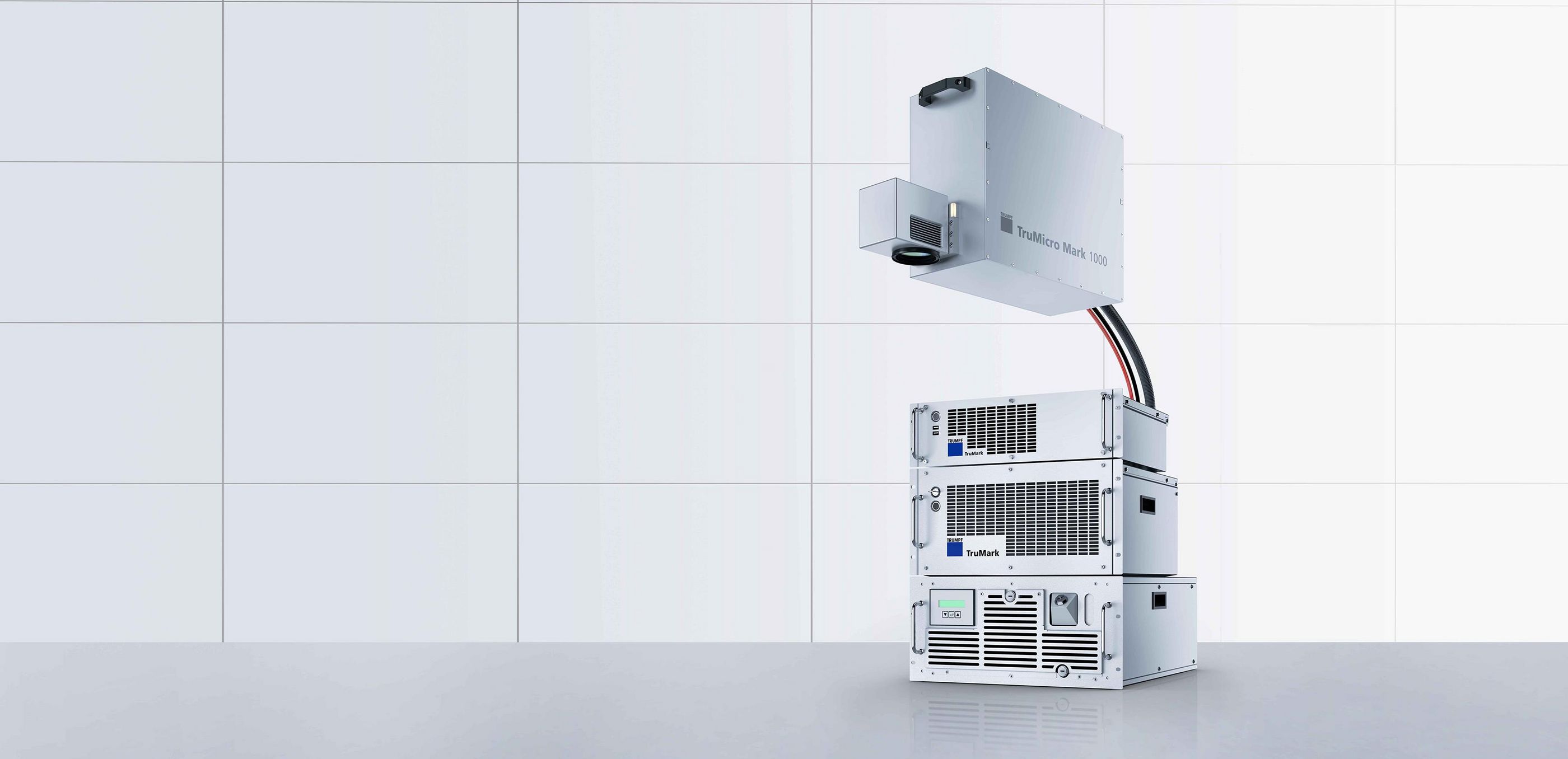

With the TruMicro Mark 1020, there are no limits when it comes to shaping your products: The laser can mark 2D and 3D codes with unique precision, for example on inclined surfaces and complex geometries.

Stable production, resistant markings

Thanks to their particularly high peak pulse power and active power regulation, the lasers in the TruMicro Mark Series produce consistently good and precise markings even under changing conditions, for example with different ambient temperatures or material compositions. This makes them a guarantee for long-term high-end productions.

Further advantages

All in one turnkey device
Do you want a system that meets your specific requirements but is ready for immediate use? The TruMicro Mark contains all the important components such as interfaces, scanners, software and laser-safe housing - and can be integrated into comprehensive control concepts.
Safe and reliable with PLe
The TruMicro Mark series fulfills the highest safety Performance Level e (PLe). Redundant safety systems and fast error detection increase your safety in production - without additional measures on the laser.

The TruMicro Mark in use

– What you can expect

You want to apply burr-free engravings to a wide variety of materials and create black markings that can withstand frequent cleaning, for example on medical technology components and tools. The TruMicro Mark uses ultra-short, high-energy laser pulses to introduce minimal heat into the material during processing, enabling high-quality, burr-free markings. The same applies to high-precision microprocessing on sensitive materials, such as the microstructuring of surface markings or the precise cutting of extremely thin films.

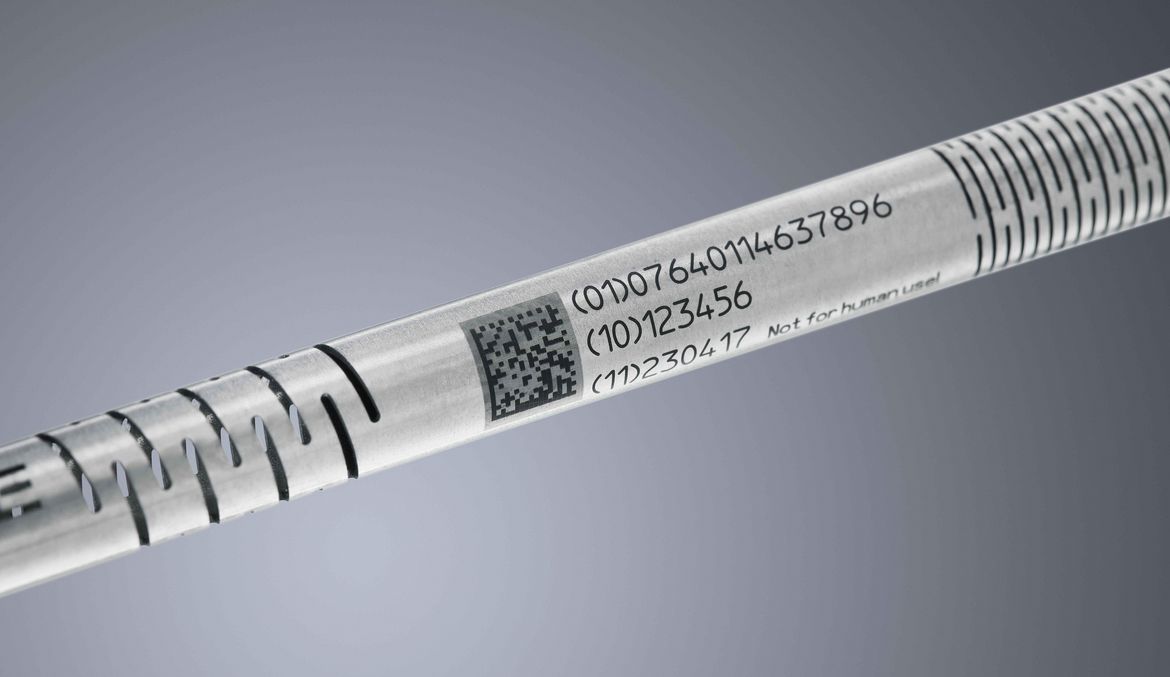

Black marking

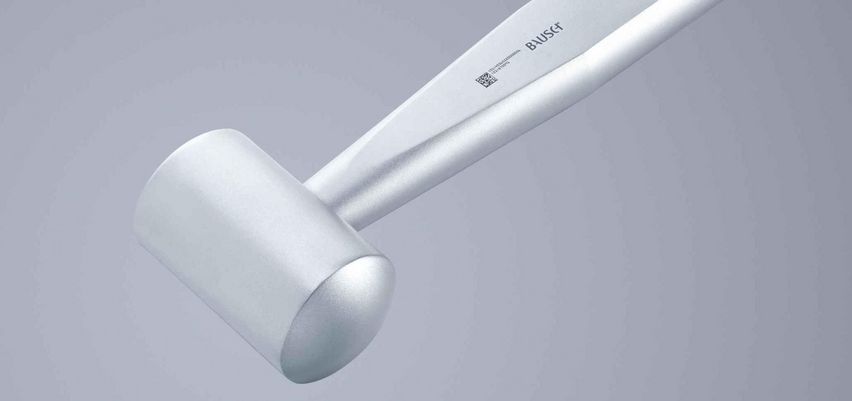

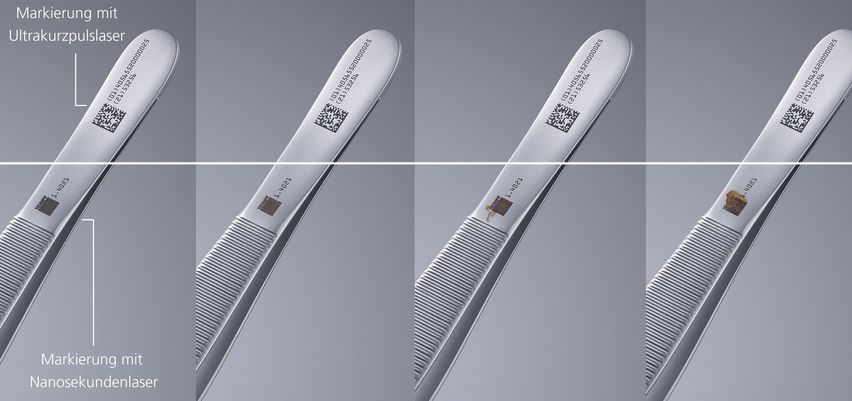

You want to apply high-contrast markings to surfaces that are easy to read from all angles - and do not rust permanently even in corrosive environments, for example UDI codes, which play an important role in medical technology for traceability.

The TruMicro Mark Series uses ultra-short, high-energy laser pulses to generate hardly any heat. This enables completely black lettering to be applied regardless of the viewing angle and without damaging the material. At the same time, the chrome layer is retained, which protects the surface from rust - even with frequent cleaning or disinfection.

Flawless engravings

You want to be able to apply engravings with flawlessly smooth edges and precisely worked structures and colors to any material.

The lasers in the TruMicro Mark Series are multi-talented and can be used to engrave almost any material. Thanks to their ultra-short laser pulses, they can precisely ablate and structure surfaces - and create colored markings on certain materials, such as the backs of watches.

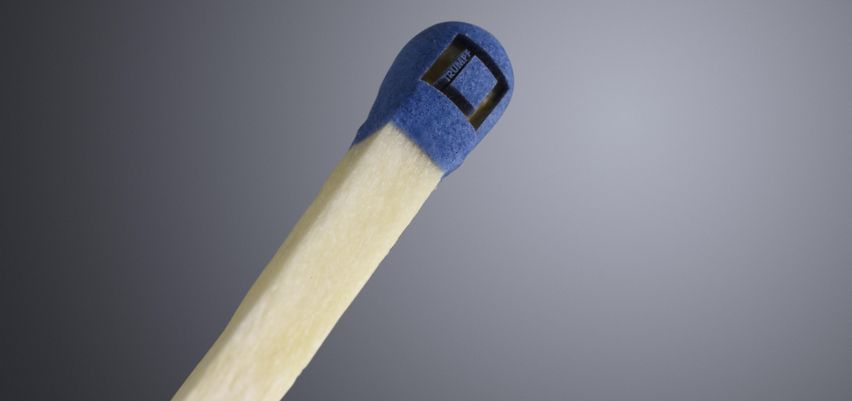

Surface processing in the micro and nano range

You want to create needle-fine structures in the micro and nano range in order to achieve optical effects or specific functions.

Thanks to the ultra-short pulses, the lasers in the TruMicro Mark Series can process materials cold. This allows you to incorporate the finest structures into the material or create functional structures - such as water-repellent or water-attracting surfaces. Such microstructures can significantly improve the stability of adhesive connections.

Drilling and cutting in the micro range

You want to produce the smallest holes with high surface quality on different materials or cut thin, fine films.

The lasers in the TruMicro Mark Series are available in variants with a green wavelength, which are particularly suitable for glass and non-ferrous metals such as copper and gold - and with an infrared wavelength for ferrous metals. This allows you to optimally adapt the wavelength and power to a wide variety of materials. This enables clean cuts and drill holes in the micro range, even with delicate workpieces.

One system. Everything from TRUMPF.

– Discover available components and services for this laser

A laser alone is not a solution. Only in combination with precise optics, intelligent sensor technology and tailor-made services can a system be created that makes your applications possible and ensures reliable processes. With TRUMPF, you have a partner who not only supplies technology, but also reliable process results - solutions that measurably advance your production and pay off through sustainable success.

TRUMPF temperature control sensor system

Sensor systems

Monitor, control, document in real time

Overview

Whether it is welding, marking, or surface processing - our sensor systems measure, control, and document the factors that determine the quality of your laser processes: They detect the position of each component, control the laser power, focus, and temperature, and inspect the seam or marking. Fully documented and traceable. And because they use the same control as our lasers, they are ready for use without any integration effort. Find out here which system is right for your application.

VisionLine

During the marking process, VisionLine ensures markings are precisely positioned and legible: It detects the component's position, compensates for deviations, and checks the contrast and completeness of codes and text, among other things. For markings that must also meet strict quality requirements.

A conversation with TRUMPF service engineers

Services for maximum system availability

to keep your production running

Overview

How much standstill can you afford? Production downtime costs time, money - and, in the worst case, customers. To ensure that your lasers and laser systems remain operational in the long term, we support you with sophisticated services. This includes predictive condition monitoring, rapid assistance in the event of an emergency and individual service packages at fixed, predictable costs - tailored precisely to your needs.

Condition Monitoring, Servicetechniker repariert Maschine

Technical Service

No matter where you produce: Our service engineers will be there for you quickly if the worst comes to the worst. Thanks to in-depth manufacturer know-how and regular training, they have outstanding expertise - and ensure that your lasers and laser systems are quickly ready for use again.

Remote Support

In the event of a fault, every minute counts: With TRUMPF Remote Support, you receive immediate help from our experts - via secure remote access, without having to travel or wait for a service technician.

Genuine Parts

Our TRUMPF Genuine Parts are perfectly matched to your lasers and laser systems, available worldwide - and can be delivered to you quickly in an emergency. For maximum performance, minimum downtime and long-term investment security.

Services for performance optimization

so that performance becomes best performance

Overview

Do you want to get more out of your production? Unclear data, complex requirements or unexpected errors often slow down production. Our solutions help you to overcome these hurdles - with structured data management, individual application support and training or AI-supported process optimization. This allows you to improve your processes, reduce errors and react more flexibly to new challenges.

Training and education

Whether operation, programming or maintenance: With TRUMPF training courses &, your employees will get the most out of machines and software - and master changing orders and new customer requirements with confidence.

Advice in our application centers

In our laser application centers at eight locations worldwide, we work with you to optimize processes, solve application-specific challenges - and thus create the basis for consistent quality, shorter start-up phases and a faster time to market.

Questions? Ideas? Concrete plans?
We can help you!

Whether technical details, prices or individual requirements: Whatever your concerns - we will give you the answer that will help you move forward.

Is the laser suitable for your project?
Let us find out!

In our laser application centers (LAC), we work with you to determine the optimum parameters for your application - even directly on your component.

Inquire now

Downloads

Flyer: TruMicro Mark 1020

Flyer: TruMicro Mark 2030

Marking lasers brochure

Our TruMicro Mark family at a glance

Product	TruMicro Mark Our ultrashort pulse all-rounder - for cold marking and microprocessing in the high-end branch	TruMark 3330 Our UV specialist - precise and gentle for sensitive materials	TruMark 6030 Our 3D specialist - for high-end marking and surface processing	TruMark fiber laser Our all-rounders - for marking and surface applications from medium to high performance
	Request Offer	To the product	To the product	To the product
Average power	10 W - 20 W	3 W	28 W	20 W - 200 W
Maximum text field size	330 mm x 330 mm with focal length 650 mm	220 mm x 220 mm with focal length 13 in.	330 mm x 330 mm with focal length 650 mm	300 mm x 300 mm with focal length 16.5 in.
Wavelength	1030 nm	355 nm	1030 nm	1062 nm
Minimum focal diameter	29 μm	16 μm	50 μm	40 μm
Pulse repetition frequency	1 kHz - 2500 kHz	1 kHz - 120 kHz	40 - 200 kHz	1 kHz - 4000 kHz
Max. marking speed	~ 2000 mm/s with the F160 optics	~ 3000 mm/s with the F160 optics	~ 4000 mm/s with the F300 optics	~ 3000 mm/s with F163RF optics
Power input	1.1 kW	300 W	400 W	190 W
Ambient temperature	15 °C - 35 °C	15 °C - 40 °C	15 °C - 40 °C	15 °C - 40 °C
Mean output power (range)	12 W - 20 W	3 W	28 W	20 W - 200 W

^{This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.}
