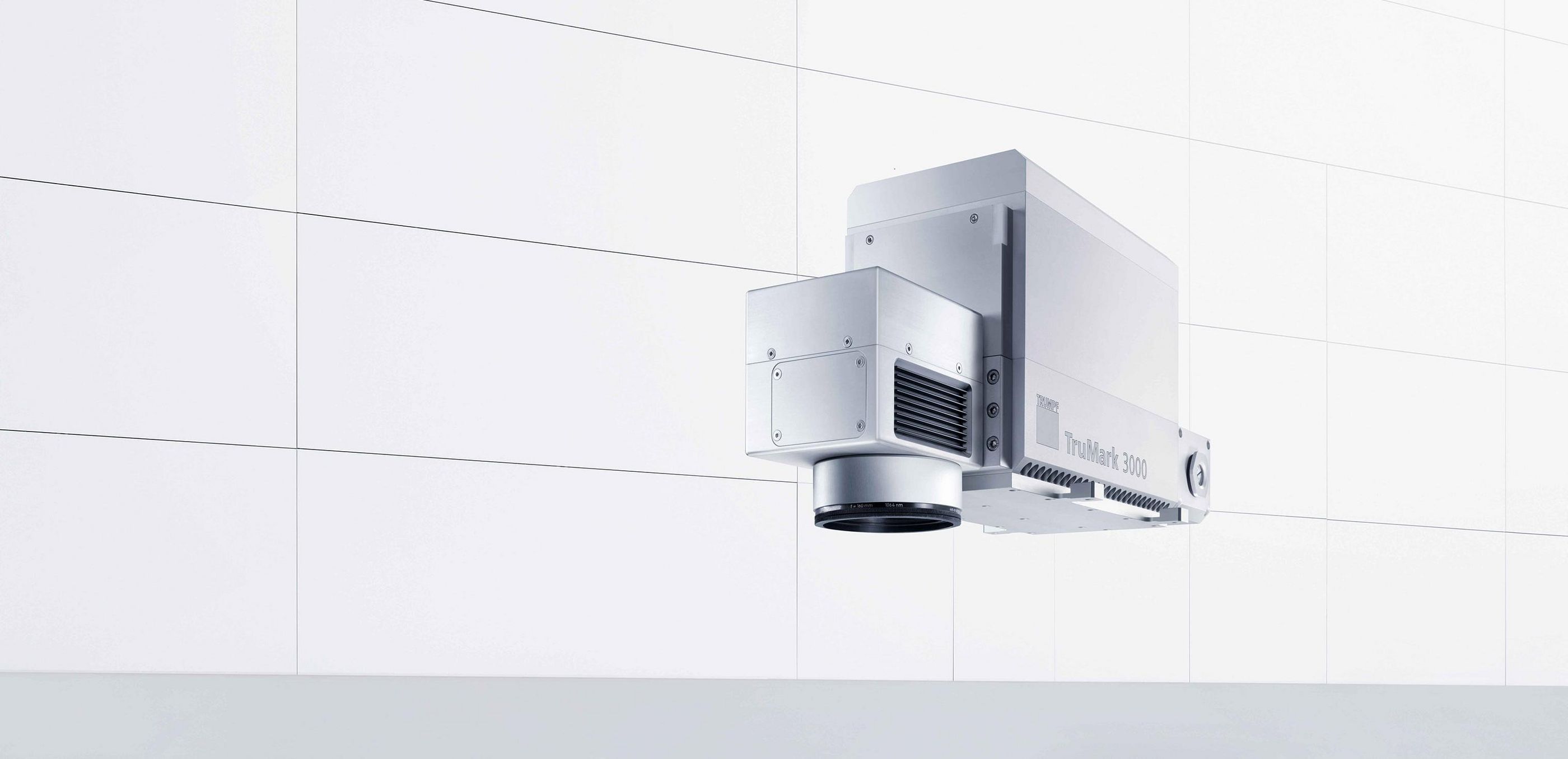

TruMark 3330
Our UV specialist - precise and gentle for sensitive materials
3 W
Average power
355 nm
Wavelength
max. 15 kW
Peak pulse power
2D
Component geometry
| Product Variants TruMark 3330 | Average Power | Maximum text field size | Wavelength | Minimum focal diameter | Component Geometry | Power input |
|---|---|---|---|---|---|---|
|
TruMark 3330
|
3 W | 220 mm x 220 mm for focal length 330 mm | 355 nm | 16 μm with focal length 4 in. | 2D | 300 W |
What makes the TruMark 3330 special
– Its special features at a glance
Lasts longer than other UV lasers
Lasts longer than other UV lasers
The UV crystal inside the TruMark 3330 is larger than that of its competitors. In addition, the "Micro Mover" motor developed by TRUMPF moves it so that the laser alternately hits different points. Both ensure that you benefit from a long service life and durability.
Easy to integrate, easy to maintain
Easy to integrate, easy to maintain
Thanks to a plug-in laser light cable, the TruMark 3330 can be easily integrated into any production line and replaced via plug-and-play. This reduces machine downtimes to a minimum.
No cracks or burrs
No cracks or burrs
The TruMark 3330 generates less heat during processing than infrared laser systems. This minimizes the risk of cracks and burrs in the material - and enables the processing of sensitive and flame-retardant plastics as well as glass for use in critical areas such as medical technology.
All in one turnkey device
All in one turnkey device
Do you want a system that meets your specific requirements but is ready for immediate use? The TruMark 3330 contains all the important components such as interfaces, scanners, software and laser-safe housing - and can be integrated into comprehensive control concepts.
Further advantages
-
Safe and reliable with PLe
The TruMark 3330 fulfills the highest safety Performance Level e (PLe). Redundant safety systems and fast error detection increase your safety in production - without additional measures on the laser. -
Customized operation
The TruTops Mark Module Interface (TTM-MI) allows you to customize the software of the laser to your needs. This allows you to seamlessly connect the laser to your production systems, such as your database.
One system. Everything from TRUMPF.
– Discover available components and services for this laser
A laser alone is not a solution. Only in combination with precise optics, intelligent sensor technology and tailor-made services can a system be created that makes your applications possible and ensures reliable processes. With TRUMPF, you have a partner who not only supplies technology, but also reliable process results - solutions that measurably advance your production and pay off through sustainable success.
Sensor systems
Monitor, control, document in real timeOverview
Whether it is welding, marking, or surface processing - our sensor systems measure, control, and document the factors that determine the quality of your laser processes: They detect the position of each component, control the laser power, focus, and temperature, and inspect the seam or marking. Fully documented and traceable. And because they use the same control as our lasers, they are ready for use without any integration effort. Find out here which system is right for your application.
VisionLine
During the marking process, VisionLine ensures markings are precisely positioned and legible: It detects the component's position, compensates for deviations, and checks the contrast and completeness of codes and text, among other things. For markings that must also meet strict quality requirements.
Services for maximum system availability
to keep your production runningOverview
How much standstill can you afford? Production downtime costs time, money - and, in the worst case, customers. To ensure that your lasers and laser systems remain operational in the long term, we support you with sophisticated services. This includes predictive condition monitoring, rapid assistance in the event of an emergency and individual service packages at fixed, predictable costs - tailored precisely to your needs.
Technical Service
No matter where you produce: Our service engineers will be there for you quickly if the worst comes to the worst. Thanks to in-depth manufacturer know-how and regular training, they have outstanding expertise - and ensure that your lasers and laser systems are quickly ready for use again.
Remote Support
In the event of a fault, every minute counts: With TRUMPF Remote Support, you receive immediate help from our experts - via secure remote access, without having to travel or wait for a service technician.
Genuine Parts
Our TRUMPF Genuine Parts are perfectly matched to your lasers and laser systems, available worldwide - and can be delivered to you quickly in an emergency. For maximum performance, minimum downtime and long-term investment security.
Services for performance optimization
so that performance becomes best performanceOverview
Do you want to get more out of your production? Unclear data, complex requirements or unexpected errors often slow down production. Our solutions help you to overcome these hurdles - with structured data management, individual application support and training or AI-supported process optimization. This allows you to improve your processes, reduce errors and react more flexibly to new challenges.
Training and education
Whether operation, programming or maintenance: With TRUMPF training courses &, your employees will get the most out of machines and software - and master changing orders and new customer requirements with confidence.
Advice in our application centers
In our laser application centers at eight locations worldwide, we work with you to optimize processes, solve application-specific challenges - and thus create the basis for consistent quality, shorter start-up phases and a faster time to market.
Our TruMark family at a glance
| Product |
TruMark 3330Our UV specialist - precise and gentle for sensitive materials |
TruMark 6030Our 3D specialist - for high-end marking and surface processing |
TruMicro MarkOur ultrashort pulse all-rounder - for cold marking and microprocessing in the high-end branch |
TruMark fiber laserOur all-rounders - for marking and surface applications from medium to high performance |
|---|---|---|---|---|
| Average power | 3 W | 28 W | 10 W - 20 W | 20 W - 200 W |
| Maximum text field size | 220 mm x 220 mm with focal length 13 in. | 330 mm x 330 mm with focal length 650 mm | 330 mm x 330 mm with focal length 650 mm | 300 mm x 300 mm with focal length 16.5 in. |
| Wavelength | 355 nm | 1030 nm | 1030 nm | 1062 nm |
| Minimum focal diameter | 16 μm | 50 μm | 29 μm | 40 μm |
| Pulse repetition frequency | 1 kHz - 120 kHz | 40 - 200 kHz | 1 kHz - 2500 kHz | 1 kHz - 4000 kHz |
| Max. marking speed | ~ 3000 mm/s with the F160 optics | ~ 4000 mm/s with the F300 optics | ~ 2000 mm/s with the F160 optics | ~ 3000 mm/s with F163RF optics |
| Power input | 300 W | 400 W | 1.1 kW | 190 W |
| Ambient temperature | 15 °C - 40 °C | 15 °C - 40 °C | 15 °C - 35 °C | 15 °C - 40 °C |
| Mean output power (range) | 3 W | 28 W | 12 W - 20 W | 20 W - 200 W |
