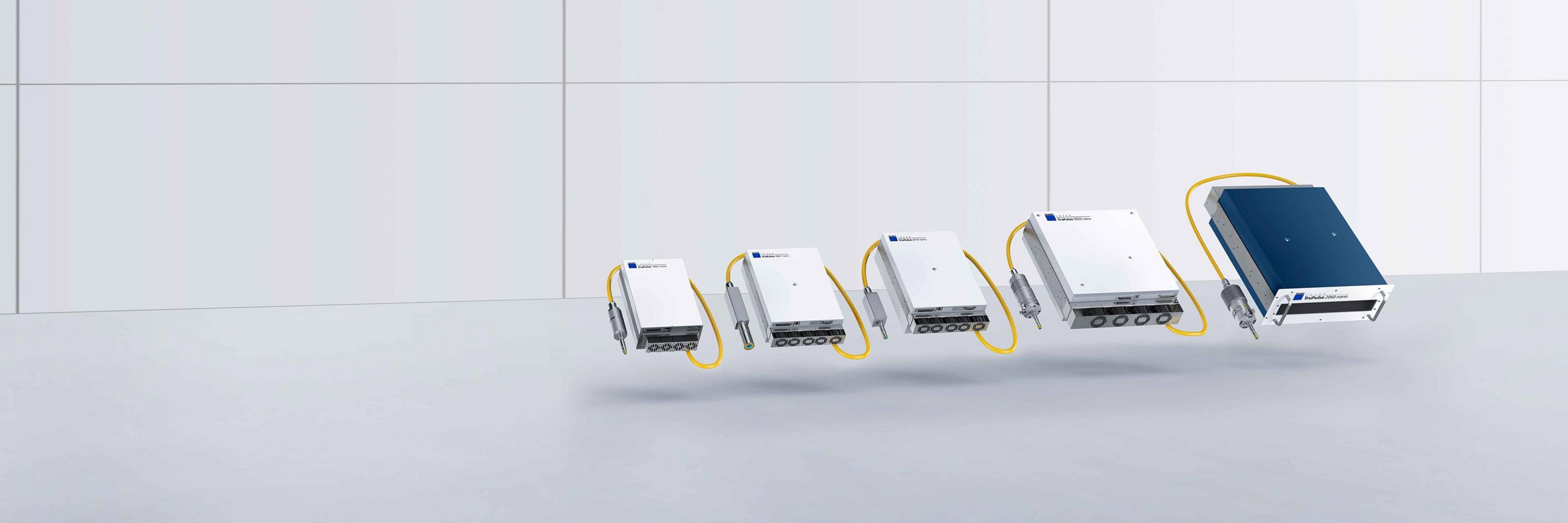

TruPulse nano
Our laser module for flexible configuration with precise pulse adjustment
| Product options TruPulse nano | Average output power | Beam quality (M²) | Dimensions (W x H x D) | Wavelength spectrum | PulseTune functionality | Line voltage | Cooling |
|---|---|---|---|---|---|---|---|
|
TruPulse 1002 nano
(FK10-EP)
|
20 W | < 1.3 | 347 mm x 201 mm x 95 mm | 1059 nm - 1065 nm | EP | 24 V DC | Air |
|
TruPulse 1002 nano
(FK10-HS)
|
HS | ||||||
|
TruPulse 1005 nano
(FK10-HS)
|
50 W | ||||||
|
TruPulse 1010 nano
(FK10-EP)
|
100 W | 377 mm x 249 mm x 115 mm | EP | ||||
|
TruPulse 2002 nano
(FK10-EP)
|
20 W | < 1.6 | 347 mm x 201 mm x 95 mm | ||||
|
TruPulse 2002 nano
(FK10-RM)
|
RM | ||||||
|
TruPulse 2005 nano
(FK10-EP)
|
50 W | EP | |||||
|
TruPulse 2005 nano
(FK10-RM)
|
RM | ||||||
|
TruPulse 2007 nano
(FK10-EP)
|
70 W | 377 mm x 249 mm x 95 mm | EP | ||||
|
TruPulse 2007 nano
(FK10-RM)
|
RM | ||||||
|
TruPulse 2010 nano
(FK10-EP)
|
100 W | 377 mm x 249 mm x 115 mm | EP | ||||
|
TruPulse 2020 nano
(FK10-EP)
|
200 W | 423 mm x 417 mm x 133 mm | 36 V DC | ||||
|
TruPulse 2030 nano
(FK10-EP)
|
300 W | 447 mm x 417 mm x 88 mm | |||||
|
TruPulse 2050 nano
(FK10-EP)
|
500 W | 622 mm x 482 mm x 177 mm | 1060 nm - 1070 nm | 48 V DC | |||
|
TruPulse 2060 nano
(FK10-EP)
|
600 W | ||||||
|
TruPulse 4004 nano
(FK10-HS)
|
40 W | 2.5 - 3.5 | 347 mm x 201 mm x 95 mm | 1059 nm - 1065 nm | HS | 24 V DC | |
|
TruPulse 4007 nano
(FK10-HS)
|
70 W | 377 mm x 249 mm x 95 mm | |||||
|
TruPulse 5020 nano
(FK10-EP)
|
200 W | 4 - 6 | 473 mm x 417 mm x 133 mm | 1061 nm - 1067 nm | EP | 36 V DC | |
|
TruPulse 5050 nano
(FK10-EP)
|
500 W | 4 - 6.5 | 622 mm x 482 mm x 177 mm | 48 V DC |
Versatile and powerful laser modules
A laser module made for integrators looking for maximum precision and maximum adaptability. Thanks to versatile configuration options - including different power levels, selectable beam qualities and PulseTune™ options/pulse parameters - you can adapt the TruPulse nano precisely to your requirements.
What makes the TruPulse nano special
TruPulse nano lasers are highly flexible laser modules with a wide range of configuration options - from beam quality, pulse parameters and power levels to cable length and beam conditioning. Thanks to interchangeable beam expander collimators, application-specific beam diameters can be realized - a decisive advantage for a wide range of applications.
PulseTune™ technology allows you to control parameters such as pulse duration and pulse energy, which can be specifically tailored to the requirements of your application - for optimum results in marking, ablation and nanosecond welding.
As a pure laser source without peripherals, the TruPulse nano offers maximum design freedom for your individual system concepts. Robustly built, low-maintenance and with a 3-year warranty, it is ideal for 24/7 operation in demanding applications.
Our patented nanosecond welding process uses short nanosecond laser pulses - for minimal heat-affected zones, reduced distortion and significantly less formation of intermetallic phases when welding different metals.
The TruPulse nano in use
The TruPulse nano is our beam source for anyone who wants to integrate precise and versatile laser processing into their own machines. Whether marking, engraving, ablating, cutting or nanosecond welding: The laser is suitable for a wide range of processes and materials. Its modular design and finely adjustable pulse parameters enable optimum adaptation to your processes - especially in the electronics, battery and manufacturing industries.
Engraving of coin dies
Engraving of coin dies
Engraving coin dies requires maximum precision and excellent surface quality - and deep, sharp engravings without compromising the stability of the die.
The TruPulse nano delivers high pulse energy and excellent beam quality for detailed engravings with precise depth control. PulseTune™ allows you to flexibly adjust the pulse duration and energy - ideal for complex engravings in electronics, medical technology or toolmaking. This increases quality and reduces rejects and development times.
Welding of battery contacts
Welding of battery contacts
Battery contacts are often made of different materials such as copper, aluminum and nickel with different melting points. The weld points must be highly precise and reproducible in order to avoid damage.
Using short nanosecond pulses, the TruPulse nano enables precisely controlled heat input to prevent material deformation and thermal damage to cells and components. Our patented nanosecond welding techniques ensure strong mechanical and electrical connections - even with thin and highly reflective materials such as copper.
Clean hairpin stripping
Clean hairpin stripping
When stripping hairpins in electric motors, layers of paint must be removed precisely, without pores and without damaging the copper underneath.
The TruPulse nano is available with beam configurations that have been specially developed for demanding material removal. With finely tunable parameters, the TruPulse nano reliably removes various insulation materials. The short pulse duration protects the hairpins and ensures maximum process stability.
Cutting battery foils
Cutting battery foils
Sensitive materials such as wafer-thin, coated copper and aluminum foils must be cut extremely precisely and burr-free - at high speed and without thermal damage to the foil or coating.
The short pulses of the TruPulse nano with PulseTune™ technology minimize heat input and protect sensitive coatings from delamination, burning or detachment. The result: Burr-free, clean cutting edges - for longer battery life, process reliability and lower material costs.
Product marking and engraving with laser
Product marking and engraving with laser
Product markings must be durable, high-contrast and easy to read - on a wide variety of materials such as metals, foils or plastics. Industrial applications in automotive, medical technology or electronics also require high process speeds.
The TruPulse nano offers high flexibility in power control for marking applications on sensitive materials. With up to 48 selectable waveforms, the process can be flexibly adapted. Nanosecond pulses enable precise, high-contrast and cold marking, even on reflective or coated surfaces.
