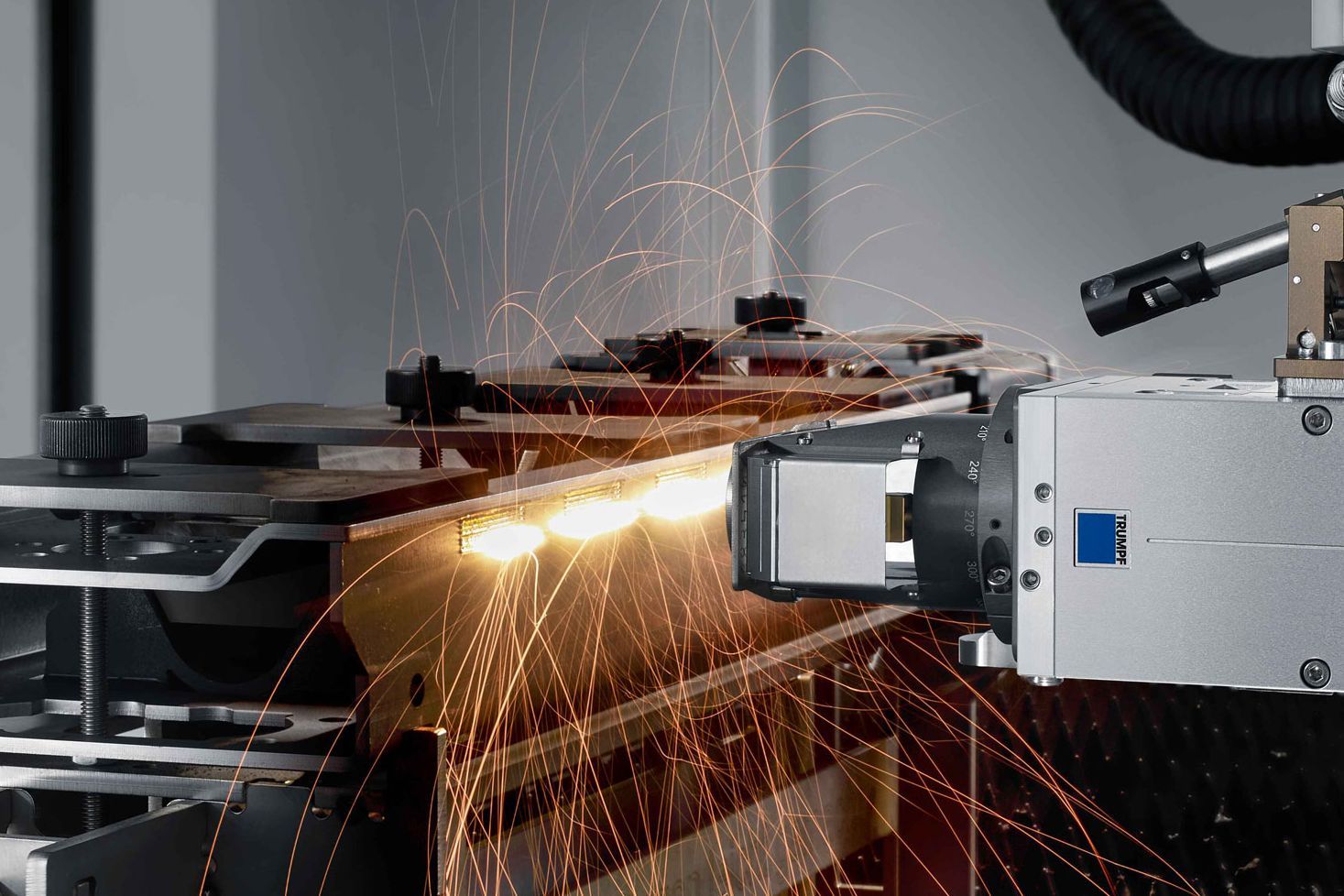

Laser for welding

With TRUMPF lasers, you can weld precisely and reliably – even with complex contours and challenging materials. The amount of energy, energy density and duration of the energy flow can be precisely controlled directly at the weld seam, enabling precise seam tracking, maximum strength and low-spatter high-speed processes. Thanks to selectable beam quality and technologies such as BrightLine Weld, our lasers are suitable for all welding processes - from delicate weld points and delicate copper joints over long seams and robust steel constructions to build-up welding for the repair and repair and coating of high-quality components.

Filter your selection:

0 Product(s)

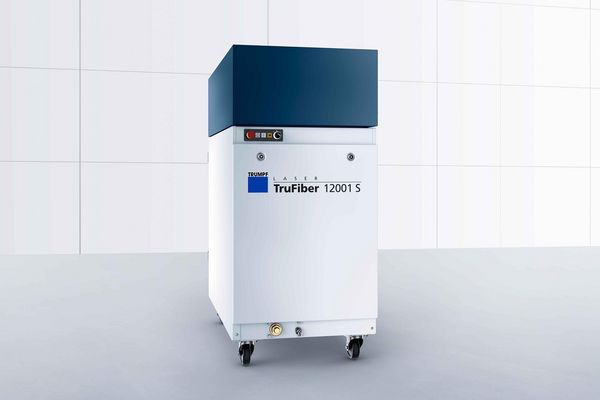

TruFiber S

Our high-end fiber lasers - made for efficient welding: Compact design, unique features, flexibly expandable

3 to 12 kW (multimode)
Up to 2 laser outputs
Wide range of optics and sensors

The TruFiber S welds with low spatter - even at high speeds and with difficult materials. The control is integrated, and supplementary optics, sensors and services are available as a solution package. Unique market features such as two laser outputs for parallel working and plug-in, quickly replaceable laser light cables with a length of 50 m ensure flexible integration - without any loss of beam quality.

To the product

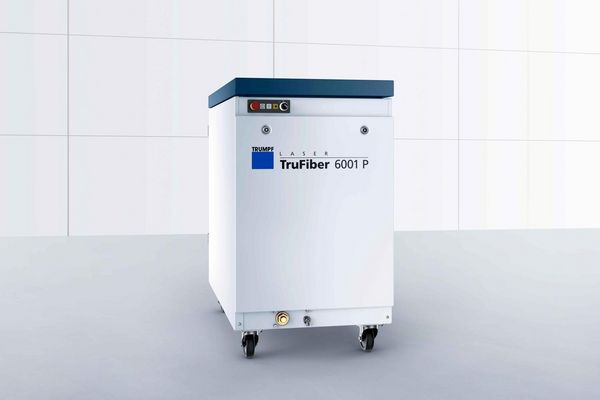

TruFiber P

Our tailor-made products - individually configurable for precise details or broader seam requirements, modularly expandable, at the optimum price

Up to 2 kW (singlemode), up to 6 kW (multimode)
1 laser output
Broad optics and sensor portfolio

Highly specialized for fine precision work in singlemode or high-performance processes in multimode, depending on the model and beam quality. Low-spatter welding and clean cutting are possible even with reflective materials such as copper and the compact design allows easy integration into existing systems.

To the product

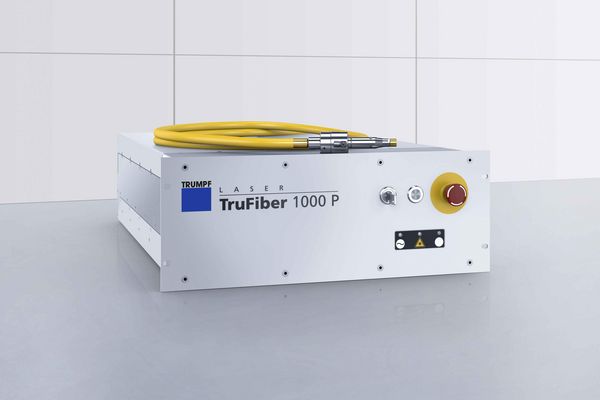

TruFiber P Compact

Our compact fiber lasers - for processing the smallest components

100 W - 2 kW (singlemode), 300 W - 2 kW (multimode)
1 outlet
Available with TRUMPF fixed optics

This series in 19-inch format enables laser welding with the highest seam quality and is also available air-cooled up to 500 W. Developed for additive manufacturing, fine welding in the automotive industry or precision cutting in medical technology.

To the product

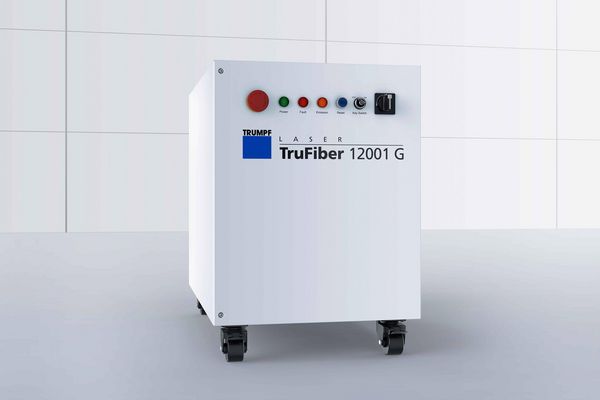

TruFiber G

Our purists among the fiber lasers - the economical laser source for integrators

1 - 3 kW (singlemode), 3 - 12 kW (multimode)
1 outlet
Available with TRUMPF fixed optics

The TruFiber G is reduced to the essentials for welding and cutting work. Made for all those who design their own manufacturing solutions. Cost-efficient and reliable with a high safety standard.

To the product

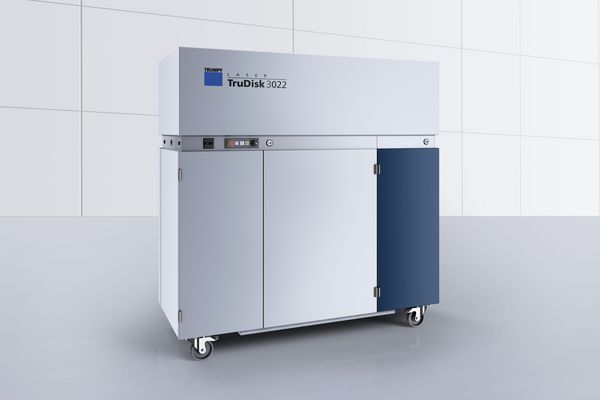

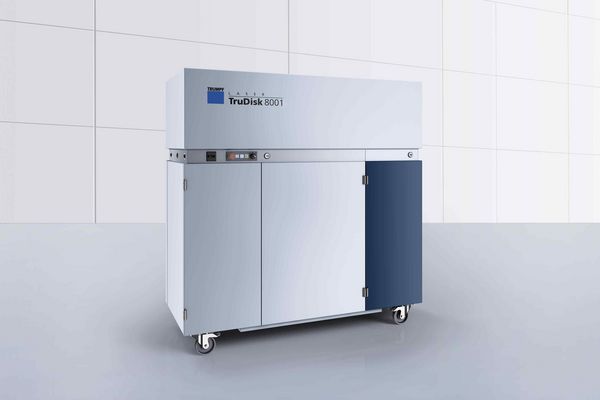

TruDisk

Our high-end disk lasers - proven for welding, unique in their flexibility, modularly expandable

Power range: 1 - 24 kW (multimode)
Up to 4 laser outputs (≤ 8 kW)
Broad optics and sensor portfolio

The TruDisk welds with low spatter - even at high speeds and with demanding materials. The control system is integrated; optics, sensors and services are optionally available. Integrated cooling solutions, up to four laser outputs for parallel working and laser light cables that are unique on the market ensure maximum flexibility: Pluggable, quickly replaceable, up to 100 m long - without compromising on beam quality.

To the product

TruDisk with green wavelength

Our copper welding specialists - for high-quality connections of non-ferrous metals

Power range: 1 - 3 kW (multimode)
1 laser output
Broad optics and sensor system portfolio

Green laser light is absorbed particularly well by copper and other non-ferrous metals - for precise, low-spatter and pore-free weld seams. TruDisks with a green wavelength are capable of both heat conduction and deep penetration welding and ensure constant welding depths.

To the product

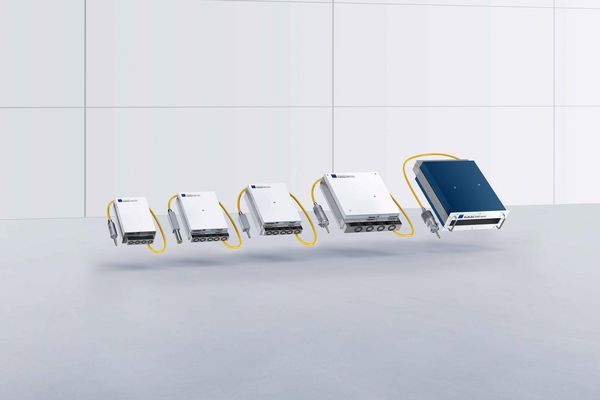

TruPulse nano

Our flexible nanosecond laser modules - for OEMs who value maximum versatility

20 - 600 W laser power
5 beam qualities from 1.3 - 5.0 M^M
Pulse duration: 3 ns - 2000 ns at up to 4 Mhz
Maximum pulse energy & -frequency: 0.8 - 6 mJ

The TruPulse nano portfolio offers a wide selection of power levels, beam qualities and pulse parameters - individually configurable depending on the application. A wide variety of materials can be precisely marked, cut, engraved or precision-welded using nanosecond pulses. Our TruPulse nano is aimed at integrators who flexibly combine modular components to create a customized solution.

To the product

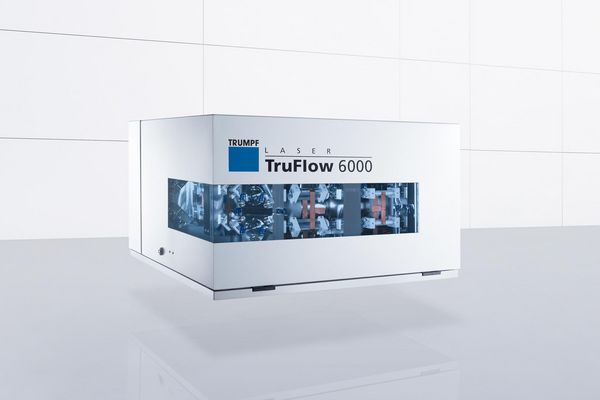

TruFlow

Our unwavering CO_{2 lasers} - welding and cutting under harsh conditions.

Power range: 2 - 20 kW
Beam quality (1 - 10 kW): min. 0.55 / 1.82 (K/M²)
Beam quality (12 - 20 kW): 0.225 / 3.8 - 4.5 (K/M²)

TruFlow lasers are at their best where others have long since given up: They can also process corroded and damp surfaces, plastics, composites, organic materials and more. Their sophisticated technology ensures maximum process stability, minimum maintenance and unrivaled energy efficiency in the CO₂ segment.

To the product

TruPulse

Our specialists for thermally sensitive welding - short pulses, high peak power, controlled heat input

Power range: 20 – 530 W
Pulse duration: up to 50 ms
Maximum pulse energy: up to 120 J
Beam quality: 4 - 25 mm▪mrad

The TruPulse welds spot and seam joints with short, high-energy pulses with minimal heat input. Thermally sensitive components are protected by the high pulse peaks, while the burst function increases the power for a short time, allowing welding processes to be carried out faster - without stressing the components. The modular design enables flexible adaptations and simple integration into existing production environments.

To the product
