TruFiber P Compact

Our proven laser for precision cutting and precision welding

0.1 - 2 kW Laser power range

20 - 300 µm Available LLK diameters

5 - 20 m Length LLK

PIPA-C, PIPA-Q Plug type LLK

Product Variants TruFiber P Compact	Laser power range	Wavelength	Typical beam quality	Dimensions (W x H x D)	Electrical connection (voltage)	Electrical connection (frequency)	Interfaces
TruFiber 100 P compact (FD 44)	10 W - 100 W	1071 nm	0.38 (SM), ≥ 2,1 (MM) mm▪mrad	445 mm x 177 mm x 502 mm	110 V - 240 V	50 Hz - 60 Hz ±3 Hz	RS232, Ethernet, Parallel interface (digital and analog)
TruFiber 200 P compact (FD 44)	20 W - 200 W			445 mm x 177 mm x 502 mm
TruFiber 30x P compact (FD 44)	30 W - 300 W			445 mm x 221 (178) mm x 622 (681) mm (Wassergekühlte Varianten in Klammern)
TruFiber 50x P compact (FD 44)	50 W - 500 W
TruFiber 100x P compact (FD 44)	100 W - 1000 W			445 mm x 178 mm x 681 mm	200 V - 240 V
TruFiber 150x P compact (FD 44)	150 W - 1500 W			445 mm x 178 mm x 832 mm	200 V - 240 V
TruFiber 200x P compact (FD 44)	200 W - 2000 W			445 mm x 266 mm x 832 mm	380 V - 480 V

Compact powerhouse

– For every rack cabinet

Our TruFiber P compact fiber lasers are the proven solution for precise and trouble-free cutting of a wide range of materials and for additive manufacturing. They can be easily integrated into any rack cabinet in your production line and are suitable as single or multimode for both the fine-part processing of thin materials and the clean cutting of thicker metals.

What makes the TruFiber P compact so special

– Its special features at a glance

Fits in any rack

Thanks to their compact 19-inch format, TruFiber P compact lasers can be easily integrated into any rack cabinet. Your existing production line does not need to be modified.

Ideal for use in dry rooms

As air-cooled versions with up to 500 W, our TruFiber P compact lasers are predestined for processing moisture-sensitive components in dry rooms, for example in battery production or electronic components from the entertainment industry.

Safe processing of reflective metals

TruFiber P compact lasers process reflective metals such as brass or copper without interference or interruption because a patented technology diverts back-reflections. This protects the laser from damage and prevents downtime in your production line.

Further advantages

Safe and reliable with PLe
The TruFiber P compact fiber lasers meet the highest safety level Performance Level e (PLe). Redundant safety systems and fast error detection increase your safety in production - without additional measures on the laser.

The TruFiber P compact in use

– What you can expect

You want to cut materials of different thicknesses cleanly, process moisture-sensitive electronic components safely, or manufacture individual products using metal 3D printing. TruFiber P compact single or multimode fiber lasers provide the right beam quality for precise processing of any material and are also suitable for dry rooms as air-cooled versions with up to 500 W.

Clean cutting of stents

You must ensure that when cutting medical stents, there are no rough edges or deposits that could cause them to come loose in the body after implantation.

Thanks to their excellent singlemode beam quality, TruFiber P compact fiber lasers enable you to precisely place even the smallest cutting points and produce smooth, clean cut surfaces of the highest quality.

Laser cutting of thin and thick sheets

When processing thinner materials, lasers must be able to remove sufficient material despite narrow kerfs; with thicker materials, they must produce clean cuts despite high power.

In singlemode, TruFiber P compact fiber lasers with a focal diameter of 30 µm achieve the ideal beam power for cutting materials with a thickness of 1 mm or less - for example thin brass sheets. In multimode, they cut sharp, high-quality edges with a spot diameter of 50 µm, even on metals up to 6 mm thick.

Applying layers in 3D printing

For metallic 3D printing in dental practices and dental laboratories, lasers must be able to be optimally adjusted so that they can build dental products such as dental crowns or implants according to constantly changing specifications.

Thanks to their high beam power, precision and power stability, TruFiber P compact fiber lasers enable you to melt metal powder in such a way that you can implement any specific specification safely and yet quickly.

One system. Everything from TRUMPF.

– Discover available components and services for this laser

A laser alone is not a solution. Only in combination with precise optics, intelligent sensor technology and tailor-made services can a system be created that makes your applications possible and ensures reliable processes. With TRUMPF, you have a partner who not only supplies technology, but also reliable process results - solutions that measurably advance your production and pay off through sustainable success.

Optics

Guide and focus the laser beam

Overview

Optics focus the laser beam precisely onto the workpiece - exactly at the point where the processing takes place. TRUMPF offers two variants for this:

Classic processing optics (BEO) focus a laser beam on a fixed processing point. To cover the processing surface, either the optics or the workpiece must be moved.

Programmable focusing optics (PFO) use mirrors to flexibly direct the laser beam to any position in the processing field - without any mechanical movement of the workpiece or optics.

All optics can be combined via an interface with various sensors for process monitoring - from TRUMPF or third-party suppliers.

BEO D35

Compact, lightweight precision optics for fine machining.

Ideal for welding and laser precision cutting thanks to precise machining.
Easy integration into existing systems thanks to compact design and low weight.
Can be combined with our smart sensor systems

Laser power: max. 4 kW
also available as bifocal

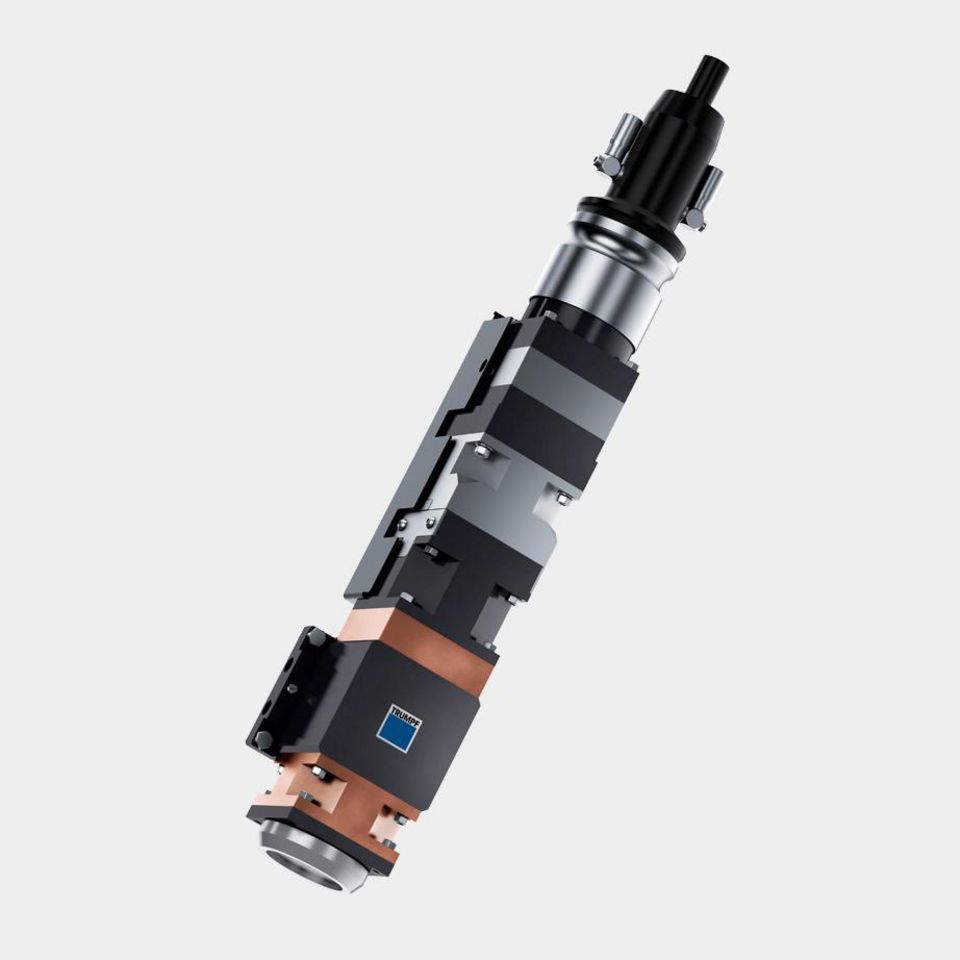

BEO D50

Powerful mid-range for stable processes.

High process stability: An optional shielding gas nozzle ensures clean weld seams.
Robust design: The smart monitoring functions increase safety and process stability.
High tightness: The optionally available Multifocus element enables particularly stable and gas-tight weld seams.
Can be combined with our smart sensor systems: Also enables monitoring of the welding process with VisionLine OCT.

Laser power: max. 8 kW
also available as multifocal

A conversation with TRUMPF service engineers

Services for maximum system availability

to keep your production running

Overview

How much standstill can you afford? Production downtime costs time, money - and, in the worst case, customers. To ensure that your lasers and laser systems remain operational in the long term, we support you with sophisticated services. This includes predictive condition monitoring, rapid assistance in the event of an emergency and individual service packages at fixed, predictable costs - tailored precisely to your needs.

Condition Monitoring, Servicetechniker repariert Maschine

Technical Service

No matter where you produce: Our service engineers will be there for you quickly if the worst comes to the worst. Thanks to in-depth manufacturer know-how and regular training, they have outstanding expertise - and ensure that your lasers and laser systems are quickly ready for use again.

Genuine Parts

Our TRUMPF Genuine Parts are perfectly matched to your lasers and laser systems, available worldwide - and can be delivered to you quickly in an emergency. For maximum performance, minimum downtime and long-term investment security.

Service Agreements

As much service as you need: Our Service Agreements offer graduated service packages - tailored precisely to your needs and at fixed, predictable costs. From Remote Support and maintenance to full service packages.

Is the laser suitable for your project?
Let us find out!

In our laser application centers (LAC), we work with you to determine the optimum parameters for your application - even directly on your component.

Inquire now

Questions? Ideas? Concrete plans?
We can help you!

Whether technical details, prices or individual requirements: Whatever your concerns - we will give you the answer that will help you move forward.

White paper

633 KB Fiber laser welding of fine wires for medical devices

Medical technology requires ever smaller and more complex components and products. This means increasing challenges for you and your production.

389 KB Micro welding with fiber lasers in medical technology

Process variety, reliability and cost efficiency: micro welding applications in the medical technology industry benefit from laser technology in so many ways. Moreover, the advantages of fiber laser power compared to conventional technologies in terms of beam quality, depth of focus and parametric dynamic performance are shown in this white paper. Simply fill out the form below and receive exciting exclusive background information and details in our white paper.

324 KB Precision cutting of stator plates for e-mobility

The increasing significance of e-mobility presents challenges to electric car manufacturers in many areas. Not just the scope of production, but also the requirements for precision are becoming even more important. In this white paper, the fiber laser is presented as a precision tool for cutting stator sheets, one of the many high-precision requirements arising from e-mobility. Simply fill out the form below to receive exciting background information and more details in our white paper.

Product	TruFiber P Compact Our compact fiber lasers - for processing the smallest components	TruFiber S Our high-end fiber lasers - made for efficient welding: Compact design, unique features, flexibly expandable	TruFiber P Our tailor-made products - individually configurable for precise details or broader seam requirements, modularly expandable, at the optimum price	TruFiber G Our purists among the fiber lasers - the economical laser source for integrators
	Request Offer	To the product	To the product	To the product
Laser power range	0.1 kW - 2 kW	3 kW - 12 kW	0.5 kW - 6 kW	1 kW - 12 kW
Laser outputs	1	2	1	1
Modular selectable optics/sensor system	no	yes	yes	no
Beam-shaping for low-spatter welding	no	yes	yes	yes
Available digital solutions	no	yes	yes	no
LLK version	PIPA-C, PIPA-Q	LLK-D/X	LLK-D, PIPA-Q	LLK-D, PIPA-Q

^{This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.}
