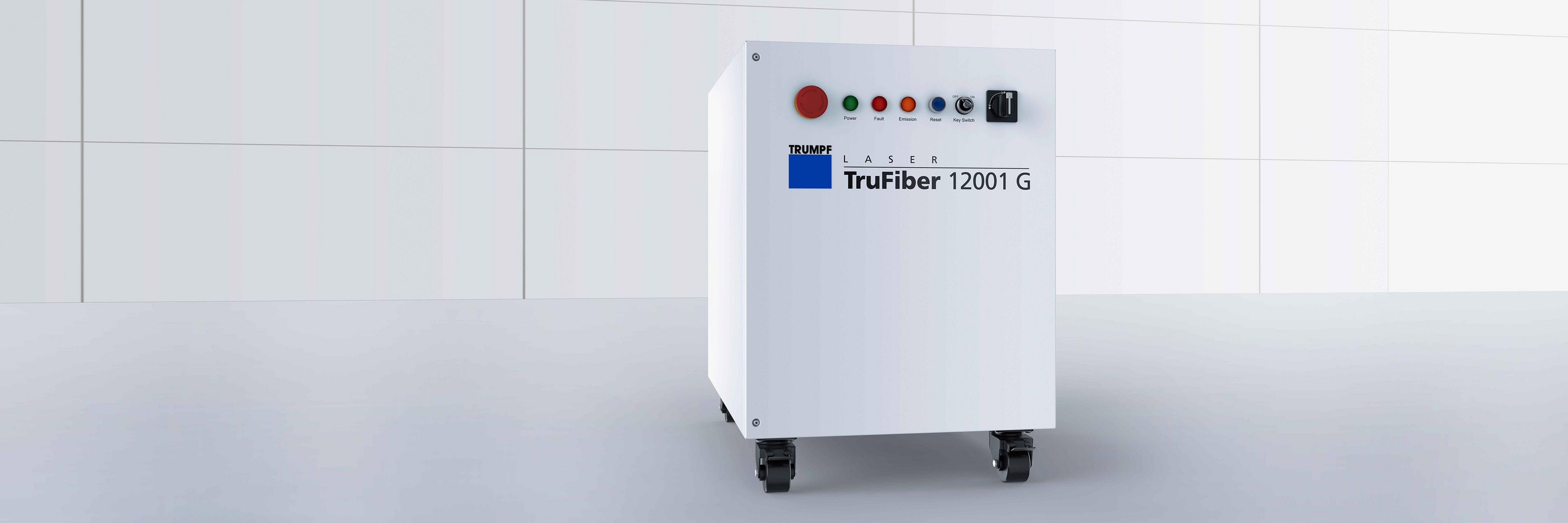

TruFiber G
Our economical laser source for beginners and integrators
| Product options TruFiber G | Laser power range | Wavelength | Typical beam quality | Dimensions (W x H x D) | Electrical connection (voltage) | Electrical connection (frequency) | Interfaces |
|---|---|---|---|---|---|---|---|
|
TruFiber 1000 G (014)
(FD96)
|
100 W - 1000 W | 1080 nm ± 5 mm | 0.38 (SM) mm▪mrad | 448 mm x 156 mm x 810 mm | 200 V - 240 V | 50 Hz - 60 Hz | Ethernet, Analog interface |
|
TruFiber 2000 G (014)
(FD96)
|
200 W - 2000 W | ||||||
|
TruFiber 3000 G (020)
(FD96)
|
300 W - 3000 W | 0.45 (SM) mm▪mrad | 380 V - 415 V | ||||
|
TruFiber 3001 G
(FD 91)
|
60 W - 3000 W | 1080 nm ± 5 nm | ≥ 4 (MM) mm▪mrad | 600 mm x 895 mm x 1150 mm | Ethercat | ||
|
TruFiber 6001 G
(FD91)
|
120 W - 6000 W | ||||||
|
TruFiber 12001 G
(FD 91)
|
240 W - 12000 W |
The purist
For those who are not looking for a complete package, but simply a reliable laser: The TruFiber G series delivers everything integrators need for precise cutting and welding - compact, cost-efficient and reliable. You can easily integrate the laser into your cutting and welding machines and rely on the proven quality of TRUMPF. We also use the TruFiber G in our 2D laser cutting machines from the TruLaser Series 1000.
What makes the TruFiber G so special
The TruFiber G is specially designed for cost-conscious integrators and beginners - with a focus on the essentials: Performance and security at an attractive price.
With active power regulation, the laser power remains stable at 100% over the entire service life. The system monitors and regulates the output power automatically - for consistently high processing quality.
Application-specific beam shaping options optimize your results. VariMode allows you to adjust the beam profile to the thickness of the material to be cut. BrightLine Mode enables high-quality weld seams with minimal spatter formation.
The TruFiber G meets the highest safety standards - up to PLe depending on the model - and is supported worldwide by our TRUMPF service network. Integrators and operators benefit from 24/7 support and fast response times.
The TruFiber G in use
The TruFiber G Series is the ideal choice for anyone who designs their own manufacturing solutions. Whether cutting or welding - the lasers reliably deliver the necessary power for your machines. And with outstanding beam quality up to 3 kW in single mode or as a multimode fiber laser with outputs of up to 12 kW. With the TruFiber G, you can rely on a high-quality and competitive laser source that is also compatible with hardware such as focusing optics from third-party suppliers.
The laser component for your machines
The laser component for your machines
Laser cutting and welding on an industrial scale requires a reliable beam source with high availability. It must be possible to integrate new devices quickly, because downtime and process interruptions cost valuable time and money.
The TruFiber G delivers stable performance, is quickly available worldwide and meets the highest safety standards. And when it comes down to it: our global Technical Service network keeps your production running.
Laser cutting of thin and thick sheets
Laser cutting of thin and thick sheets
When processing thinner materials, lasers must be able to remove sufficient material despite narrow kerfs; with thicker materials, they must produce clean cuts despite high power.
In single mode, TruFiber G fiber lasers achieve the ideal beam power for cutting materials with a thickness of 1 mm or less - for example thin brass sheets. In multimode, they cut sharp, high-quality edges with a spot size of 100 µm, even on thicker metals.
One system. Everything TRUMPF.
A laser alone is not a solution. Only in combination with precise optics, intelligent sensor technology and tailor-made services can a system be created that makes your applications possible and ensures reliable processes. With TRUMPF, you have a partner who not only supplies technology, but also reliable process results - solutions that measurably advance your production and pay off through sustainable success.
Optics
Guide and focus the laser beamOverview
Optics focus the laser beam precisely onto the workpiece - exactly at the point where the processing takes place. TRUMPF offers two variants for this:
Classic processing optics (BEO) focus a laser beam on a fixed processing point. To cover the processing surface, either the optics or the workpiece must be moved.
Programmable focusing optics (PFO) use mirrors to flexibly direct the laser beam to any position in the processing field - without any mechanical movement of the workpiece or optics. All optics can be combined via an interface with various sensors for process monitoring - from TRUMPF or third-party suppliers.
BEO D35
Compact, lightweight precision optics for fine machining.
- Ideal for welding and laser precision cutting thanks to precise machining.
- Easy integration into existing systems thanks to compact design and low weight.
- Can be combined with our smart sensor systems
also available as bifocal
BEO D50
Powerful mid-range for stable processes.
- High process stability: An optional shielding gas nozzle ensures clean weld seams.
- Robust design: The smart monitoring functions increase safety and process stability.
- High tightness: The optionally available Multifocus element enables particularly stable and gas-tight weld seams.
- Can be combined with our smart sensor systems: Also enables monitoring of the welding process with VisionLine OCT.
also available as multifocal
Services for maximum system availability
to keep your production runningOverview
How much standstill can you afford? Production downtime costs time, money - and, in the worst case, customers. To ensure that your lasers and laser systems remain operational in the long term, we support you with sophisticated services. This includes predictive condition monitoring, rapid assistance in the event of an emergency and individual service packages at fixed, predictable costs - tailored precisely to your needs.
Technical Service
No matter where you produce: Our service engineers will be there for you quickly if the worst comes to the worst. Thanks to in-depth manufacturer know-how and regular training, they have outstanding expertise - and ensure that your lasers and laser systems are quickly ready for use again.
Genuine Parts
Our TRUMPF Genuine Parts are perfectly matched to your lasers and laser systems, available worldwide - and can be delivered to you quickly in an emergency. For maximum performance, minimum downtime and long-term investment security.
Service Agreements
As much service as you need: Our Service Agreements offer graduated service packages - tailored precisely to your needs and at fixed, predictable costs. From Remote Support and maintenance to full service packages.
Is the laser suitable for your project?
Let us find out!
In our laser application centers (LAC), we work with you to determine the optimum parameters for your application - even directly on your component.
Questions? Ideas? Concrete plans?
We can help you!
Whether technical details, prices or individual requirements: Whatever your concerns - we will give you the answer that will help you move forward.
| Product |
TruFiber GOur purists among the fiber lasers - the economical laser source for beginners and integrators |
TruFiber SOur high-end fiber lasers - made for efficient welding: Compact design, unique features, flexibly expandable |
TruFiber POur tailor-made products - individually configurable for precise details or broader seam requirements, modularly expandable, at the optimum price |
TruFiber P CompactOur compact fiber lasers - for processing the smallest components |
|---|---|---|---|---|
|
|
|
|
|
|
| Laser power range | 1 kW - 12 kW | 3 kW - 12 kW | 0.5 kW - 6 kW | 0.1 kW - 2 kW |
| Laser outputs | 1 | 2 | 1 | 1 |
| Modular selectable optics/sensor system | no | yes | yes | no |
| Beam-shaping for low-spatter welding | yes | yes | yes | no |
| Available digital solutions | no | yes | yes | no |
| LLK version | LLK-D, PIPA-Q | LLK-D/X | LLK-D, PIPA-Q | PIPA-C, PIPA-Q |
| Wavelength | ||||
| Mean output power (range) | 5 W - 12 W |
