Maximum productivity in the entire volume segment with minimum set-up and programming effort.

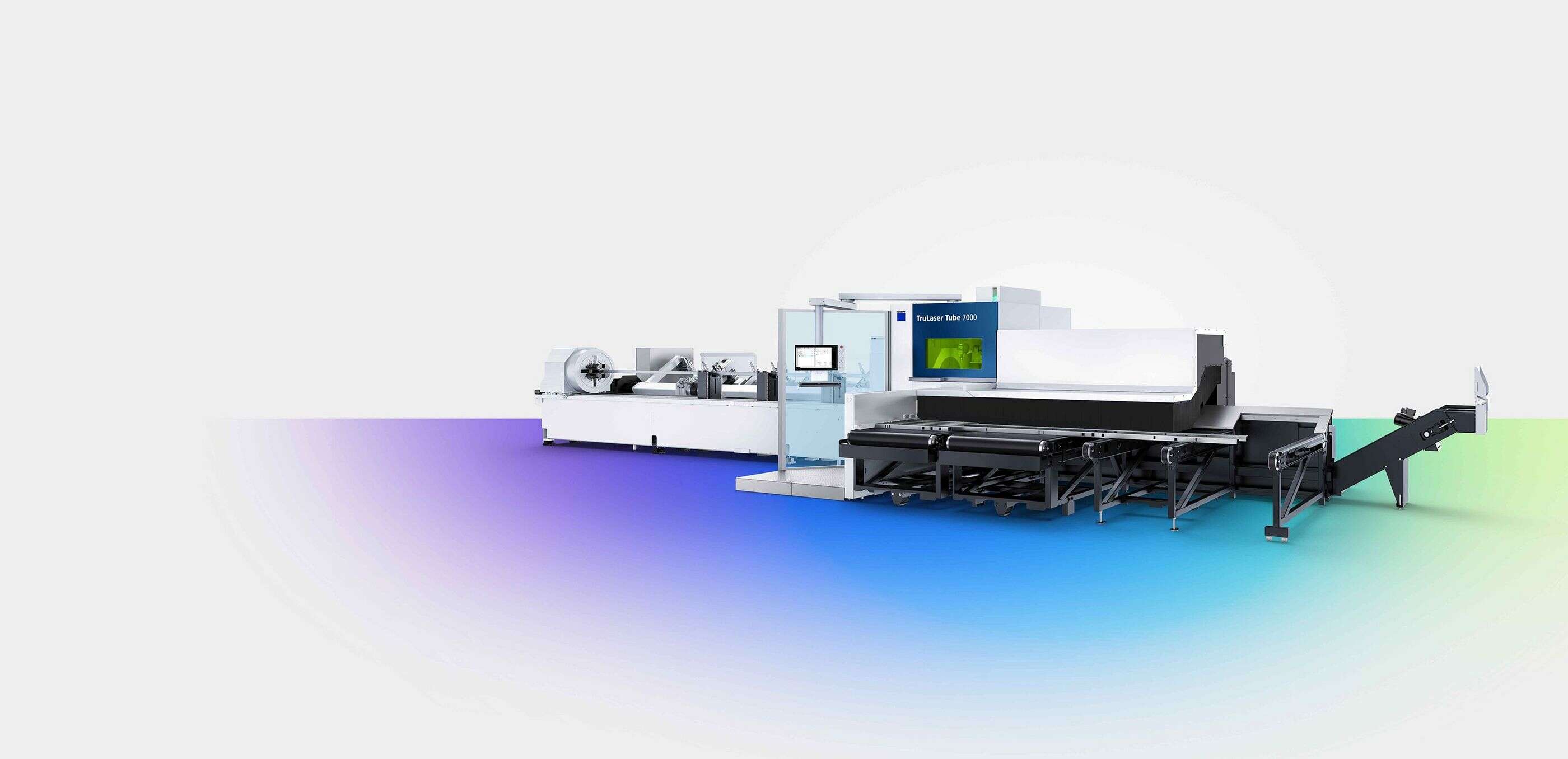

The TruLaser Tube 7000 is your flagship in laser tube cutting. With this laser tube cutting machine, you can process round tubes up to a diameter of 273 mm, rectangular tubes up to an outer circle of 290 mm and square tubes up to 203 x 203 mm with great flexibility - and much more productively than typical systems in this class.

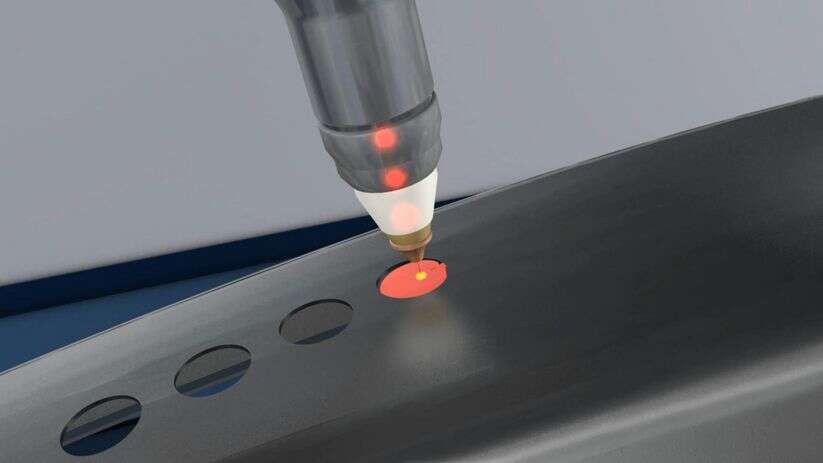

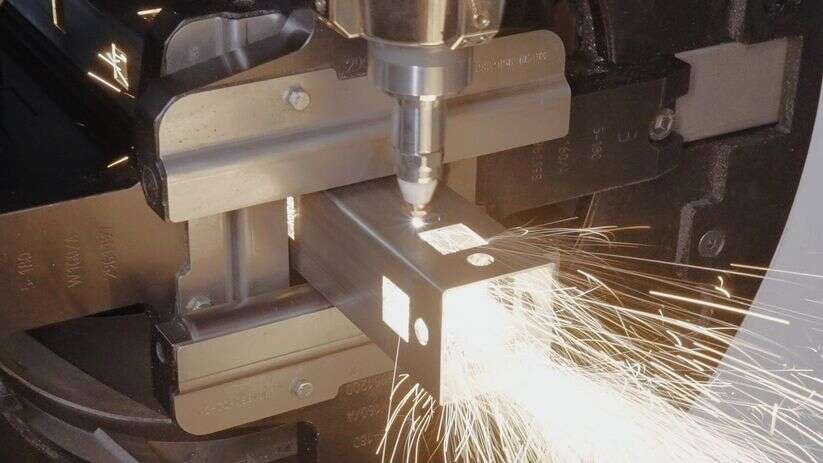

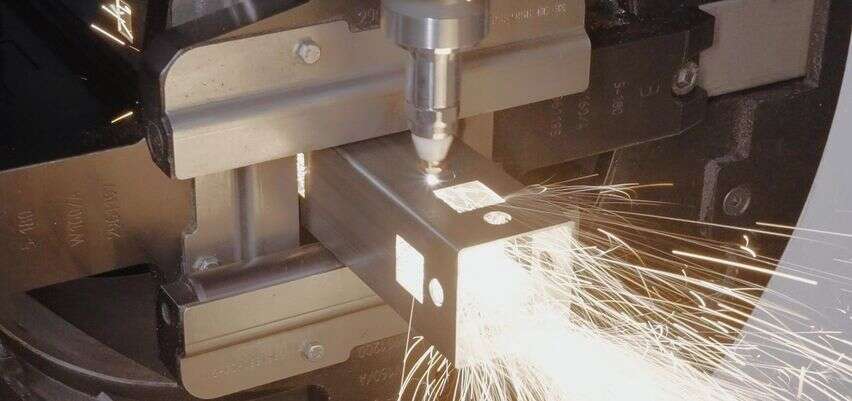

The laser tube cutting machine not only impresses with its robust design. It automates many inspection and correction steps and ensures quality directly in the cutting process. ScanLine, ObserveLine Comfort and ObserveLine Edge monitor raw material and cutting areas. They identify tolerances, residual slugs and pre-punched contours and take targeted action. This reduces manual checks and reworking. Process reliability and the good parts rate increase significantly.
Process highly flexible round tubes up to a diameter of 273 mm, rectangular tubes up to an outer circle of 290 mm and square tubes up to 203 x 203 mm.
Highest basic dynamics, RapidCut and 9 kW increase your output and thus reduce the costs per part. Intelligent sensors and assistance systems minimize rejects.
Precise clamping system and automatic step rollers support and guide the tubes and make precise laser cuts of up to 45° possible. This reduces follow-up processes.
Minimal setup and TRUMPF cutting data ensure excellent quality from lot size 1.
Condition Monitoring reduces unplanned downtimes. Plan maintenance in advance and minimize downtime risks.
Flow drilling, tapping and twist drilling directly in the process reduce parts handling and sources of error.

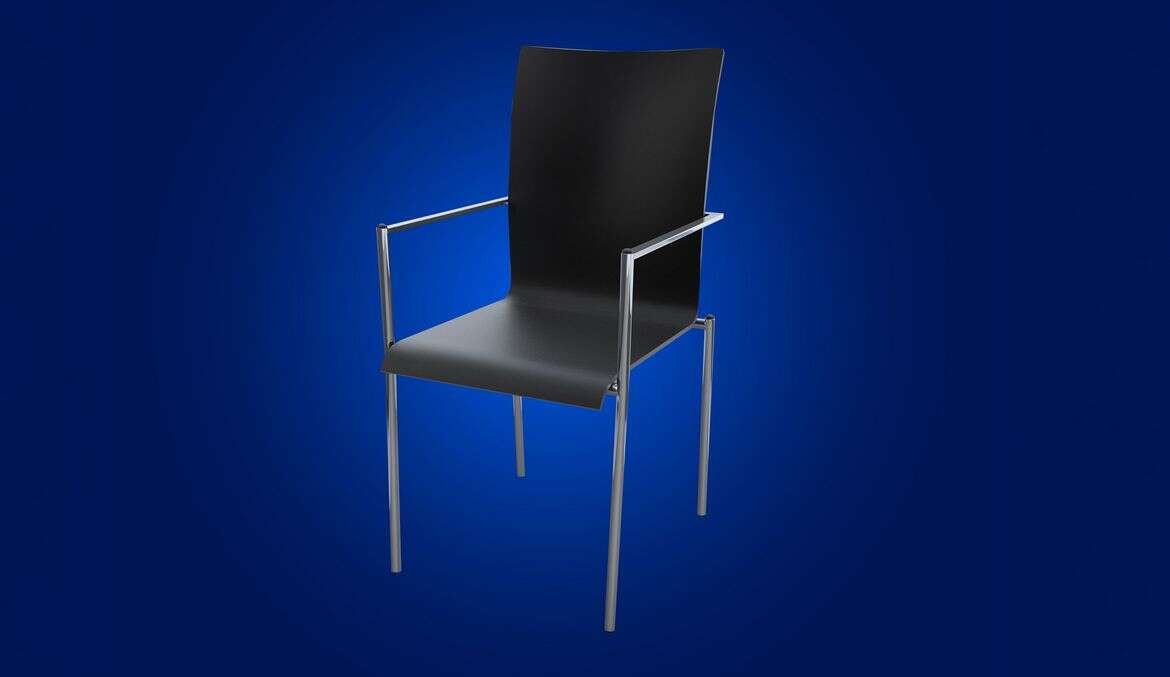

Furniture
More options for designers: the TruLaser Tube 7000 cuts tubes and profiles with great precision. This, in turn, enables the production of products of the highest quality and perceived value.

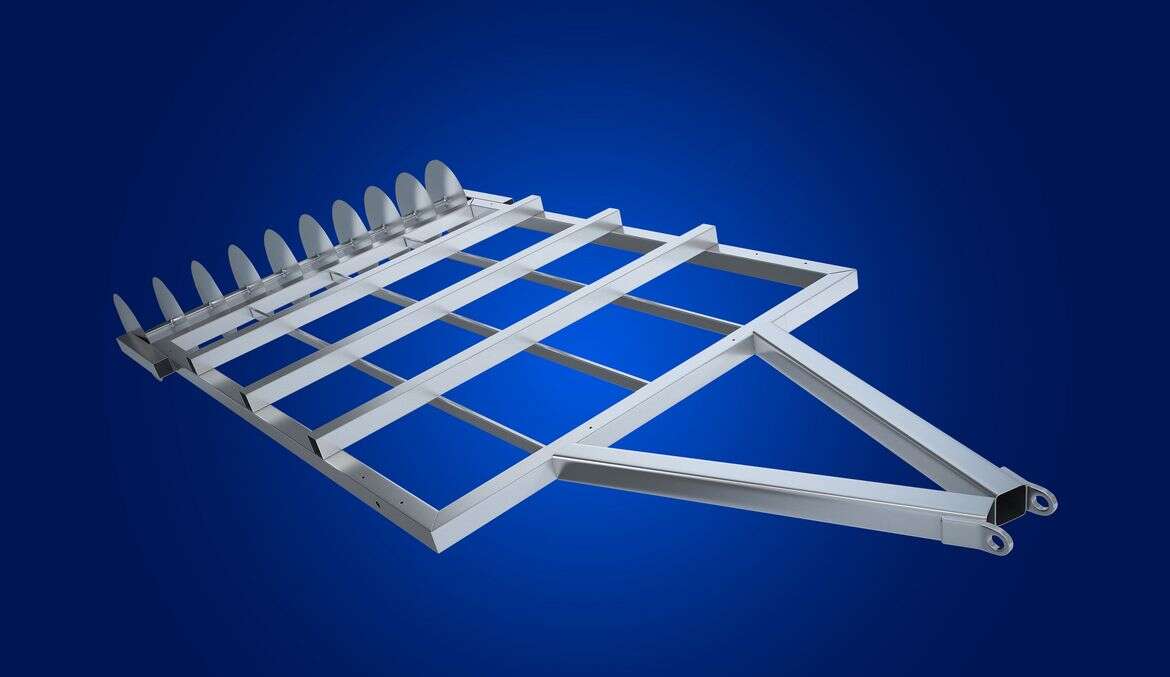

Agricultural machinery
The TruLaser Tube 7000 can process tubes with high wall thicknesses. This is a great advantage for manufacturers of components for agricultural machinery, for example.

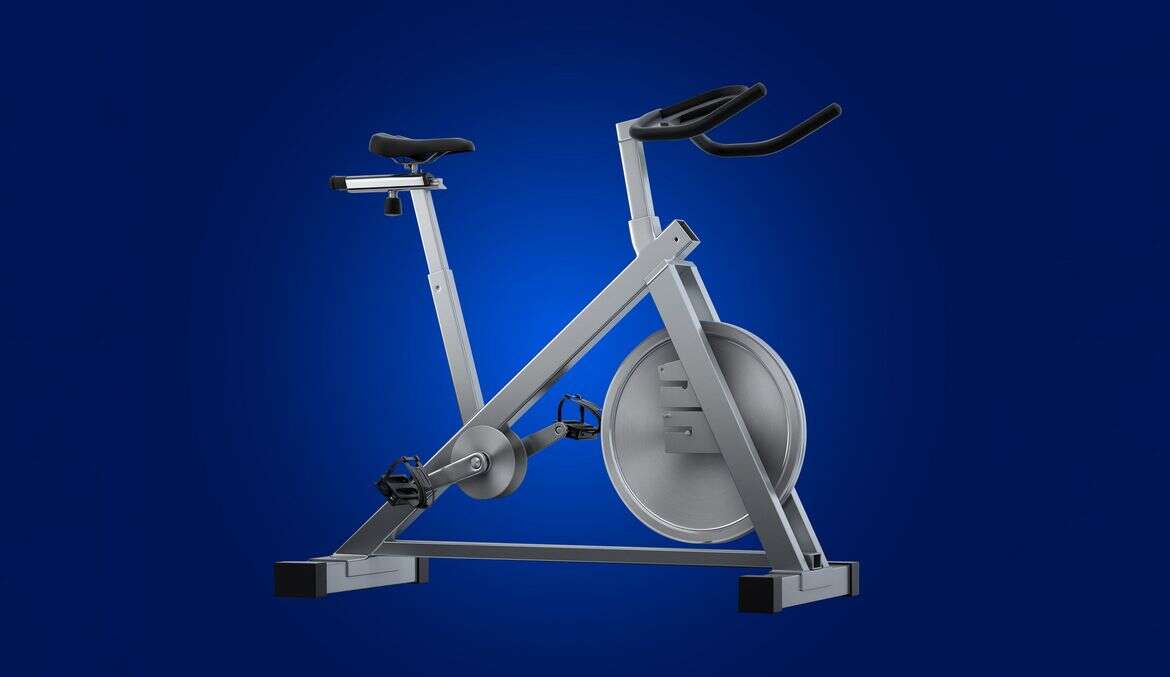

Fitness equipment
The automation solutions of the TruLaser Tube 7000 enable the efficient production of high-quality components such as fitness equipment. The laser provides long-lasting precision for tube processing.

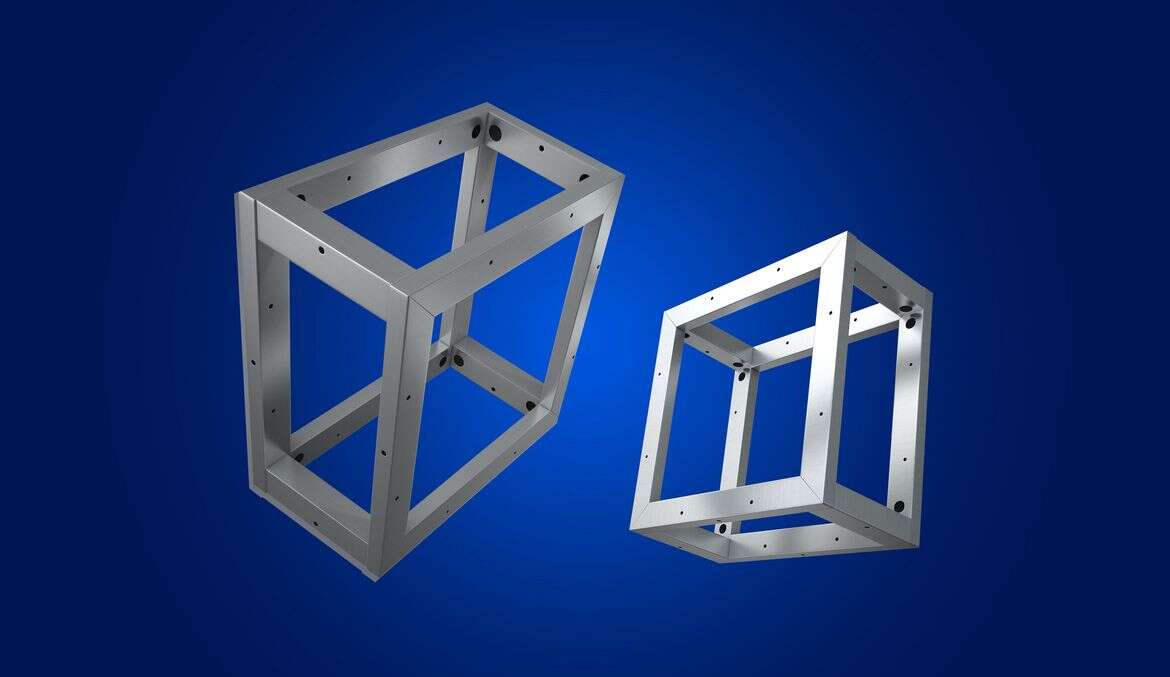

Mechanical and apparatus engineering
The possibilities offered by laser tube cutting technology mean that mechanical engineers can replace or optimize sheet metal designs. To do this, designers are finding intelligent ways to combine tube and sheet metal construction techniques.
|
TruLaser Tube 7000
|
|
|---|---|
| Round tube | |
| Maximum outside diameter | 273 mm 1 |
| Rectangular profile | |
| Maximum side length and outer circle diameter | 254 mm / 290 mm |
| Maximum raw material length for automatic loading | |
| for LoadMaster Tube 6.5 m | 6500 mm |
| for LoadMaster Tube 9.2 m | 9200 mm |
| for LoadMaster Tube 12.5 m | 12500 mm 2 |
| Finished part length | |
| bei Entladeeinheit 6 m | 6000 mm |
| for unloading unit 6.5 m | 6500 mm |
| for unloading unit 8 m | 8000 mm |
| bei Entladeeinheit 9,2 m | 9200 mm |
| bei Entladeeinheit 12,5 m | 12500 mm |
| Workpiece weight | |
| Maximum path weight (standard/optional) | 40 kg/m 3 |
| Maximum raw material weight with automatic loading | |
| with LoadMaster Tube 6.5 m | 260 kg |
| with LoadMaster Tube 9.2 m | 370 kg |
| with LoadMaster Tube 12.5 m | 370 kg |
| Laser-specific data - TruFiber 6001 | |
| Maximum laser power | 6000 W |
| Maximum material thickness, mild steel | 14 mm / 10 mm |
| Maximum material thickness, stainless steel | 10 mm / 8 mm |
| Maximum material thickness, aluminum | 10 mm / 8 mm |
| Maximum material thickness, copper | 5 mm |
| Maximum material thickness, brass | 5 mm |
| Consumption values (average power input in production) | 12 kW |
| Laser-specific data - TruFiber 9001 | |
| Maximum laser power | 9000 W |
| Max. Materialdicke Baustahl | 14 mm / 10 mm |
| Max. Materialdicke Edelstahl | 12.5 mm / 8 mm |
| Max. Materialdicke Aluminium | 12.5 mm / 8 mm |
| Max. Materialdicke Kupfer | 5 mm |
| Max. Materialdicke Messing | 5 mm |
| Verbrauchswerte (Mittlere Leistungsaufnahme in der Produktion) | 14 kW |
Quality
SeamLine Tube automatically detects weld seams and aligns tubes reliably. The touchpoint user interface selects the parameters automatically - this reduces operating effort and increases process reliability. The function also enables even more reliable seam detection and can automatically adjust cutting parameters in the area of the weld seam. This means you benefit from an automated and robust machining process.
ScanLine uses light section sensors to measure and compensate for raw material tolerances. Quality Pilot evaluates the raw material quality at the start of the process and decides whether and how often ScanLine should measure. This avoids unnecessary measuring cycles, saves time and ensures part quality at the same time.
The spatter protection device for round tubes ensures that the inside of tubes are clean, reducing rework.

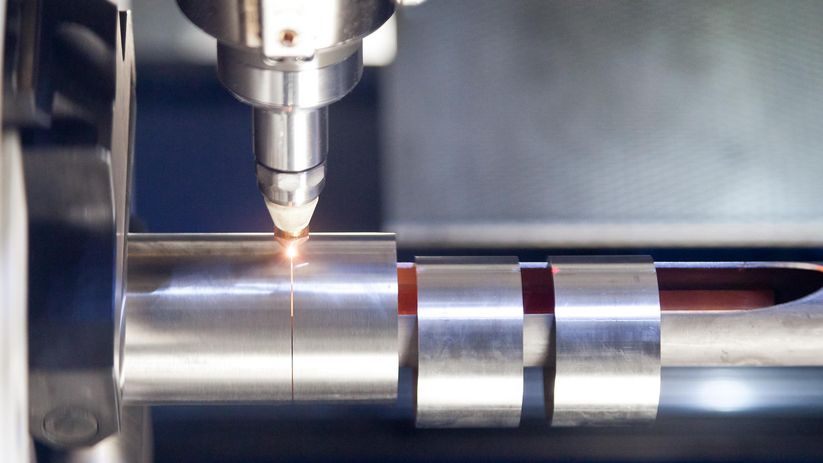

Automatically checks whether slugs have fallen out of the cut contours in the tube. This increases safety and quality in the process as well as your good parts rate.
PierceLine monitors and controls the piercing process. This protects both the material and the machine, increases part quality and shortens processing times.
The Spatter Guard saves on reworking, as it reduces the adhesion of slag spatters to the inside of tube. To this end, it applies a release agent parallel to production, increasing the cleanliness not only of round tubes but also of closed profiles.
Expand your processing spectrum
The TruLaser Tube 7000 processes bevel cuts of up to 45°. This reduces downstream processing steps, e.g. for weld edge preparation, creates design freedom and enables innovative tube designs.
With smart profile detection, you can load even profiles with challenging geometries automatically.
Identifies existing contours in tubes and aligns the cutting program precisely to them. Users can also process prefabricated or partially processed profiles safely and precisely.
Integrate flow drilling, tapping and twist drilling directly into the tube laser. The integrated work steps reduce subsequent work steps and parts handling, reduce the possibility of errors and thus increase the added value of a machine.

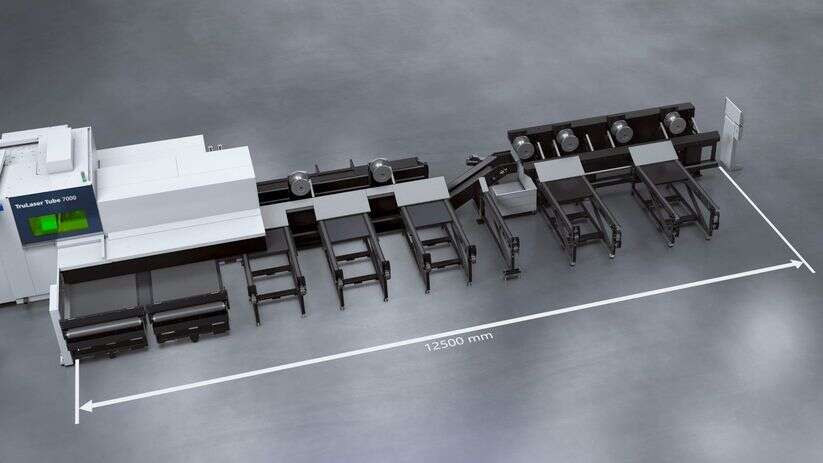

The swivel-mounted conveyor system with a length of up to 12.5 meters is particularly advantageous for intermediate production and for open or special profiles.
The TruLaser Tube 7000 processes and unloads tubes with a loading length of up to 12.5 m. Optimum nesting allows you to make much better use of your raw material. This reduces scrap and lowers your material costs. Finished parts of maximum loading length are unloaded reliably and safely.
Process reliability and operator support

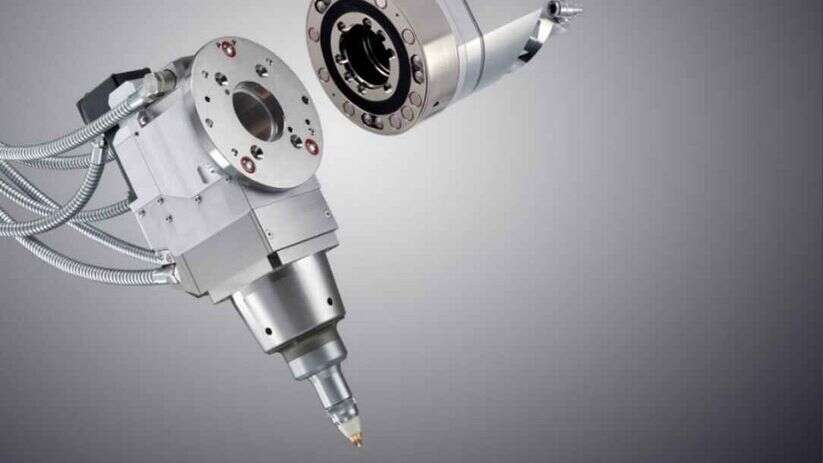

The integrated magnetic coupling with bellows protects the cutting head from possible damage and contamination, especially in the event of a cutting head collision. In this way, production can continue without readjustment or calibration.
Save on cutting gas, increase process reliability: the innovative nozzle with patented nozzle geometry enables you to achieve average cutting gas savings of 33% when high-pressure cutting wall thicknesses of 1 to 3 mm. Thanks to the increased nozzle distance, process reliability is also improved.
Conveyor tables at an ergonomic height make it easier to unload tubes and profiles. Finished parts can be sorted into different positions, with the unloading area also serving as a material buffer.
Your machine thinks for itself: During the loading operation, the machine checks whether the correct tube has been loaded. The clamping system with automatic force control always clamps tubes centrally without deforming them. The machine also detects whether a part has been correctly discharged during unloading.
Label your parts quickly and reliably with a standardized industry code – the Dot Matrix Code feature enables this.
Economic and easy to operate

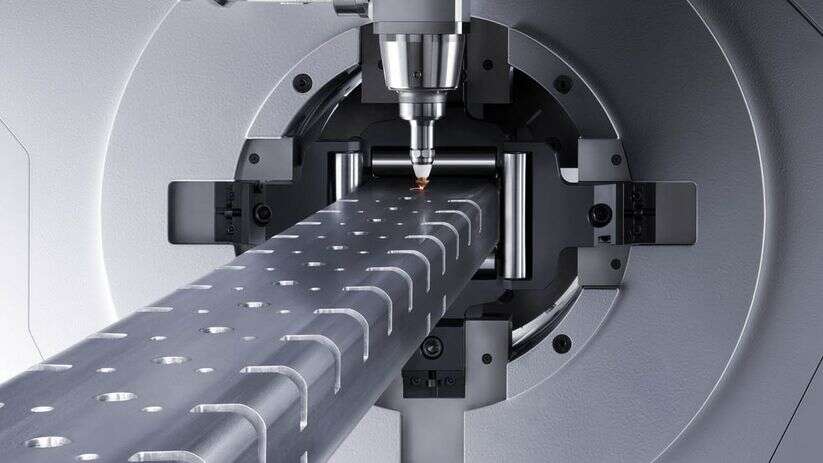

The rigid machine frame and precise tube guides simultaneously provide particularly quick processing and high quality in the finished part.
The open machine concept and intelligent beam guard (laser class 1) offer you optimum accessibility and enable fast, ergonomic loading and unloading of profiles and tubes manually, automatically or by crane.
You can complete tasks on the machine especially quickly with the Touchpoint HMI. Functions can be learned intuitively via the large touch display, you simply operate the machine by hand.
RapidCut enables the high feed rates of the solid-state laser to be used for smaller contours. RapidCut speeds up the process fourfold and thus ensures shorter throughput times.
Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.
The clamping system with permanent sensor monitoring adapts to any tube geometry and always positions your tube centrally. The automatic force control ensures that even thin and unstable tubes are not deformed.
So that the kilowatts also reach the tube: With TRUMPF laser tube cutting machines, you can also make full use of high laser power. The TruFiber laser with up to 9 kW not only promises high feed rates, but above all processes the workpiece with maximum productivity.
Programming Tube
Using the 3D software Programming Tube, you can quickly, easily and intuitively create NC programs. Strong automated processes reduce the time and effort needed for programming. The software offers flexible data import procedures and efficient design – and provides step-by-step support.
Oseon
Manage and keep track of all the relevant procedures of your sheet metal processing in just one system: you will optimize your workflows and develop your production's potential with Oseon.
Smart View for machine tools - Connect the machine and reap the rewards
Smart View is now available to you free of charge when you purchase your new machine. Smart View automatically provides you with relevant operating data for your machine tools. Simply click into your dashboard and get your first comprehensive insights into the performance of your TRUMPF machines.
Software
The software portfolio from TRUMPF optimizes your entire production process – from the customer query through to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customized Industry 4.0 solutions for your Smart Factory.

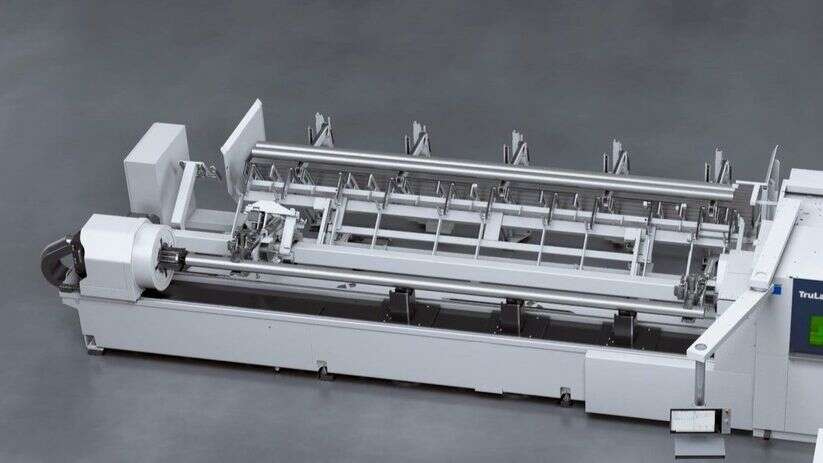

Loaded - even in XXL
The LoadMaster Tube for 12.5 m loading length feeds the raw material to the machine fully automatically. The swivel-mounted conveyor system with a length of 12.5 m is particularly advantageous for intermediate production and special profiles, and the LoadMaster Tube can also be installed at the front of the machine as an option. This allows you to adapt the layout of the machine to your material flow.

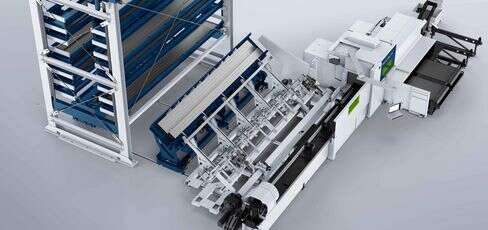

Tube storage system with a storage connection
The loading automation enables you to link TruLaser Tube machines to a tube storage system. Enabling you to load the laser tube-cutting machine fully automatically and unattended. How does it work? A tilt-and-lift station takes the cartridge with the raw material from the store and transfers it to the conveyor unit. It is directly connected to the LoadMaster Tube.

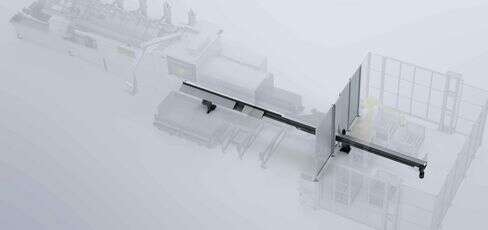

Unloading and sorting
The unloading automation interface with longitudinal conveyor belt was specially developed for the automated unloading of finished parts on TruLaser Tube machines. It contains mechanical and digital components including the longitudinal conveyor belt. The integrator automation can flexibly be connected to the conveyor belt as required.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
- Manuelles Beladen von Rundrohren mit Durchmesser > 254 mm. Kein Beladen über LoadMaster Tube möglich.
- Minimale Beladelänge für LoadMaster Tube 12,5 m beträgt 5.900 mm.
- Maximales Fertigteilgewicht in Abhängigkeit zur gewählten Ausschleussstation sowie das maximale Beladegewicht bei LoadMaster Tube 12,5 m ist zu beachten.
