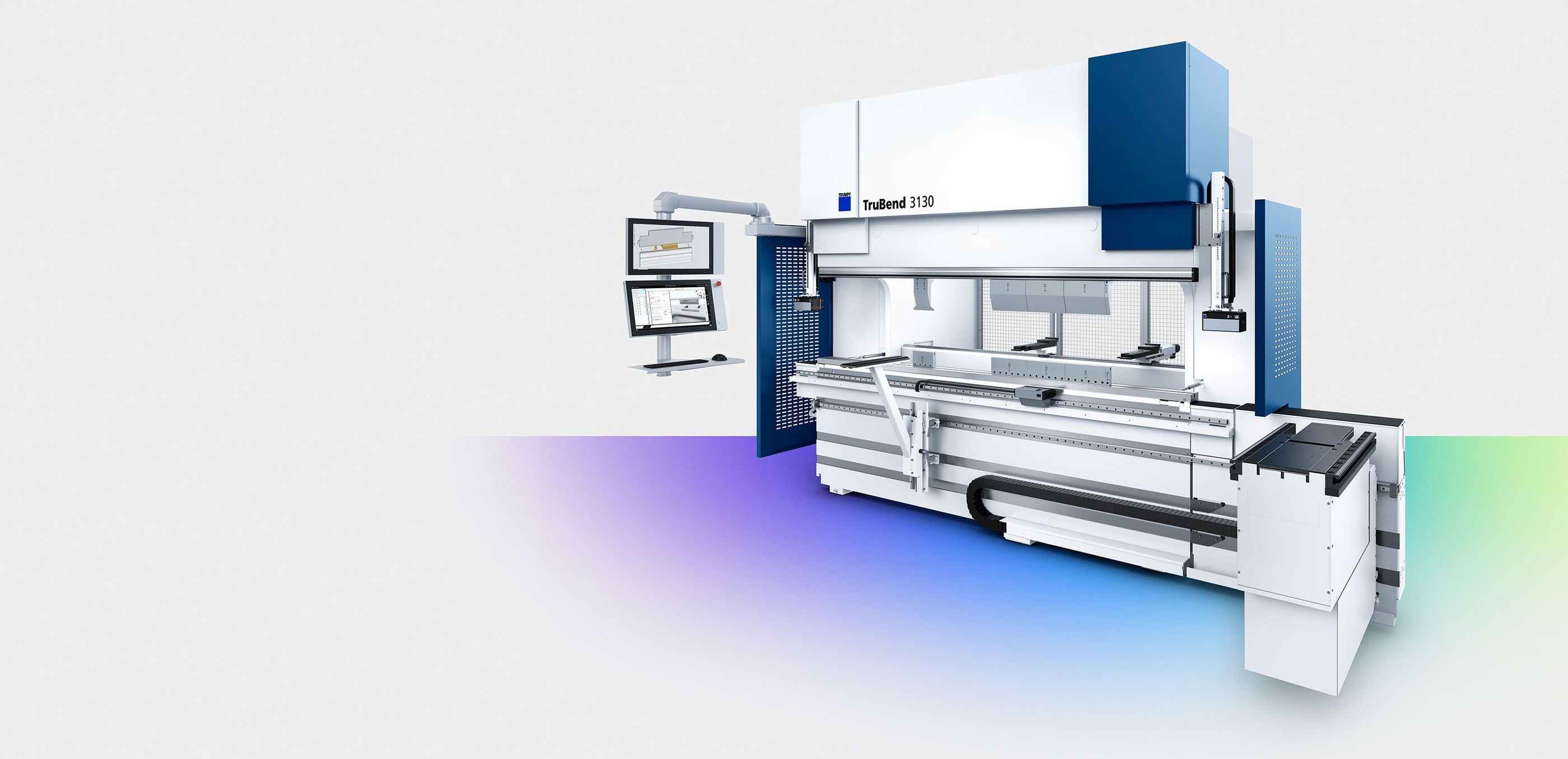

The multipurpose powerhouse – economical, precise, future-proof
If your daily work routine requires every bend to be perfect and processes to run smoothly within limited budget constraints, you need a machine that can deliver exactly that. The TruBend Series 3000 was developed to support you in your daily challenges - even with complex and demanding bending parts. The machine is your reliable all-rounder with consistently stable operation. You can benefit from precise angles, consistent component quality and solutions that noticeably reduce your production workload. Because big results are created by small teams.
Because investments must be worthwhile, you will receive selected premium functions at an attractive price for maximum efficiency and high competitiveness.
Because ±0.3° makes all the difference, the ACB laser angle measuring system automatically ensures precise angles.
Because no component should have to wait for you, you can program offline with the TRUMPF TecZone Bend software for bending programs - and the machine continues production in parallel.
Because heavy parts should be easy to handle, the new bending aid with a load capacity of 150 kg noticeably reduces the load and ensures more productive work.
Because downtime is not an option, we support you with TRUMPF bending tools, training courses and technical support.
Component with different bends
The TruBend Series 3000 is so flexible that the most diverse variety of tasks can be performed with ease.
Long profiles
Produce long profiles easily with the TruBend Series 3000 machines - thanks to additional attachable gauge fingers.
The highest level of flexibility in different sheet thicknesses
With the TruBend Series 3000 machines, you can process parts with a wide range of sheet thicknesses in no time at all.
Selected premium functions make working with the TruBend Series 3000 even more precise, ergonomic and productive. Here you will find an excerpt of the available equipment for bending machines.

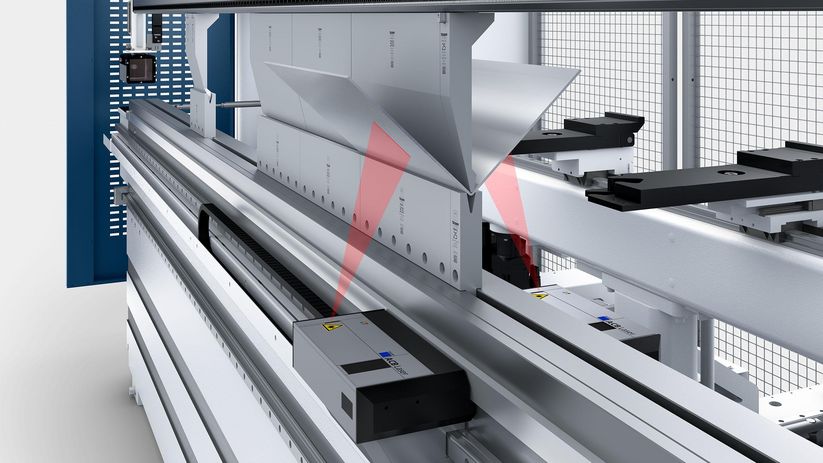

The ACB laser is a non-contact, optical system for angle measurement. A laser projects a line onto the sheet; a camera detects the angle. For this purpose, the front and rear measuring units are moved to the correct position automatically or via CNC. Four different measuring methods (ACB Speed, ACB Smart, Identify and Copy Immersion Depth) increase the range of applications and productivity. Your components receive consistently precise angles with an accuracy of ±0.3° with a large measuring range of 30° to 150°. Even the first part will be a good part, regardless of the material.

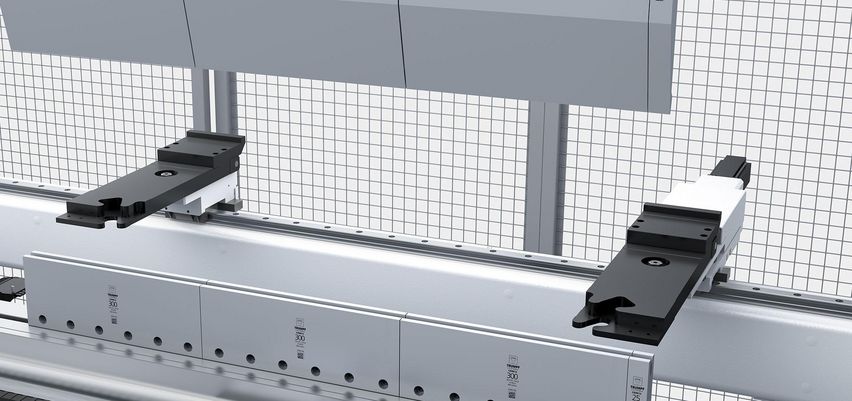

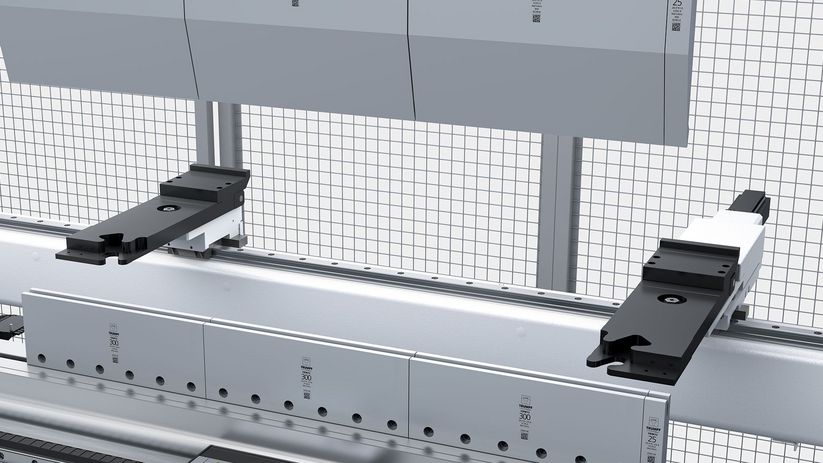

The backgauge of the TruBend Series 3000 is equipped with four axes as standard and can be scaled up to five axes. In combination with the angled stop, this allows you to cover an even wider range of components. In addition, the 5-axis backgauge enables the right stop finger to be moved in the X direction (max. travel ±75 mm). With up to three additional stop fingers available, even long profiles can be produced precisely. Lateral attachment (clamping) further increases productivity and user-friendliness.

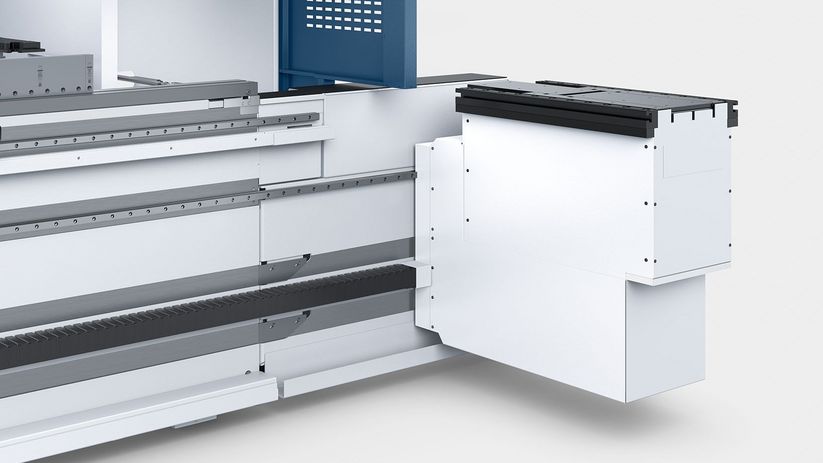

The practical bending aids with plastic support provide valuable assistance. Up to two bending aids can be added per machine and are characterized by their high load capacity of 150 kg each. They support and relieve operators when bending heavy or large parts and make handling much easier. This also prevents the back-bend effect on thin sheets with long flange lengths. The user-friendliness is rounded off by the CNC-controlled height axis and the automatic adjustment to the die height and part geometry.

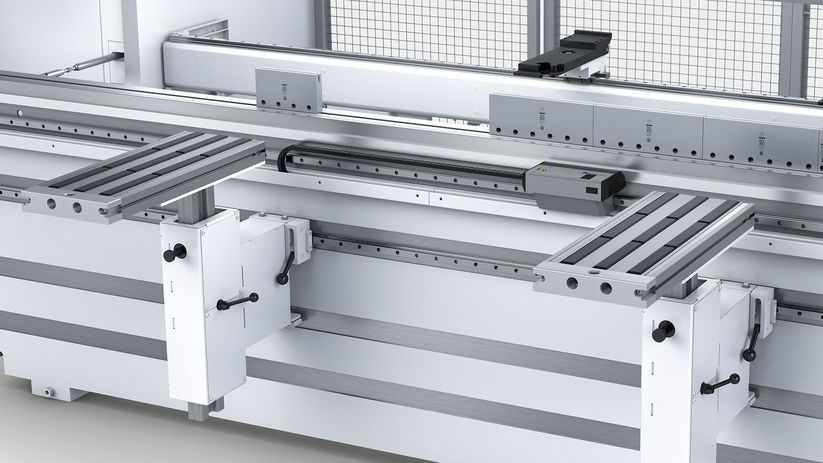

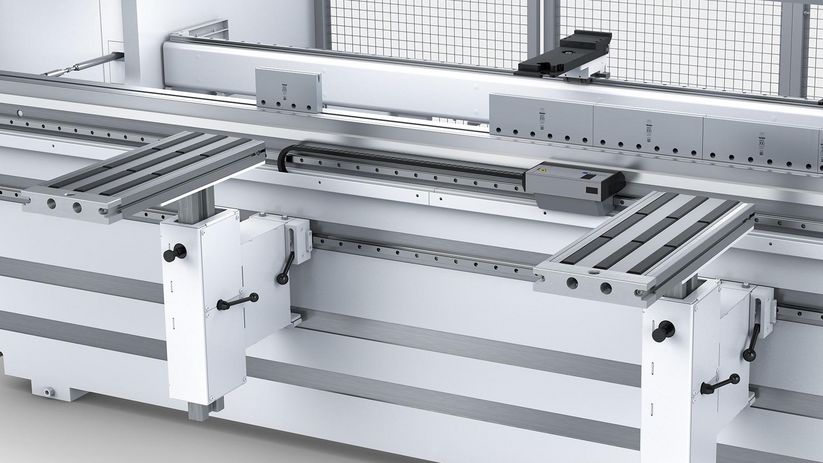

Two types of support consoles are available: the standard support console 70 with a load capacity of up to 70 kg or the optional support console 100 with a load capacity of up to 100 kg and additional positioning options in the X direction. Both versions are infinitely height-adjustable and mounted on guide rails so that they can be fixed in any position.

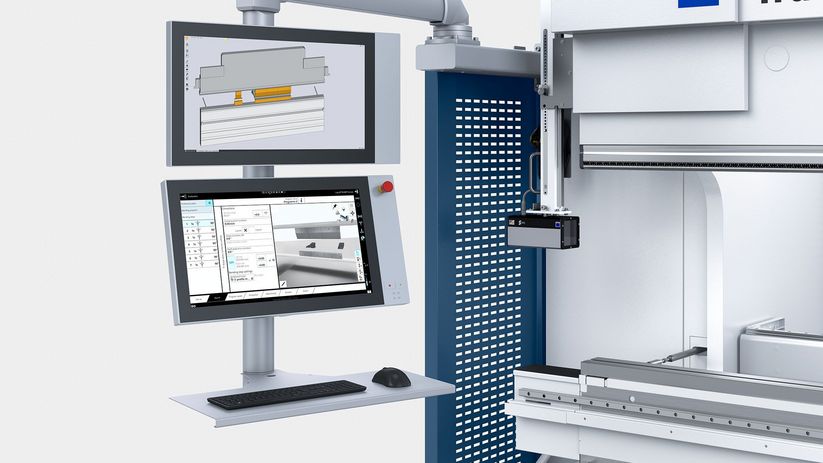

You can add a second screen above the main screen to the support arm system. The additional screen on the machine control supports paperless production and is used for further visualization of documents (e.g. images, PDFs) or the display of TRUMPF TecZone Bend software, for example. Both screens can be swiveled and operated with a mouse and keyboard.
Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.
TruTops Boost
Program your bending machines intelligently using TruTops Boost, the all-in-one solution for 3D design. Numerous automated processes save you time-consuming routine processes. You also profit from a comprehensive ruleset with the bundled technical expertise of TRUMPF.
TecZone Bend
Program faster than ever before: With TecZone Bend you can combine bend programming in the office with shop floor programming at the TruBend bending machine. A program suggestion is automatically created in a few seconds based on 2D and 3D data – including NC program.
Software
The software portfolio from TRUMPF optimizes your entire production process – from the customer query through to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customized Industry 4.0 solutions for your Smart Factory.
You can choose between more than 150 upper and lower tool types for your personal range. You can order tools individually or as a set.
For tools up to 12 inches long, lightweight tools with a weight saving of more than 30% are equipped with the Safety-Click as standard. This reduces the setup time and relieves the strain on the operator.
During the processing of galvanized sheets, even after just a few bends, there may be zinc deposits on the die, resulting in cold welding. This causes imprints on the component and imprecision. This can be avoided with the coated LASERdur ZN TRUMPF bending tools. They combine a high level of surface hardness with excellent sliding properties, are corrosion-resistant, and do not need to be cleaned.
For specific requirements, TRUMPF will develop your own personal tool solution. To guarantee the quality of your parts, we test the tools in advance with your specific material and create initial sample parts.
