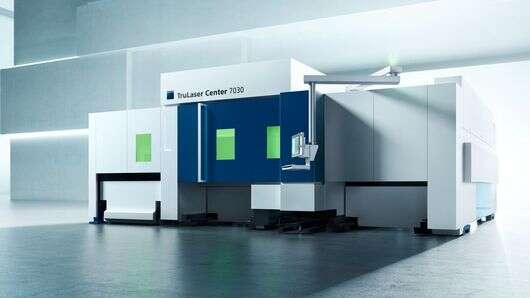

TruLaser Center 7030
TruLaser Center 7030
2D laser cutting machines

TruLaser Center 7030

The first full-service laser machine. Takes care of everything – from the drawing to the sorted part.

TruLaser Center 7030, cutting head and ejector cylinder above the SmartGate
TruLaser Center 7030, cutting head and ejector cylinder above the SmartGate
2D laser cutting machines

TruLaser Center 7030

To the right spot in the right place: the SmartGate offers optimal part support to prevent parts from tipping.

TruLaser Center 7030, suction plate of the SortMaster Speed
TruLaser Center 7030, suction plate of the SortMaster Speed
2D laser cutting machines

TruLaser Center 7030

The SortMaster Speed removes and stacks large and small parts in record time.

TruLaser Center 7030, cutting head in action
.NEW
TruLaser Center 7030, cutting head in action
2D laser cutting machines

TruLaser Center 7030

Our innovation in laser processing – find out more in our web special!

.NEW
2D laser cutting machines

TruLaser Center 7030

With pay per part, you only pay for the components that are produced and use the machine without purchasing it. Currently only available in selected countries – please ask us about it.

Full-service machine for your laser production

The TruLaser Center 7030 integrates all laser cutting processes into a single machine for the first time. We scrutinized and redesigned all components and integrated them in a single machine. As a result, you get the optimal profitability out of your laser machining process.

Practically self-reliant

The TruLaser Center 7030 takes care of everything – from the drawing to the sorted part.

Intelligent cutting

The SmartGate prevents the tilting and unwanted welding of parts.

Quick and reliable

Additional axes, SmartGate, brush tables and SmartLift ensure pioneering productivity and uncompromising reliability

Unloading in record time

The SortMaster Speed removes and stacks large and highly delicate components at lightning speed.

Easy programming

TruTops Boost automatically generates a suggestion for the cutting, removal, sorting, and depositing of parts.

Laser cutting as a service

With pay per part, you only pay for the components that are produced.

TruLaser Center 7030. Automated laser cutting, redefined.
Make short work of your laser production
The TruLaser Center 7030 with storage connection in action.
This is how the revolutionary laser innovation works
Tailored to your material flow, the full-service laser machine can be connected to a store – on the front or along the side, for unprocessed material and finished parts.
Intelligent part support in action
Experience the fastest and most flexible unloading solution on the market
TruLaser 3030, thin stainless steel

Thin mild steel part

Your TruLaser Center 7030 fiber cuts extremely quickly, particularly in thin sheet.

Sample parts from non-ferrous metals

Cutting of all common materials

The construction of the TruDisk enables the processing of non-ferrous metals with nitrogen – without worrying about reflections.

TruLaser Center 7030, automated part removal

Automated part removal

The versatile unloading system SortMaster Speed removes and stacks large and highly delicate components extremely fast. Even parts with a manufacturing process that is difficult to automate can be transported quickly due to the small suction cup.

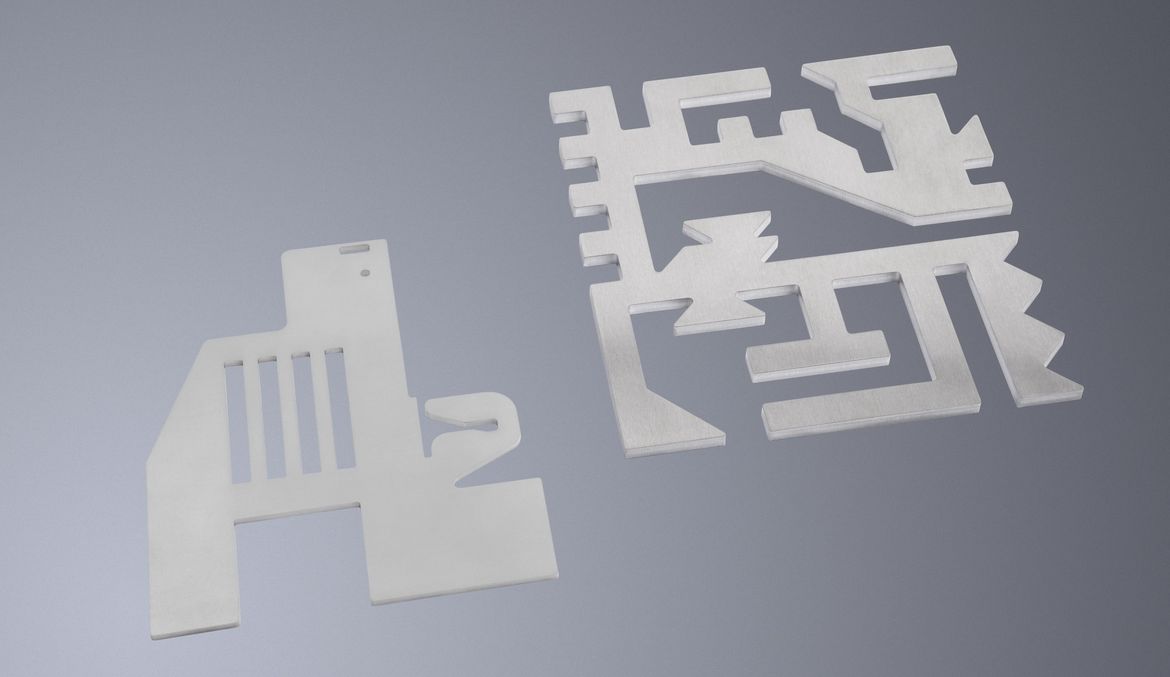

TruLaser Center 7030, perfected part separation

Perfected part separation

No more tilting or getting stuck: With SmartLift and SortMaster Speed, you can process and remove even complex geometries reliably and fully automatically.

TruLaser Center 7030, reliable parts handling

Reliable parts handling

Parts that until now could only be processed reliably using microjoints can now be cut and removed securely using the TruLaser Center 7030. This opens up entirely new possibilities for the processing of very small parts.

Internal reinforcement

Different geometries and sheet thicknesses can be manufactured with the TruLaser Center 7030, both with process reliability and to an excellent quality standard. This sample part has an interior reinforcement for welding housings made of steel sheet with a thickness of just 1 mm.

Stiffening plate

This 1.5 mm thick steel sheet part has a stiffening plate for cross member units and is part of the TruLaser Center 7030 clamping unit.

Locking mechanism

This sample part made of steel sheet has a thickness of 12 mm and locks the tilt mechanism of the TruLaser Center 7030.

TruLaser Center 7030
Installation area
Length 10135 mm
Width (cart extended) 10720 mm
Width (cart retracted) 6420 mm
Height 3050 mm
Weight with all units 38860 kg
Nominal working range
X axis 3000 mm
Y axis 1500 mm
Z axis 120 mm
TruDisk 6001 laser-specific data
Maximum laser power 6000 W
Maximum sheet thickness, mild steel 12.7 mm
Maximum sheet thickness, stainless steel 12.7 mm
Maximum sheet thickness, aluminum 6 mm
Maximum sheet thickness, brass 6 mm
Maximum sheet thickness, copper 6 mm
TruDisk 12001 laser-specific data
Maximum laser power 12000 W
Maximum sheet thickness, mild steel 12.7 mm
Maximum sheet thickness, stainless steel 12.7 mm
Maximum sheet thickness, aluminum 6 mm
Maximum sheet thickness, brass 6 mm
Maximum sheet thickness, copper 6 mm
SmartGate unloading automation
Maximum part size 160 mm x 160 mm
Minimum part size 30 mm x 30 mm
SortMaster Speed unloading automation
Maximum part size 2000 mm x 1500 mm 1
Minimum part size 90 mm x 60 mm

Reliable or fast? The TruLaser Center 7030 resolves this classic conflict in laser processing for the very first time.

Reliable

TruLaser Center 7030, cutting head and ejector cylinder above the SmartGate
SmartGate

The SmartGate, along with the brush tables, prevent the tilting and unwanted welding of parts. The intelligent support moves with the cutting head and provides support for your parts during cutting. The ejector cylinder automatically finds the best point for every part geometry to push the part out through the scrap skeleton and discharge it securely.

TruLaser Center 7030 with SmartLift pins
SmartLift and SortMaster Speed

The pins of the SmartLift, which can be positioned with flexibility, press the cut parts against the suction plate of the SortMaster Speed from below. At the same time, this fixes the part from above. Fixed in this way, the part is taken out of the scrap skeleton by a synchronous lift motion. This means even delicate parts are held securely and do not tilt in the kerf.

Quick

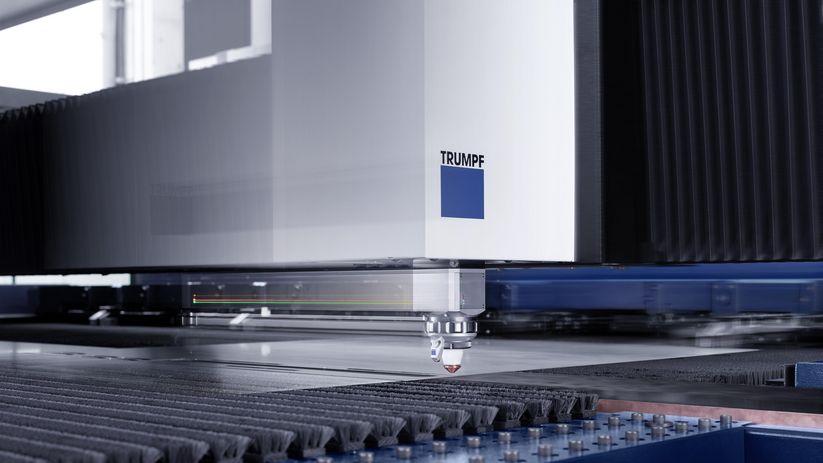

TruLaser Center 7030, cutting head in action
Hybrid machine concept

The movement of the sheet is superimposed by a highly dynamic additional axis on the cutting head. This means that you can cut corners and complex contours at high speeds. This strong combination means that you get the most out of the high feed rates of the solid-state laser.

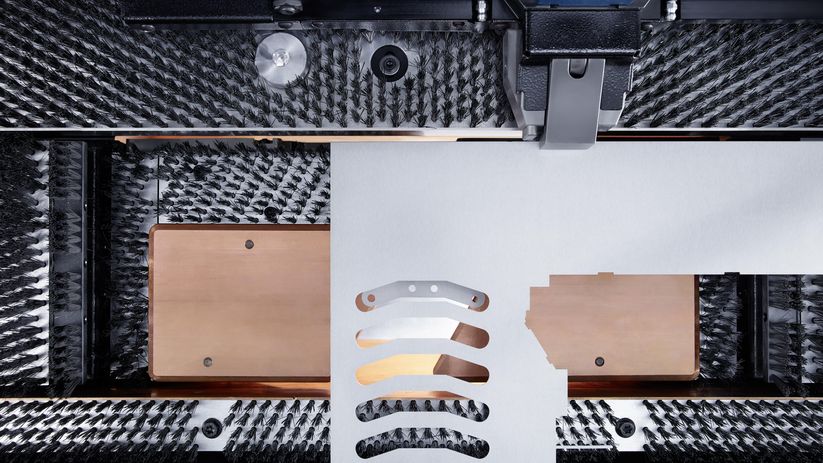

TruLaser Center 7030, SmartGate
SmartGate

Within seconds, the SmartGate removes small parts into up to eight containers. Slugs and scrap fall into a slag cart. Your key for maximum throughput: The removal of residual material causes minimal interruption to the cutting process – a result of the intelligent control and sensor system of the SmartGate.

TruLaser Center 7030 with SortMaster Speed
SortMaster Speed

The SortMaster Speed stacks parts at lightning speed and with perfect order on up to eight pallets. As soon as the SortMaster Speed takes the part, the machine continues cutting. The part is taken to its deposit position parallel to production. Interruption to the machining process is minimal.

Automated

TruTops Boost programming system
Programming

The TruTops Boost programming system automatically generates a suggestion for the cutting, removal, sorting, and depositing of parts. In doing so, it even takes physical conditions into consideration. For example, how the part can best be pushed out of the scrap skeleton to eliminate any chance of it tipping.

TruLaser Center 7030 with SortMaster Box Linear
SortMaster Box Linear

A sorting flap reliably separates finished parts from scrap. The SortMaster Box Linear sorting unit distributes small parts into up to eight containers parallel to production. The containers are assigned intelligently by the software program.

Self-reliant

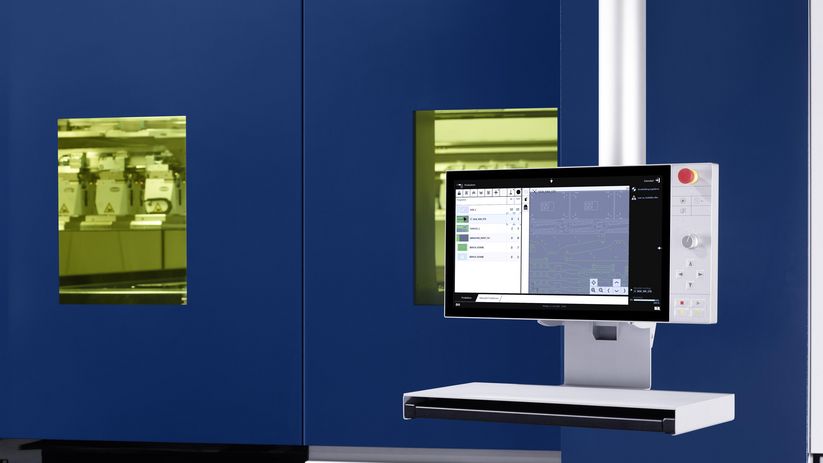

TruLaser Center 7030 with TouchPoint user interface
Processing cell

The processing cell loads and unloads independently and announces when the operator is needed. Because of this, the operator can plan his/her work at the machine better. Waiting times, manual sorting, and rework are a thing of the past. The Touchpoint user interface also enables an intuitive dialog with the machine.

TruLaser Center 7030 with LoadMaster Center
LoadMaster Center

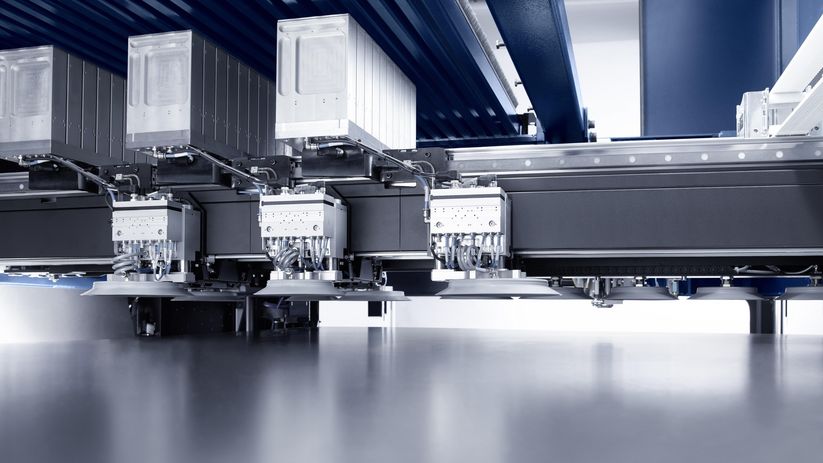

The LoadMaster Center places the unprocessed sheet on the brush table in the clamping unit. High-performance peeling techniques separate the sheet reliably from the stack.

TruLaser Center 7030 with automatic nozzle changer
Automatic nozzle changer

Through program control, the automatic nozzle changer inserts the correct nozzle. The nozzle changer is located in the machine cabinet during processing, which makes it possible to set up parallel to production.

Connectivity key visual
Digital connection and integration for smart solutions

Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.

TruTops Boost

Construct and program your laser, punching, and combination punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.

Software

The software portfolio from TRUMPF optimizes your entire production process – from the customer query to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customized Industry 4.0 solutions for your Smart Factory.

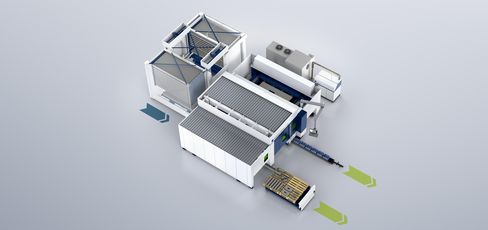

Take full advantage of the huge productivity of your machine – due to the TruLaser Center 7030's connection to a store, your machine is always supplied with unprocessed material and can store finished parts.

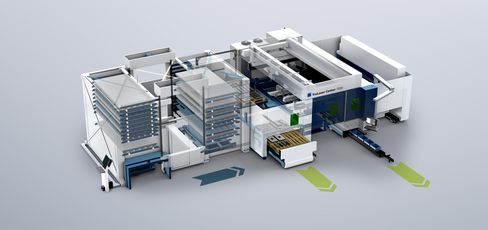

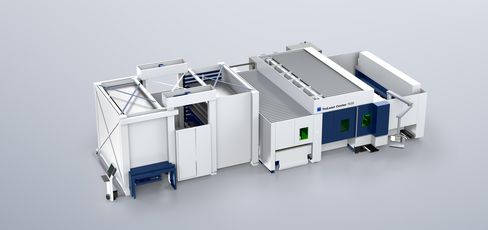

TruLaser Center 7030 with TruStore

Large store, short distances

Connect your TruLaser Center 7030 to all common storage systems, such as the TruStore store from TRUMPF or large-scale storage systems from STOPA. The modular stores can always be customized and extended to fit your needs.

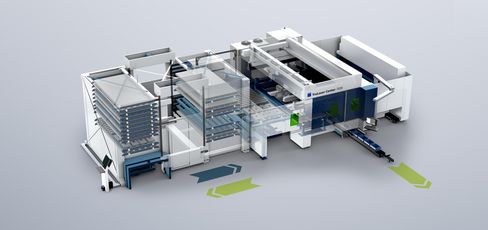

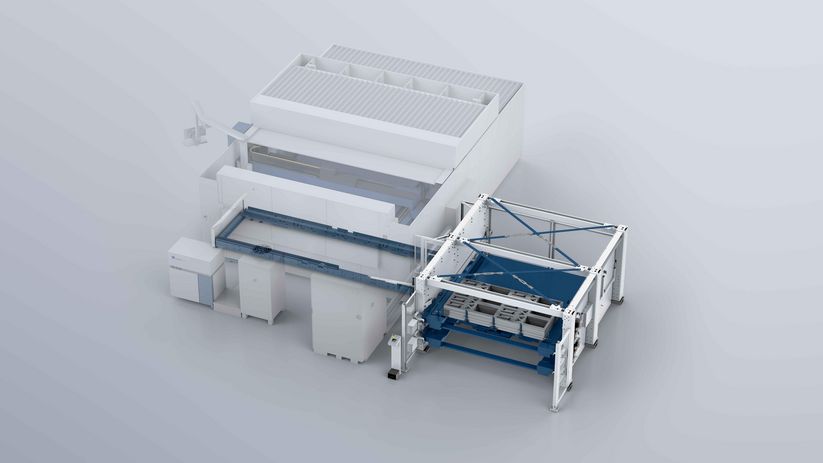

TruLaser Center 7030, storage connection option 3

Side storage connection for unprocessed material and finished parts

Unprocessed material enters the machine from the side. While the stacked finished parts return into the store on pallets, small parts in boxes are removed from the front of the machine. The tandem relay gives you direct access to the next storage pallet and reduces waiting times.

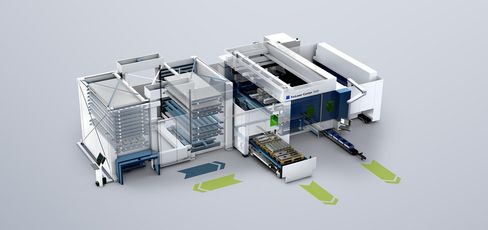

TruLaser Center 7030, storage connection variant 5

Side storage connection for raw material and finished parts with flexible access to parts

The machine is supplied with raw material from the store from the side. Handle finished parts with flexibility, for example you can remove them directly from the machine during the day, and place them back in the store at night. You can also remove parts directly from the unloading cart, or use a moving floor or storage palette compatible with forklift trucks – the solutions are numerous and always suit your requirements.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.

Footnotes
  • Dimensions may vary slightly due to technical machine characteristics.
