Laser for surface processing

TRUMPF lasers can be used to process surfaces exactly as required - whether for cleaning, ablation or structuring. Thanks to the precise control of power and process parameters, our lasers adapt perfectly to different materials and applications. This allows organic and inorganic residues to be reliably removed, coatings to be ablated in a targeted manner or fine microstructures to be created. Whether metal, ceramic or glass - processing is fast, gentle and material-efficient. Typical fields of application range from the automotive industry, electronics and medical technology to aerospace, the food industry and jewelry production.

Filter your selection:

0 Product(s)

TruMicro Series 2000

Our precision artists in compact format - delicate microprocessing with maximum flexibility in the process parameters

Average power: 10 - 20 W
Wavelength: 515 nm, 1030 nm
Pulse duration: < 350 fs - 20 ps
Maximum pulse energy: 100 µJ at 1 MHz

The TruMicro Series 2000 is used for extremely thin layers and sensitive materials. Customizable pulse energy and frequencies open up a wide range of applications. The series cuts ultra-thin glass and foils, structures and marks metals - highly precisely and thermally gently with ultra-short pulses. The optional beam guidance via a hollow-core fiber makes machine integration particularly easy.

To the product

TruMicro Series 6000

Our femtosecond powerhouse - for maximum throughput and high removal rates in series production

Average power: 30 - 300 W
Wavelength: 257 nm, 343 nm, 515 nm, 1030 nm
Pulse duration: < 500 fs, < 850 fs, 3 ps
Maximum pulse energy: 200 µJ at 1.5 MHz or 2 mJ at 150 kHz

The high average output of the TruMicro Series 6000 is ideal for series production in 24/7 operation. The laser is available in many variants with different wavelengths and pulse energies of up to 2 mJ and therefore covers a wide range of applications: From glass processing down to the millimeter range, engraving coated brake disks and cutting battery foils to display production with UV wavelengths.

To the product

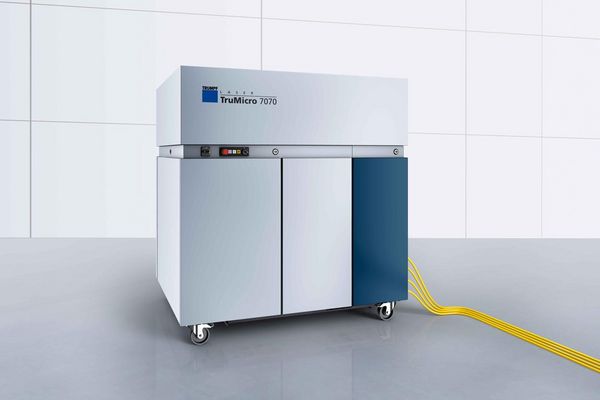

TruMicro Series 7000

Our surface professional - for large-area surface processing in series production

Average power: 1000 - 2000 W
Wavelength: 1030 nm
Pulse duration: 30 ns
Maximum pulse energy: 100 mJ at 20 kHz

Thanks to their beam profile, TruMicro Series 7000 lasers are ideal for large-area ablation, cleaning and structuring. With their high peak pulse power for short-pulse laser, they even enable applications on highly reflective surfaces. In addition, a laser source can be connected to up to four processing stations, which can be operated in parallel or individually.

To the product

TruMicro Series 9000

Our pioneer - groundbreaking microprocessing of large surfaces with 1kW power

Average power: 1000 W
Wavelength: 1030 nm
Pulse duration: 1 ps
Maximum pulse energy: 10 mJ at 100 kHz

Ultrashort pulse processing is now also economical on large surfaces: The globally unique high laser power of the innovative TruMicro Series 9000 scales processes such as structuring, cleaning, ablation or cutting at high speed in the square meter range. And all this at a high impact rate - thanks to precise programming, several processing steps can be carried out flexibly with just one beam source.

To the product

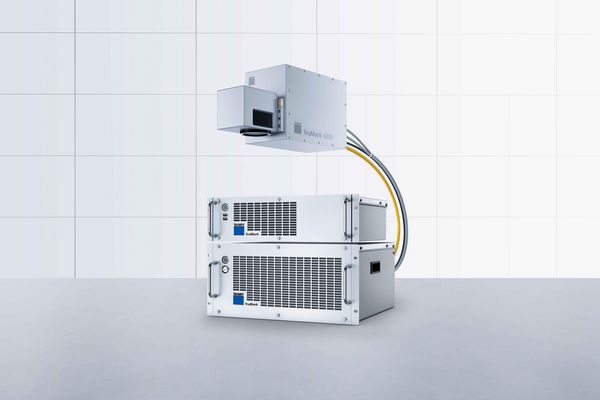

TruMark 6030

Our 3D specialist - for high-end marking and surface processing

Average power: 28 W
Wavelength: 1030 nm
Peak pulse power: 40 kW
Component geometry: 3D

Flawless markings on complex geometries are the specialty of the TruMark 6030. The series covers a wide range of materials: From the finest plastic markings to paint removal on metals - with maximum process stability and 3D capability.

To the product

TruMark fiber laser

Our all-rounders - for marking and surface applications from medium to high performance

Average power: 20 - 200 W
Wavelength: ~ 1030 nm
Peak pulse power: 13 kW
Component geometry: 2D+

The TruMark fiber lasers bundle powerful laser sources for marking, structuring, cleaning, micro-cutting and micro-welding. Whether 2D codes, deep engraving, intricate structures or high-speed machining in series production - you will find the right product configuration for every application here.

To the product

TruPulse nano

Our flexible nanosecond laser modules - for OEMs who value maximum versatility

20 - 600 W laser power
5 beam qualities from 1.3 - 5.0 M^M
Pulse duration: 3 ns - 2000 ns at up to 4 Mhz
Maximum pulse energy & -frequency: 0.8 - 6 mJ

The TruPulse nano portfolio offers a wide selection of power levels, beam qualities and pulse parameters - individually configurable depending on the application. A wide variety of materials can be precisely marked, cut, engraved or precision-welded using nanosecond pulses. Our TruPulse nano is aimed at integrators who flexibly combine modular components to create a customized solution.

To the product

TruDisk

Our high-end disk lasers - proven for welding, unique in their flexibility, modularly expandable

Power range: 1 - 24 kW (multimode)
Up to 4 laser outputs (≤ 8 kW)
Broad optics and sensor portfolio

The TruDisk welds with low spatter - even at high speeds and with demanding materials. The control system is integrated; optics, sensors and services are optionally available. Integrated cooling solutions, up to four laser outputs for parallel working and laser light cables that are unique on the market ensure maximum flexibility: Pluggable, quickly replaceable, up to 100 m long - without compromising on beam quality.

To the product
