Laser for marking

The marking lasers from TRUMPF create permanent markings, engravings and labels - precise, high-contrast and gentle on the material. They not only process metals, but also numerous other materials such as plastics, glass, silicon, ceramics and organic substances. Whether high-contrast plastic markings, precise engravings on 3D components, deep engravings or high-resolution black markings - with UV lasers, fiber lasers and ultrashort pulse lasers, TRUMPF offers the right laser technology for every marking application, even for series production.

Filter your selection:

0 Product(s)

TruMark 3330

Our UV specialist - precise and gentle for sensitive materials

Average power: 3 W
Wavelength: 355 nm
Peak pulse power: 15 kW
Component geometry: 2D+

The TruMark 3330 uses a short UV wavelength for non-destructive, high-contrast marking of plastics and non-ferrous metals such as copper and aluminum. Excellent beam quality and minimal heat input enable the highest resolutions - ideal for filigree graphics, small QR codes and micro fonts.

To the product

TruMark 6030

Our 3D specialist - for high-end marking and surface processing

Average power: 28 W
Wavelength: 1030 nm
Peak pulse power: 40 kW
Component geometry: 3D

Flawless markings on complex geometries are the specialty of the TruMark 6030. The series covers a wide range of materials: From the finest plastic markings to paint removal on metals - with maximum process stability and 3D capability.

To the product

TruMicro Mark

Our ultrashort pulse all-rounder - for cold marking and microprocessing in the high-end branch

Average power: 10 - 20 W
Wavelength: 1030 nm
Pulse peak power: 22 MW
Component geometry: 2D+ and 3D

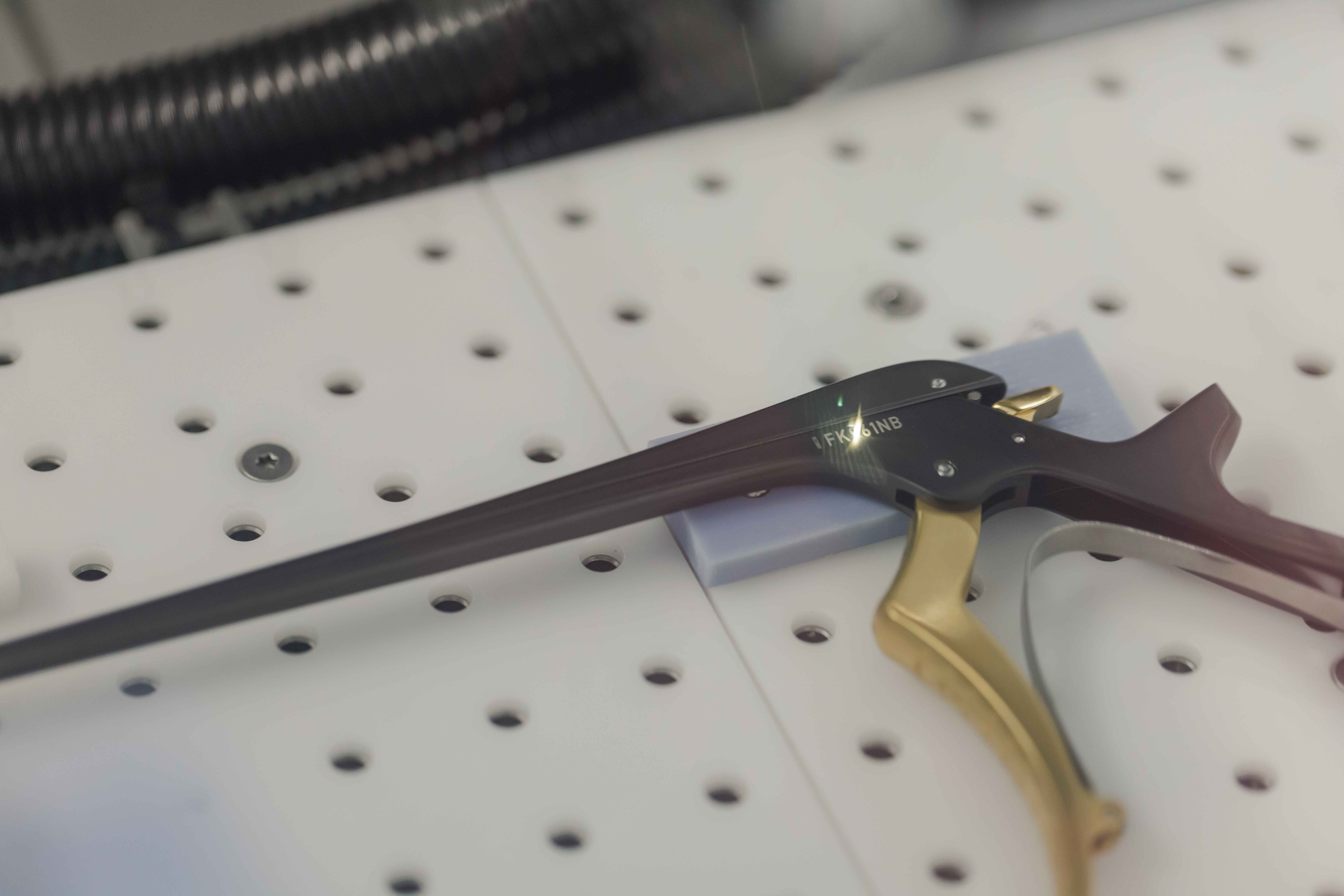

The TruMicro Mark enables ultra-precise marking, cutting and drilling without thermal effects. Ideal for black marking in medical technology, aerospace or jewelry production - with consistently high quality even on complex free form faces and sensitive materials.

To the product

TruPulse nano

Our flexible nanosecond laser modules - for OEMs who value maximum versatility

20 - 600 W laser power
5 beam qualities from 1.3 - 5.0 M^M
Pulse duration: 3 ns - 2000 ns at up to 4 Mhz
Maximum pulse energy & -frequency: 0.8 - 6 mJ

The TruPulse nano portfolio offers a wide selection of power levels, beam qualities and pulse parameters - individually configurable depending on the application. A wide variety of materials can be precisely marked, cut, engraved or precision-welded using nanosecond pulses. Our TruPulse nano is aimed at integrators who flexibly combine modular components to create a customized solution.

To the product

TruMark fiber laser

Our all-rounders - for marking and surface applications from medium to high performance

Average power: 20 - 200 W
Wavelength: ~ 1030 nm
Peak pulse power: 13 kW
Component geometry: 2D+

The TruMark fiber lasers bundle powerful laser sources for marking, structuring, cleaning, micro-cutting and micro-welding. Whether 2D codes, deep engraving, intricate structures or high-speed machining in series production - you will find the right product configuration for every application here.

To the product
