Specialized for versatile applications
The TruTool C 200 18V LiHD rechargeable battery features an open cutting head. This allows you to pull the machine out of the sheet easily. A chip clipper is not necessary. The steel cutting head is powerful and robust. You can achieve an extraordinary amount of power when cutting spiral ducts. The tool set used for spiral ducts, which consists of toothed cutting blades and a robust SC cutter, is capable of fold thicknesses of up to 3.6 mm with mild steel and enables both longitudinal sections and cross-sections. To broaden the range of applications, we have 5 further sets. This enables you to place the focus on cutting quality, speed, performance on curves, or the material. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes.
Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility in the 18-volt class.
Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.
Three different cutting blades combined with the right cutter ensure even greater specialization.
The 18 V battery machine separates mild steel sheet thicknesses of up to 2 mm, fold thicknesses up to 3.6 mm, and even stainless steel sheets up to 1.5 mm.
The open cutting head enables you to pull the machine easily out of the sheet.
A soft grip ensures low-vibration machine control. The machine is thereby extremely compact and light.
For cutting spiral ducts. Cuts in all directions, even over folds.

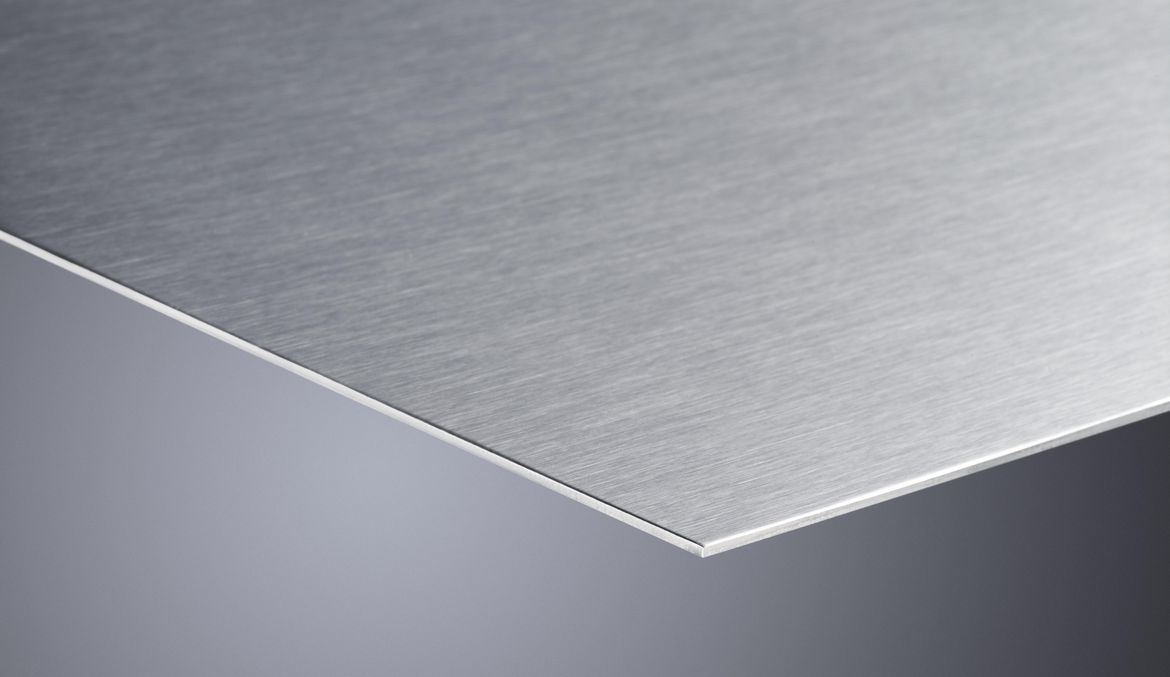

For cutting and trimming flat sheets. For radial and interior cutouts as well as notching.
For cutting C-L-U profiles and longitudinal cuts in profile sheets.
For cutting tubes.
Rice grain sheet
For cutting rice grain sheets. For radial and interior cutouts.
For cutting checker plates. For radial and interior cutouts.
For cutting coils. For relief cuts and sampling.
The following consumables and the corresponding accessories are included depending on the machine.
1x SC cutter, 2x toothed cutting blade
1 unti 2598811
1 unit, DE/CH version: 2569784
1 unit, GB version: 2569786
1 unit, USA version: 2569785
1 unti 1763682
Find the right consumables and accessories for your machine here.
The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.
The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.
Compact and powerful
The 18V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.
Optimal working speed
You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

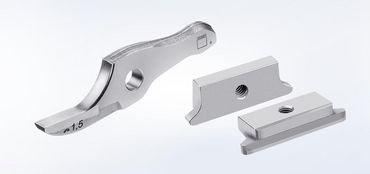

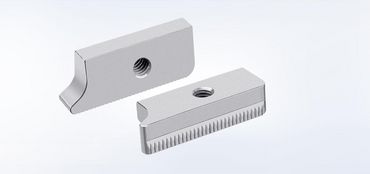

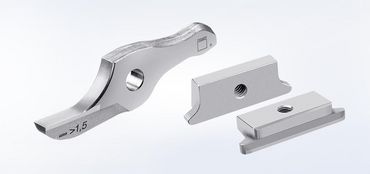

With the TruTool C 200, both the cutters and the cutting blades are adapted to the respective application. The toothed cutting blade achieves an automatic feed and reduces the feed force. This results in exceptionally high working speeds and simple processing of double sheets. With the standard cutting blade, the cutting quality takes precedence over the cutting speed. The CR cutting blade is used to process stainless steel. We offer the different cutting blades with matching cutters in six sets: Set Spiro, Set HighQuality or HighSpeed up to 2 mm, Set ThinSheet up to 1.5 mm, and the Set Curves and Set CR.
TruTool C 200 18V LiHD rechargeable battery
|Maximum sheet thicknesses|
|Spiral duct, steel 400 N/mm²||4 x 0,9 / 6 x 0,6 mm|
|Spiral duct, steel 600 N/mm²||4 x 0,6 mm|
|Smallest radius||40 mm|
|Working speed||3 m/min - 10 m/min|
|Stroke rate at nominal load||2500 1/min|
|Stroke rate during idle run||2950 1/min|
|Starting hole diameter||8 mm|
|Weight (with 4 Ah rechargeable battery)||2.4 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
