Your specialist for clean slats
With the TruTool TSC 100, you can clean your slats quickly and effortlessly. This ensures reliable, high-quality production of laser-cut components. The slats do not need to be removed for cleaning. This is practical and saves you time. It takes approximately 30 minutes to clean an entire standard size pallet of 60 x 120 in.
With the TruTool TSC 100, you can clean slats multiple times before they need to be replaced.
On laser cutting machines with pallet changers, you can clean the slats during the cutting process.
TruTool TSC 100 removes the slag thoroughly, even on slats that are subject to high loads.
The long machine handle enables you to clean the slats effortlessly by yourself.
The following consumables and the corresponding accessories are included in the scope of delivery.
0.12 – 0.15 in
Set of 2 1644868
1 unit 1634956
1 unit 1734714
1 unit 2046587
1 unit 1619017
1 unit 0369003
1 unit 1640682
Find the right consumables and accessories for your machine here.
Cost reduction up to 75%
The TruTool TSC 100 is a worthwhile purchase. It achieves savings of around 40% compared to manual cleaning, which involves a lot of effort and time. With the ability to clean slats multiple times, it is possible to save up to 75% of costs, compared with regular slat replacement.
Outstanding cleaning results

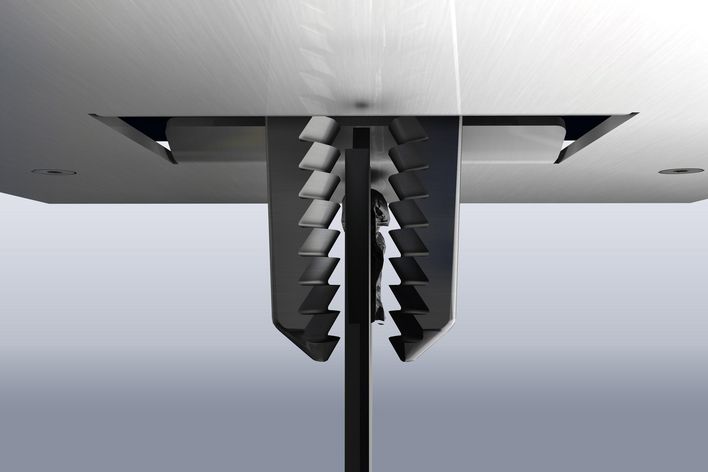

The TruTool TSC 100 adapts automatically to different slag thicknesses up to 1 inch and achieves optimal cleaning results, even in the case of stubborn stainless steel slag. The slats themselves are cleaned, as well as the spaces in between the teeth. A further benefit: You can insert the TruTool TSC 100 into any row of slats and clean these right up to the pallet edge while they are still installed.
Intelligent monitoring system
An intelligent monitoring system ensures safe and reliable work procedures. An integrated LED display uses a quick, continuous flash to notify you of when a seal needs to be replaced. As a result of the new seal function monitoring system, it is no longer necessary to perform a manual check at regular intervals, which was previously required. The maintenance interval is automatically controlled through an electronic display. This saves you time and prevents possible damage to the tool, which could occur if the seals are not checked and replaced at the specified maintenance intervals.

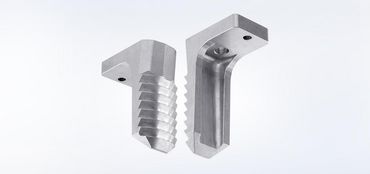

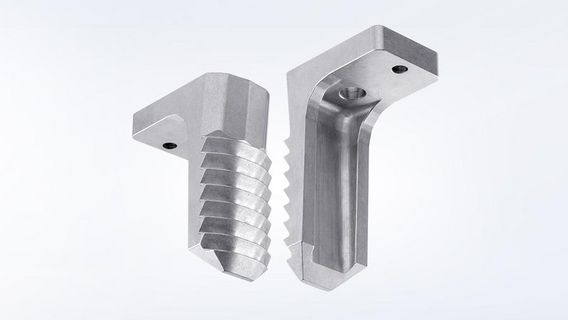

Choose between tool no. 2 for slat thicknesses of 2 mm – 2.9 mm and tool no. 3 for 3 mm – 3.9 mm. The tools boast a long service life. Before being replaced, they are capable of cleaning an average of 10 standard pallets, which corresponds to 3281 feet.
TruTool TSC 100
|Slat thickness||2 mm - 3.9 mm|
|Maximum slag thickness||25 mm|
|Minimum distance between slats||33.5 mm|
|Working speed||0.157 m/min - 8 m/min|
|Nominal input power||1700 W|
|Weight without cable||18 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
