Short and flush cutting
The 12V rechargeable battery machine cuts ventilation ducts flush with walls and ceilings effortlessly, precisely and with a minimal obstruction of 30 mm. The TruTool S 114 can be easily rotated and delivers an outstanding cut quality, even when cutting spiral ducts. The 4.0 Ah / 12V LiHD rechargeable battery also ensures long runtimes.
Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.
Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.
The TruTool S 114 is perfect for trimming and cutting C, L, and U profiles.
The cutters can be interchanged with each other, thus doubling the service life.
The following consumables and the corresponding accessories are included in the scope of delivery.
1 unit 1775531
1 unti 2598770
1 unit, DE/CH version: 2569784
1 unit, GB version: 2569786
1 unit, USA version: 2569785
1 unti 2579850
1 unit 1763681
Find the right consumables and accessories for your machine here.
The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.
The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.
Small and handy
The 12V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

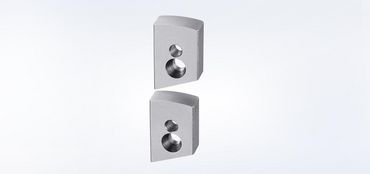

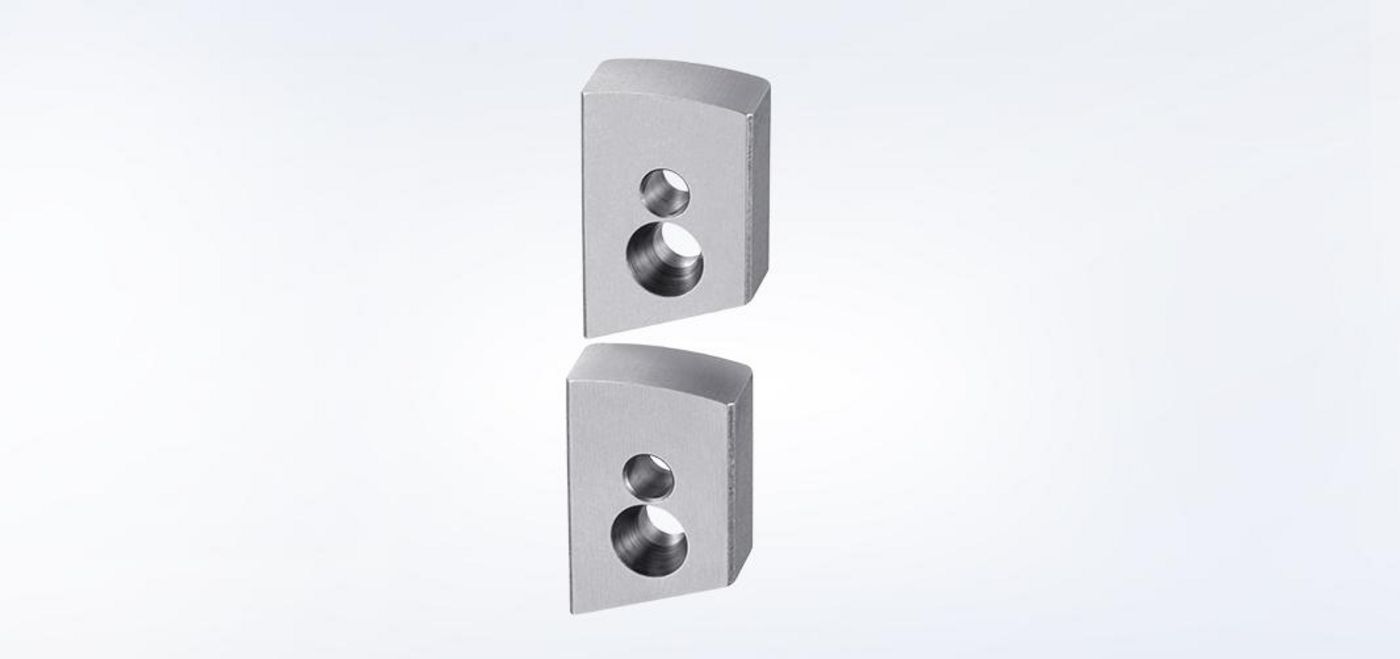

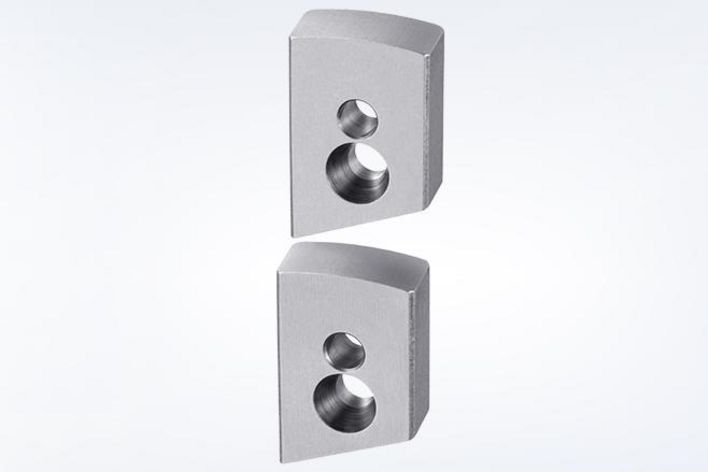

2-sided multi-edge cutter
The TruTool S 114 requires two cutters for the cutting process. The top cutter always has the cutting function. As soon as it becomes blunt, you can easily swap the cutters with one another. This doubles the service life and work can be quickly resumed.
Optimal working speed
You can use the speed control to adjust the working speed to suit the individual cutting task. This provides a variable cutting speed of up to 29.5 feet per minute. The speed control is highly efficient for work with scribed lines or with a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.
TruTool S 114 12V LiHD rechargeable battery
|Maximum sheet thicknesses|
|Maximum sheet thickness, steel 400 N/mm²||1.6 mm|
|Maximum sheet thickness, steel 600 N/mm²||1 mm|
|Maximum sheet thickness, aluminum up to 250 N/mm²||2 mm|
|Spiral duct, steel 400 N/mm²||4 x 0,75 mm|
|Spiral duct, steel 600 N/mm²||4 x 0,5 mm|
|Smallest radius||60 mm|
|Working speed||6 m/min - 13 m/min|
|Stroke rate during idle run||5500 1/min|
|Minimum tube diameter||50 mm|
|Throat depth||30 mm|
|Weight (with 4 Ah rechargeable battery)||1.8 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
