Powerful with long tool
The TruTool PN 201 is a machine with a long tool that is particularly well-suited to deep trapezoidal sheets of up to 6.37 in. The tool can be rotated 360° on the spot. The TruTool PN 201 is an extremely powerful machine for different sheet thicknesses. It can handle up to 0.078 in. in mild steel, and up to 0.039 in. in high-tensile sheet metal. The cutting direction, punch, and die carrier can be changed quickly, without the need for tools. You can select various tool depths to broaden the areas of application. It is worth mentioning that the machine is available as a set with a long and short tool.
Primarily for processing profile depths of up to 6.37 in. Also well-suited to C-L-U profiles.
You can adjust the working direction through 360° in steps of 45° easily, without the need for tools.
The punch and die carrier can be changed quickly without the need for tools.
Fast and powerful with 7 ft. per minute in 57,000 mild steel.

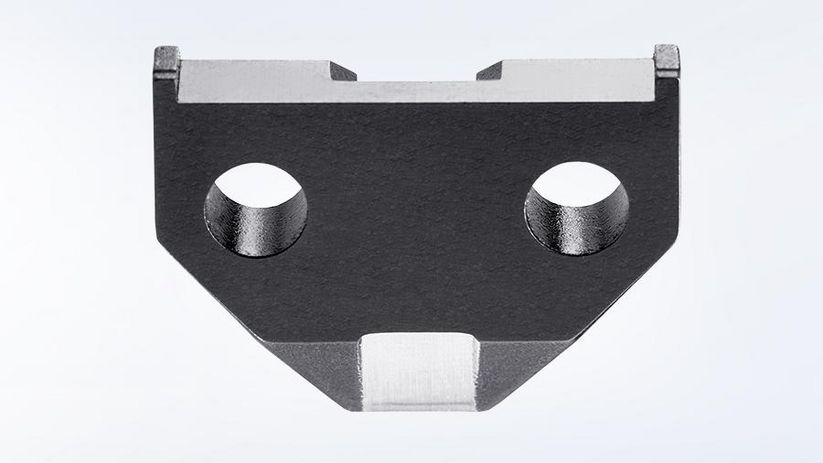

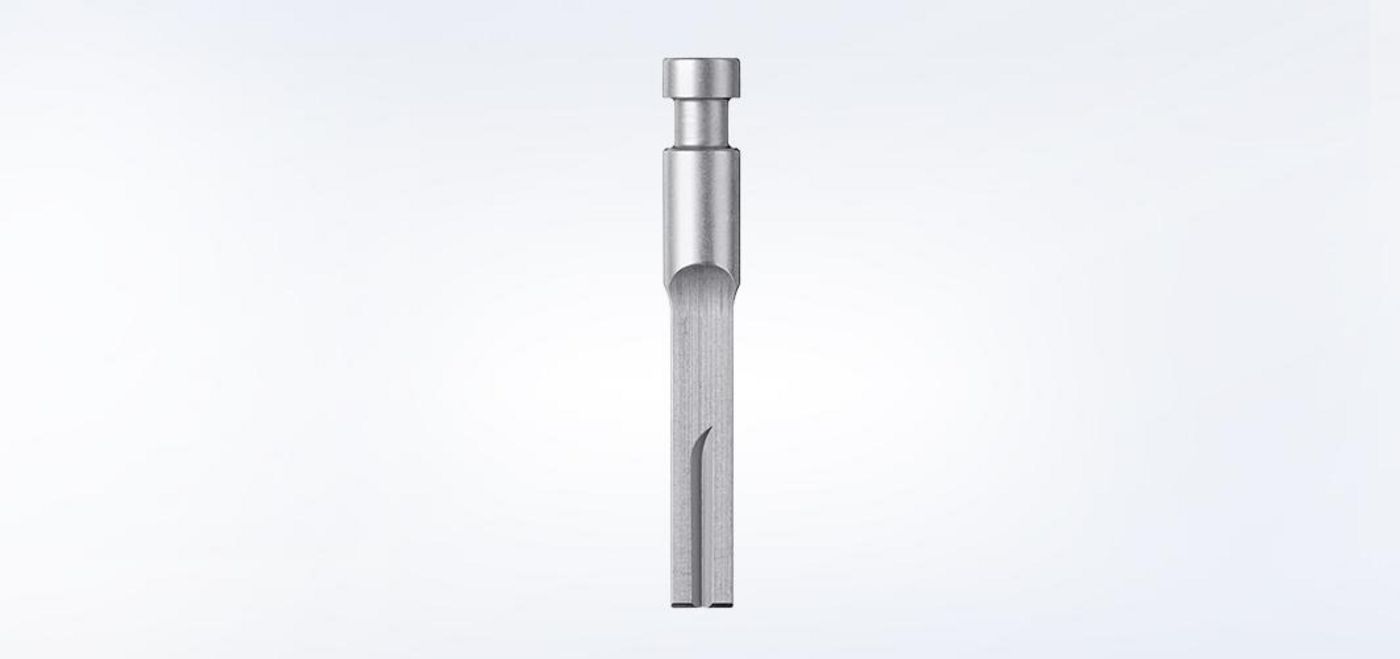

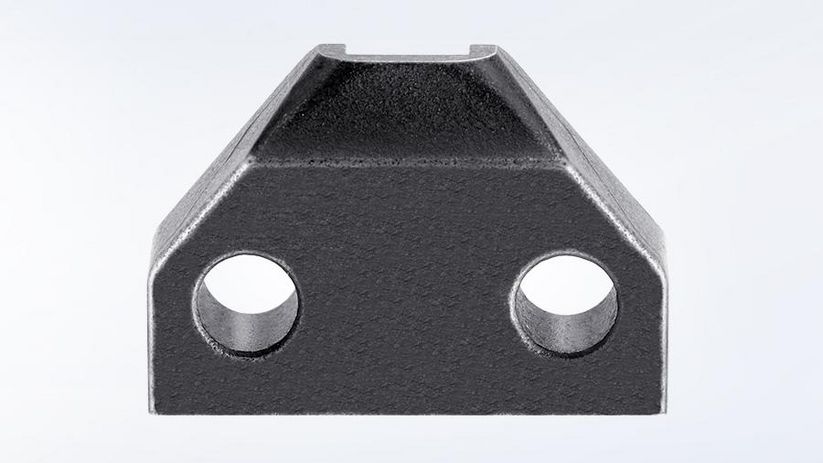

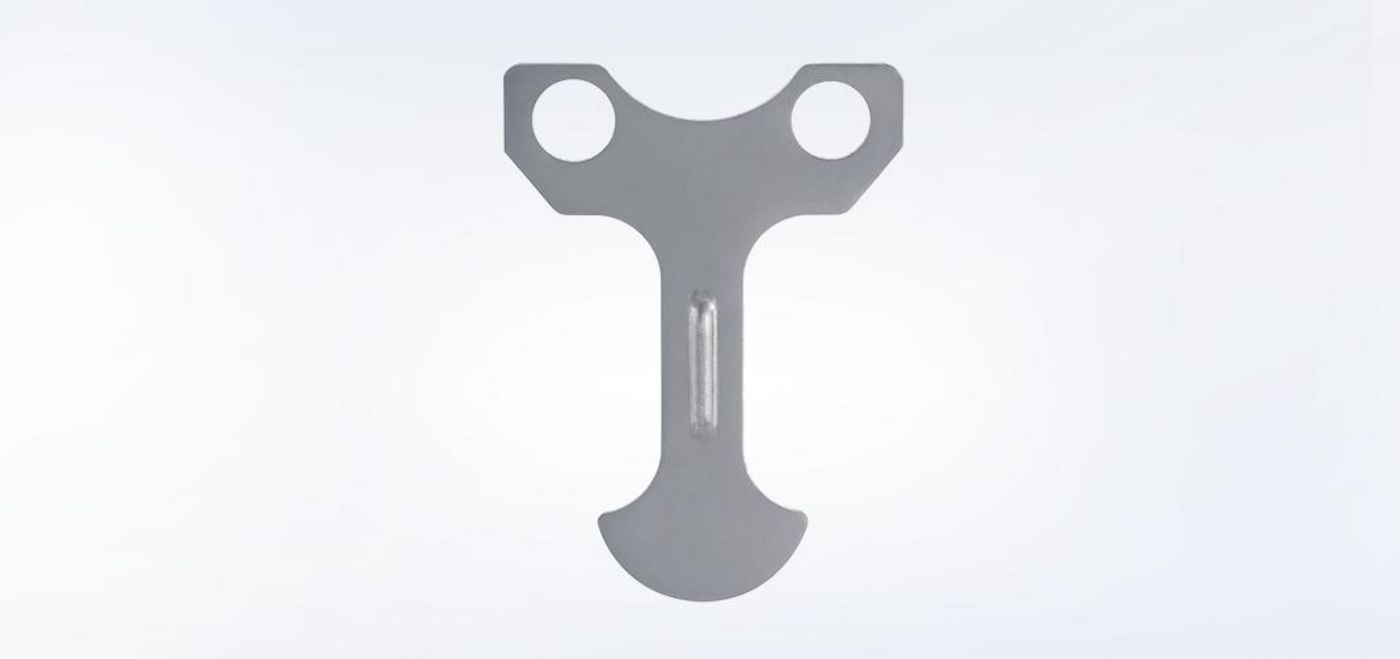

The following consumables and the corresponding accessories are included in the scope of delivery.
1 unit 2260206
1 unit 2260207
1 unit 1884927
1 unit 1750692
1 unit 2260208
1 unit 0144680
1 unit 1763681
Find the right consumables and accessories for your machine here.
TruTool PN 201
|Maximum sheet thicknesses|
|Maximum sheet thickness, steel 400 N/mm²||2 mm|
|Maximum sheet thickness, steel 600 N/mm²||1.5 mm|
|Maximum sheet thickness, steel 800 N/mm²||1 mm|
|Maximum sheet thickness, aluminum up to 250 N/mm²||3 mm|
|Smallest radius||50 mm|
|Working speed||2.2 m/min|
|Stroke rate at nominal load||1550 1/min|
|Starting hole diameter||24 mm|
|Nominal input power||550 W|
