Powerful and flexible for profiles, up to a depth of 3.4 inches
With its short tool, the TruTool PN 200 is specifically designed for trapezoidal sheets up to a profile depth of 3.4 inches and C-L-U profiles. Its performance is powerful enough for up to 0.08 inches in mild steel and 0.04 inches in stainless steel and it even cuts doubled sheets. You can also rotate the tool through 360° on the spot. The cutting direction, punch, and die carrier can be changed quickly, without the need for tools. You can choose from various tool depths to broaden the areas of application.
For processing profile depths of up to 3.4 inches and C, L, and U profiles. It is also well-suited for corrugated sheet.
You can easily adjust the working direction through 360 degrees, in steps of 45 degrees, without tools.
The punch and die carrier can be changed quickly without tools.
Fast and powerful with 7 feet per minute in 57,000 mild steel.

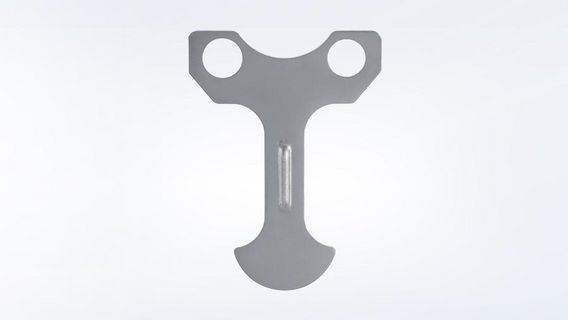

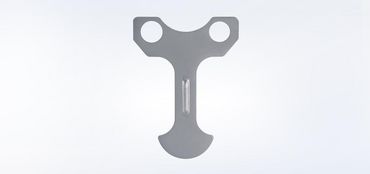

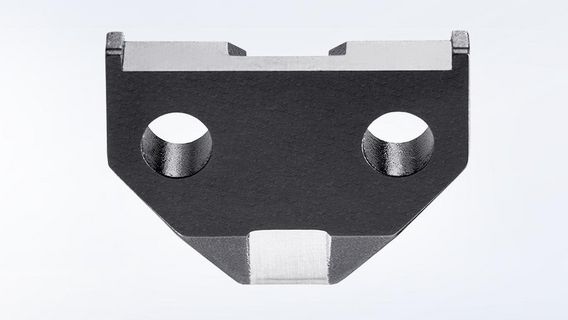

The following consumables and the corresponding accessories are included in the scope of delivery.
1 unit 2260206
1 unit 2260207
1 unit 1884927
1 unit 1750693
1 unit 2260208
1 unit 0144680
1 unit 1763681
Find the right consumables and accessories for your machine here.
TruTool PN 200
|Maximum sheet thicknesses|
|Maximum sheet thickness, steel 400 N/mm²||2 mm|
|Maximum sheet thickness, steel 600 N/mm²||1.5 mm|
|Maximum sheet thickness, steel 800 N/mm²||1 mm|
|Maximum sheet thickness, aluminum up to 250 N/mm²||3 mm|
|Smallest radius||50 mm|
|Working speed||2.1 m/min|
|Stroke rate at nominal load||1500 1/min|
|Starting hole diameter||24 mm|
|Nominal input power||550 W|
