Universal cordless machine for profile sheets
The compact 12V cordless machine with extension is well-suited to processing deep profile sheets. The cuts are produced quickly and precisely without any flying sparks. The compact design and ergonomically shaped grip mean you can work ergonomically with minimal effort. You can also easily access areas that are difficult to reach and progress quickly with your work. The 4.0 Ah / 12V LiHD rechargeable battery also ensures long runtimes.
Compact and practical 12V rechargeable battery. Compatible in its voltage class and with the 12V-36V recharger.
Practically unlimited service life, virtually wear-free and hardly any maintenance. Battery performance per charge is also increased.

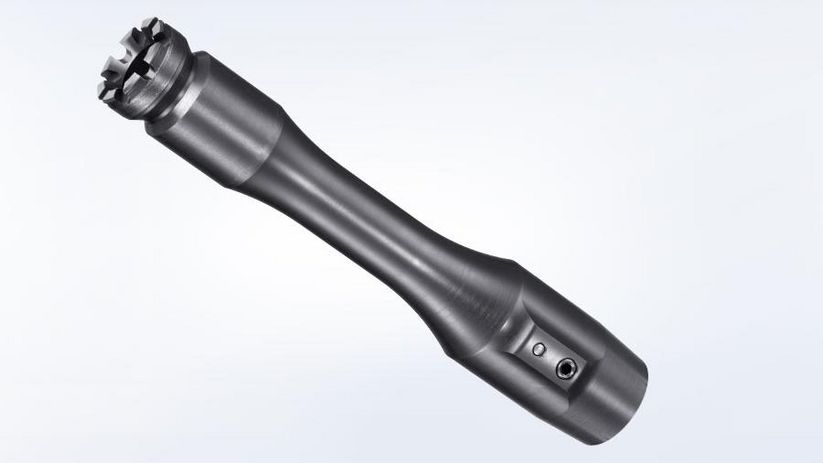

Depending on the geometry, the long tool enables you to easily cut trapezoidal sheets up to 60 mm in depth.
The cutting tool can be rotated in 8 steps of 45° without tools.

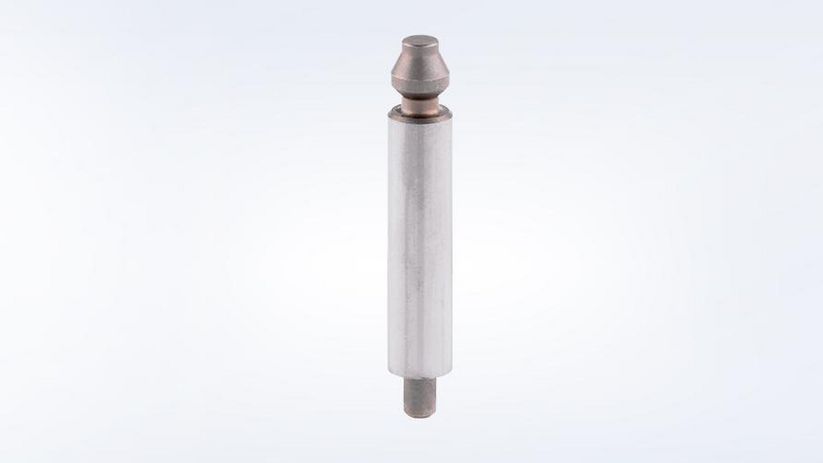

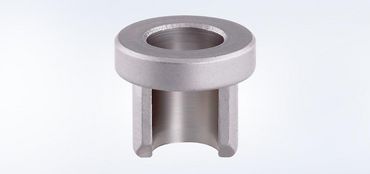

You can change dies and punches quickly without additional tools.
The rotating punch reduces wear by ensuring the tool wears down evenly.
The following consumables and the corresponding accessories are included in the scope of delivery.
1 unti 2260177
1 unti 2260178
1 unti 2507897
1 unti 2598770
1 unit, DE/CH version: 2569784
1 unit, GB version: 2569786
1 unit, USA version: 2569785
1 unti 2579850
1 unti 1763682
Find the right consumables and accessories for your machine here.
The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

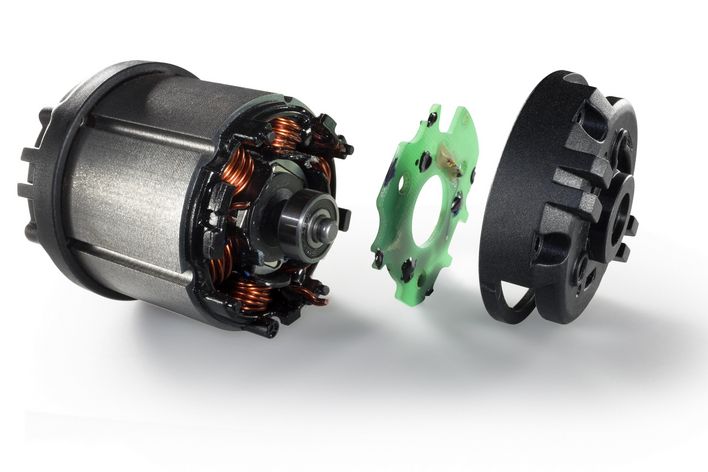

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.
Small and handy
The 12V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.
Optimal working speed
You can use the speed control to adjust the working speed to suit the individual cutting task. This provides a variable cutting speed. You can use the speed controller if you frequently need to deal with radii and stainless steel, for example. A further benefit is that the motor protects the battery against overload, overheating, and deep discharge
TruTool N 160 with extension, 12V LiHD rechargeable battery
|Maximum sheet thicknesses|
|Maximum sheet thickness, steel 400 N/mm²||1.6 mm|
|Maximum sheet thickness, steel 600 N/mm²||1 mm|
|Maximum sheet thickness, steel 800 N/mm²||0.7 mm|
|Maximum sheet thickness, aluminum up to 250 N/mm²||2 mm|
|Smallest radius||24 mm|
|Working speed||1.9 m/min|
|Stroke rate at nominal load||2070 1/min|
|Starting hole diameter||22 mm|
|Weight (with 4 Ah rechargeable battery)||1.8 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
