TruTool TF 350 Li-ion power fastener
.NEW
TruTool TF 350 Li-ion power fastener
Battery-powered machines

TruTool TF 350 LiHD 18V rechargeable battery

Power fastener joining duct edges
Power fastener joining duct edges
Battery-powered machines

TruTool TF 350 LiHD 18V rechargeable battery

Easy connecting of two or more metal parts

-/-

Cordless connecting – fast, economical, and independent

Joining of ventilation ducts is often performed on site at the construction site. With the battery machine, you are not reliant on the power supply and can work conveniently and cordlessly. The TruTool TF 350 LiHD rechargeable battery enables you to join coated or uncoated workpieces with material thicknesses of 0.8 mm to 4 mm. The resulting permanent connections can be performed in a single operation and require no additional connecting elements thereby ensuring maximum cost-effectiveness. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes.

Cordless Alliance System

Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility in the 18-volt class.

Brushless motor

Almost unlimited service life, virtually wear-free and hardly any maintenance required. Battery performance per charge is also increased.

Straight to the point

The connection point is secure and resilient and the joining points are resistant to corrosion.

No fasteners

No screws or rivets are used. This saves money and simplifies handling.

Power fasteners: Video on the area of application
Dimensional drawing, TruTool TF 350 Li-ion
TruTool TF 350 18V LiHD rechargeable battery, dimensional drawing

Cordless Alliance System

This product is part of the Cordless Alliance System. CAS means one battery for everything, 100% compatibility for machines, rechargeable battery packs and rechargers – regardless of manufacturer. The world's most powerful battery system with 30 years of battery expertise from Metabo. Maximum reliability, clear cost benefits and a sound investment.

Battery and recharger
Battery technology

LiHD rechargeable battery technology means more power, service life and runtime It charges reliably using process-controlled charging and discharging management. By cells being protected by minimal temperature build-up and permanent electronic single cell protection (ESCP), even when used over very long periods. The result: high-quality materials and intelligent battery management combined with brushless motors and power-head technology mean longer runtimes. The rechargeable battery pack's outer rubber coating also provides secure and non-slip stability as well as impact protection.

Joining ducts

Joining ducts

Up to three parts can be connected together, even if the sheet thickness varies. For coated sheet metal, mild steel, stainless steel, aluminum, or with intermediate layers such as adhesive and plastic mats.

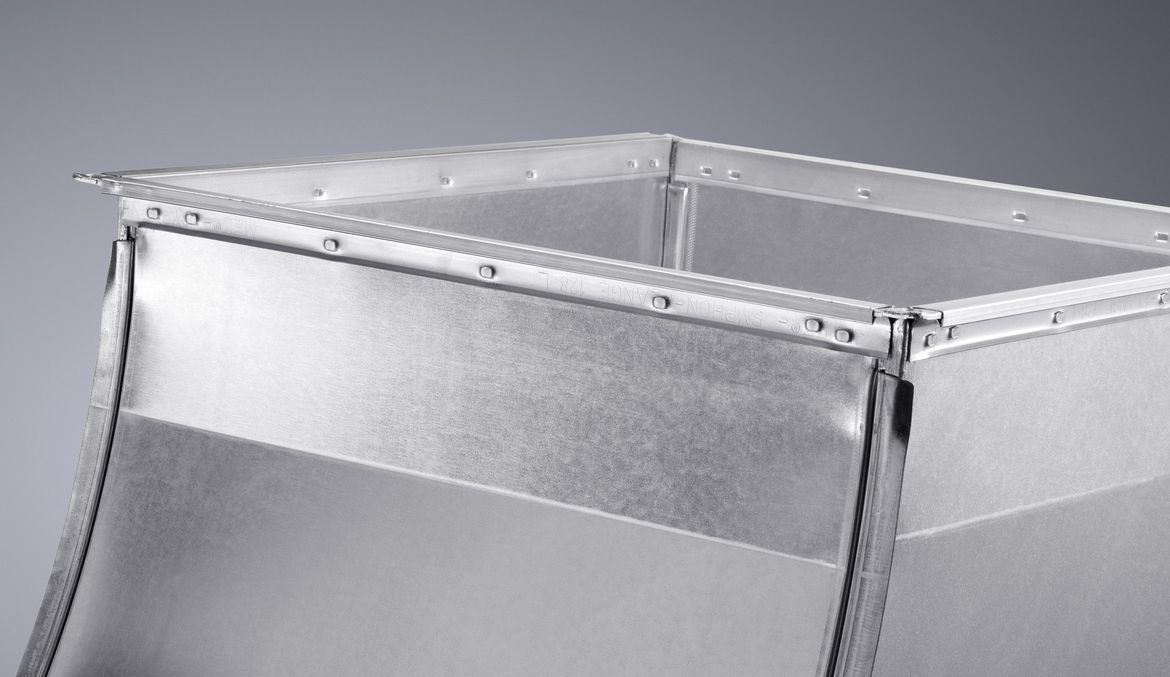

Joining frame profiles

Joining frame profiles

For joining connection flanges on ventilation and heating ducts.

-/-

The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool TF 350, punch
Punch (integrated)

1 unti 1884902

TruTool TF 350, tilting arm for punch
Tilting arm for punch

1 unti 0128748

TruTool TF 350, die No. 3-
Die arm fixed No. 3 sheet thickness 3.1 - 3.5

1 unti 0118132

TruTool TF 350, stripper for straight sheets
Stripper for straight sheets (integrated)

1 unti 0053649

TruTool TF 350, stripper for channels
Stripper for channels

1 unti 0112929

Allen key DIN 911-6

1 unti 0067865

Allen key DIN 911-5

1 unti 0067857

Allen key DIN 911-3

1 unti 0067830

Grease gun (filled with "G1")

1 unti 1398728

Akku 18V LiHD
18V LiHD 4 Ah rechargeable battery (2 units)

1 unti 2598811

Charger 18 V
12V-36V recharger LG

1 unit, DE/CH version: 2569784
1 unit, GB version: 2569786
1 unit, USA version: 2569785

TF carrying case
Case

1 unti 2282148

Find the right consumables and accessories for your machine here.

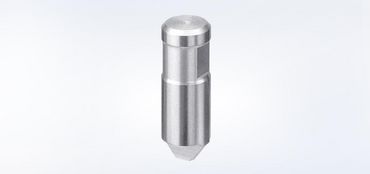

TruTool TF 350, punch
Punch

1 unit  1884902
Set of 2  1264160
TruTool TF 350, die No. 1
Die No. 1

Well-suited for sheet thicknesses of 0.8 - 1.5 mm. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.

1 unit  111969

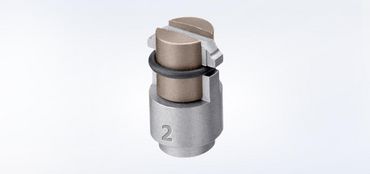

TruTool TF 350, die No. 2
Die No. 2

Well-suited for sheet thicknesses of 1.6 - 2 mm. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.

1 unit  111968
TruTool TF 350, die No. 2+
Die No. 2+

Well-suited for sheet thicknesses of 2.1 - 2.5 mm. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.

1 unit  122272

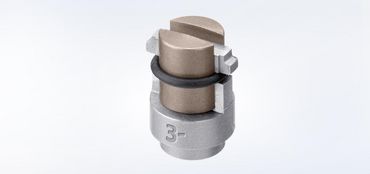

TruTool TF 350, die No. 3-
Die No. 3-

Well-suited for sheet thicknesses of 2.6 - 3 mm. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.

1 unit  1884875
TruTool TF 350, die No. 3
Die No. 3

Well-suited for sheet thicknesses of 3.1 - 3.5 mm. You can choose between five different dies depending on the material thicknesses: 1, 2, 2+, 3- or 3.

1 unit  111967

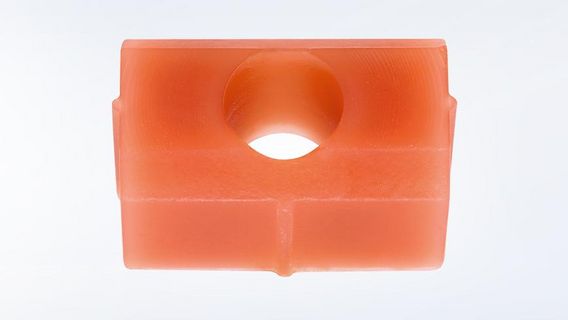

TruTool TF 350, stripper for straight sheets
Stripper for straight sheets

1 unit  1884874
TruTool TF 350, tilting arm for die
Tilting arm for die No. 1

Well-suited for sheet thicknesses of 0.8 - 1.5 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  128792
TruTool TF 350, tilting arm for die
Tilting arm for die No. 2

Well-suited for sheet thicknesses of 1.6 - 2 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  128793
TruTool TF 350, tilting arm for die
Tilting arm for die No. 3-

Well-suited for sheet thicknesses of 2.6 - 3 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  129724
TruTool TF 350, tilting arm for die
Tilting arm for die No. 2+

Well-suited for sheet thicknesses of 2.1 - 2.5 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  129723
TruTool TF 350, tilting arm for die
Tilting arm for die No. 3

Well-suited for sheet thicknesses of 3.1 - 3.5 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  128794
TruTool TF 350, die arm fixed No. 1
Die arm fixed No. 1

Well-suited for sheet thicknesses of 0.8 - 1.5 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  118130
TruTool TF 350, die arm fixed No. 2
Die arm fixed No. 2

Well-suited for sheet thicknesses of 1.6 - 2 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  118131
TruTool TF 350, die arm fixed No. 2+
Die arm fixed No. 2+

Well-suited for sheet thicknesses of 2.1 - 2.5 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  129763
TruTool TF 350, die arm fixed No. 3-
Die arm fixed No. 3-

Well-suited for sheet thicknesses of 2.6 - 3 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  129764
TruTool TF 350, die arm fixed No. 3
Die arm fixed No. 3

Well-suited for sheet thicknesses of 3.1 - 3.5 mm. Can be selected with die No. 1, 2, 2+, 3- or 3.

1 unit  118132
TruTool TF 350, tilting arm for punch
Tilting arm for punch

1 unit  128748

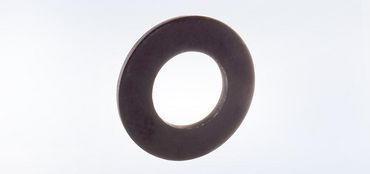

TruTool TF 350, disc spring
Disc spring

1 unit  30678
TruTool TF 350, slewing ring
Slewing ring

For hanging up the machine on a balancer. Enables fatigue-free work with maximum movement.

1 unit  976671
TruTool TF 350, spring element
Spring element

1 unit  249303

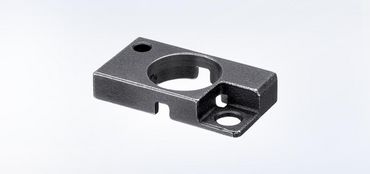

TruTool TF 350, plate
Plate

1 unit  1884876
TruTool TF 350, plate for channels
Plate for channels

1 unit  243189
Still image of accessories
Punching and nibbling oil for steel

500 ml bottle  103387
Still image of accessories
Punching and nibbling oil for aluminum

1,000 ml bottle  125874
TruTool TF 350, joining station
Joining station

For quick and easy joining together of smaller sheet parts. Well-suited for stationary use.

1 unit  1224803
Still image of accessories
Lubricating grease G1

250 g  1446686
900 g  139440
18V LiHD 4.0Ah rechargeable battery
18V LiHD 4.0Ah rechargeable battery

1 Stück  2598811
18V starter kit
18V starter kit

1x LG 12V-36V recharger / 2x 18V LiHD 4.0 Ah rechargeable battery

1 Set (GB)  2598820
1 Set (USA)  2598818
1 Set (DE)  2598816
LG 12V-36V recharger
LG 12V-36V recharger

For 12V and 18V LiHD rechargeable battery

1 Stück (GB)  2569786
1 Stück (USA)  2569785
1 Stück (DE/CH)  2569784

Power-Head Technology

The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.

Bürstenloser Motor

Brushless motor

The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This positively affects battery performance and means you get the maximum from every battery charge. A further advantage is the practically limitless service life of a BL motor due to the absence of carbon brushes and therefore no mechanical wear. This means almost wear-free and maintenance-free motors.

Compact and powerful

The 18V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.

Battery machine speed controller

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

Straight to the point

With the clinching process, the sheets of metal to be joined are placed on top of each other. Then the tool cuts a strip into the sheets in a combined punching and forming process. A form-fitting and corrosion-resistant connection joins the top and lower sheets as the materials flow into one another. The connection point solidifies resulting in a permanent connection without additional tools or heat.

No fasteners

The rectangular joining point appears as a shallow raised spot. This means that you have no interference contour, such as in the case of edges that you find with screws and rivets. The simple handling means no fasteners are required and the machine is quickly ready for use. The TruTool TF 350 can also be adapted to the desired application quickly and easily. Simply choose the relevant tool.

Power fastener joining duct edges

User-friendly

The TruTool TF 350 power fastener offers an impressively compact and slim design, which makes it particularly well-suited to uses where space is limited. The geometry of the tool also has a large throat depth with a minimal interference contour. This produces flawless connections when processing ventilation ducts. Application on tight corners and small flange widths is also no problem for the TruTool TF 350.

Perfect surface

The joining zone is not exposed to thermal load or tension. The protective layer flows with the material during forming. This means that the material properties are unchanged, remain free of oxidation, and the surface structure is not damaged. There is no need for preliminary work or rework. An additional benefit is that clinching avoids material surface contamination. This is perfect for coated and uncoated materials; even sheet metal with a layer of oil is ideally suited to this.

TruTool TF 350 LiHD 18V rechargeable battery
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 3.5 mm
Maximum sheet thickness, steel 600 N/mm² 2.5 mm
Maximum sheet thickness, aluminum up to 250 N/mm² 4 mm
General
Minimum sheet thickness 0.8 mm
Maximum joining force 25 kN
Maximum stroke rate 2 1/s
Minimum edge spacing 8 mm
Maximum edge spacing 58 mm
Maximum flange height (B) 36 mm
Voltage 18 V
Weight
Weight (with 4 Ah rechargeable battery) 8 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
