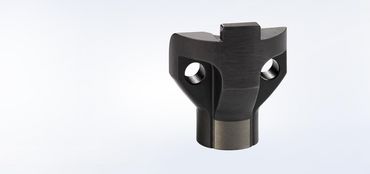

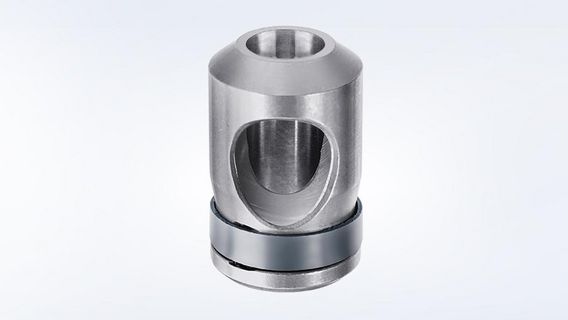

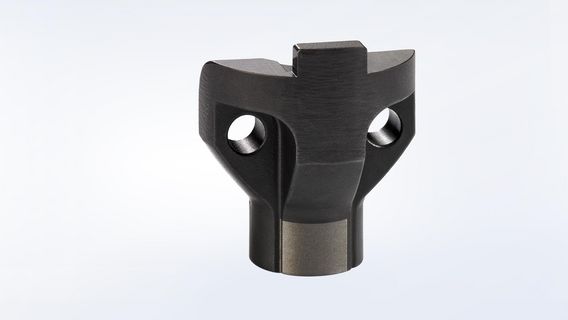

Supplied accessories: punch, die, Allen key, case, grease
Lightweight and unbeatable performance on curves
The TruTool N 200 can be used to cut flat and corrugated sheet. Even interior cutouts and notches are easy to process as the machine can be rotated on the spot. There is no need for tools to change the cutting direction. You can upgrade and expand the TruTool N 200 with additional tools according to your needs. This means, for example, even cutting trapezoid sheets is not problem. The machine offers an impressive top cutting speed of 5.5 feet per minute.

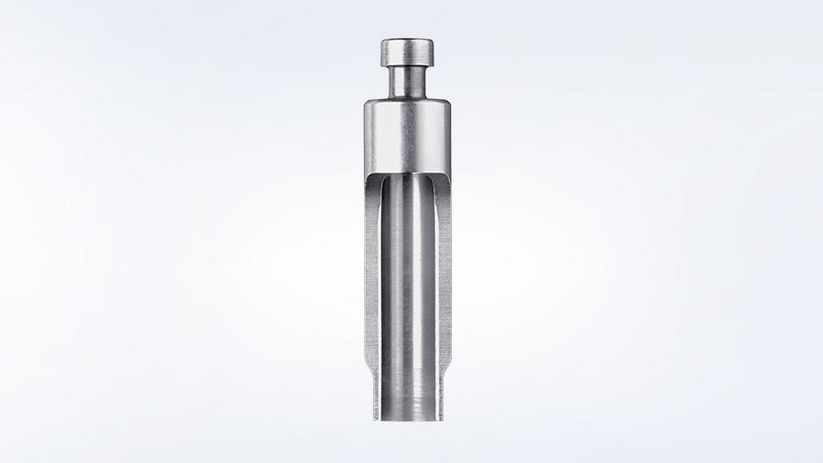

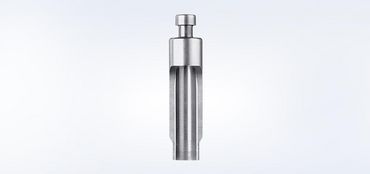

The hollow round punch provides maneuverability and enables the machine to turn on the spot.
The tool can be rotated through 360° in steps of 45°, without the need for additional tools.
You can change dies and punches quickly and without the need for additional tools.
The TruTool N 200 fits comfortably in your hand with its weight of 4 lbs. and an optimal grip circumference.
For cutting straight sheets and trimming them to length. For notches, as well as radial and interior cutouts.
For trimming to length and cutting. For diagonal cuts, interior cutouts, and radial cuts.
The following consumables and the corresponding accessories are included in the scope of delivery.
1 unit 2260180
1 unit 0980335
1 unit 1884925
1 unit 1750694
1 unit 1775531
1 unit 1763681
Find the right consumables and accessories for your machine here.
TruTool N 200
|Maximum sheet thicknesses|
|Maximum sheet thickness, steel 400 N/mm²||2 mm|
|Maximum sheet thickness, steel 600 N/mm²||1.5 mm|
|Maximum sheet thickness, steel 800 N/mm²||1 mm|
|Maximum sheet thickness, aluminum up to 250 N/mm²||2.5 mm|
|Smallest radius||4 mm|
|Working speed||1.7 m/min|
|Stroke rate at nominal load||1450 1/min|
|Starting hole diameter||17 mm|
|Nominal input power||550 W|
|Weight without cable||1.8 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
