Cordless and unrivalled performance on curves
For the first time, you can use the battery machine to cut flat and corrugated sheets of up to 2 mm sheet thickness cordlessly. Even interior cutouts and notches are easy to process as the machine can be rotated on the spot. There is no need for tools to change the cutting direction. You can change dies and punches quickly, without the need for any additional tools. You can upgrade and expand the TruTool N 200 18V LiHD rechargeable battery with further tools as required. This means, for example, even cutting trapezoid sheets is not problem. The 4.0 Ah / 18V LiHD rechargeable battery also ensures long runtimes.

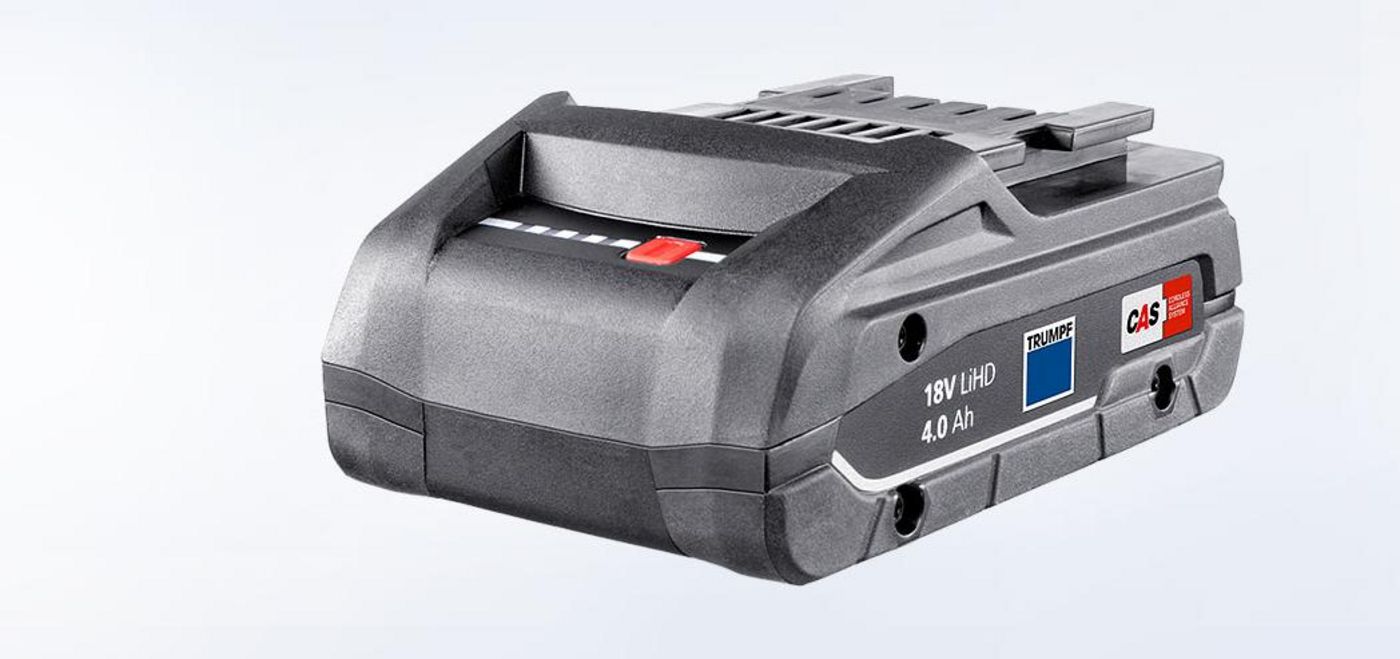

Cross-manufacturer rechargeable battery system for leading power tool brands. 100% compatibility in the 18-volt class.
Almost unlimited service life, virtually wear-free and hardly any maintenance required. Battery performance per charge is also increased.
The hollow round punch provides maneuverability and enables the machine to turn on the spot.
The tool can be rotated through 360° in steps of 45°, without the need for additional tools.
The rechargeable battery achieves a runtime that is up to 60% longer due to the Power-Head-Technology and brushless motor.
A soft grip ensures low-vibration machine control. The machine is thereby extremely compact and light.
The following consumables and the corresponding accessories are included in the scope of delivery.
1 unti 2260180
1 unti 09080335
1 unti 1884925
1 unti 1750694
1 unti 1775531
1 unti 2598811
1 unit, DE/CH version: 2569784
1 unit, GB version: 2569786
1 unit, USA version: 2569785
1 unti 1763682
Find the right consumables and accessories for your machine here.
The light metal gear head's ingenious design is specially adapted to the low voltage battery technology. Decoupling the motor pinion from the motor minimizes energy loss and ensures even higher performance per battery charge.
The powerful BL motor generates higher torques than conventional motors, requires less power and generates hardly any heat. This has a positive effect on the battery life and lets you get the most out of every battery charge. Additional advantage: The service life of a BL motor is almost unlimited because they work without carbon brushes and therefore no mechanical friction occurs. The result: almost wear-free motors and hardly any maintenance.
Compact and powerful
The 18V rechargeable battery tool has a lightweight design enabling fatigue-free working. The soft grip ensures safe and low-vibration working. All TRUMPF rechargeable battery tools are also available as stand-alone versions, i.e. without rechargeable batteries and recharger. If you already have CAS batteries available, you then have the option to save on resources and cut costs.
Optimal working speed
You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.
TruTool N 200 18V LiHD rechargeable battery
|Maximum sheet thicknesses|
|Maximum sheet thickness, steel 400 N/mm²||2 mm|
|Maximum sheet thickness, steel 600 N/mm²||1.5 mm|
|Maximum sheet thickness, steel 800 N/mm²||1 mm|
|Maximum sheet thickness, aluminum up to 250 N/mm²||2.5 mm|
|Smallest radius||4 mm|
|Working speed||1.6 m/min|
|Stroke rate at nominal load||1380 1/min|
|Starting hole diameter||17 mm|
|Weight (with 4 Ah rechargeable battery)||2.2 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
