Deburrers

TruTool TKA 1500

TruTool TKA 1500

For holes from 80 mm

- / -

Uncompromisingly good edges

The robust TruTool TKA 1500 creates precisely fitting chamfer lengths of up to 15 mm at angles of 30°, 45° and 60°. The chamfer length can be set as required and without the need for any tools. You can then achieve instant high-quality, repeatable edges without any reworking. With the TruTool TKA 1500, you can produce clean visible edges, break sharp edges, apply a radius or prepare a weld seam. The efficient milling process is up to five times faster than competitor processes. Oxidation or deformation of the material is avoided. With an ergonomic guide and motor handle, the machine is unrivalled in its ease of use.

Excellent guidance

Handle shape, size and positioning are perfectly designed to ensure ergonomic working.

In the blink of an eye

Chamfer lengths can be set as required without the need for any tools.

Consistent edge quality

High-quality results with burr- and oxide-free surfaces, dust-free, without material change and at a constant angle adjustment.

Versatile use

For straight edges, inner and outer contours and holes from 80 mm.

Edge trimmers: Video on the area of application
Dimensional drawing, TruTool TKA 1500

This is speed

TruTool TKA 1500 is equipped with a powerful and robust motor. Chamfer lengths of up to 11 mm can then be produced in one operation. Chamfer lengths from 11 mm to 15 mm require two steps. For example, a 15 mm chamfer length can be produced by achieving 11 mm in the first operation and the rest in step two.

Long service life

We offer high-quality multi-edge cutters and radius multi-edge cutters for a wide range of materials. Standard multi-edge cutters have four cutting edges. In contrast, radius multi-edge cutters have three cutting edges.

With or without

The TruTool TKA 1500 comes with the 45° multi-edge cutter mount as standard. You can also purchase the machine without tools and choose the right 30° or 60° multi-edge cutter mount for your application or the radius multi-edge cutter mount.

Practical

If you frequently cut long, straight sheets and outer contours, we recommend using the supplied chip protection. Chips then fall to the floor in a way that makes it easy to sweep them up afterwards. By the way, it also increases your work safety.

T-beam and flat sheet

For rounds with a radius of 2 mm, 3 mm, or 4 mm. For deburring and weld seam preparation.

For inner and outer edges

For rounds with a radius of 2 mm, 3 mm, or 4 mm. For deburring and weld seam preparation.

- / -

The following consumables and the corresponding accessories are included in the scope of delivery.

4 multi-edge cutters. For steel, stainless steel and aluminum
Integrated
45° multi-edge cutter mount
Integrated
Chip protection
1 unti 2424143
Run-in guide
1 unti 2420198
Box for small parts
1 unti 0353966
Safety glasses
1 unti 0037232
Lubricating grease "G3", 100 g
1 unti 0353969
Case
1 unti 2398010

Find the right consumables and accessories for your machine here.

30° multi-edge cutter mount

With impeller Ø 36.2 mm for 4 multi-edge cutters

1 unit  2423975

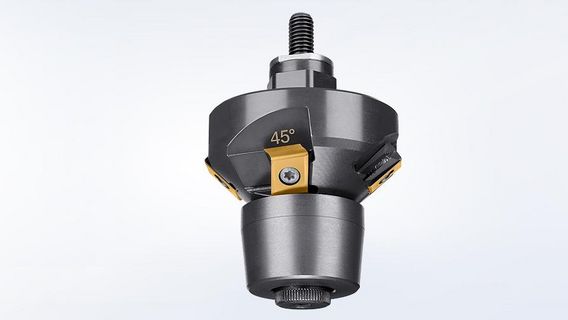

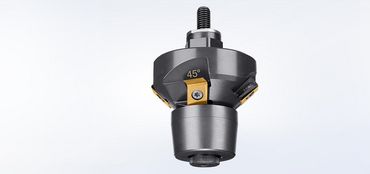

45° multi-edge cutter mount

With impeller Ø 36.2 mm for 4 multi-edge cutters

1 unit  2423973
60° multi-edge cutter mount

With impeller Ø 36.2 mm for 4 multi-edge cutters

1 unit  2423976
Multi-edge cutter mount R

With impeller Ø 36.2 mm for 4 multi-edge cutters.

1 unit  2423977

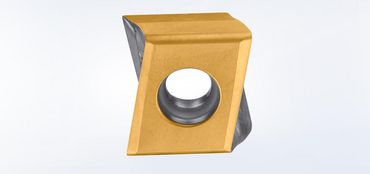

Multi-edge cutters

For steel, stainless steel and aluminum

Set of 10  2420323
Set of 4  2420322
Multi-edge cutters ST radius 2

For steel and aluminum

Set of 10  1232676
Set of 4  2435949

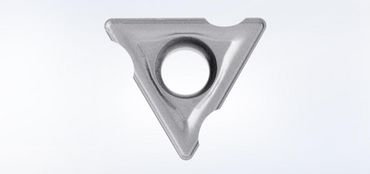

Multi-edge cutters ST radius 3

For steel and aluminum

Set of 10  1232671
Set of 4  2435950
Multi-edge cutters ST radius 4

For steel and aluminum

Set of 4  2435971
Multi-edge cutters CR radius 2

For stainless steel

Set of 10  1232691
Set of 4  2435973
1 unit  2507550

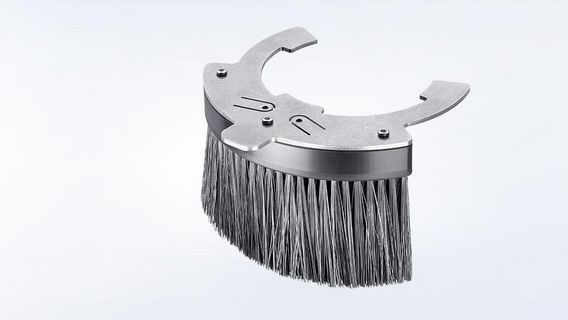

Chip protection

1 unit  2424143

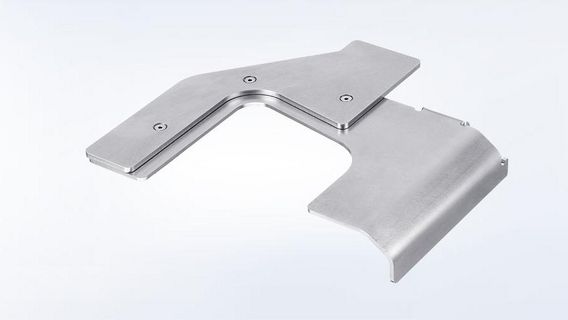

Run-in guide

1 unit  2420198
Screwdriver set

Allen 5 mm, Allen 6 mm and TORX screwdriver T15 x 118

1 unit  2467043
Safety glasses

  0037232
Box for small parts

1 unit  0353966
Lubricating grease G3

3.5 oz.  0353969
Punching and nibbling oil for aluminum

  0125874
Punching and nibbling oil for steel

500 ml  0103387
Case

1 unit  2398010

Excellent guidance

The guide handle provides maximum stability while applying the optimum pressure. The tool can then be safely and precisely guided. The low handle, just nine centimeters from the work surface, minimizes the tilting moment and enables you to guide the machine smoothly with minimal effort. A further benefit.

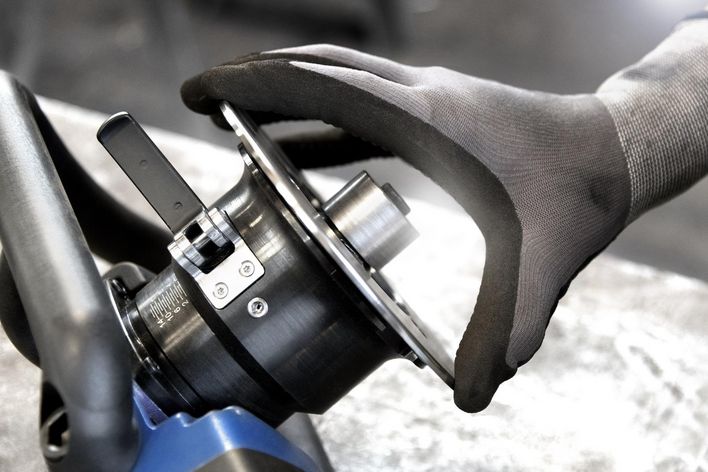

In the blink of an eye

You can set the chamfer length as required using a dial ring over the support plate. A maximum of a ¾ turn enables you to set the desired length precisely, quickly and without tools. The cutting depth setting is firmly fixed during machining and guarantees a consistent chamfer length. A dimensionally accurate fine adjustment is required to produce radii. The dial ring also makes this easy to achieve.

TruTool TKA 1500 45° tool
TruTool TKA 1500 without tool
Maximum chamfer lengths / Maximum chamfer heights
Maximum chamfer length, steel 400 N/mm² 15 mm 15 mm
Maximum chamfer height, steel 400 N/mm² 10.6 mm 10.6 mm
Maximum chamfer length, steel 600 N/mm² 12 mm 12 mm
Maximum chamfer height, steel 600 N/mm² 8.5 mm 8.5 mm
Maximum chamfer length, steel 800 N/mm² 10 mm 10 mm
Maximum chamfer height, steel 800 N/mm² 7.1 mm 7.1 mm
Maximum chamfer length, aluminum 250 N/mm² 15 mm 15 mm
Maximum chamfer height, aluminum 250 N/mm² 10.6 mm 10.6 mm
Radii
Smallest inner radius 30 mm 30 mm
Smallest bore hole (Ø) 55 mm 55 mm
General
Minimum sheet thickness 3 mm + hs 3 mm + hs
1.5 m/min 1.5 m/min
Nominal input power 2600 W 2600 W

Length 679 mm 679 mm
Height 197 mm 197 mm
Weight
Weight 10 kg 10 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
