Small and handy

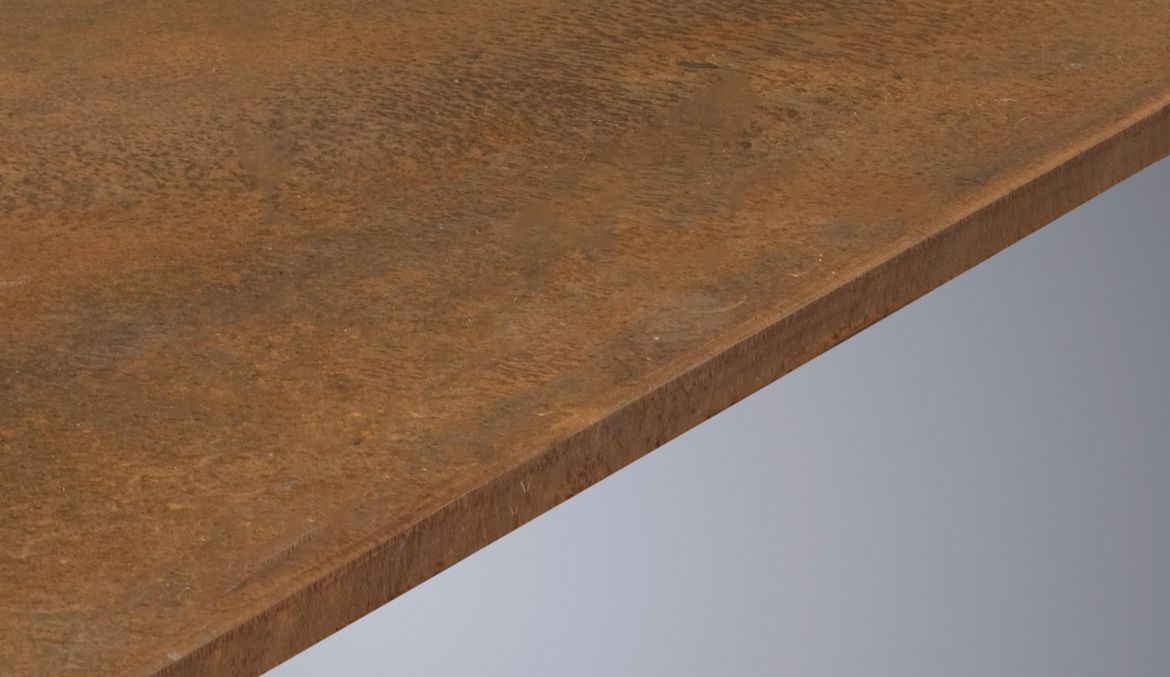

With the TruTool TKF 700, you can achieve chamfer lengths up to 0.27 in. on straight sheets as well as on tubes. The quick-adjustment mechanism makes it easy to change the carrier and cutting direction. The TruTool TKF 700 is the lightest model in its class. The machine can be easily guided manually in a vertical, horizontal, or upside-down position, or can be used stationary in a work station. The round handle ensures comfortable work operations.
At just 12 lbs., the TruTool TKF 700 is the lightest and smallest model.
The chamfer height and sheet thickness can be easily adjusted without tools.
You can rotate the cutting direction by 90° to the right or left.

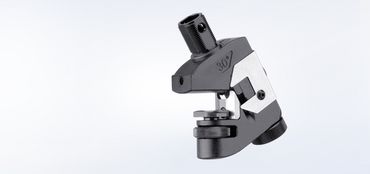

You can choose from three carriers for individual bevel angles.

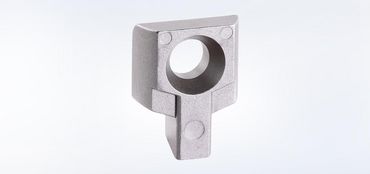

The following consumables and the corresponding accessories are included in the scope of delivery.
1 unit 0131063
1 unit 0131549
1 unit 0067857
1 unit 0067857
1 unit 1369906
1 unit 0130868
1 unit 1770951
Find the right consumables and accessories for your machine here
TruTool TKF 700 30° bevel angle
TruTool TKF 700 37.5° bevel angle
TruTool TKF 700 45° bevel angle
|Maximum chamfer lengths|
|Maximum chamfer length, steel 400 N/mm²||7 mm||7 mm||7 mm|
|Maximum chamfer length, steel 600 N/mm²||5.7 mm||5.7 mm||5.7 mm|
|Maximum chamfer length, steel 800 N/mm²||4 mm||4 mm||4 mm|
|Smallest radius||40 mm||40 mm||40 mm|
|Working speed||1.5 m/min||1.5 m/min||1.5 m/min|
|Stroke rate at nominal load||815 1/min||815 1/min||815 1/min|
|Nominal input power||1700 W||1700 W||1700 W|
|Sheet thickness||1 mm - 20 mm||1 mm - 20 mm||1 mm - 20 mm|
|Weight without cable||5.3 kg||5.3 kg||5.3 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
