TruMatic 6000 fiber, productive thin sheet machine
TruMatic 6000 fiber, productive thin sheet machine
Punch laser machines

TruMatic 6000 fiber

Productive thin sheet machine

TruMatic 6000 fiber with SheetMaster and GripMaster
TruMatic 6000 fiber with SheetMaster and GripMaster
Punch laser machines

TruMatic 6000 fiber

The well thought-out housing concept facilitates optimum accessibility

TruMatic 6000 fiber, non-ferrous metal processing
TruMatic 6000 fiber, non-ferrous metal processing
Punch laser machines

TruMatic 6000 fiber

Ensure optimum productivity and process reliability when cutting non-ferrous metals such as brass, copper, and even titanium

Productive thin sheet machine

The TruMatic 6000 fiber combines highest process reliability and flexibility. The solid-state laser opens up a wide range of materials to you, and processes thin sheets with cutting speeds of up to 1338 in/min. In this way, you can process non-ferrous metals, film-coated stainless steel, and galvanized sheet particularly productively. Intelligent solutions for operation parallel to production ensure that your investment pays off even faster. Various automation options guarantee process-reliable operation during the night and on the weekend.

Maximum productivity

Cutting speeds of up to 1338 in/min ensure your thin sheet processing is highly productive.

Efficient and economical

The solid-state laser guarantees a high level of efficiency and an excellent energy balance.

Scratch-free processing

The descending die enables scratch-free punching and forming processes.

High variety of materials

The TruDisk cuts non-ferrous metals, film-covered stainless steel, and galvanized sheets efficiently.

Gentle removal

You can remove parts in a process reliable way via sensor-protected flaps.

Clever automation

With the SheetMaster, you can load, unload, and sort parts in a process reliable and automated way.

TruMatic 6000 fiber
Combined technologies – combined benefits: See the video for how to advance your production with punch laser machines – reducing your part costs, for example.
SheetMaster with tool changer
TruMatic 6000 fiber, single cutting head strategy
One cutting head for everything

With the TruMatic 6000 fiber, you can process all types of materials and thicknesses with the same cutting head due to the beam guidance. There is no need to change the head, meaning that non-productive times are reduced.

TruMatic 6000 fiber, productive thin sheet machine
Complete processing of the part – generally not required

The electro-hydraulic punching head completely processes parts, and for the most parts, makes downstream work steps, such as deburring, unnecessary.

SheetMaster, loading unprocessed materials, and unloading and sorting finished parts
Fast loading and unloading with optimum process reliability

The SheetMaster loads material parallel to production. As such, production continues without interruption, regardless of whether you are changing materials or replenishing supplies.

ToolMaster, flexible tool system
Easy tool handling

The ToolMaster is loaded parallel to production – prepared tools are brought into the tool changer without interrupting production and tools are removed for regrinding.

TruMatic 6000 fiber, fully automated
Fully automated

Due to its varied automation components, the TruMatic 6000 fiber operates reliably around the clock.

TruMatic 6000 fiber, honeycomb component

Extended forming options

High quality outer contours and delicate inner contours: With the slim laser head of a TruMatic, you can cut very near to, or even on, forms which have already been created. You can also achieve unusual contours with process reliability. You can process non-ferrous metals such as brass, copper, or titanium to the highest quality due to the solid-state laser. You can integrate formed sections quite easily into the process sequence. In the process, the material is always handled gently, and carefully removed from the machine.

Sample parts from non-ferrous metals

Material range

The TruDisk solid-state laser is resistant to reflections. Even highly reflective materials such as copper or brass can be processed without affecting process reliability.

TruMatic 6000 fiber medium format
TruMatic 6000 fiber large format
Width 9231 mm 1 9945 mm 1
Depth 8003 mm 1 8862 mm 1
Height 2500 mm 1 2500 mm 1
Maximum stroke rate
Punching (E = 1 mm) 1000 1/min 917 1/min
Marking 2800 1/min 2800 1/min
Working range
Punching mode, X axis 2500 mm 3050 mm
Punching mode, Y axis 1250 mm 1550 mm
Laser operation, X axis 2500 mm 3050 mm
Laser operation, Y axis 1250 mm 1550 mm
Combined operation, X axis 2500 mm 2500 mm
Combined operation, Y axis 1250 mm 1550 mm
Maximum sheet thickness 6.4 mm 6.4 mm
Maximum workpiece weight 150 kg 230 kg
Maximum punching force 180 kN 180 kN
MultiTool tool changing time 0.3 s 0.3 s
Number of tools/clamps 22 pieces / 3 pieces 22 pieces / 3 pieces
Laser-specific data - TruDisk 3001
Maximum laser power 3000 W 3000 W
Maximum sheet thickness, mild steel 6 mm 6 mm
Maximum sheet thickness, stainless steel 6 mm 6 mm
Maximum sheet thickness, aluminum 5 mm 5 mm
Maximum sheet thickness, copper 6 mm 6 mm
Maximum sheet thickness, brass 6 mm 6 mm
Part removal
Maximum part size, part removal flap, punching 500 mm x 500 mm 500 mm x 500 mm
Maximum part size, fixed chute, punching (with moving table) 80 mm x 50 mm 80 mm x 50 mm
Maximum part size, part removal flap, laser 500 mm x 500 mm 500 mm x 500 mm
Consumption values
Average power input in production - TruDisk 3001 15 kW 15 kW
Auto-shutdown active - TruDisk 3001 0.6 kW 0.6 kW

With the TruDisk solid-state laser and the descending die, you can process the entire material spectrum, including formed sections, at an outstanding quality level. You can even cut copper and brass reliably with optimum edges.


TruMatic 6000, descending die
Descending die

The descending die enables scratch-free punching and forming processes. If required, the die can be lowered during positioning so the sheet does not have any contact with the die – for both punching as well as higher forming dies. When forming downwards, there is no longer the risk of things getting caught.

TruMatic 6000, brush table
Ball tables or brush tables

For sensitive materials, which must not have any scratches underneath, you can use brush tables combined with the descending die. Parts which are to be subsequently painted, can also be processed on the handy ball table.

Process reliability

Smart load

Smart load supports sheet alignment on the machine. A sensor in the clamps detects when they do not clamp the machine correctly. If this is the case, the machine table, including sheet, moves.

Smart unload

If a finished part does not fall through the part removal flap as expected, a sensor detects this and it is rectified by the machine. Your part is detached and is removed safely.

Smart punch monitoring

Before the tool change, smart punch monitoring checks whether a hole was actually punched into the sheet. In this way, the machine detects at an early stage when punches are broken, and can pass this information on to the operator. This means that you can avoid rejects, particularly during night and weekend shifts.

Connectivity key visual
Digital connection and integration for smart solutions

Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.


Integrated flattening

During the punching of sheet metal, compression and tensile stresses are placed on the workpiece which can cause sheet deformation. The integrated flattening machine function and the corresponding tool make it possible to even out surface irregularities during the punching process itself.

TruMatic 6000 fiber, protective glass
Protective glass

The protective glass reduces lens wear by optimally protecting the beam guidance against dirt. Due to a special coating and the highest purity of the lens, the best cutting results are guaranteed.


MobileControl app

With the MobileControl app from TRUMPF you can operate and monitor your machines easily and with flexibility as the app transmits the interface of the standard control panel onto the touch screen of your tablet PC. In addition to the static control panel, you have another option for monitoring and controlling your machine.

Large format processing

The TruMatic 6000 fiber is available in different sizes. The large version enables the processing of parts in a working area of up to 120 x 42 inches. This means even particularly large parts can be processed and more part geometries are possible.

TruTops Boost

Construct and program your laser, punching, and combination punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.


The software portfolio from TRUMPF optimizes your entire production process – from the customer query through to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customized Industry 4.0 solutions for your Smart Factory.

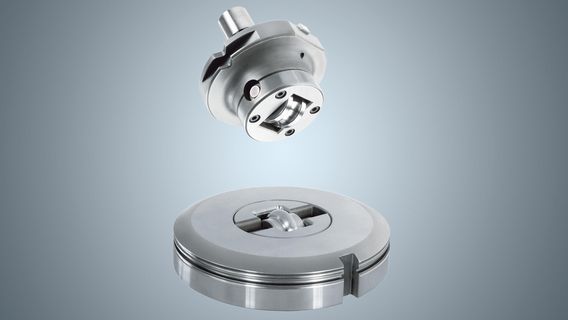

Roller beading tool

You can use the roller technology to create straight and curved beads of any length in the sheet. This produces high-quality workpieces without visible forming marks.

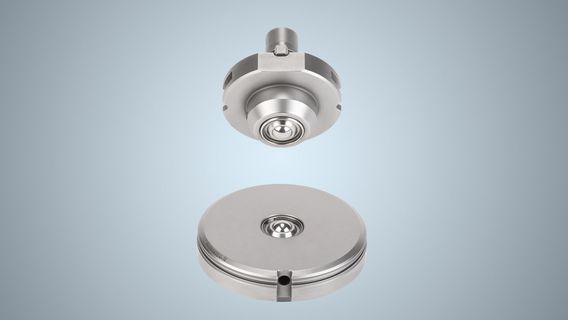

Ball deburring tool
Ball deburring tool

Deburr geometries of different sizes directly on the machine. As such, you benefit from perfectly deburred workpieces and shorter production times.

Engraving tool

Using the engraving tool you can mark sheet metal parts in path mode with flexibility. The non-cutting processing ensures results of the highest quality.

Punching tools at a glance

TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.

With the automation of your TruMatic 6000 fiber, you profit from higher machine utilization, and increased process reliability in automated multiple-shift operation. The modular concept also provides you with flexibility.


Loading + unloading + sorting

The SheetMaster guarantees the fast and process-reliable loading, unloading, unstacking, and sorting of your finished parts.

SortMaster Box


The SortMaster Box automatically sorts small parts which are removed via the punching or laser flap.



The GripMaster ensures convenient scrap skeleton handling. It removes scrap skeletons and remainder strips automatically and stacks them on a scissor table.


Tool handling

The ToolMaster provides space for 40 to 70 tools which are automatically positioned in the linear magazine of your machine. This means you can complete even complex orders with numerous tool changes quickly and automatically.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.

  • The dimensions are approximate; the dimensions specified in the installation plan are valid.
