LiftMaster Linear Basic, slim frame solution
LiftMaster Linear Basic, slim frame solution
Automation

LiftMaster Linear Basic

The slim frame solution

The slim frame solution

The LiftMaster Linear Basic is the slim solution for automated loading and unloading of sheets. In comparison to the "large" LiftMaster it requires around 15% less installation area. In addition, you can connect several machines to the LiftMaster Linear Basic. In this way, you can increase the utilization of up to two machines at a maximum of four tool stations. Cart systems, loading stations, and unloading platforms can be integrated with flexibility if required. Storage connection is indirectly possible for the LiftMaster Linear via a cart system.

Increase machine utilization

Automatically load and unload up to two processing machines simultaneously.

Flexible in terms of layout

Cart systems, loading stations, and unloading platforms can be integrated to suit your exact needs.

Highest part quality

Low-scratch unloading with belt prongs protects your parts.

LiftMaster Linear Basic, loading and unloading of up to two machines
LiftMaster Linear Basic
Loading
Maximum sheet size 3000 mm x 1500 mm
Minimum sheet size 1000 mm x 1000 mm
Maximum sheet thickness 25 mm
Maximum sheet weight 900 kg
Unloading
Maximum sheet size 3000 mm x 1500 mm
Minimum sheet size 150 mm x 150 mm
Maximum sheet thickness 25 mm
Maximum sheet weight 900 kg
LiftMaster Linear Basic, suction frame
Suction frame/unloading rake

The unloading rake takes the finished, processed sheet from the pallet changer and places it in the unloading area. The suction frame is fitted with individually controllable suction cups that pick up the unprocessed sheets from the loading area and places them on the pallet changer.

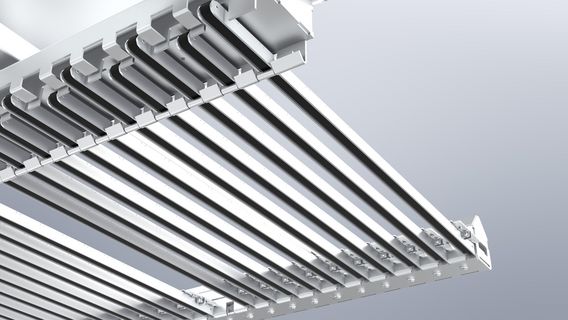

LiftMaster Linear Basic, belt prongs
Belt prongs

So-called belt prongs enable unloading of parts with high positioning accuracy and minimal scratching.

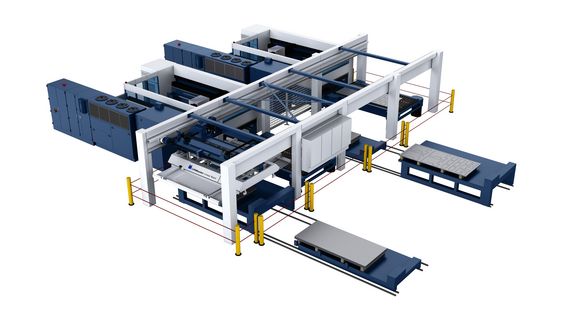

LiftMaster Linear Basic, multiple-machine connection
Multiple-machine connection

With the LiftMaster Linear Basic you can load and unload up to two processing machines simultaneously.

TruLaser 3030 with LiftMaster Linear Basic

TruLaser 3030 with LiftMaster Linear Basic

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
