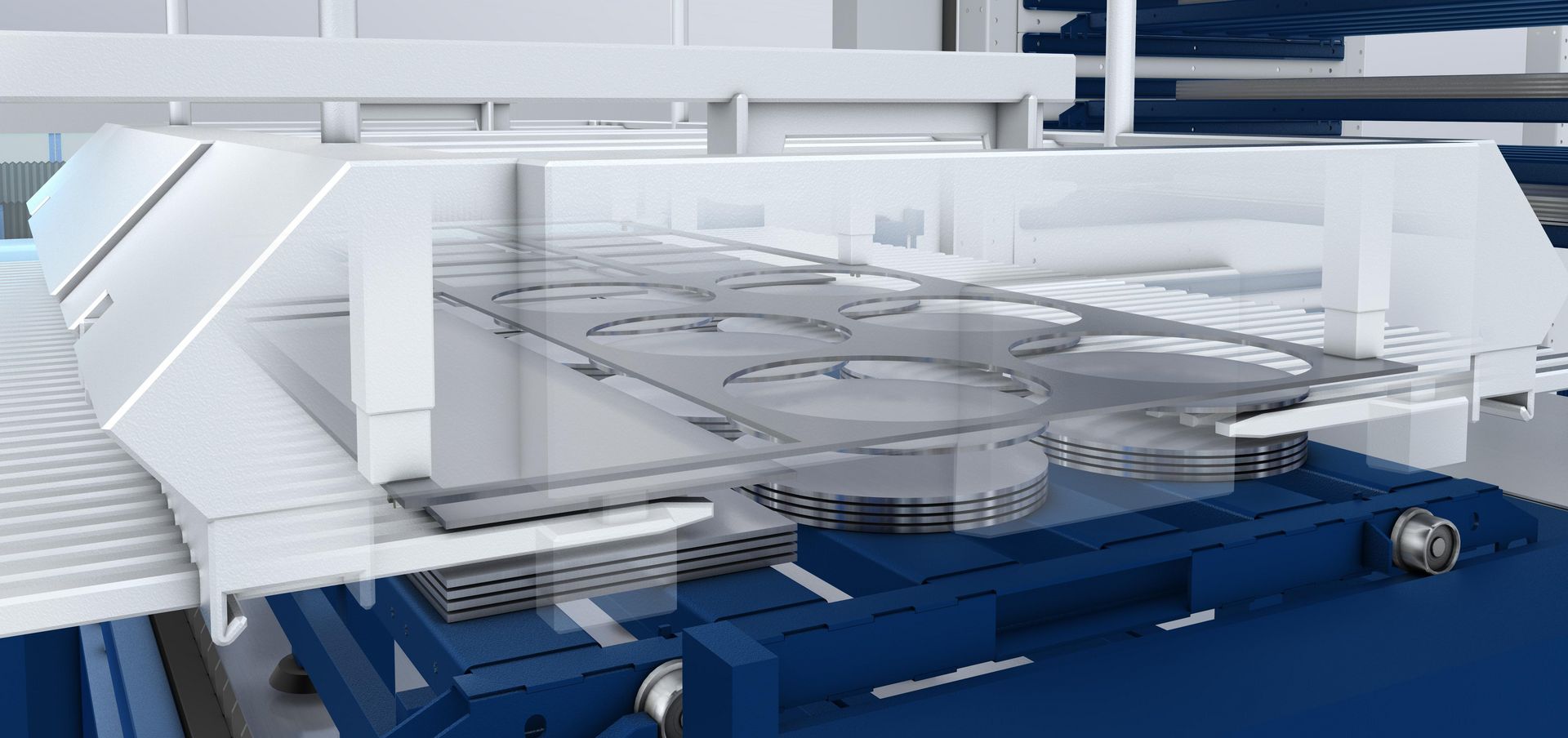

LiftMaster Linear, scrap skeleton separation

Automation components for 2D laser cutting machines

Automate your TruLaser laser cutting machine. For this, TRUMPF offers you a wide selection of modular components to find exactly the right automation solution for your production tasks. These range from semi-automatic loading to a fully automated machine with storage connection.

Loading

LoadMaster, Jede 2-D-Lasermaschine einfach beladen

These components offer the ability to automatically supply your machine with raw sheets.

LoadMaster

Load material automatically, quickly, with less staff, and with maximum process reliability: The universal LoadMaster loading unit is the perfect automation component for 2D laser machines.

  • TruLaser 1030 fiber / 1040 fiber / 1060 fiber
  • TruLaser 3030 / 3040 / 3060 / 3030 fiber / 3040 fiber
  • TruLaser 5030 / 5040 / 5060 / 5030 fiber / 5040 fiber

Loading and unloading

LiftMaster Compact, our best-in-class

You can load your machine automatically using these components. It is also possible to unload cut sheets.

LiftMaster Compact

The LiftMaster Compact is a fast, compact loading and unloading unit. The dynamic and variable automation solution is particularly attractive for fast sheet processing times.

  • TruLaser 1030 fiber / 1040 fiber
  • TruLaser 3030 / 3040 / 3030 fiber / 3040 fiber
  • TruLaser 5030 / 5040 / 5030 fiber / 5040 fiber
LiftMaster Linear Basic

The LiftMaster Linear Basic is the slim solution for automated loading and unloading of sheets.

  • TruLaser 1030 fiber
  • TruLaser 3030 / 3030 fiber
  • TruLaser 5030 / 5030 fiber

Loading, unloading, sorting, and auxiliary pallet operation

LiftMaster, Flexibel be-, entladen und sortieren

These components load and unload your machine and separate finished parts from the scrap skeleton if necessary. You can also benefit from auxiliary pallet operation.

LiftMaster

The automation solution, LiftMaster, covers a broad range of functions because of the variety of setup options. These range from simple loading and unloading processes to pallet handling and part removal.

  • TruLaser 1030 fiber / 1040 fiber
  • TruLaser 3030 / 3040 / 3030 fiber / 3040 fiber
  • TruLaser 5030 / 5040 / 5030 fiber / 5040 fiber
LiftMaster Linear

The LiftMaster Linear is a universal frame solution. It automatically loads and unloads sheets, via its linear axis. It does this for up to three machines and a maximum of six tool stations.

  • TruLaser 1030 fiber / 1040 fiber / 1060 fiber
  • TruLaser 3030 / 3040 / 3030 fiber / 3040 fiber / 3060
  • TruLaser 5030 / 5040 / 5030 fiber / 5040 fiber / 5060
LiftMaster Store

The frame solution, LiftMaster Store, is directly connected to the store and requires minimal space. In return, it offers more latitude to design your production to meet your specific needs. Here, the LiftMaster Store is assisted by a number of tried-and-tested TRUMPF technologies.

  • TruLaser 1030 fiber / 1040 fiber
  • TruLaser 3030 / 3040 / 3030 fiber / 3040 fiber
  • TruLaser 5030 / 5040 / 5030 fiber / 5040 fiber

Sorting

Sort Master

This component sorts small and large parts fully automatically.

SortMaster

The SortMaster takes out, sorts, and stacks cut finished parts. When connected to the store with a LiftMaster, your 2D laser machine can be operated completely automatically. In this way you can manufacture reliably, on demand, and around the clock – with maximum reliability and safety due to smart functions.

  • TruLaser 3030 / 3040 / 3030 fiber / 3040 fiber
  • TruLaser 5030 fiber / 5040 fiber
