TRUMPF EdgeLine Bevel

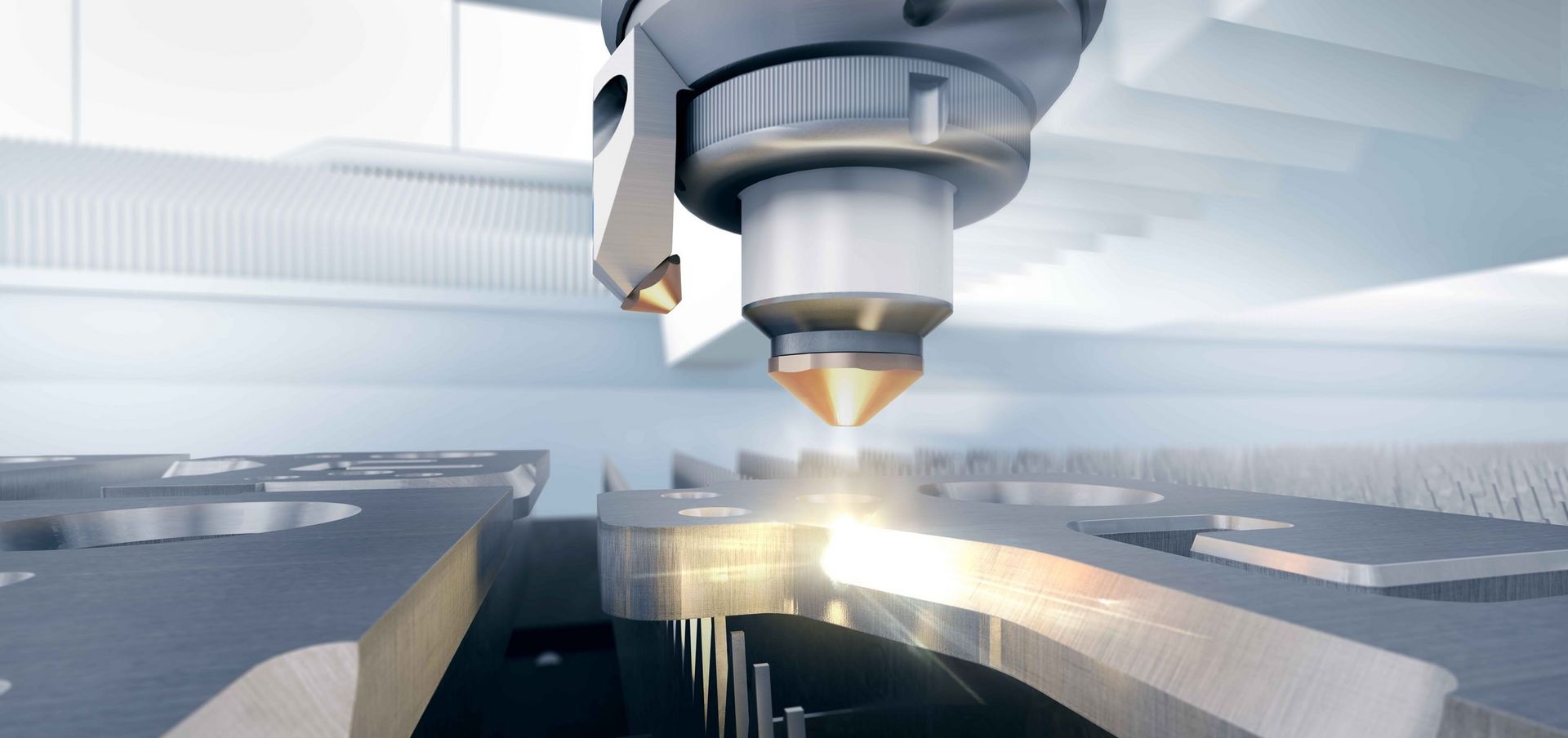

Automatic weld seam preparation, even during cutting

Preparing components for welding? This used to only be possible by hand – until now. With the TRUMPF EdgeLine Bevel, those days are gone! Find out on this page how you can now automatically insert chamfers up to 45° and countersinks of various sizes. In addition to eliminating manual work steps, this has many other advantages. You can read and see exactly which components EdgeLine Bevel is particularly good for here!

Welding preparation: Conventional versus innovative

Weld seam preparation the conventional way: tedious and time-consuming

Previously, anyone wishing to produce beveled cutting edges on the contours of components had to manually introduce these so-called chamfers into the component in an additional work step using a milling machine, a grinding machine or an angle grinder. This process turns out to be not only labor-intensive, but also very time-consuming. But generating chamfers automatically? Previously, this was only possible with more complex machines equipped with a special 3D cutting head.

TRUMPF EdgeLine Bevel: The brave new world of weld seam preparation with chamfers

With EdgeLine Bevel from TRUMPF, chamfers can be generated automatically on standard laser cutting machines. The innovative technology also enables chamfers to be applied to the component's inner contours for the first time; these are difficult for an employee to access with an angle grinder.

At a glance: The advantages of EdgeLine Bevel

Faster and more efficient

As a supplier for the entire "sheet metal process chain", TRUMPF offers EdgeLine Bevel to help make production even more efficient for users. For example, the automatic weld edge preparation during cutting eliminates many manual process steps.

More flexible

Since the chamfers are automatically generated directly on laser cutting machines, there is significantly greater freedom of contour and of machining. In addition to chamfers, EdgeLine Bevel also automatically generates countersinks for screw connections.

Simpler

Due to the very fast and simple programming, the EdgeLine Bevel function is even suitable for companies that only occasionally produce components with chamfers and countersinks.

Fewer errors

Thanks to automatic weld edge preparation and the elimination of many work steps that otherwise had to be performed "manually" by an employee, the risk of errors in production is reduced; the quality of the components increases accordingly.

EdgeLine Bevel: Application of chamfers up to 45° and countersinks in different sizes

Goodbye, manual chamfers – Hello, EdgeLine Bevel!

Do you also want to say goodbye to manual weld seam preparation for good? Our EdgeLine Bevel experts will be happy to advise you on how to apply edges directly and automatically during laser cutting in the future! Just get in touch with us.

Contact

Use these TRUMPF machines to benefit from the new world of weld edge preparation

TruLaser Series 1000

The compact space-savers of the TruLaser Series 1000 impress with their extremely low investment and operating costs, as well as their operation, which is revolutionary in its simplicity.
