The innovative Delta Drive not only saves space and expands your material handling - it also scores points when it comes to environmental protection. Working together with the solid-state laser, it reduces the system's power input by around 65% - which relieves your operating costs while also benefiting to the environment.
Productive universal machine for punched and laser parts of the highest quality
For all-rounders aiming to manufacture productively and yet economically: the compact TruMatic 3000 fiber combines the advantages of punching technology with high-quality laser cutting. Parts can be manufactured entirely on just one machine, thereby eliminating the need for follow-up processes. It achieves outstanding part quality thanks to the descending die and is easy to operate with the touchpoint HMI.
Punching and laser cutting in one

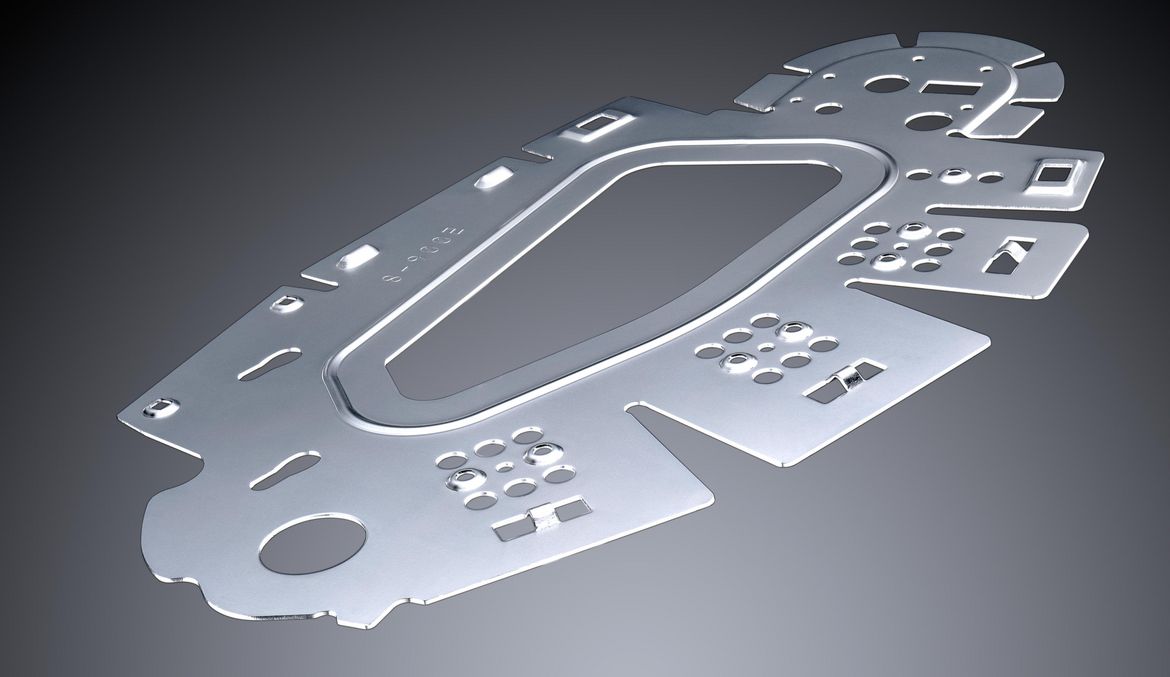

Sample part with laser-cut contour and extrusions, roller beading, stepping, and marking produced with punching tools.
The TruFiber solid-state laser is resistant to reflections. Even highly reflective materials such as copper or brass can be processed without affecting process reliability.
Cost-effectively produce small parts
Thanks to the "Small part ejection" function, you can cost-effectively produce high quantities of small parts from relatively thick material.
Extended forming options

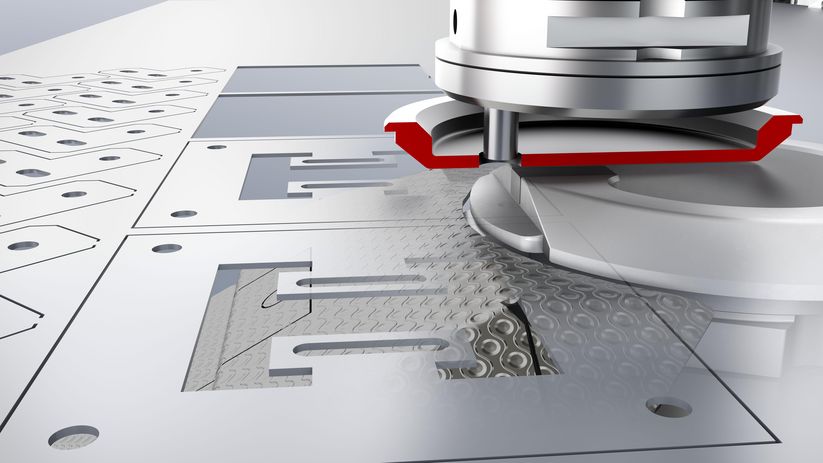

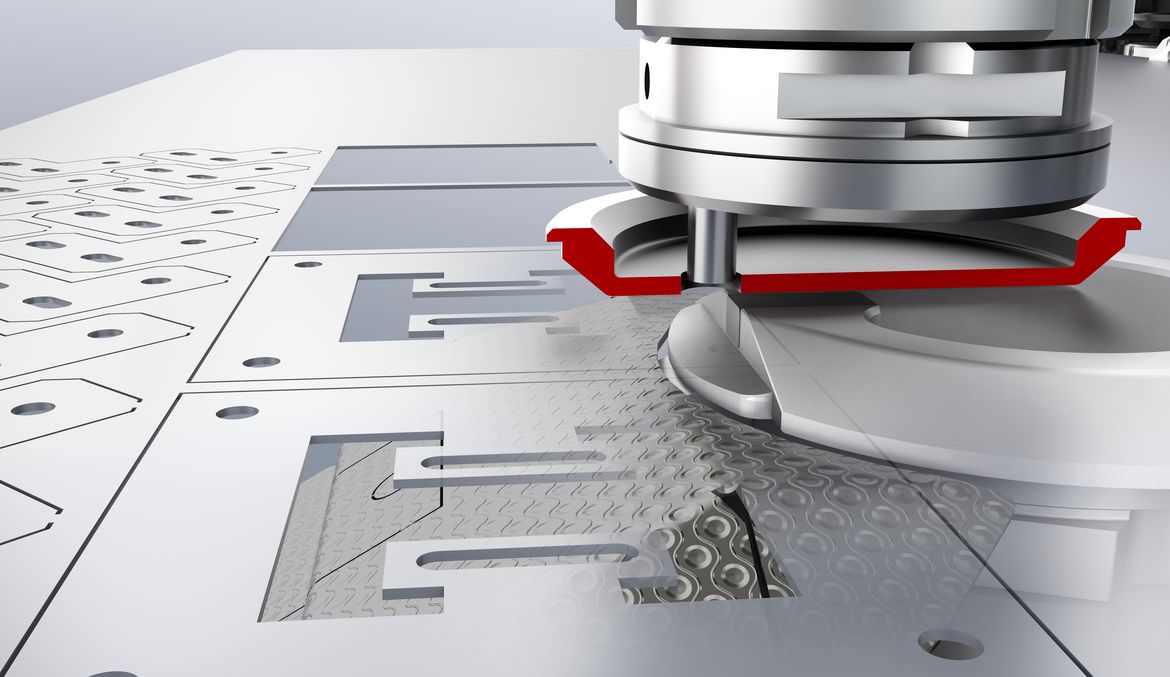

High quality outer contours and delicate inner contours: With the slim laser head of a TruMatic, you can cut very near to, or even on, forms which have already been created. You can also achieve unusual contours with process reliability. You can process non-ferrous metals such as brass, copper, or titanium to the highest quality due to the solid-state laser. You can integrate formed sections quite easily into the process sequence. In the process, the material is always handled gently, and carefully removed from the machine.
TruMatic 3000 fiber medium format
TruMatic 3000 fiber large format
|Width||6935 mm||8082 mm|
|Depth||6281 mm||7780 mm|
|Height||2330 mm||2330 mm|
|Maximum stroke rate|
|Punching (E = 1 mm)||800 1/min||690 1/min|
|Marking||1000 1/min||1000 1/min|
|Punching mode, X axis||2500 mm||3000 mm|
|Punching mode, Y axis||1250 mm||1550 mm|
|Laser operation, X axis||2500 mm||3000 mm|
|Laser operation, Y axis||1250 mm||1550 mm|
|Combined operation, X axis||2535 mm||2535 mm|
|Combined operation, Y axis||1250 mm||1550 mm|
|Maximum sheet thickness||6.4 mm||6.4 mm|
|Maximum workpiece weight||150 kg||230 kg|
|Maximum punching force||180 kN||180 kN|
|MultiTool tool changing time||0.5 s||0.5 s|
|Number of tools/clamps||21 pieces / 3 pieces||21 pieces / 3 pieces|
|Laser-specific data - TruDisk 3001|
|Maximum laser power||3000 W||3000 W|
|Maximum sheet thickness, mild steel||6 mm||6 mm|
|Maximum sheet thickness, stainless steel||6 mm||6 mm|
|Maximum sheet thickness, aluminum||5 mm||5 mm|
|Maximum sheet thickness, copper||6 mm||6 mm|
|Maximum sheet thickness, brass||6 mm||6 mm|
|Maximum part size, fixed chute, punching (with moving table)||180 mm x 180 mm||180 mm x 180 mm|
|Maximum part size, part removal flap, laser||400 mm x 600 mm||400 mm x 600 mm|
|Average power input in production - TruDisk 3001||8 kW||8 kW|
|Auto-shutdown active - TruDisk 3001||0.6 kW||0.6 kW|
With its hybrid axis concept and electric punch drive, the Delta Drive is extremely energy-efficient. Combined with the solid-state laser, it saves around 65% energy compared to a conventional punch laser machine. That significantly reduces your CO2 footprint.
The descending die enables scratch-free punching and forming processes. If required, the die can be lowered during positioning so the sheet does not have any contact with the die – for both punching as well as higher forming dies. When forming downwards, there is no longer the risk of things getting caught.
For sensitive materials, which must not have any scratches underneath, you can use brush tables combined with the descending die. Parts which are to be subsequently painted, can also be processed on the handy ball table.
When punching sheet metals, compression and tensile stresses are placed on the workpiece which can cause sheet deformation. The integrated flattening machine function and the corresponding tool make it possible to even out surface irregularities during the punching process itself.
Before a tool change, this function checks whether the sheet has actually been punched. In this way, the machine detects at an early stage when punches are broken, and can pass this information on to the operator. The smart punch monitoring function therefore avoids rejects, especially during night or weekend shifts.
The Delta Drive decouples the punch and the die and so enables new punch applications. One highlight of punch laser operation is process-reliable removal of small, laser-cut parts. The upper tool punches with a slight offset, which means that small parts do not fall through the die into the scrap container but instead slide through a part chute into waiting boxes.
Your machine automatically sorts parts up to a size of 7 x 7 in. Finished parts go through a chute into an intermediate buffer storage. There are four different boxes under the machine. The intermediate buffer storage moves to the correct box and adds the parts to this.
Parts that are removed via the large part removal flap can be transported into boxes via conveyor belts.
The chip conveyor can be used to automatically transport punching slugs into a container.
Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.
It can be very easy to program punching or punching-laser parts – machine operation becomes as intuitive as when using a tablet or smartphone with the new Touchpoint-HMI from TRUMPF. It helps you finish the part much more quickly – and even novices will quickly learn how to work with the software.
With the MobileControl app from TRUMPF you can operate and monitor your machines easily and with flexibility as the app transmits the interface of the standard control panel onto the touch screen of your tablet PC. In addition to the static control panel, you have another option for monitoring and controlling your machine.
Construct and program your laser, punching, and combined punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.
The software portfolio from TRUMPF optimizes your entire production process – from the customer query to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customized Industry 4.0 solutions for your Smart Factory.
You can boost the productivity of your punching or punch laser machine with a tool adapter for up to ten inserts – in particular for small punching operations.
90° bends of different lengths up to 55 mm: When working with the MultiBend, there is no need for an additional operation on the bending machine.
The descending die enables a scratch-free punching and forming operation and prevents the risk of things getting caught.
Remove small laser cut parts with process reliability and separate finished parts from remaining parts at the same time.
TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.
Bring clarity to your procedures with our automation solutions. Employees can concentrate on their core tasks and customers will value you as a reliable supplier. You produce more cost-effectively and gain financial flexibility.
Loading + unloading
The SheetMaster Compact takes over the process-reliable loading of sheets as well as the unloading of microjoint sheets and scrap skeletons. In this way, the machine operates completely automatically, if required, with a load capacity of up to three tonnes. This increases productivity and also relieves the strain on the operator.
The SortMaster Compact removes and sorts the parts from your punch laser machine fully automatically. Especially when it comes to small and complex parts, the individually controllable suction cups make it possible to remove parts in the optimum way. Due to the minimal installation area, there are no extra space requirements.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
