With its ingeniously simple continuous path control, the innovative angle drive of the TruBend Center ensures maximum accuracy. The interaction between two axes provides the ideal traverse path to protect the surface of your component. The drive design also makes your TruBend Center particularly robust for everyday industrial applications.
Semi-automatic panel bender
The TruBend Center 5030 sets the standard when it comes to flexibility during panel bending. Discover what is arguably the widest range of parts in this machinery category with the semi-automatic TruBend Center 5030. Go far beyond traditional panel bending capabilities, process complex workpieces quickly and with flexibility. Produce components for an array of industrial purposes and applications, from delicate shrouds up to large-scale trays.
Mild steel drawer, sheet thickness 0.6 mm
High repeatability for different bends.
Mild steel housing cover
Maximum accuracy, even in thicker materials.
Stainless steel drawer
Radius bending with double sheet.
Stainless steel screen trim
Short sides combined with radius bending.
Mild steel container
Maximum accuracy during production.
Mild steel guard plate
High repetition accuracy for a variety of bends.
Numerous functions ensure the TruBend Center 5030 is precise and productive.
ACB laser is an optical bending angle correction system that operates without contact: A laser projects a line onto the sheet, and a camera then detects the angle.
The 3-surface suction module positions the sheet using suction cups on the front face, top, and bottom. If there is an insufficient suction area, magnetic or gripper modules take on this task.
For components with an insufficient suction area, other gripper systems take over sheet positioning. For these generally smaller components, so-called magnetic or gripper modules are used.
You can call up the right bending program in an instant using the 2D code scanner or a Bluetooth scanner. The 2D code scanner is connected to the machine, reads a bar code or Data Matrix Code from the paper, and automatically loads the program; the Bluetooth scanner can even scan the sheet metal.
Program parallel to production and produce without paper – the additional monitor on the machine control shows you further information in addition to the required screens and drawings for programming and production. This allows you to program and produce at the same time by using shop floor programming, for example.
The on-demand servo drive supplies your TruBend machine with precisely the amount of energy needed. It only runs during the bending process; otherwise the hydraulic system is stationary and does not use any energy. If the press beam has to overcome a large pressing depth, it supports it with increased working speed. The drive operates economically, quickly, and extremely quietly.
Save yourself time and increase quality during the automatic creation of your programs on the basis of 2D or 3D data. This is possible using TecZone Fold, the programming system for automatic offline programming of TruBend Center panel benders.
The software portfolio from TRUMPF optimises your entire production process – from the customer query to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customised Industry 4.0 solutions for your Smart Factory.

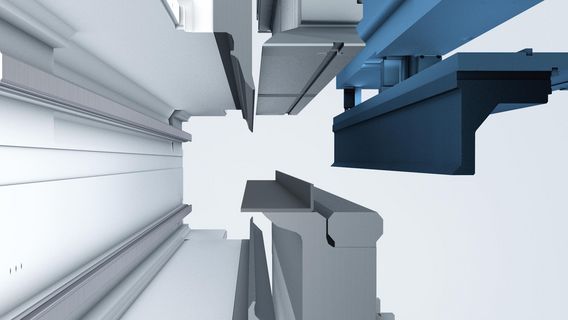

With additional upper blank holders, you can also produce very narrow profiles or components with formed sections near the bending lines. If required, the machine automatically swivels in the ENW extra blank holder from above. The available standard blank holders do not need to be replaced or modified for this.
Extra bending tools can be set up automatically in order to bend flanges or offset bends. When necessary, the tools automatically move to the correct position from their parked position, and process the sheet without using the remaining bending tools.
Nestings with inner edges can be produced easily with the horn blank holders. The "horns" extend and retract automatically at an angle. This means that the upper blank holder can move downwards without causing a collision between the tool and the bend.
