Automation

T-ALM

Loading and Unloading: The product can be used to automatically load the raw material on the machine and unload the finished part from the machine.

Entry-level Automation Solution

The entry-level C-frame automatic loading and unloading unit T-ALM is an economical solution for automated loading and unloading of plates. The flexible layout and user-friendly configuration meet a wide range of customer needs.In addition, it can be connected with the T series storage T-AS to form an automated production system, helping Chinese customers to transfer into intelligent manufacturing easily.

Multi-strategy peeling

Wind + multiple suction cups independent design, triple timing control algorithm, significantly improve the success rate of sheeting, to avoid manual intervention.

Short production cycle

The T-ALM requires about 100 seconds for a complete loading or unloading cycle (including pallet exchange).

Perfect connection to machine and storage

Break the information and signal barriers, realizing real automation

High economic efficiency + short delivery time

High economic efficiency, short delivery period, fully satisfy the requirements of Chinese customers for automation

T-ALM
Loading
Maximum sheet size 3000 mm x 1500 mm
Minimum sheet size 1000 mm x 1000 mm
Maximum sheet thickness 6 mm
Maximum sheet weight 210 kg
Unloading
Maximum sheet size 3000 mm x 1500 mm
Minimum sheet size 1000 mm x 1000 mm
Maximum sheet thickness 6 mm
Maximum sheet weight 210 kg

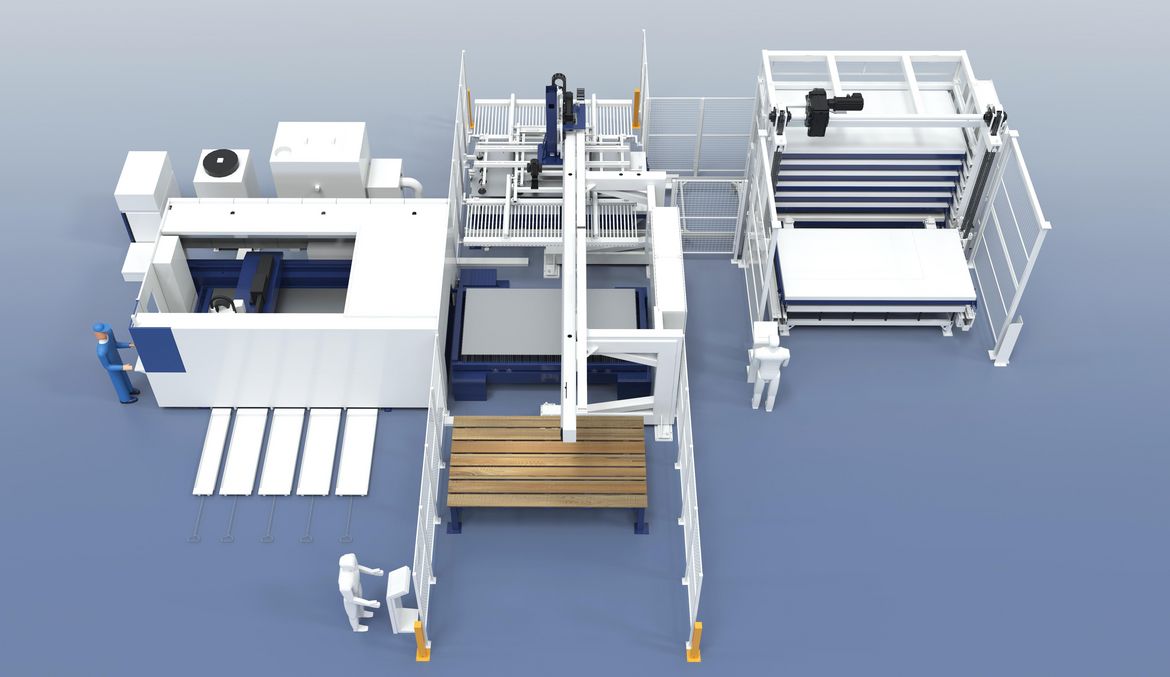

TruLaser Machine + T-ALM automation + T-AS storage

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
