Numerous sensors as well as an optional OPC/UA interface provide comprehensive process and laser data for downstream machining processes.
Make the most of the advantages offered by the next generation of marking lasers
More speed, more precision, more flexibility – the demands placed on laser engraving, ablation, marking, and annealing are continuously growing. With the TruMark 6030 marking laser you will enter a whole new generation of marking while simultaneously opening up a new dimension with the new 3D functionality. The TruMark 6030 delivers high power and brilliant beam quality, both of which are essential for optimal results in any industry. Complemented by modern image processing solutions and high productivity, it increases your performance as well as marking quality.
Due to a high level of available average power as well as increased pulse repetition frequencies, you can work on workpieces with even greater productivity.
Due to integrated power regulation you can mark with the exact power that you set for the process.
Many interfaces, a removable connecting cable, as well as the 19-inch plug-in unit allow you to integrate the laser quickly into your production.
Modern production technologies and powerful optical components make the marking laser a high-end industrial device.
The new TruTopsMark 3D marking software allows you to mark 3D components conveniently and with flexibility.
Adjust the power for the respective process linearly, over the entire frequency range.

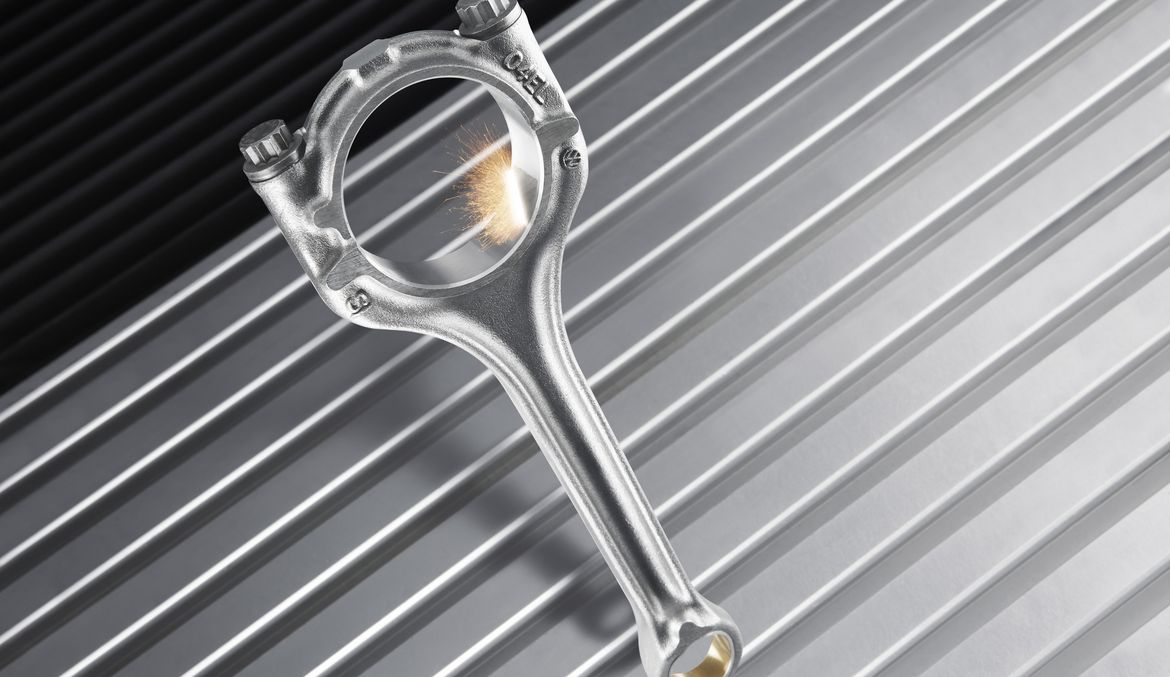

Structuring a connecting rod
During laser structuring, the TruMark 6030 alters the surface of the workpiece in a very precise manner. For example, this enables the tribological characteristics of functional surfaces to be improved precisely. This process is implemented in the manufacture of automotive components, for example.
Ablation of paint layers
With the TruMark 6030 you can easily ablate layers of paint. With short, powerful laser pulses, the irradiance becomes so high that it causes the top layer to melt and evaporate or break down.

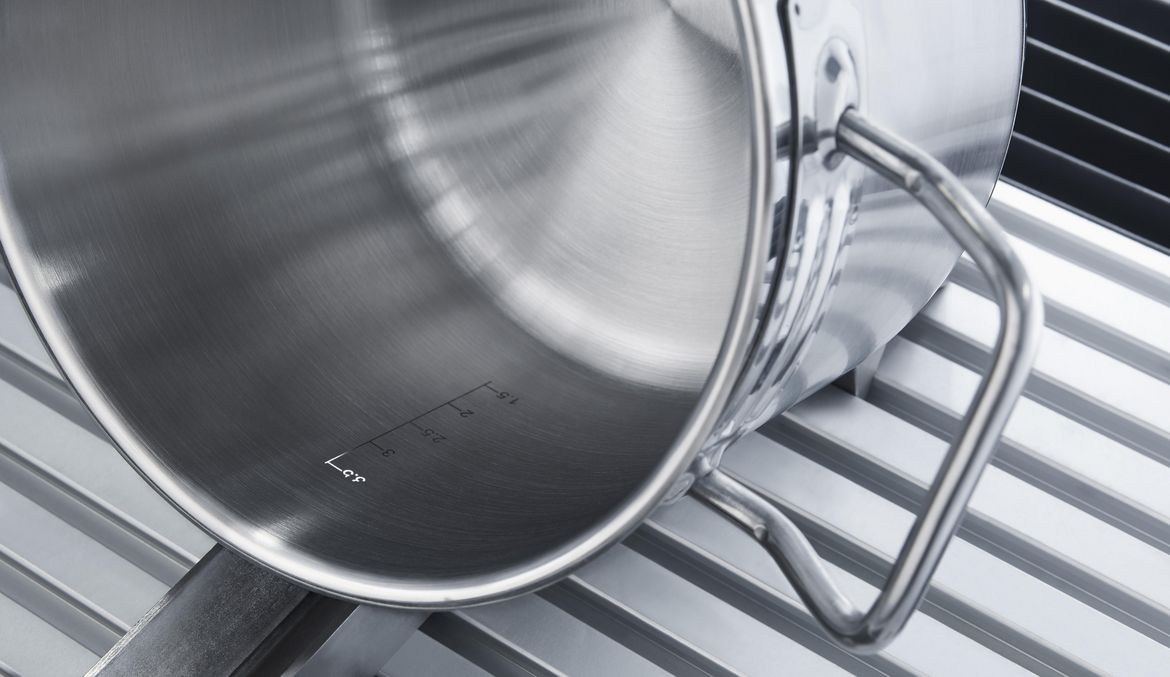

Marking of everyday objects
Be it the showerhead in the bathroom or the saucepan in the kitchen – the TruMark 6030 ensures reliable and permanent marking. After all, clearly visible, high-contrast markings give products a sustainable value.
|Beam quality (M²)||< 1.3|
|Pulse repetition frequency||40 kHz - 200 kHz|
|Minimum focal diameter||50 μm|
|Max. marking volume||330 mm x 330 mm x 100 mm|
|Dimensions of laser head (W x H x D)||156 mm x 214 mm x 435 mm|
|Dimensions of supply unit (W x H x D)||446 mm x 222 mm x 495 mm|
|Ambient temperature||15 °C - 40/45 °C|
The technical data of all product versions as a download.
TruTops Mark 3D
3D marking with TRUMPF marking lasers has never been this fast or easy. Our TruTops Mark 3D marking software impresses through its user-friendly operation and significantly shorter process times. From now on, depending on the application, multiple objects to be marked can be reached with a laser system – especially where multiple lasers would have been required in the past. This makes the marking of three-dimensional surfaces such as sloping or curved surfaces very easy and efficient. In addition to the marking software, the package also includes a comprehensive 3D CAD editor, which can be used to independently create workpieces, and from which drawings for 3D marking can created.
Expand your available marking volume to 180x180x100 mm³, for increased flexibility when it comes to component size.
Extend the lengths of the connecting cables between the supply unit and the processing head from 4 to 6 m.
Work at ambient temperatures of up to 45°C with the processing head of the TruMark 6030.
A number of fieldbus systems such as Profibus, Profinet, EtherCAT, and EthernetIP will assist you with the integration.
With our NAVIGATOR software module, even operators without prior experience can quickly find the right laser settings for different raw materials.
For higher requirements in terms of spray and dust protection according to IP 54, a housing is available with integrated 19-inch supply unit and control computer.
The operating package consists of a monitor, a keyboard, and a mouse to operate the marking laser.
With the optional emissions exhaust system (which is also available externally), you can always work safely with the TruMark 6030.
You can also mark moving parts with the laser in a highly productive and reliable manner.
In the event of an error, TRUMPF service experts will remotely access your laser via a secure remote connection. In many cases the fault can be remedied directly in this way, or the configuration of the laser can be modified in a way that permits you to continue manufacturing until the spare part arrives.
Increase your process reliability with VisionLine, TRUMPF's image processing solution. VisionLine detects the position of the component and ensures that marking takes place in the correct location. It is also possible to read out and check the marked code. The modular structure opens up numerous options. Whether the camera looks through the scanner lens, is laterally installed or whether the machine uses one or two cameras – anything is possible.
